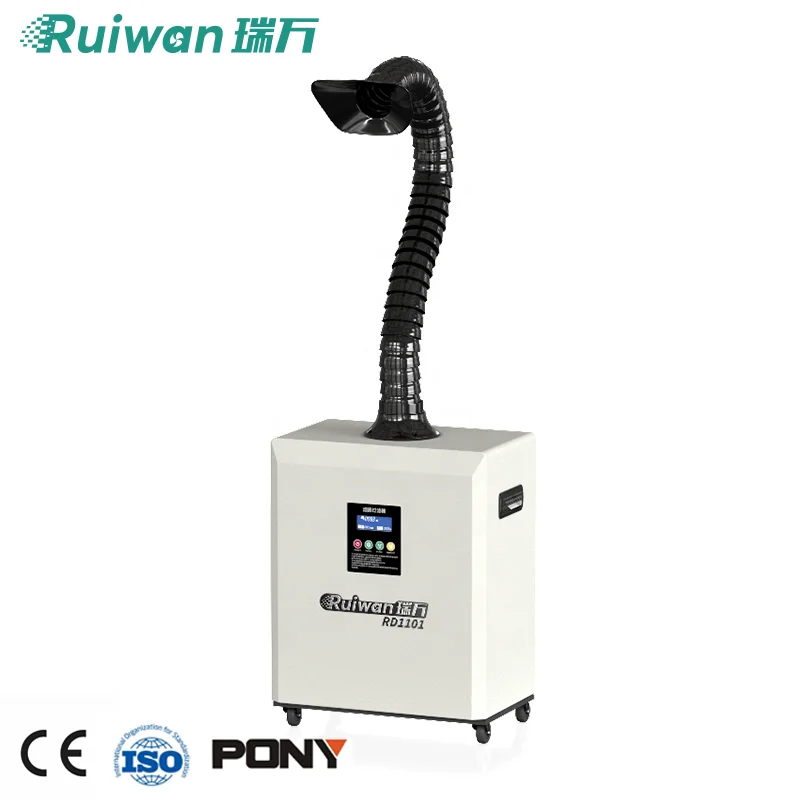

RD1101Portable Fume Extractor systems for today's mobile work environment. Powerful, Multi-Stage Filter Systems can be moved between locations, effectively handling applications throughout your facility.

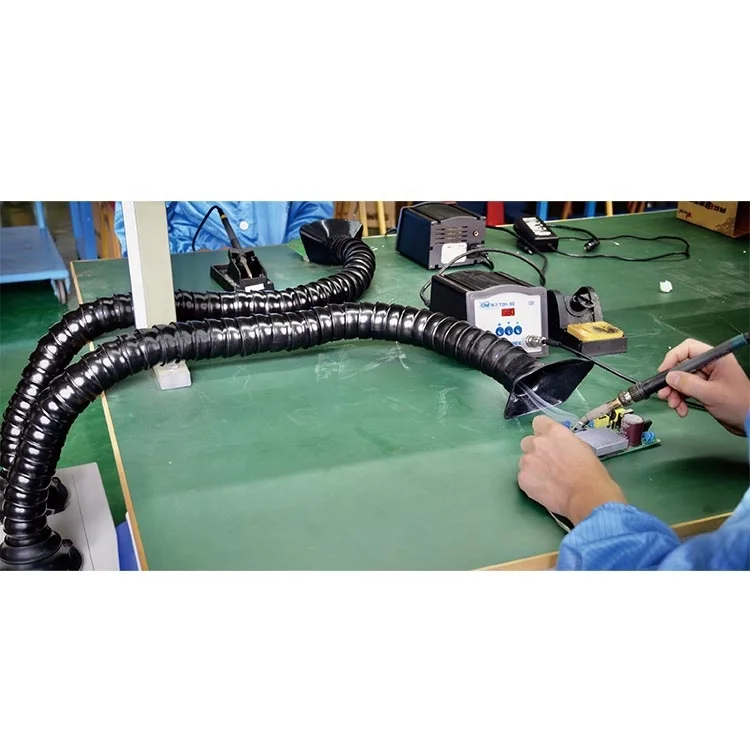

RUIWAN fume extractors are mobile and allow you to capture harmful fumes in areas where stationary fume extractors are not practical. By using portable fume extractors, the operator will be able to remove fumes, odor, vapors and smoke from a variety of applications.
Products Show
Model
RD1101
Noise
< 52 db
Voltage
AC110V / 220V
Filtration Effect
0.3 μm 99.97%
Power
90W

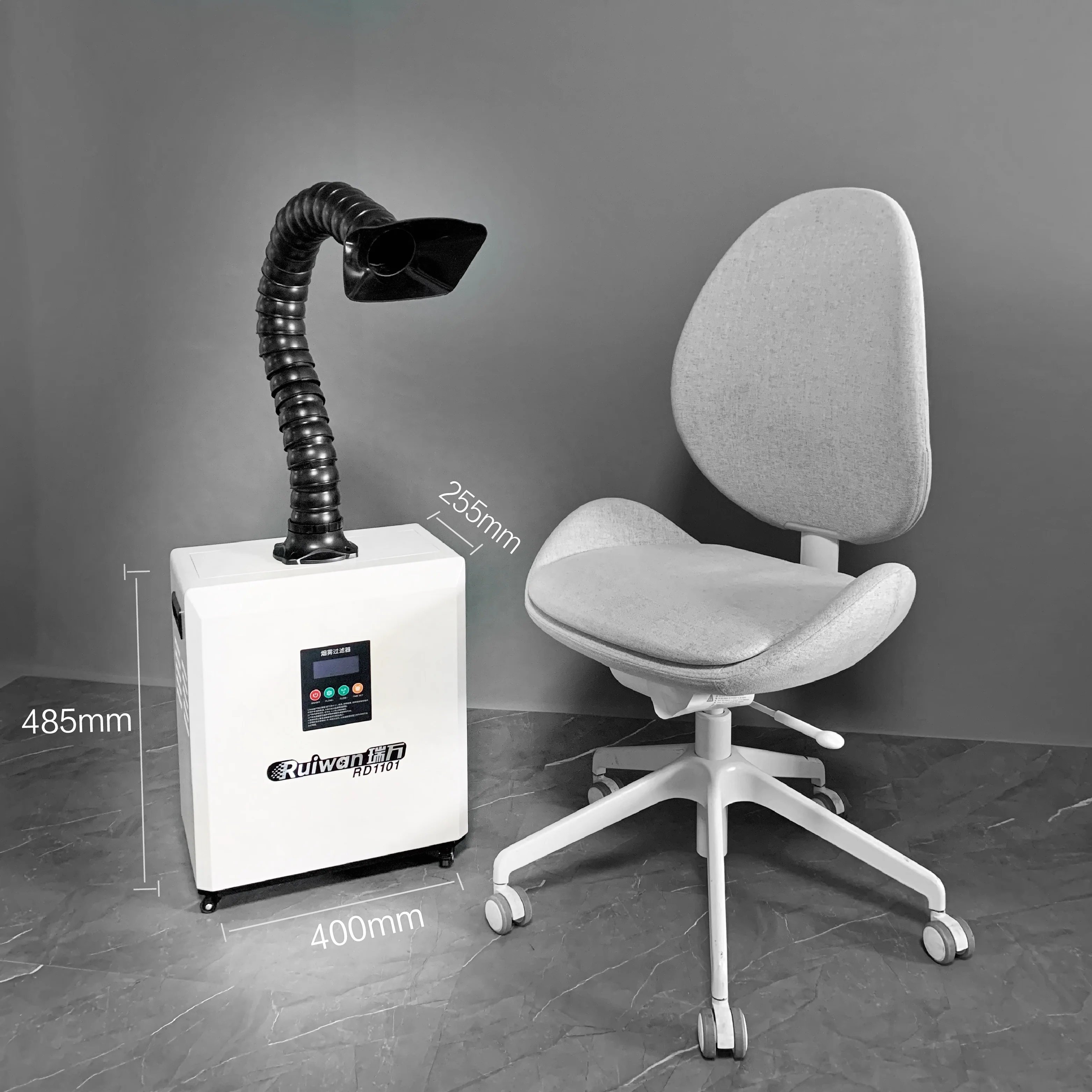

Size
400x255x485 mm
Air Flow Rate
235 m3 / h
Diameter of Flange
75 mm
N.W
19 kg
Filter Elements
4 layers
Square Nozzle
Made of silica gel, resistant to 130 ° C high temperature
Circular Nozzle
Made of PP/PC material, broken-resistant, more flexible and more resistant to pressure
Rectangular Nozzle
Made of PP/PC material, broken-resistant, more flexible and more resistant to pressure, can absorb more range of smoke

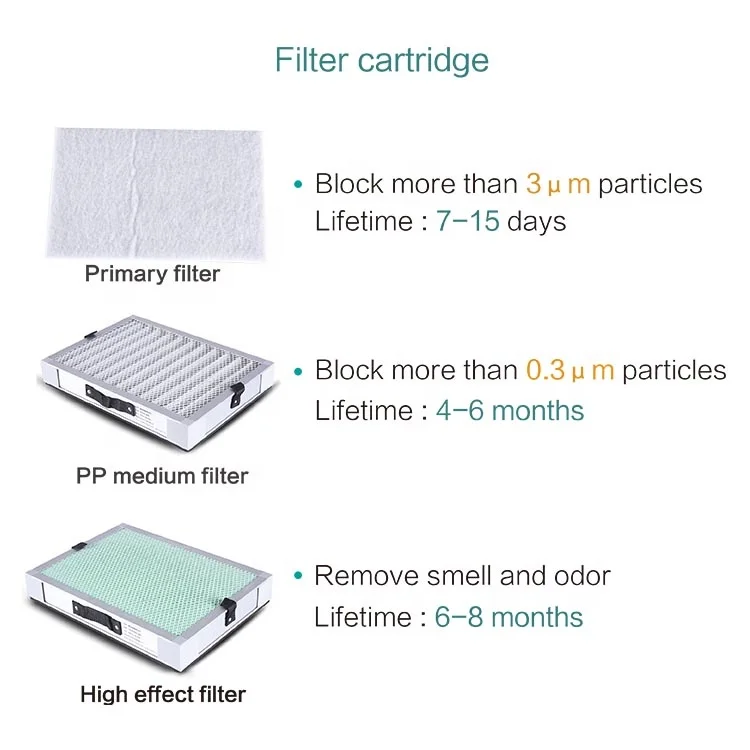

Filters
Function
Material
Flame Screen
Function：Block fire
Metal
Primary Effect Filter
Block > 3 μm particulates
Synthetic fiber with gardual density
Medium Effect Filter
Block > 0.3 μm particulates
PP / Glass fiber / Water wash PET
High Effective Filter
Remove all smell and Odor
Custom made activated carbon
RUIWAN fume extractors offer the utmost in user-friendly design and multi-stage filtration in a compact and portable fume extractor design. All of our Mobile Fume extractors can accommodate a variety of filter media including, HEPA, ULPA, Medical Grade Filter Media, and a variety of adsorbent Chemical filter media such as Activated Carbon.
