Brushless Motor Fume Extractor Fan Smoke Purifier
RD7500
Fume extractor is a movebale fume extraction system machine.Usually, the self-supporting arm is arranged at the place where the smoke and dust is generated, and the fume and harmful smoke can be effectively absorbed and purified. Through different filters, odor and harmful particles are adsorbed and blocked. So that the odor of the exhaust gas is greatly reduced or even disappeared.

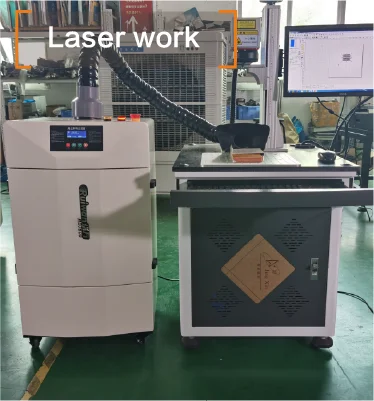

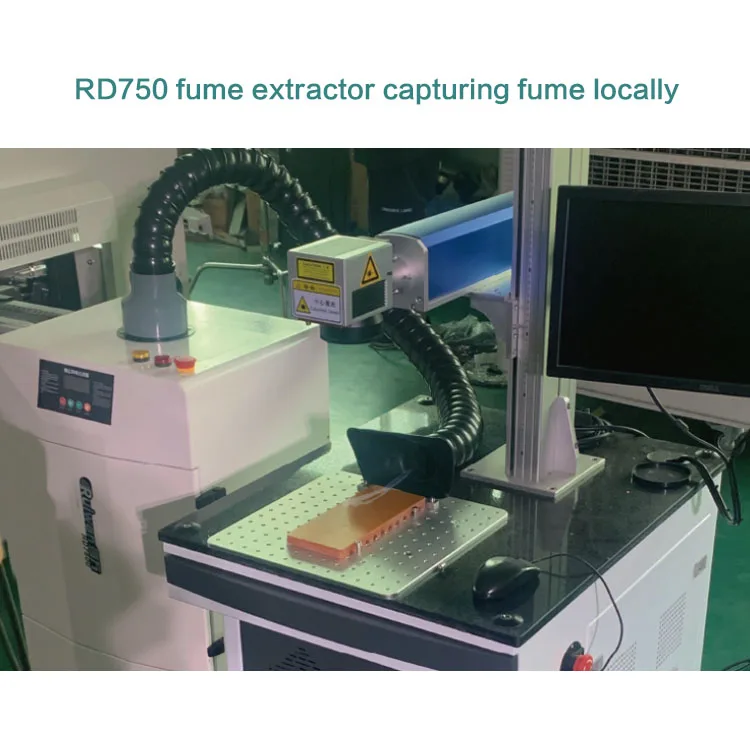

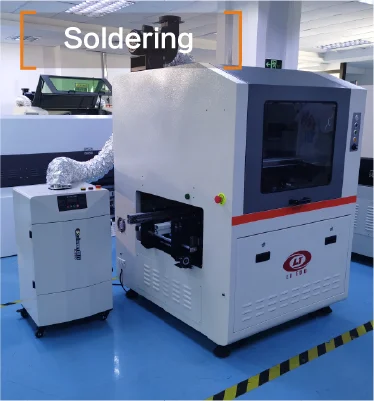

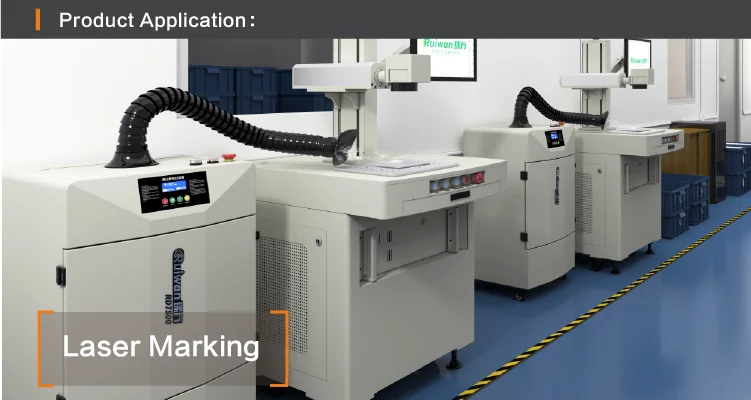

RD7500 is mainly used to handle strong smell and smoke from some strong fume work equipment such as acrylic laser cutting,laser engraving and re-flow soldering machine.After the external cyclone is linked, it can handle sticky dust such as rubber, acrylic, paint .Absorb dust particles of 0.5μm or more，and according to the actual working scene,the filtering effect can reach up to 99.7%
Products Show
Model | RD7500 | Noise | < 65 db |
Voltage | AC110V / 220V | Filtration Effect | 0.3 μm 99% |
Power | 700W | Size | 495x450x890 mm |
Air Flow Rate | 1000 m3 / h | Diameter of Flange | 100 mm |
N.W | 65 kg | Filter Elements | 2*8(+1)=17 layers |

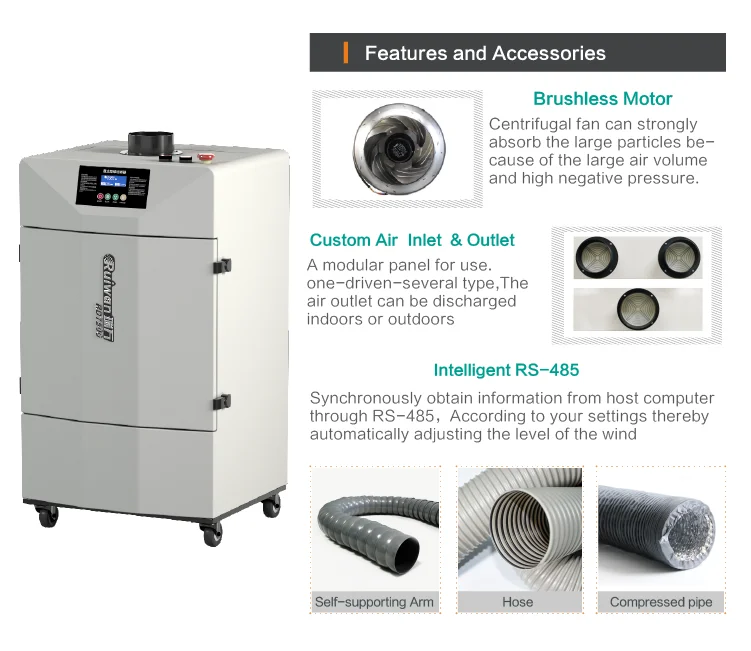

Self-supporting Arm | Stays put exactly where you position it |
Hose | Convenient connection; not only durable and strong hardness but also resistant to 130℃ high temperature |
Compressed Pipe | Available from 2m to 4m length, easy, freely to strech out and draw back |
About filter
RUIWAN fume extractors offer the utmost in user-friendly design and multi-stage filtration in a compact and portable fume extractor design. All of our Mobile Fume extractors can accommodate a variety of filter media including, HEPA, ULPA, Medical Grade Filter Media, and a variety of adsorbent Chemical filter media such as Activated Carbon.

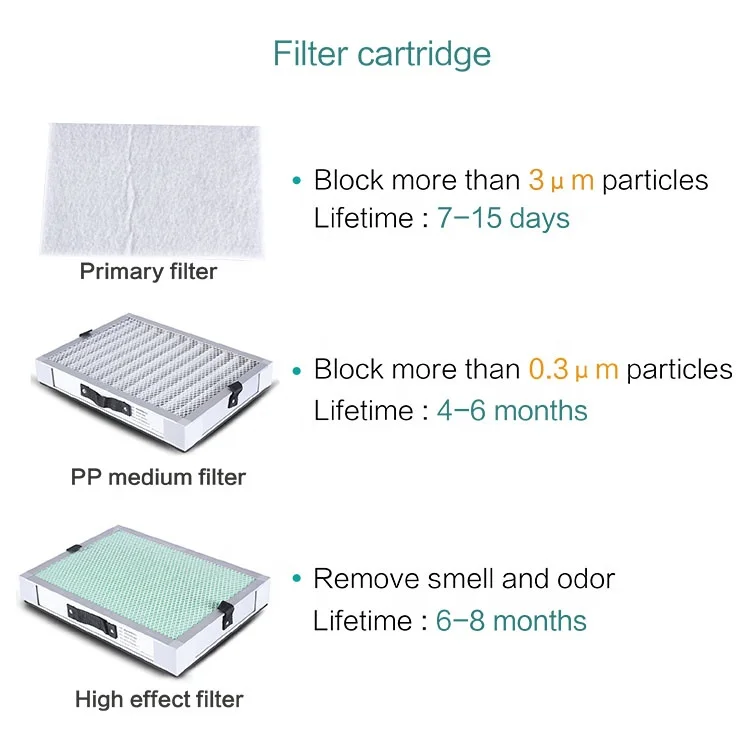

Filters | Function | Material |
Flame Screen | Function：Block fire | Metal |
Primary Effect Filter | Block > 3 μm particulates | Synthetic fiber with gardual density |
Medium Effect Filter | Block > 0.3 μm particulates | PP / Glass fiber / Water wash PET |
High Effective Filter | Remove all smell and Odor | Custom made activated carbon |

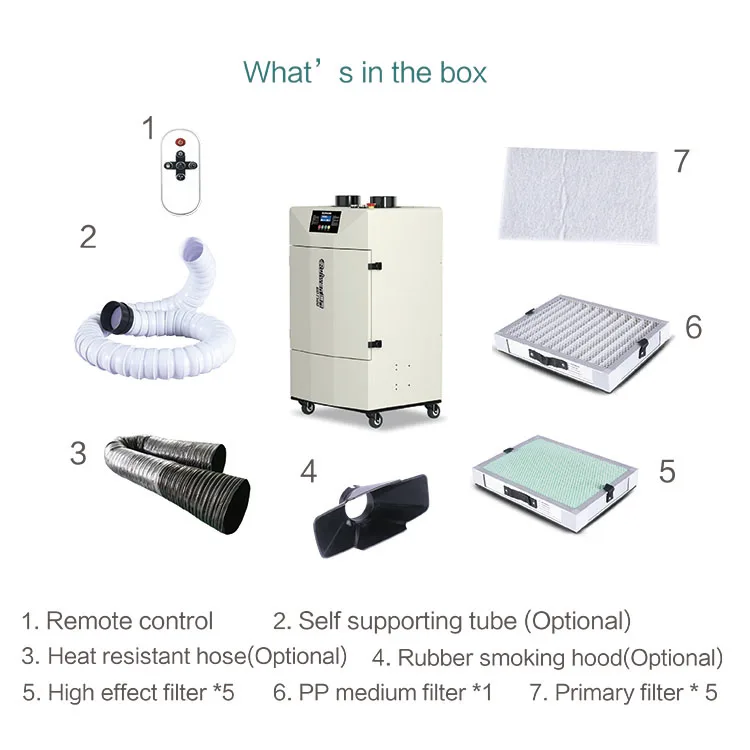

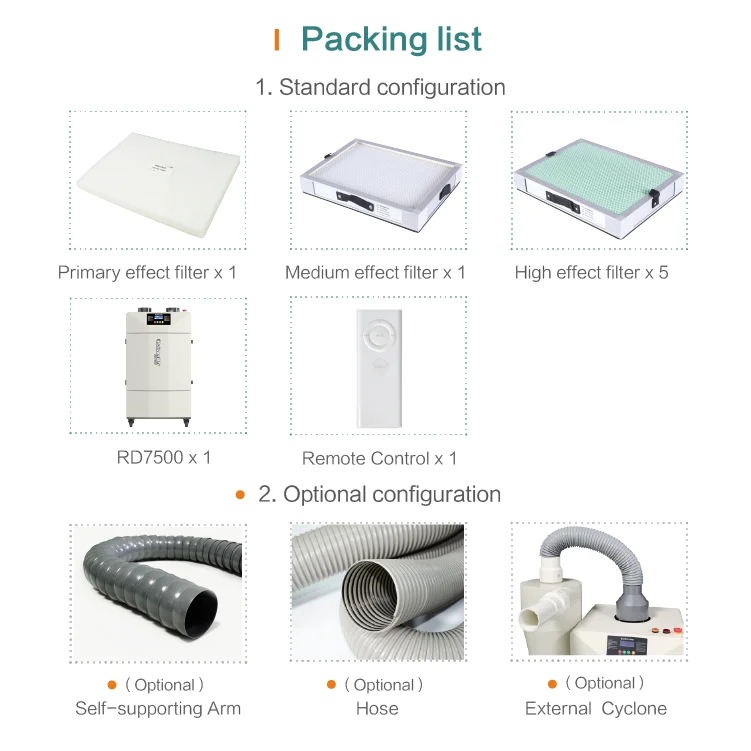

Packing List
Various accessories are available
RD7500 can be matched with a variety of Pipes, Flame Screen and External Cyclones，and the optional
accessories will be packed separately.
Company Profile
Ruiwan Technology Electronics Co., Ltd.
Ruiwan Technology Electronics Co., Ltd. covers industry mechanical technology equipments such as fume extractor,dust collector and filter elements. It is one of the largest manufacturers of industrial fume extractor in China. Zhuhai Qizhou Trading Co.,Ltd is the overseas department and wholly owned subsidiary company of Ruiwan which is seamlessly connected with Ruiwan. It also has special advantages that ordinary foreign trade companies don’t provide such as customized services and timely stock up,click me know more...
Contact US
TEL : +86 18575608853（EN）
+86 15071334466（JP）
+86 15071334466（JP）
Whatsapp : +86 18575608853
Wechat ： lester95129
Web ： www.zsruiwan.com
Email ： qizhoutrade@protonmail.com
FAQ
Q: Are you original manufacture?
A: Yes,we RUIWAN are an official leading manufature in air-cleaning machinery in China and we have the whole series products you need.
Q: What kind fo terms of payment can be accepted?
A: Normally we can work on T/T trem ,VISA ,Mastercard ,West Union .
Q: What about the delivery time?
A : Normally 7-15 days after receving the deposit.
Customized products 30-45days after receving the deposit.Q: What about the Minimum Order Quantity?
A: The MOQ is 1 pcs, sample order in small quantity is acceptable
Q: Can I visit your factory before order?
A: Yes, welcome to visit our factory. One hour near Shenzhen Airport.
Q: What is LEADTIME for production?
A: Normally stock items will be shipped within 48 hours, custom product about 7-15 days delivery (according to the quantity of product)
