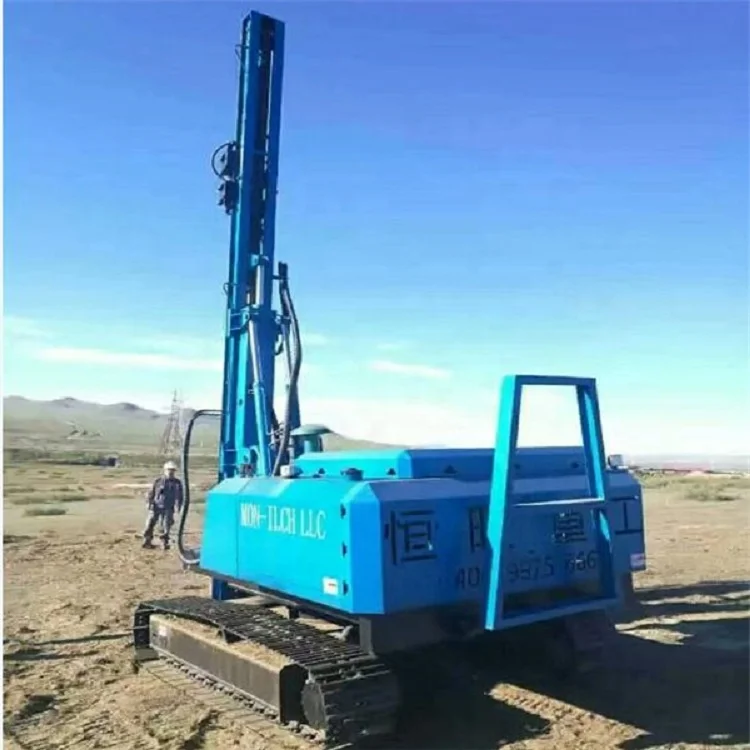

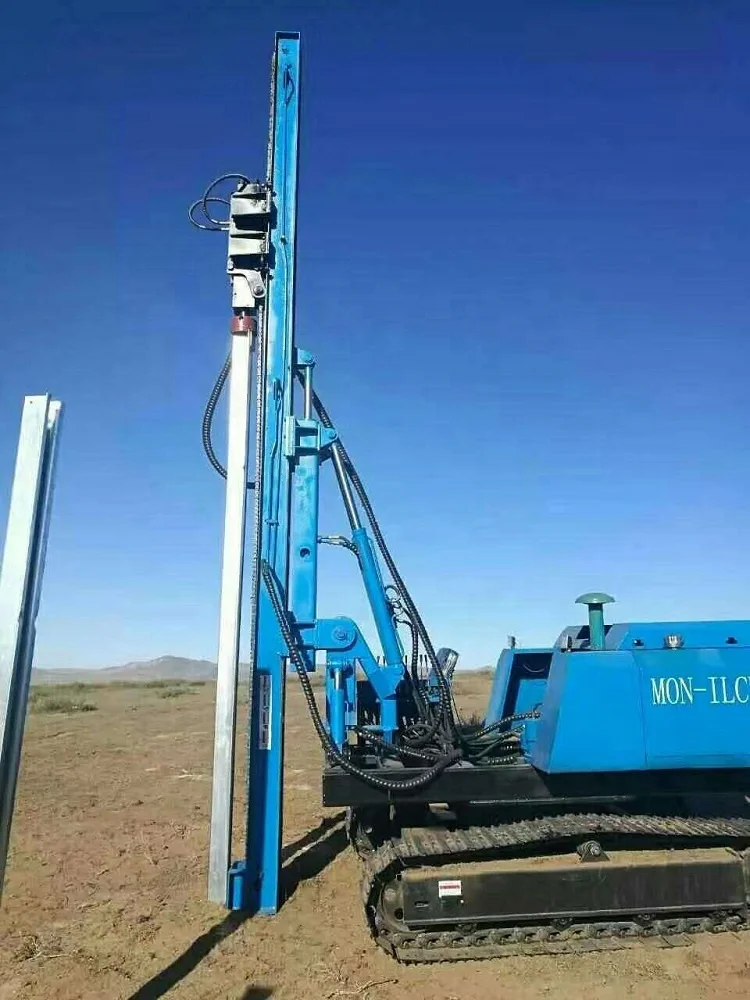

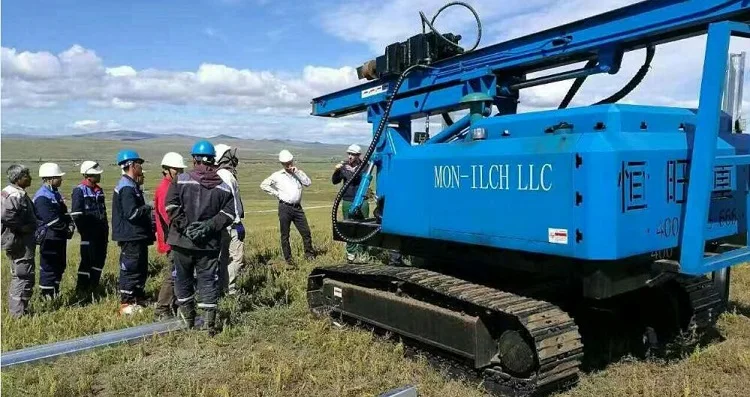

Ударная сваечная установка HWL600 900 об/мин, буровая установка на солнечных батареях/сваях
- Category: Pile Driver >>>
- Supplier: Shandong Hengwang Group Co. Ltd.
Share on (62464786382):
Product Overview
Description
Product Description

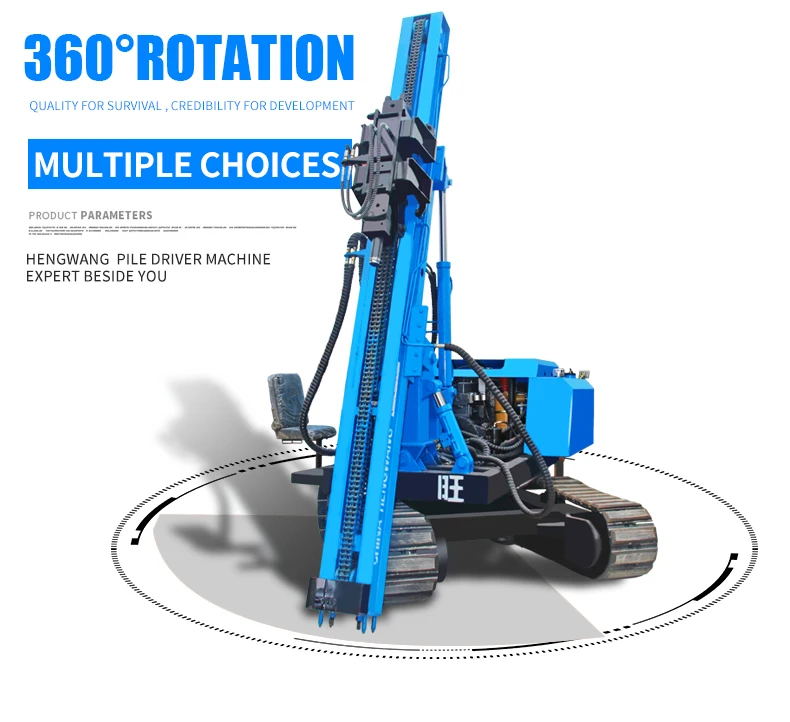

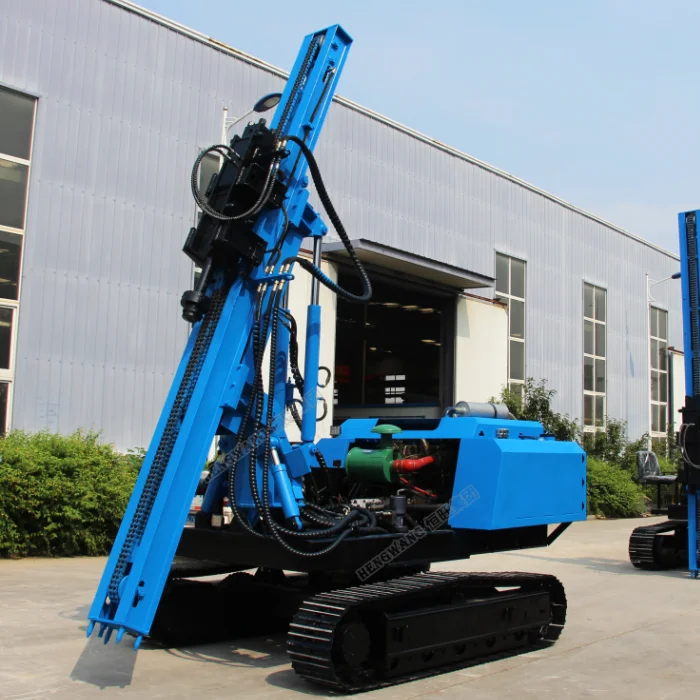

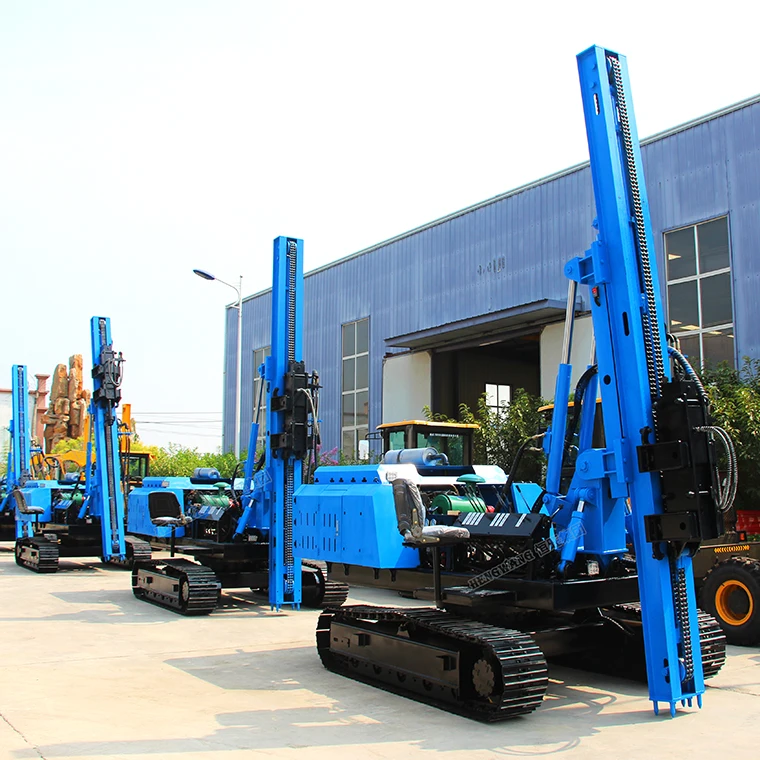

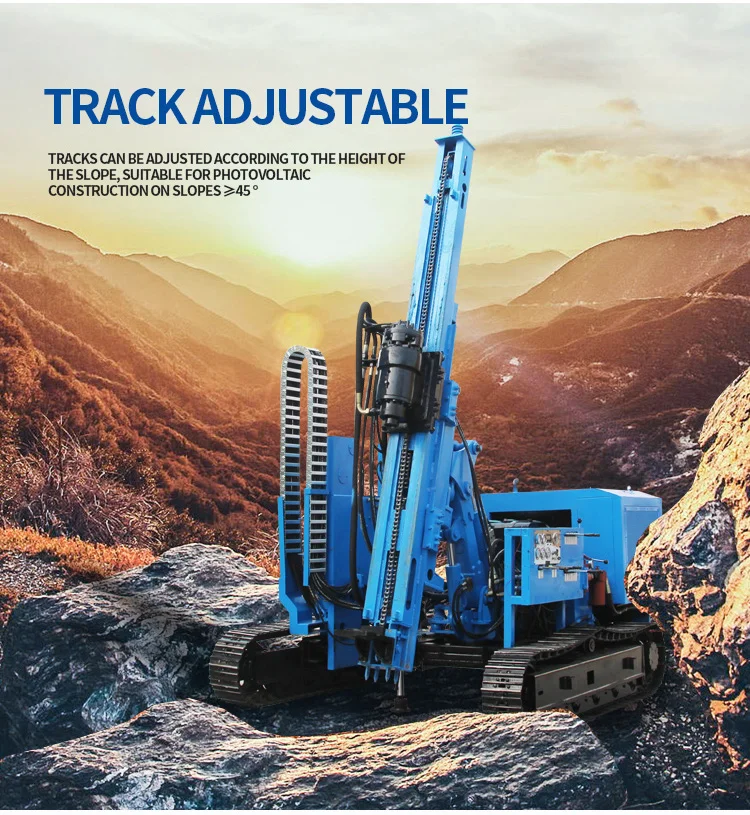

Crawler mounted solar pile driver highway guardrail pile driver
I. The most popular product of our company. It is so hot that it is often short of supply; II. 1) advantages: Crawler mounted solar pile driver highway guardrail pile driver 3m hydraulic rotary press piling machine is multifunctional, able to rotate freely by 360 degrees. It is diesel powered, driven by the hydraulic mechanical transmission, is highly mobile, precise, durable,
time-saving, labor-saving and, especially suitable for engineering construction in the field. 2) professional: it is a full hydraulic rotary press piling machine developed by the concerted effort of our R & D engineers and field service member, high-quality elite team of engineers based on their decades of field experience, suitable for carrying out drilling operation in different terrain. 3) It can be mounted with round pile, square pile, rectangular pile and various special-shaped pile.
Crawler mounted solar pile driver highway guardrail pile driver
Technical Parameter
Model | HWL600 |
Pile legnth | 0-6m |
Duplex gear pump pressure | 25Mpa |
Duplex gear pump displacement | 40/40/25 ml/r |
Hydraulic system pressure | 20Mpa |
Main valve flow | 150L/min |
Overall machine weight | 6500kg |
Engine Power | 85KW |
Rated speed | 2400r/min |
Starting voltage | 24V |
Rotation angle | 360° |
Effective press pile stroke | 0-5000mm |
Dimension working condition | 4300*2150*7600mm |
Transportation condition | 4600*2150*2600mm |
Track shoe | 350mm |
Walking motor total displacement | 1575 ml/m |
Motor head hamming force | 1700J |
Walking motor rotate speed | 50 r/min |
Operating speed | 1.5m/min |
Number of impacts/strokes | 900r/min |
Max. length of piles to be rammed | 6m |
Walking speed | 5-10 km/h |
Gradeability | 35° |
Oil tank capacity | 20L |
Daily production on 6m | 200 pcs |
Detailed Images
Machine Parts

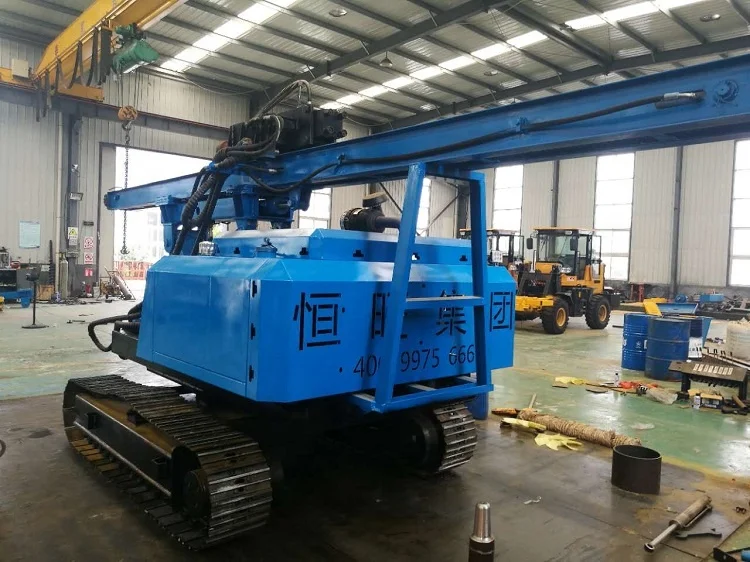

Name: Hammer pile driver
Brand: HWZG
Original: China
Domestic famous engines, strong driving force, low fuel consumption, high economic.
Main Features
Name: Square hydraulic hammer
Brand: HWZG
Original: China
this hammer used for pressing the pile,pull out the pile,rotate the pile.
Machine Parts
Name: Round hydraulic hammer
Brand: HWZG
Original: China
Function 1:this hammer can drill the hard rock with air compressor.
Function 2:this hammer can drill the soil with the screw pipe.
Main Features

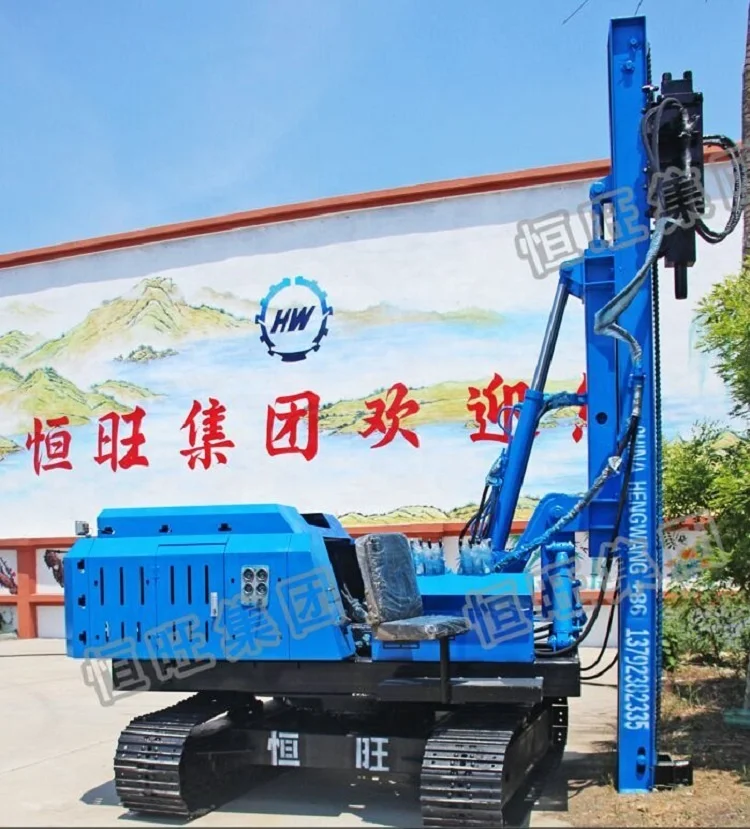

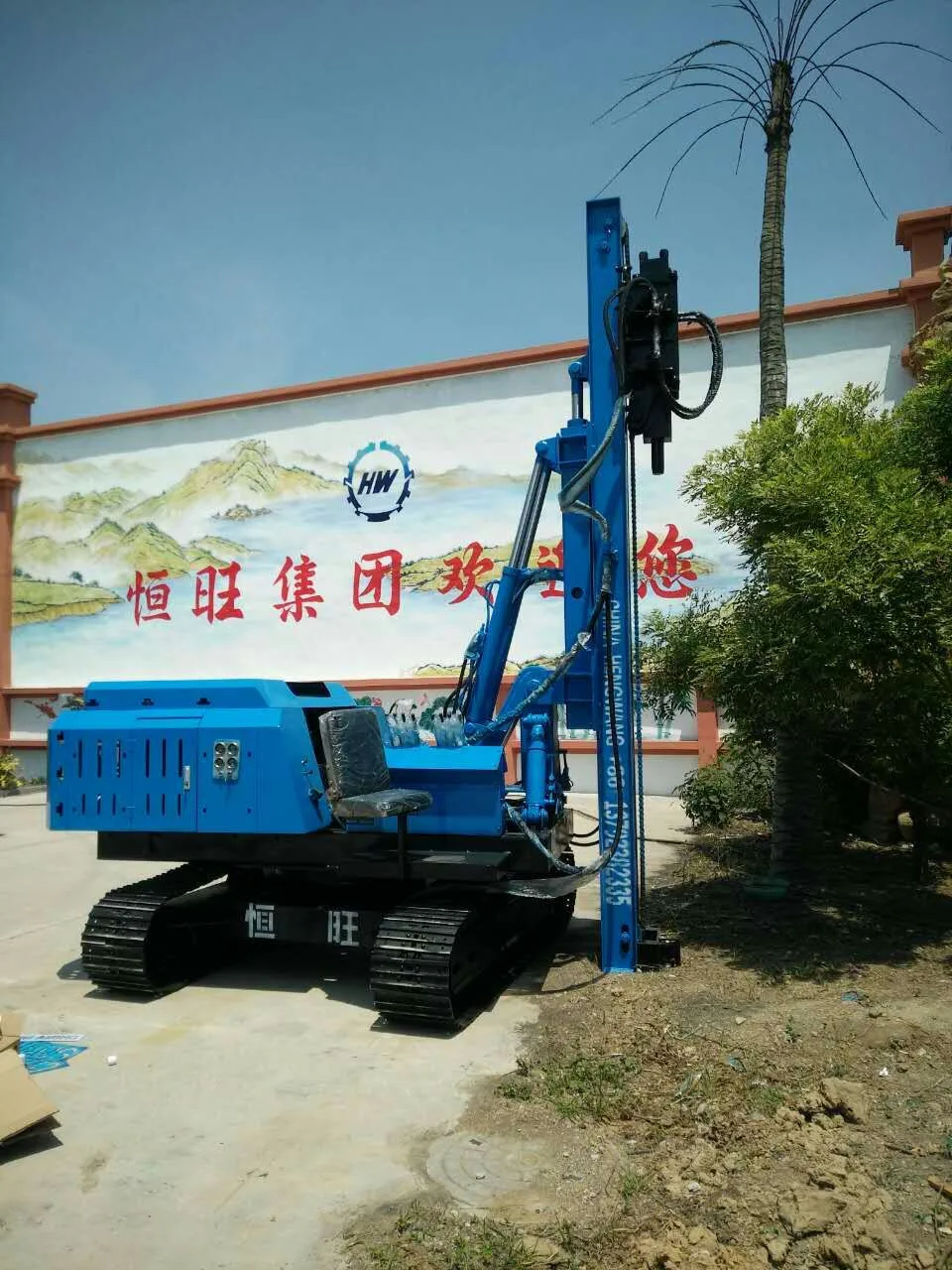

Name:Multifunction pile driver
Brand: HWZG
Original: China
this is the multifunction pile driver,we can change the different hammer to do the different works.it can press the pile,can drill the soil,also can drill the rock.

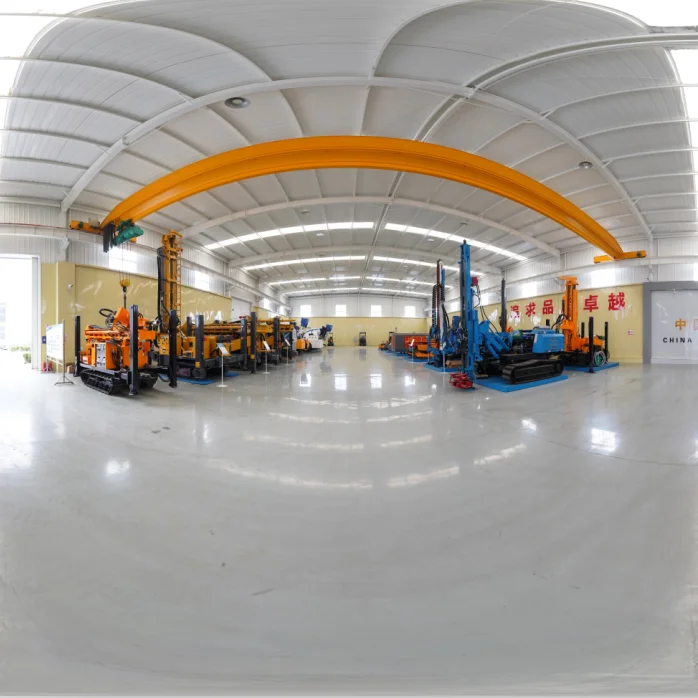

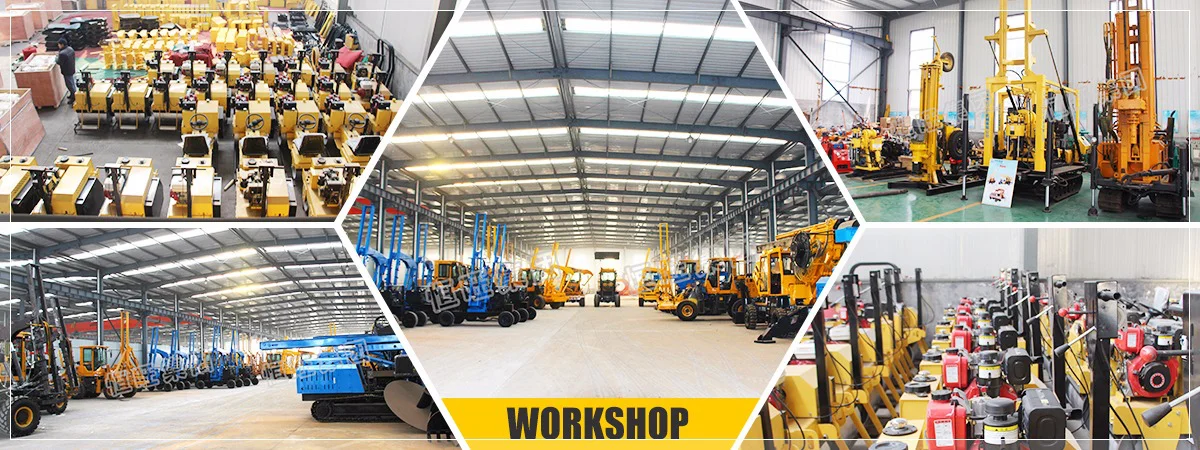

Workshop
Packing & Delivery
Packaging | ||
Size | 5523 (L) * 2456 (W) * 1789 (D) | |
Weight | 8 T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Size | 5523 (L) * 2456 (W) * 1789 (D) | |
Weight | 8T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |

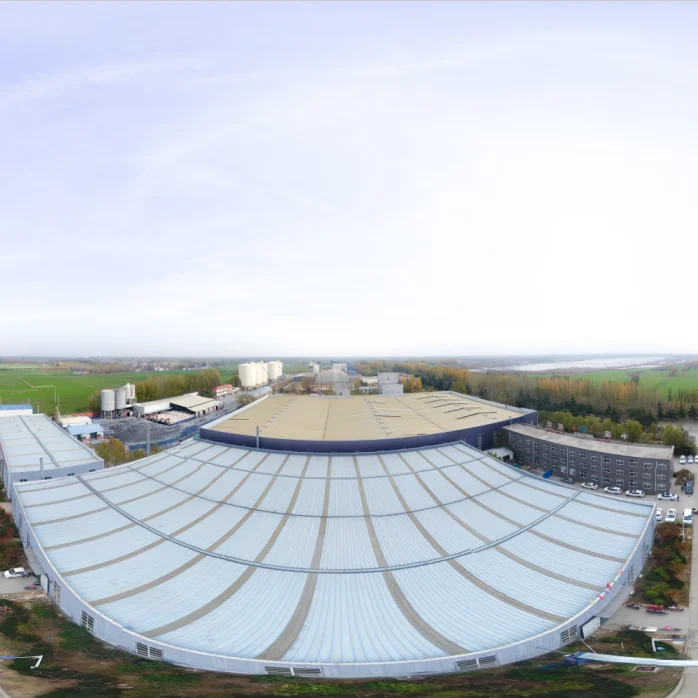

Company Profile
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
