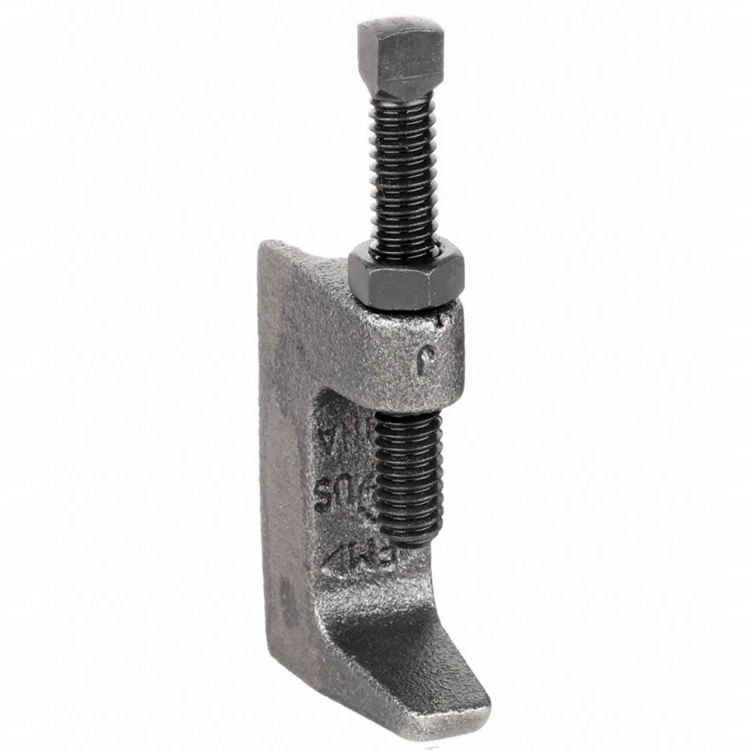

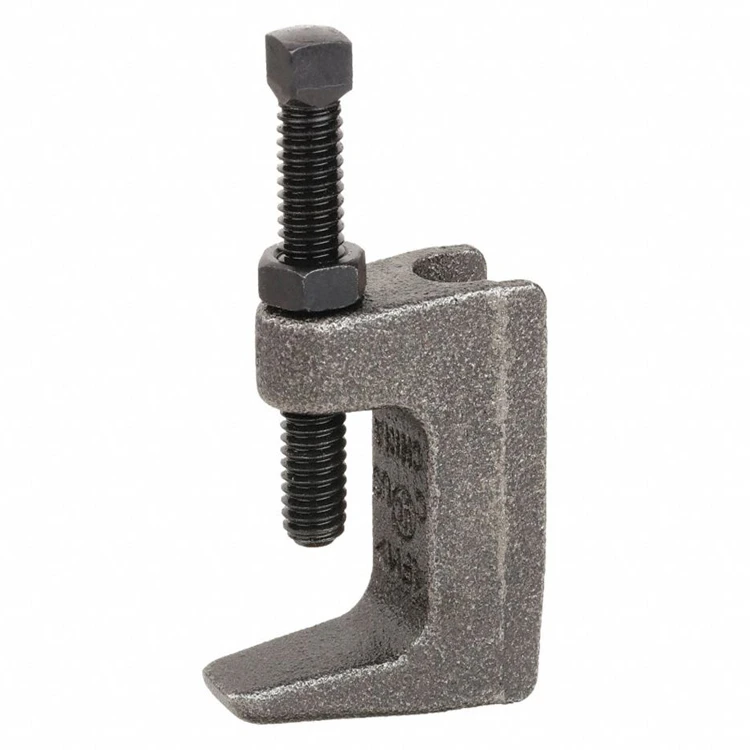

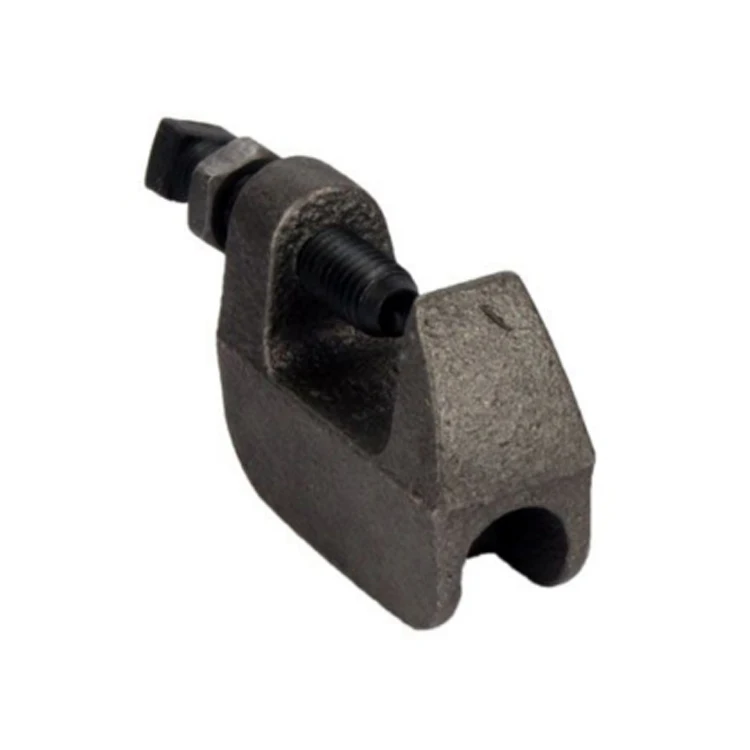

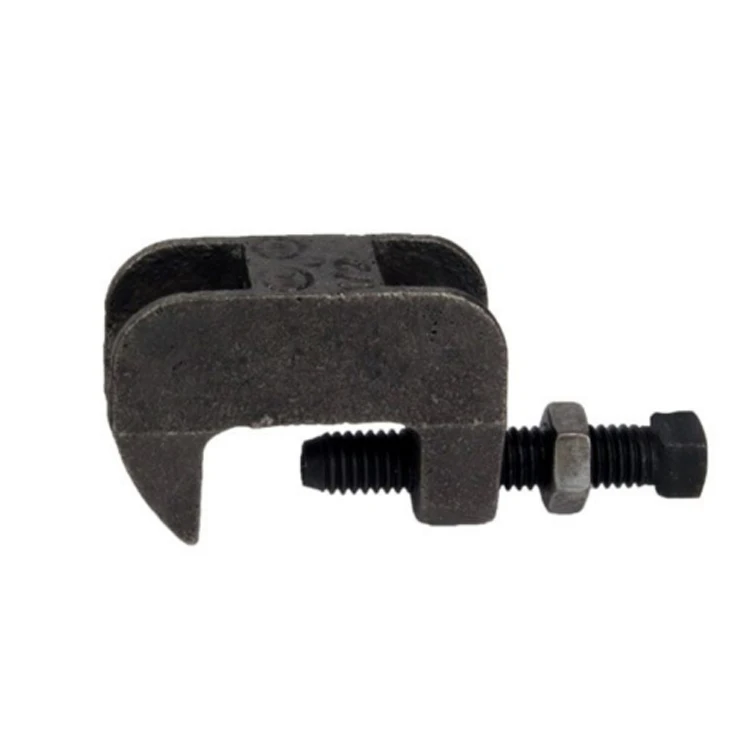

C Type Wide Mouth Ductile Iron Throat Top Unistrut Conduit Universal Beam Clamp 3/8

Product Overview

Description

  Jiaxing Rock Industry Imp & Exp Co., Ltd.We are a professional hardware parts OEM manufacturer, we mainly provide customized services, according to your drawings to produce the corresponding products, our price is very favorable, waiting for your inquiry.

Items	Description		Picture
Material	Malleable Iron Grade 32510
Rod Size	3/8"
Wide Mouth	1 1/4"
Standard	A-A-1192A (Type 19 & 23), WW-H-171-E (Type 23), ANSI/MSS SP-69, and ANSI/MSS SP-58 (Type 19 & 23).
Surface Treatment	Galvanized, plain

Welcoming send us an inquiry with your dimensions. We provide 24hours*7days service.      Click here for more information!

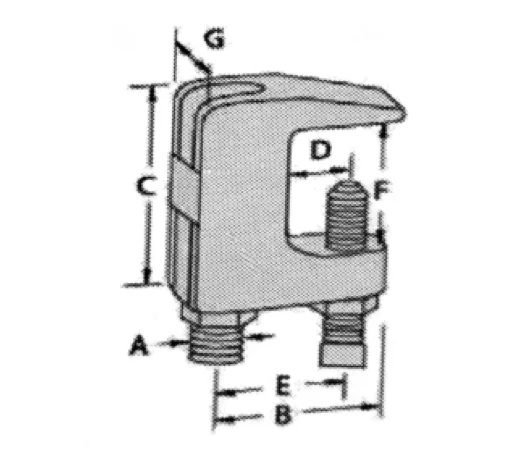

A	B	C	D	E	F	G	LOADING KN	KG/100PCS
10	38	50	15	22	33	23	1.78	20
12	38	50	15	22	33	23	2.22	20

Tips:Recommended for use under roof installations with bar joist type constructions, or for attachment to the top or bottom flange of structural shapes where the vertical hanger rod is required to be offset from the edge of the flange and where the thickness of joist or flange does not exceed 1 1⁄4".
