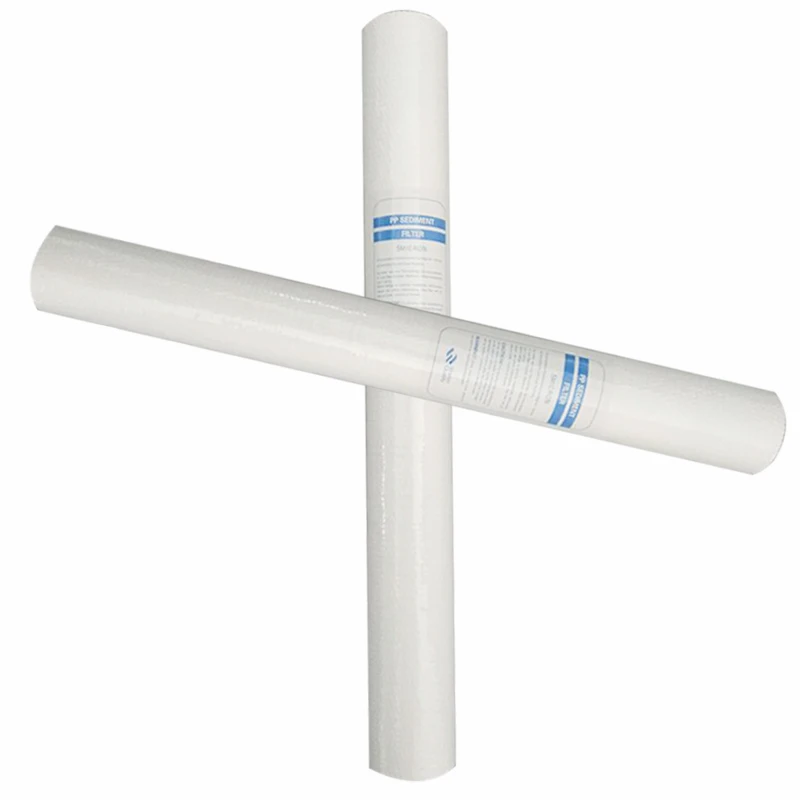

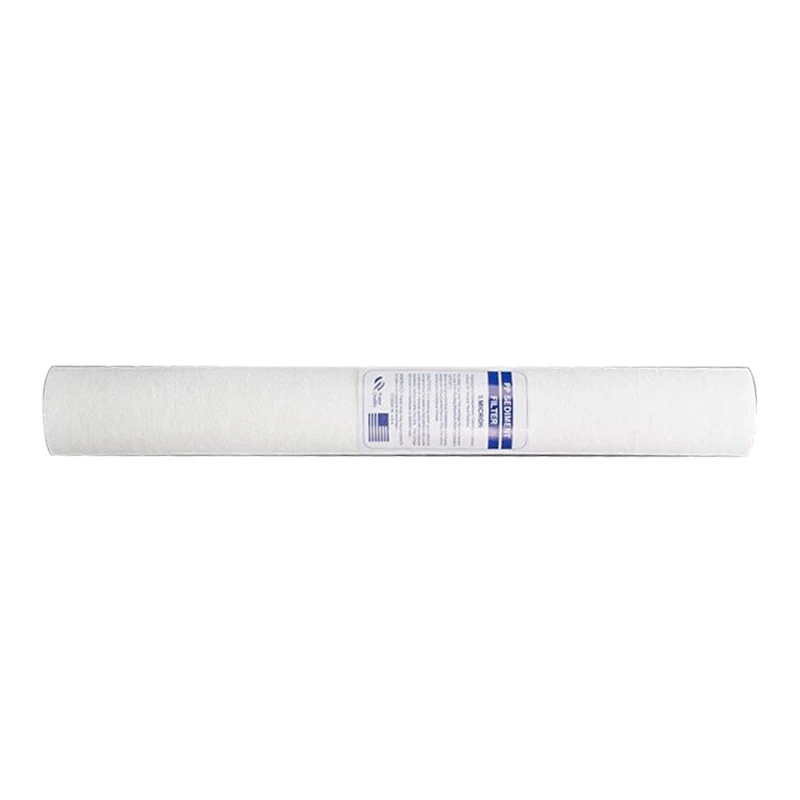

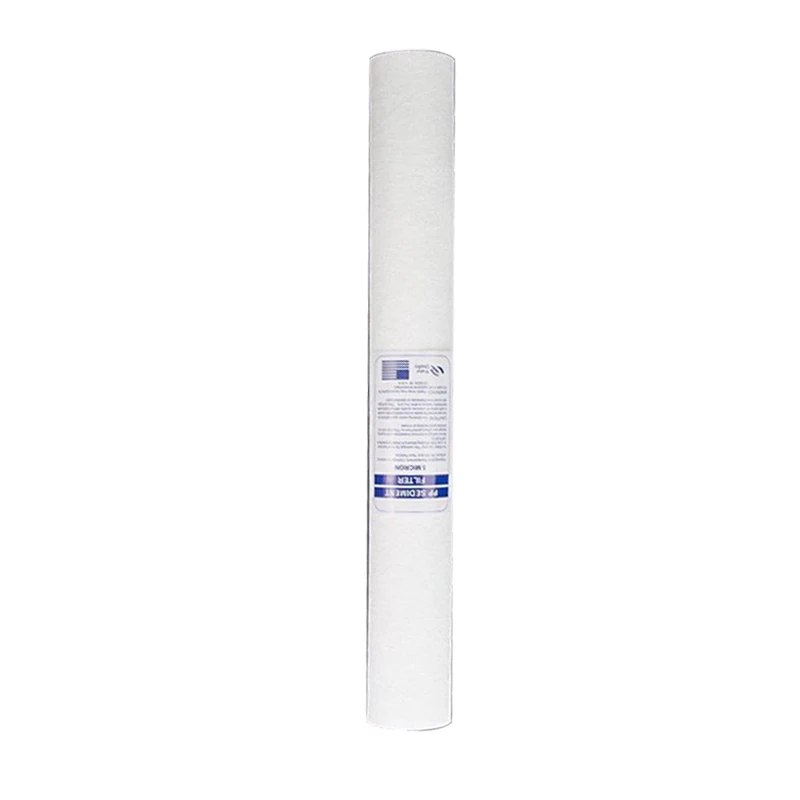

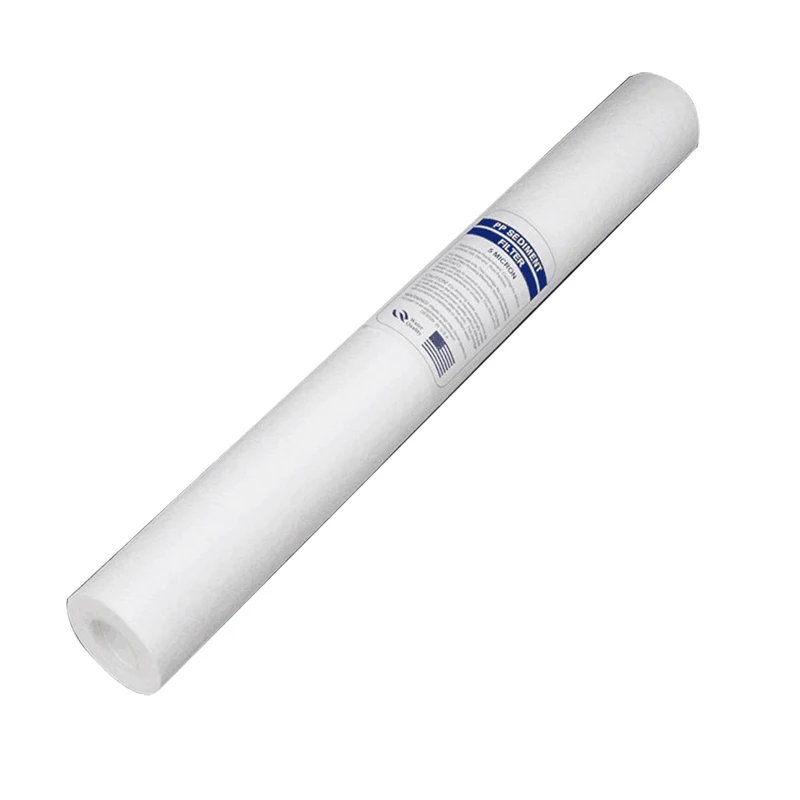

Melt blown PP filter 5 Micron 20 Inch Water Sediment Filter Cartridge For Water Purification Systems

Product Overview

Description

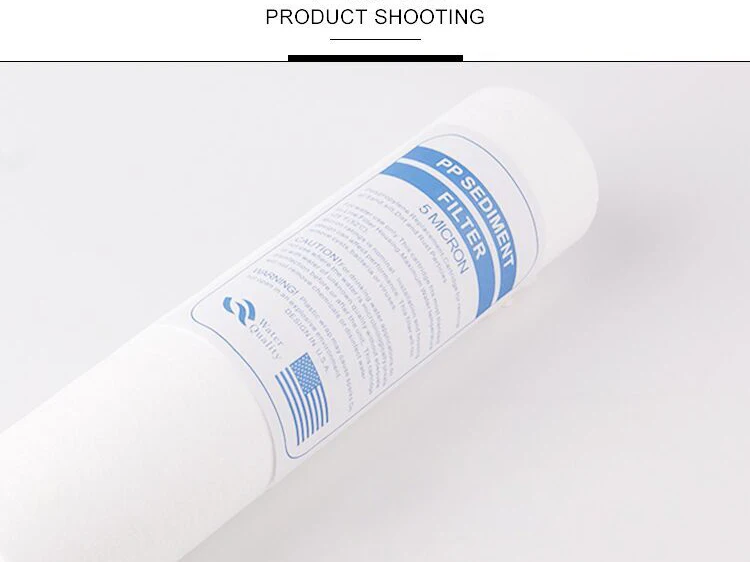

  Melt blown PP filter 5 micron 20 inch water sediment filter cartridge for water purification systems

  Using 100% food grade Polypropylene (PP) as material, the filter cartridge contains no wetting

  agents, solvents, antistatic agents or binders.

  By special production technology to control the diameter of PP fiber, the micron rate of filter cartridge

  is controlled. Removing efficience can reach 98%.

  The surface layer of the filter cartridge is designed to be low density to assure the high dirt-holding

  capability, while the inner layer is higher density to keep the accurate filtration ability to small particles.

  The density type is 30% higher filtration effect than the general type.

APPLICATION

1. Pre-filtration in process water treatment industry
2. Clarification for waste water treatment
3. Bottled water, wine, beer pre-filtration in food and beverage industry
4. Pre-filtration before RO system in electronics process water
5. Organic solvents, inks, plating solution, metal cutting, fluids, photoresist filtration

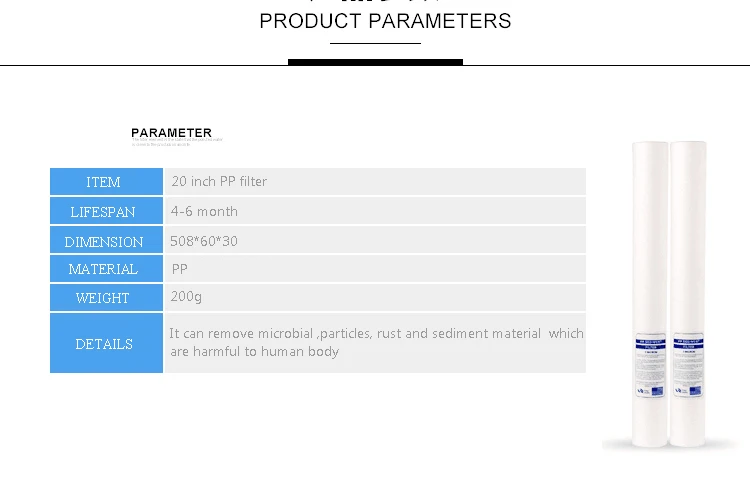

Specification

Construction Materials	Filter Media	Melt Blown Polypropylene
	Inner core	PP or core less
	Seal Method	Thermal Bonding, No Adhesives
	O-rings/ Gaskets(only for 222,226,DOE)	Silicone/Nitrile/EPDM/Viton/Teflon
Technical Data	Micron Rating	1.0,  5.0, 10, 20,  50, 70, 100um
	Normal Operating Temperature	<50℃ (122 oF)
	Max. Operating Temperature	<80℃ (176 oF)
	Normal flow direction pressure	4.0 bar(58 psi)
	Reverse flow direction pressure	2.0 bar(29pci)
	Filtration efficiency	≥ 80%

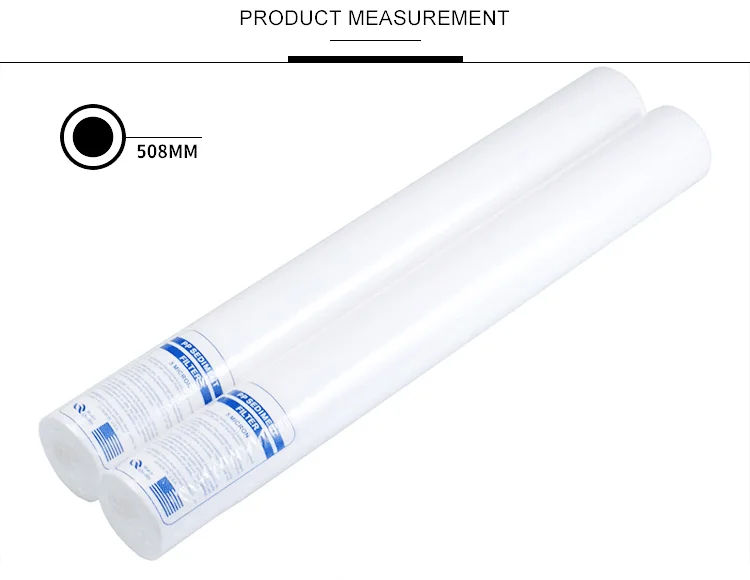

Cartridge Size	Outer Diameter	Φ 63(2.5'')/114(4.5) mm

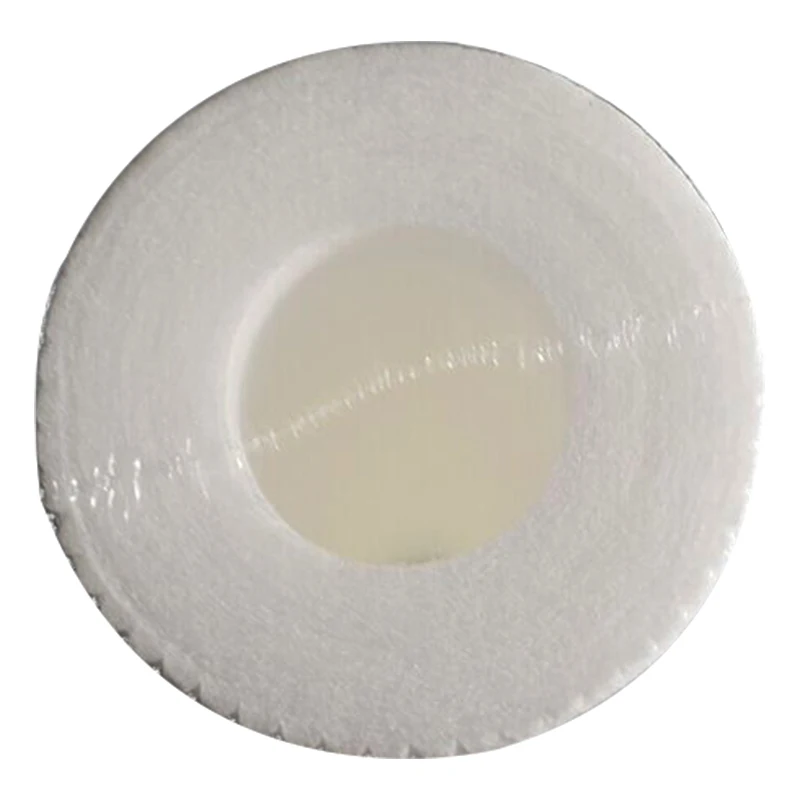

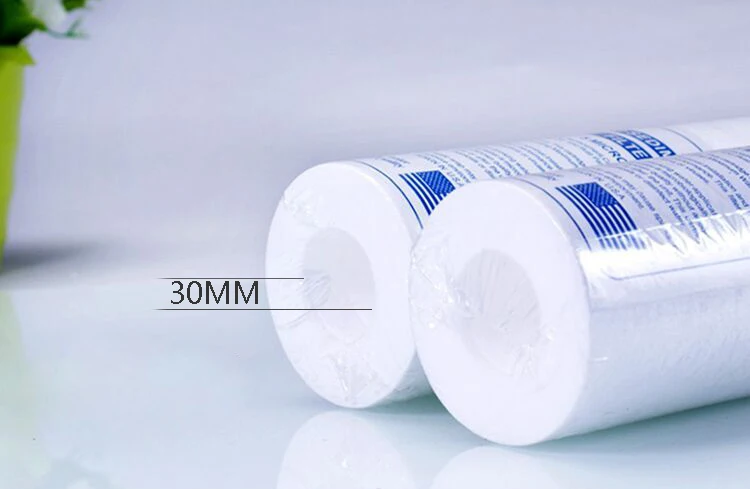

	Inner Diameter	Φ 28mm (1.10")
	Filtration area(m2)	0.4 /10''
	Length(based on DOE end cap)	10’’, 20’’, 30’’, 40’’, 50'', 60''
	pH	1-13

 Features

1. 100% high purity polypropylene (melt blown), no adhesives

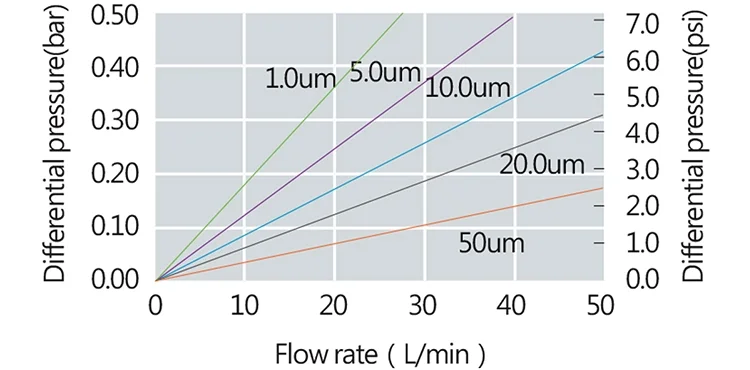

2. High dirt holding capacity and low pressure loss
3. Many connections(DOE, 226, 222 End caps)are available
4. Wide chemical compatibility, various micron ratings(1um to 100um)
5. One piece construction, up to 1524mm(60”)
