Precast concrete roof tile slab making machine for floor board roof panel extruder
- Category: >>>
- Supplier: Ningjin Shuangli Building Materials Equipment Co. Ltd.
Share on (62465097706):
Product Overview
Description
Specifications
1.hollow core
2.Smooth surface, high-density structure
3.Long working life
4.Easy operate

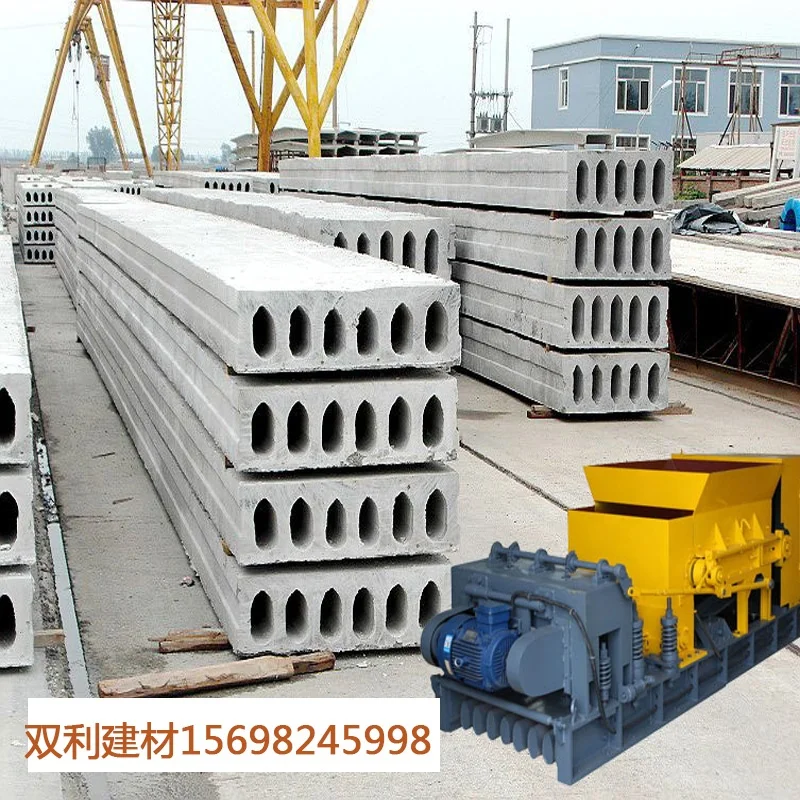

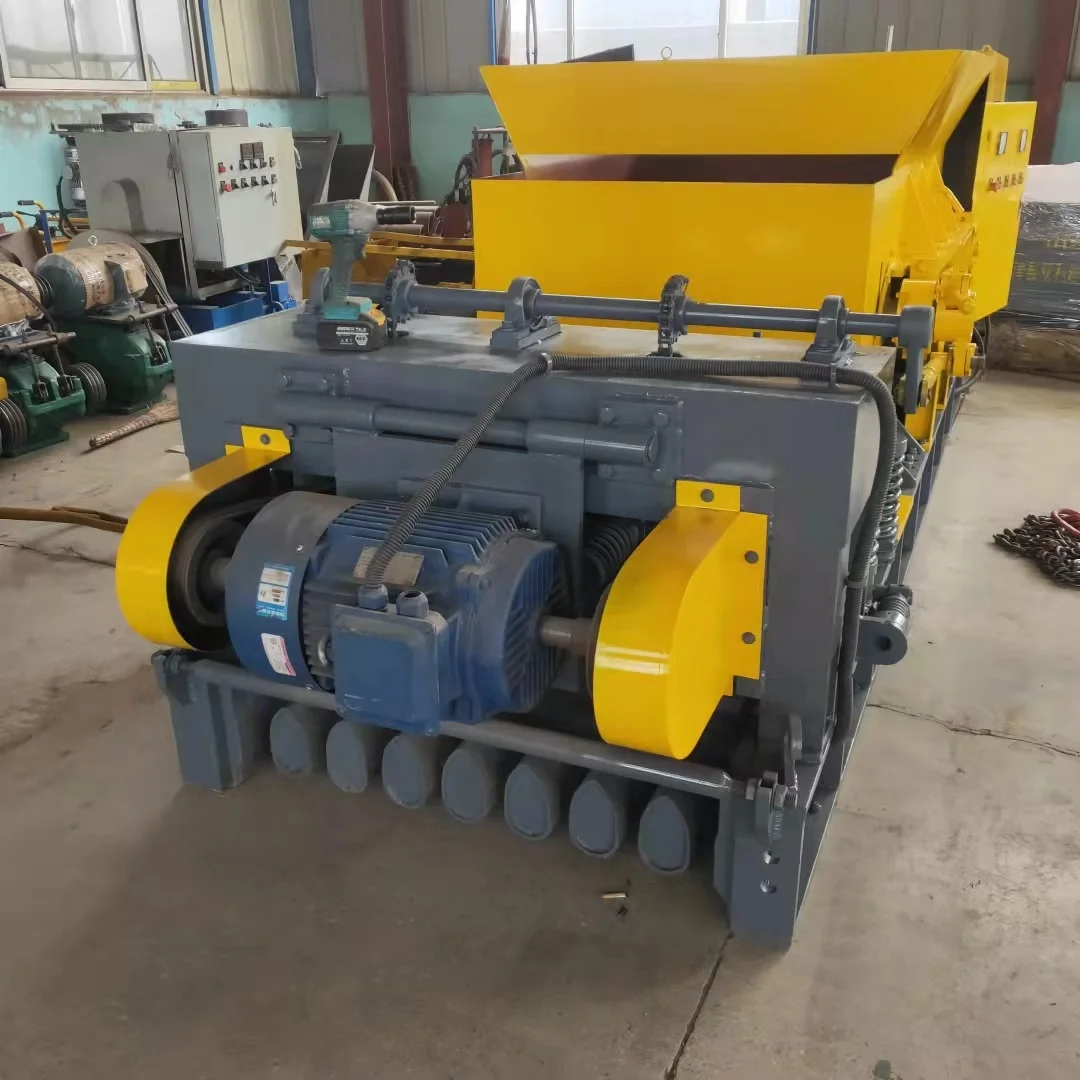

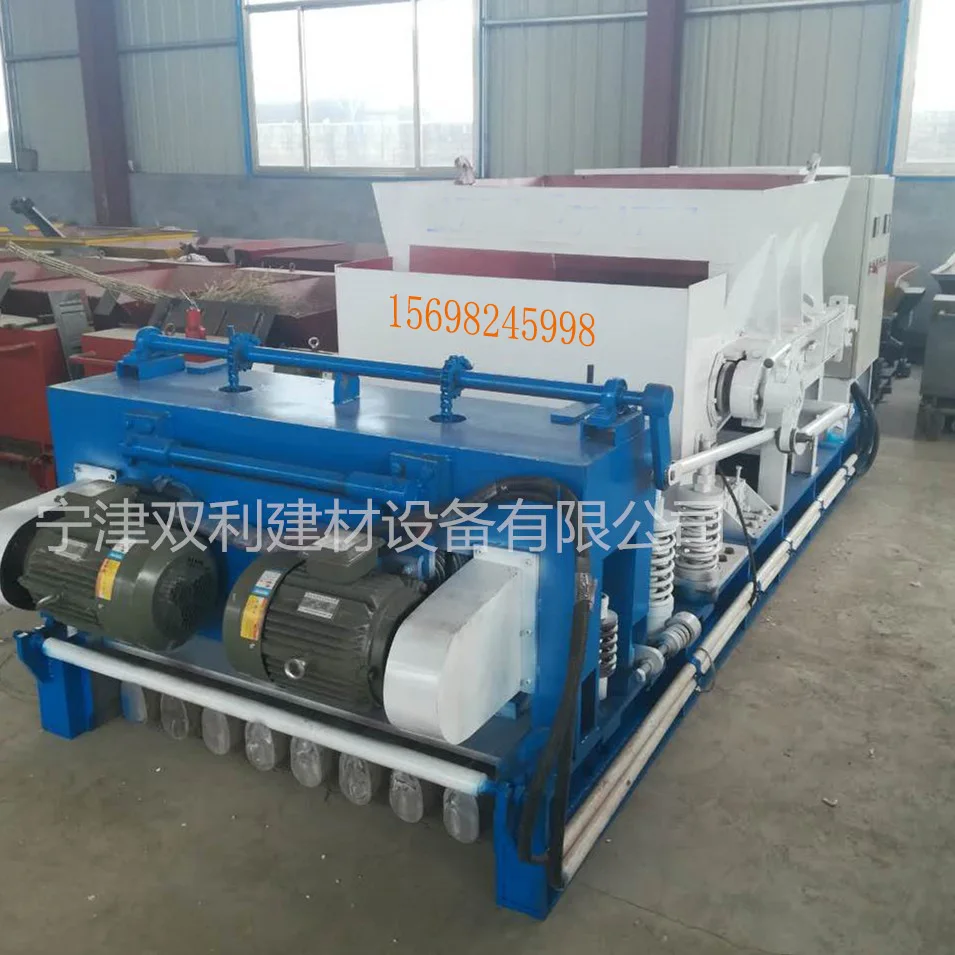

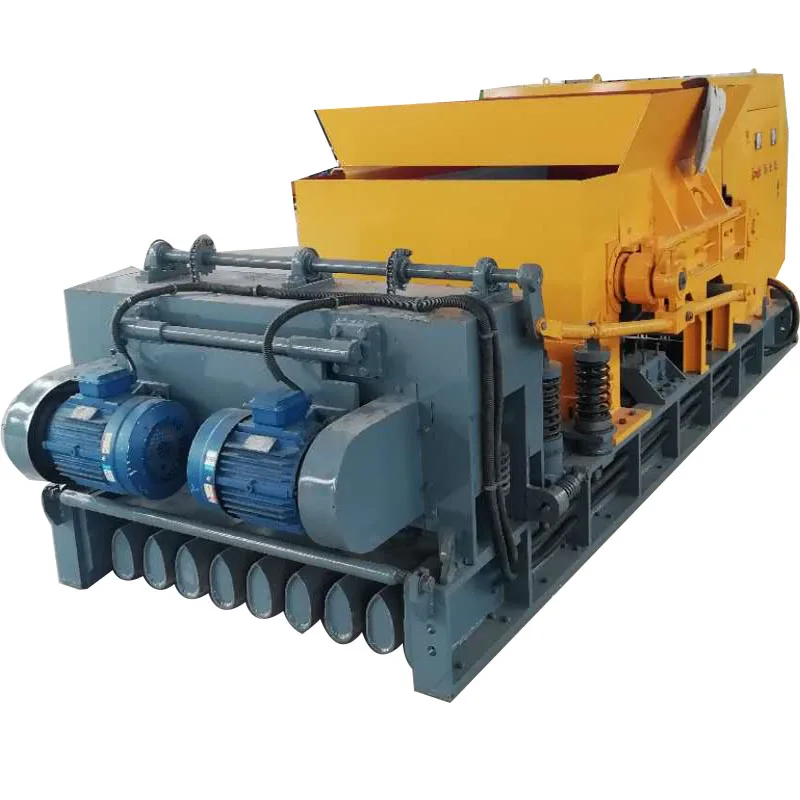

ShuangLi Hollow Core Slab Making Machine for sale
product description of Hollow Core Slab Making Machine --
1.Precast sp concrete slab forming machine producing slab works on the long-line table, using the high-strength low-relaxation steel strand as the guide, using the pushing work method to forming the concrete slab.
2.The slab have the advantages of smooth surface, high-density structure, The series concrete slab mainly used on the larger bay workshop, school, hospital, shopping mall, office building, bulk storage plant etc.
For precast prestressed concrete slab production line, it requires 3-4 workers to operate the whole system. The curing time for precast prestressed concrete slabs is 2 days.
parameter of Hollow Core Slab Making Machine --
there are all kinds of hollow core slab machines for your reference
Model (JWT) | 80*600 | 60*600 | 120*500 | 120*600 | 120*900 | 180*600 | 180*900 | 120*1200 |
Height (mm) | 80 | 60 | 120 | 120 | 120 | 180 | 180 | 120 |
Width (mm) | 600 | 600 | 500 | 600 | 900 | 600 | 900 | 1200 |
Dia of holes (mm) | 8*42 | 8*30 | 4*80mm | 5*80mm | 8*80mm | 3*135mm | 5*130mm | 11*76 |
Working Speed (m/min) | ≥1.1 | ≥1.1 | ≥1.1 | ≥1.1 | ≥1.1 | ≥1.1 | ≥1.1 | ≥1.1 |
Motor (kw) | 3 | 3 | 4 | 4 | 7.5 | 7.5 | 7.5 | 10.5 |
Vibrator | ZJY20 | ZJY20 | ZJY20 | ZJY20 | ZJY20 | ZJY20 | ZJY20 | ZJY20 |
Dimension(m) | 2.1*0.7*0.8 | 2.1*0.65*0.8 | 2.2*0.6*0.8 | 2.2*0.76*0.8 | 2.2*1.05*0.8 | 2.2*0.78*0.8 | 2.2*1.2*0.8 | 2.5*1.3*0.9 |
Weight(t) | 1.05 | 0.95 | 1.15 | 1.30 | 2.00 | 2.00 | 2.3 | 2.5 |

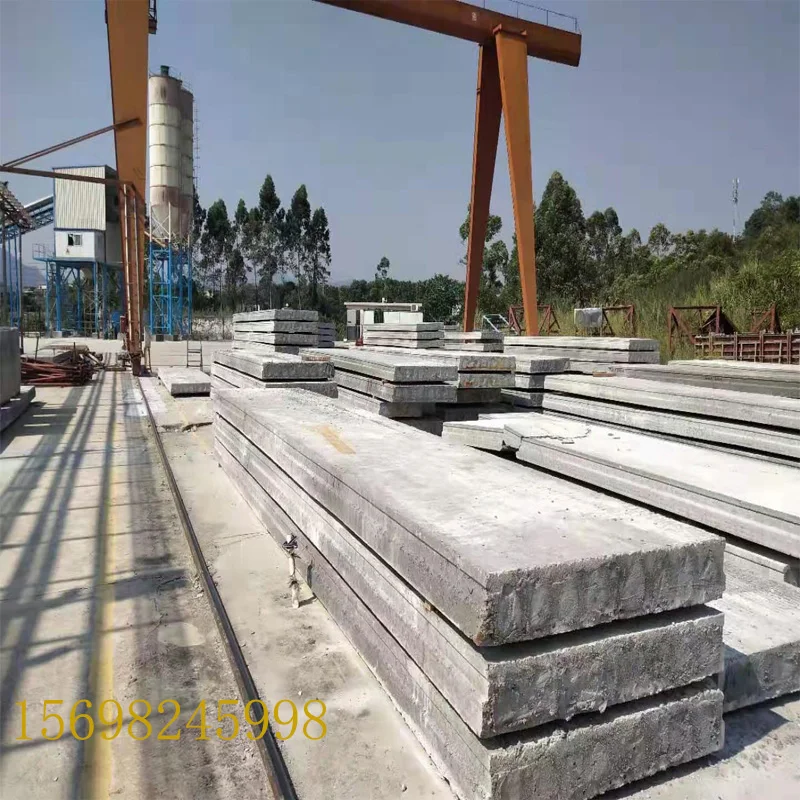

Prestressed production line of Hollow Core Slab Making Machine --

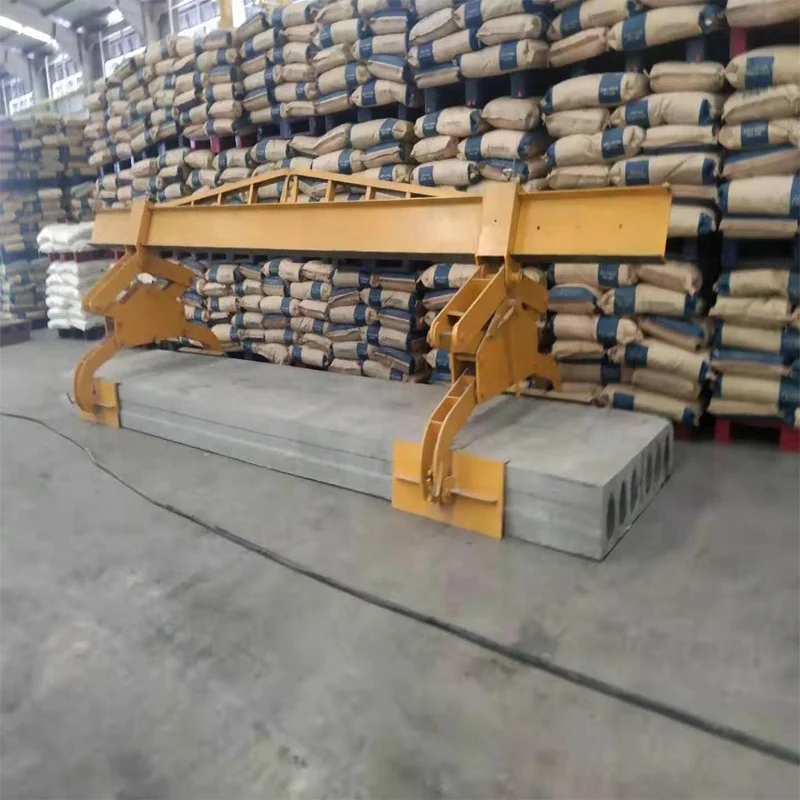

more relevant items of Hollow Core Slab Making Machine --
if you want to more our factory real items ,you can contact us ,we must offer you a competitive quotation
meet the country's large-scale construction projects and civil needs.
our service--
We supply the technical supporting all the time
We supply one year warranty for whole machine.
We supply free quick wear parts.
We supply low charge continue maintenance when warrenty is expired.
We supply free training to end-users.
FAQ--
1.What is your payment term?
You can transfer the payment via T/T. We will provide you the bank detail. Generally, 30% prepaid and the rest 70% should be paid before shipping.
2.How long is the de-molding time?
It depends on the cement type and temperature. Normally,the de-molding time is around 3 hours.
3.We need to confirm following information before sent formal offer:
What kind of slab you want to make, wall panel, roof panel, lintel or?
Do you have exact slab size (slab thickness and width)? If not, please tell us the slab span, we will give you suggestion.
