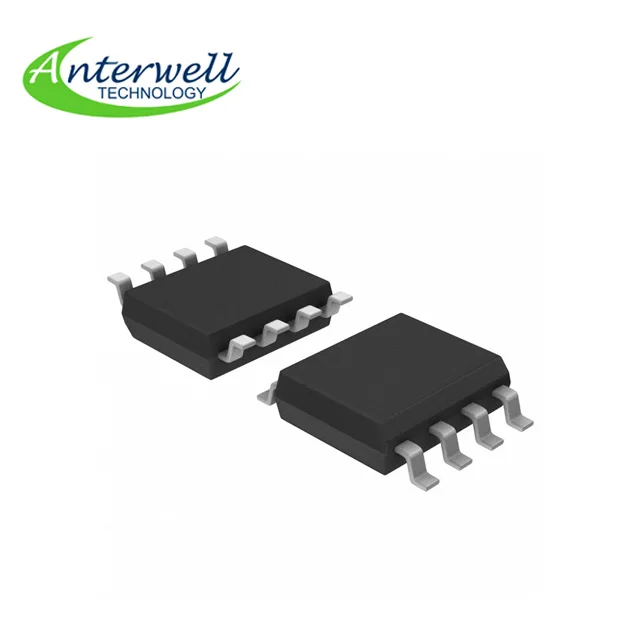

LM2936MX 5.0 Ultra Low Quiescent Current LDO Voltage Regulator

Product Overview

Description

ISO9001:2015 international quality certification LM2936MX-5.0  Ultra-Low Quiescent Current LDO Voltage Regulator





FEATURES DESCRIPTION



The LM2936 ultra-low quiescent current regulator 2

Ultra Low Quiescent Current (IQ ≤ 15 μA for features low dropout voltage and low current in the IO = 100 μA) standby mode. With less than 15 μA quiescent

Fixed 3.0V, 3.3V or 5.0V with 50 mA Output current at a 100 μA load, the LM2936 is ideally suited

±2% Initial Output Tolerance for automotive and other battery operated systems. The LM2936 retains all of the features that are • ±3% Output Tolerance Over Line, Load, and common to low dropout regulators including a low Temperature dropout  pass device, short circuit protection.



package.

40V Operating Voltage Limit

60V Operating Voltage Limit for LM2936HV

Shutdown Pin Available with LM2936BM Package
