Petrol Engine Heavy payload of 100KG Helicopter for Commercial and Industrial Cargo deliveryb Helicopter/Two German engines insi
- Category: >>>
- Supplier: Honeycomb Aerospace Technologies (beijing) Co. Ltd.
Share on (62465355043):
Product Overview
Description
Products Description

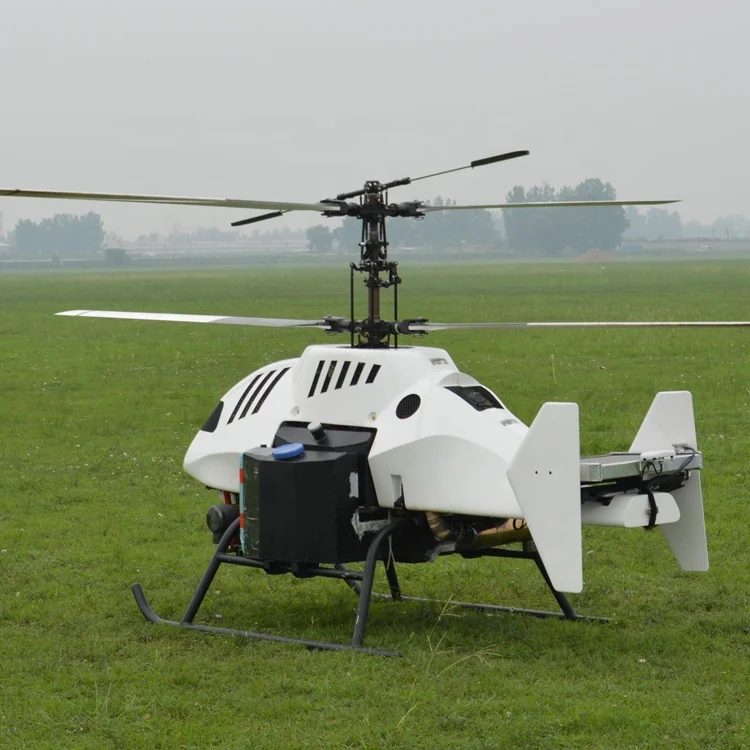

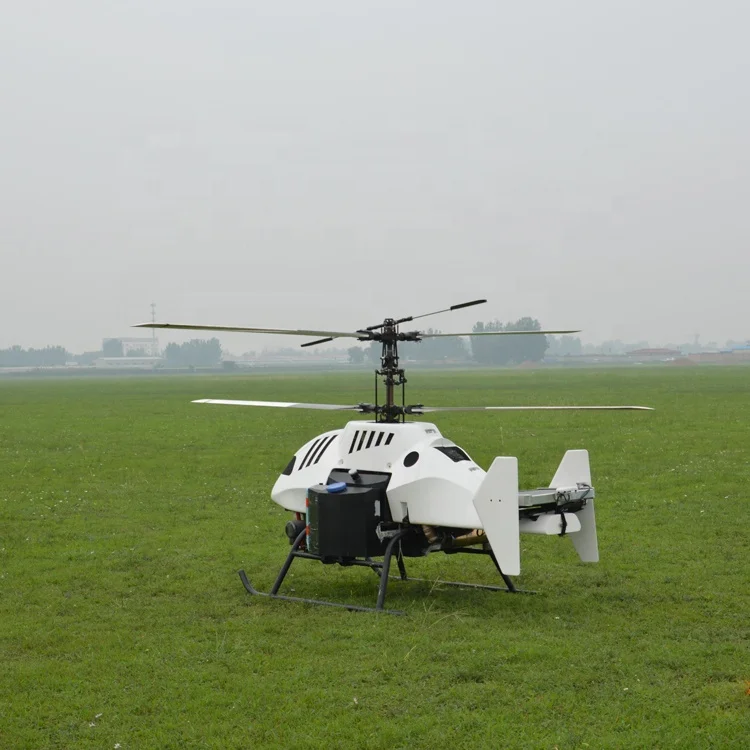

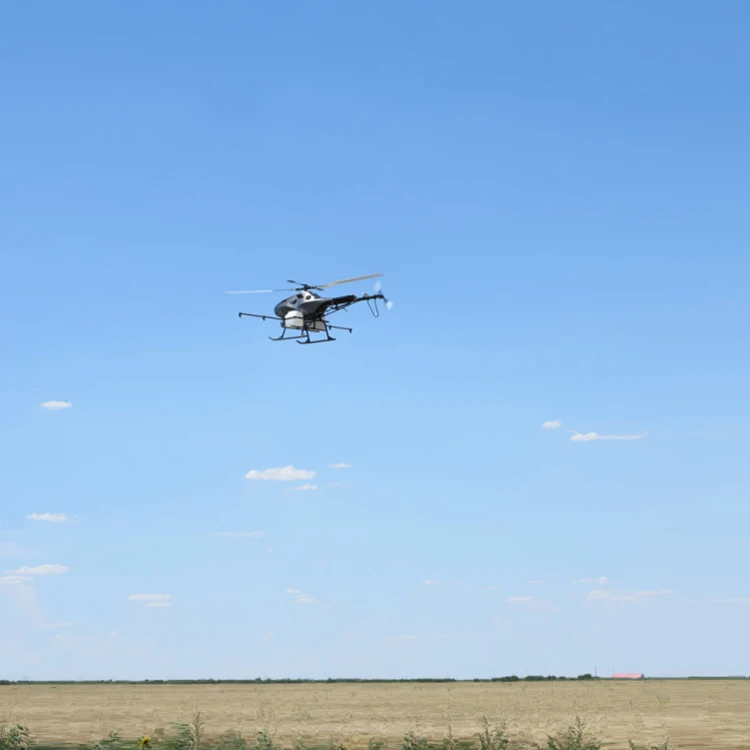

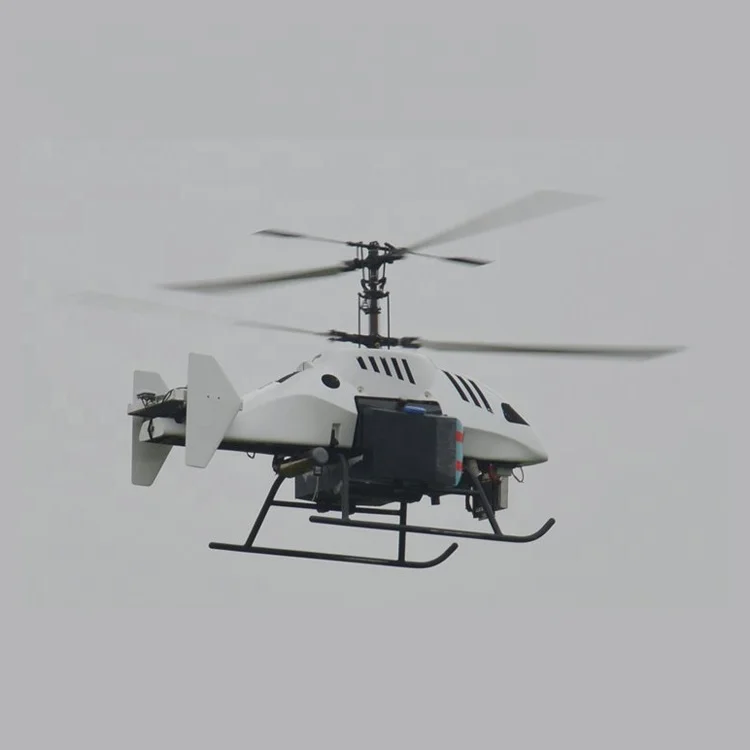

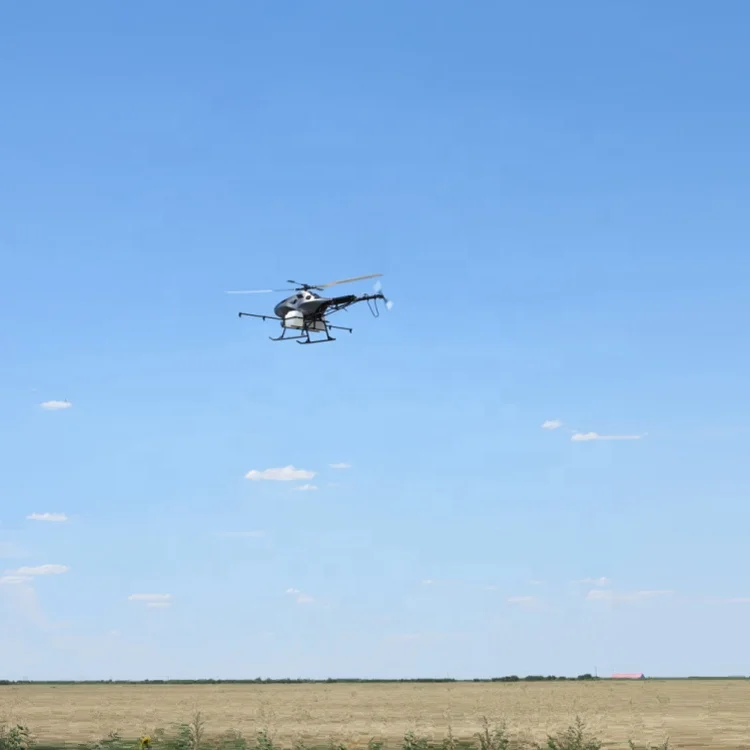

HC-280 Autonomous Helicopter adopts a coaxial rotor layout, model-based robust control algorithm, auto adapting gust, the changing temperature, load, center of gravity. To ensure flight accuracy and reliability under complicated conditions, HC-280 can operate fully autonomous takeoff, landing and planned flight, and can carry out the control of position, speed, and altitude, for stable and reliable flight. It has a maximum payload of 100 kg and can be equipped with aerial equipment such as aerial photography, aerial survey, airborne radar, and nuclear radiation detector. The ground control station can execute the data monitoring and load equipment control to the helicopter. The HC-280 unmanned helicopter has been maturely applied in the fields of aerial mapping, nuclear radiation monitoring, and military reconnaissance and surveillance.
Specifications
Category | Specification | Parameter |
Flight System & Powertrain | Overall layout | Co-axial propeller |
Co-axial Propeller | 2800mm | |
Overall dimension (rotor deployment length) | 4000×1000×1600mm | |
Manufacture material | Carbon Fiber, Glass Fiber | |
Empty weight (excluding fuel) | 145kg | |
Max take-off weight (sea level) | 260kg | |
Standard payload | 70kg | |
Max payload | 100kg | |
Standard propeller | 29×9.5mm | |
Cruising speed | 72km/h | |
Max flight speed | 80km/h | |
Max Altitude | 3000m (Above sea level) | |
Endurance | 4hour @ 70kg | |
2hour @ 100kg | ||
Powerplant | Gasoline engine | |
Engine | Water-cooling engine × 2 | |
Engine output power | 35HP × 2 | |
Specific fuel consumption (SFC) | 20L/h | |
Fuel tank capacity | 40L | |
Auxiliary tank capacity | 10 - 20L | |
Assembly way | Detachable | |
Flight Control System | Attitude angle navigation accuracy | Static 0.5˚ / Dynamic 1˚ |
Position navigation accuracy | Horizontal 10cm / Vertical 50cm | |
Positioning accuracy | Normal 10cm / Differential 1cm | |
Attitude control accuracy | ±1˚ | |
Direction control accuracy | ±2˚ | |
Position control accuracy | ±10cm | |
Positioning algorithm | RTK GNSS/GNSS+INS | |
Operating temperature range | -40˚C ~ 60˚C | |
Flight mode | Manual / Auto | |
Emergency measure | Out-of-control return, fault alarm | |
Link system | Control radius | 10km (no obstacles) |
Video Output resolution | 1080P@60fps | |
Operational environment | Wind resistance level | Level 5 |
Operating temperature | -20˚C ~ 40˚C | |
Rain resistance level | IP54 | |
Aircraft Logistics | Control radius | 5-10km (no obstacles) |
Video Output resolution | 1080P@60fps | |
Operational environment | Wind resistance level | Level 6 |
Operating temperature | -20˚C ~ 40˚C | |
Remote Controller | Rain resistance level | IP54 |
Aircraft Logistics | Flight preparation time | ≤20min |
Fuel | gasoline | |
Remote Controller | Model | FUTABA T8FG |
Work frequency | 2.4 GHz | |
Max signal effective distance (no interference, no occlusion) | 2km |
Company Profile
Packaging & Delivery
Technical Training
Training Objectives
In order to make our clients involved in the project, fully understand all the equipment provided by us and enhance the operational skills of the equipment, we will be responsible for organizing comprehensive and high-quality training for equipment operations and management maintenance personnel. In addition to providing the users with technical instructions, operation instructions and relevant documents of the whole equipment.
Click here to get details.
Warranty&After-sales
Maintenance support
The company provide One year of warranty for all Drone Products. Base maintenance is carried out by professional maintenance personnel. Our company will handle free of cost malfunction guidance, online support and on-site support during the warranty period. For on-site support the client will be responsible for (Air-ticket, Hotel reservation, Food, Daily expenses) of technicians and engineers.
FAQ
Q: How will you deliver the goods to me?
A: Alibaba platform will arrange the delivery, and we can negotiate about the transportation (by air, by sea or by express) together. And you can also arrange the delivery yourself if you have a reliable logistics company with which is cooperating steady for a long time.
Q: What are your terms of payment?
A: We support transfers both on Alibaba platform online and company account to company account offline. As for the payment method, we support all such as Visa, Mastercard, T&T.
Q: Can I get an invoice?
A: Alibaba will offer you a PI (Proforma Invoice).
Q. Do you test your aircrafts before delivery?
A: Yes, we have 100% test before delivery, and we will offer you a test report.
Q: What is your warranty and after-services?
A: Our warranty is 12 months after you received the goods. We will pay high attention to after-sales service. Click here to get the details.
Q: Can you provide OEM services?
A: We can negotiate for OEM services.
Q: What is the lead time? (How long will it take to prepare my order?)
A: The exact time will be based on quantity, your specific requirements and area of delivery. (normally 10 to 90 days). You can directly contact us and we will give you exact timing.
Q: Do you accept the order which requires some modifications on your drones or customized design?
A: Yes, we do
Q: Can you offer some other payloads meeting my requirements?
A: Yes, we can. We can offer solutions of the payloads based on your specific requirements. You can also buy our flight platform and integrate the payload by yourself.
Q: Is there any tracking number for my order?
A: Yes, we ship every order with unique Tracking number, and you can view the shipment status on corresponding website.
