High quality PCBA online cleaning machine
- Category: >>>
- Supplier: Changdian (Shenzhen) Automatic Equipment Co. Ltd.
Share on (62465366950):
Product Overview
Description
High quality PCBA online cleaning machine
Product Description
Equipment parameters: Changdian-6800
Cleaning maximum size | 550mm(W)*100mm(H) |
Minimum cleaning size | 10mm(W)*10mm(H)Fixture |
Height of conveying surface from ground | 900±50mm |
Working width | 600mm |
transfer method | Mesh belt conveyor |
transfer speed | 10cm~150cm/min(adjust) |
Conveying direction | Left in right out |
Filtration accuracy | 0.22um |
Cleaning tank capacity | 300L |
Cleaning water pump power | 7.5kw |
Heating power of cleaning tank | 27kw |
Rinse tank capacity | 200L |
Rinse water pump power | 505kw |
Rinse tank heating power | 36kw |
Cleaning method | Spray up and down |
Drying method | Hot air circulation |
Drying heating power | 15kw |
Liquid heating temperature | Normal temperature~70℃ |
Drying heating temperature | Normal temperature~80℃ |
DIWater consumption | 10~15/min |
DI Inlet pressure | 2~3kg |
Resistivity monitoring range | 0~20M Ω.cm |
Exhaust vent size | φ250mm(W)*50mm(H) 4PGS |
Total power | 135kw |
power supply | AC 380V 40A2 50HZ |
Equipment size | 6800mm(L)*650(W)*690±50mm(H) |
Total equipment weight | 2500kg |

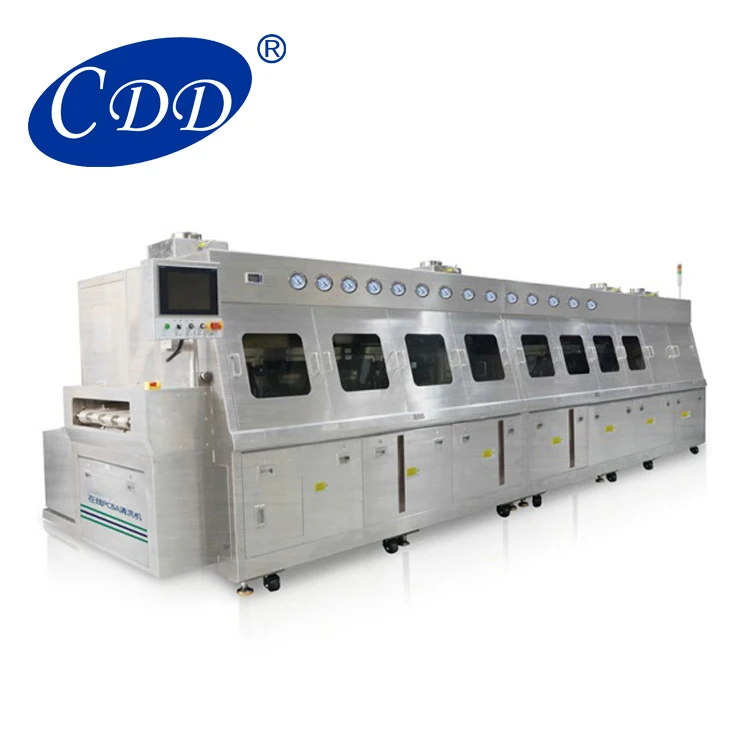

Changdian-6800 Online PCBA Cleaning Machine Introduction:
This equipment is mainly used for the cleaning of assembly parts and semiconductor flux residues in the electronics industry. The water-based cleaning machine is used for spray cleaning to remove surface flux residues, solder balls, solder paste, dust, impurities, oil and other pollutants. Clear. Rinse with deionized water to make the product 100% clean, without any safety hazards, and harmless to humans and the environment.
Standard cleaning process:
Into the board → pre-cleaning → cleaning → chemical isolation → pre-rinsing → rinsing → rinsing Ⅱ → last spraying → air knife cutting water Ⅰ → air knife cutting water Ⅱ → hot air circulation drying → board exit
Machine characteristics:
The whole machine is made of 304 stainless steel, which is durable and resistant to acid, alkali and other cleaning fluids.
Suitable for large batches of PC B A to complete all processes of washing, rinsing and drying online
Excellent cleaning effect, effectively remove rosin, water-soluble flux, no-clean flux
Organic and inorganic pollutants
Unique chemical isolation method, lower running cost
PC B A of different sizes can be cleaned
Resistivity monitoring rinsing liquid to ensure product cleanliness
The nozzle pressure can be adjusted to meet the cleaning pressure range of different products
All heating temperatures can be adjusted
Air knife cutting water + ultra-long hot air circulation drying section
Optional spray cleaning knife for better cleaning effect
Large-size color touch screen automation control, Chinese / English operation interface, for different
Quickly edit and save product cleaning process parameters
Flexible running of water or chemical cleaning
Unique rinsing overflow design, saving water consumption
U PS backup power supply system
Short delivery cycle
Localized service team and sufficient spare parts supply
Company Information
Packaging & Shipping
Our Services
FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guide video that show you how to use machine. If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period. If the part is less than 0.5KG, we pay the postage. If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment. And 100% quality check before shipping.
F.Send your order by air or by sea.
