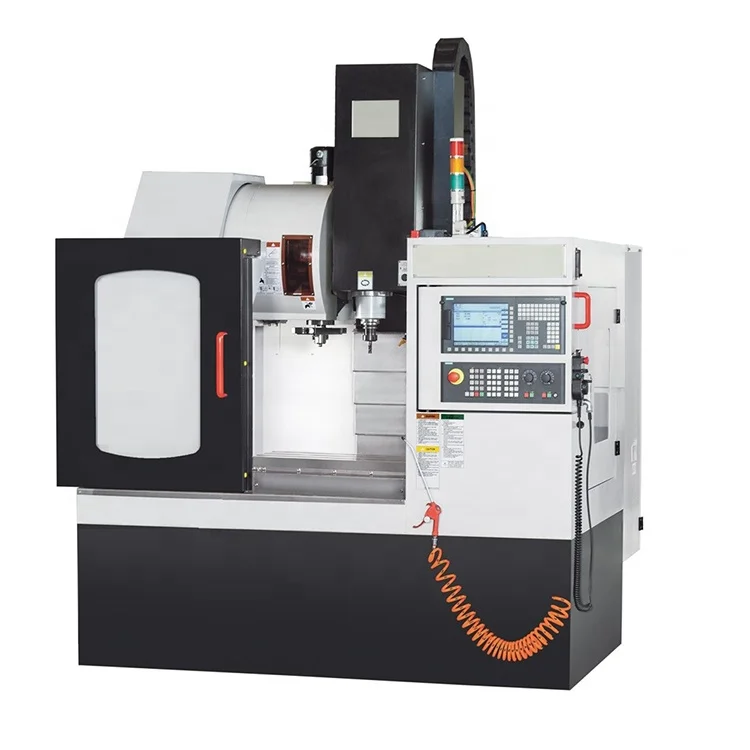

Best Customized Siemens Machining Center Cnc Milling Machine for Sale Vertical 2019 2020 60 6000 620*350*500 Automatic XH7132A
- Category: >>>
- Supplier: Supertech Machine Tool Co. Ltd.
Share on (62465385739):
Product Overview
Description
PRODUCT FEATURES
CNC Vertical machining center is applied to the machining of plate type work piece, shell type work pieces, moulds and so on,
which are with high precision & lots of working procedures & complex shapes. It can achieve precise milling, drilling,
countersink, reaming, boring, tapping on 2-dimensional or 3-dimensional surface and slope during one time of workpiece’s fixture.
Users get good economic benefits because of its programmable machining and short production time.
which are with high precision & lots of working procedures & complex shapes. It can achieve precise milling, drilling,
countersink, reaming, boring, tapping on 2-dimensional or 3-dimensional surface and slope during one time of workpiece’s fixture.
Users get good economic benefits because of its programmable machining and short production time.
about XH7132 cnc milling machine
1.X/Y/Z-axis adopts Taiwan HIWIN linear guide ways
2.X/Y/Z-axis servo motor connects Taiwan HIWIN high precision ball screws Taiwan brand drum-type tool magazine
3.Bed body, worktable, slide, column, headstock, etc are made up by high rigidity cast iron material,
4.Taiwan spindle unit with 8000rpm,the max.spindle speed can be achieved to 6000rpm.with high precision,high rigidity.
5.Taiwan brand umbrella type tool magazine
6.Equipped with large flow cooling pump and large capacity water tank
7.Electromagnetic valve group by PLC program control, ensure that the spindle loose tools, spindle center blowing, spindle folder
tools, air cooling spindle etc
8.The guideway and ballscrew pair adopt centralized automatic lubrication, Each node is equipped with a quantitative oil
separator.
2.X/Y/Z-axis servo motor connects Taiwan HIWIN high precision ball screws Taiwan brand drum-type tool magazine
3.Bed body, worktable, slide, column, headstock, etc are made up by high rigidity cast iron material,
4.Taiwan spindle unit with 8000rpm,the max.spindle speed can be achieved to 6000rpm.with high precision,high rigidity.
5.Taiwan brand umbrella type tool magazine
6.Equipped with large flow cooling pump and large capacity water tank
7.Electromagnetic valve group by PLC program control, ensure that the spindle loose tools, spindle center blowing, spindle folder
tools, air cooling spindle etc
8.The guideway and ballscrew pair adopt centralized automatic lubrication, Each node is equipped with a quantitative oil
separator.
TECHNICAL PARAMETERS
Model | Units | XH7132A |
Table travel (X,Y,Z) | mm | 620x350x500 |
Table size | mm | 920x320 |
Number/Width/Distance of T-slot | mm | 3-14-85 |
Distance from spindle nose to table surface | mm | 100-600 |
Distance sfrom spindle axis to column guideway | mm | 395 |
Taper of spindle | \\ | BT40 |
Spindle speed range | rpm | 60-6000 |
Spindle motor power | KW | 5.5 |
Rapid feed speed | mm/min | 18000 |
Feed speed | mm/min | 2.5-3000 |
Tool magazine capability | qty | 16 |
Max.dimension of tool | mm | 150*350 |
Max.weight of tool | kg | 8 |
Positioning accuracy | mm | 0.005 |
Repeat positioning accuracy | mm | 0.003 |
Overall dimension | mm | 2020*1970*2160 |
Machine weight | kg | 3200 |
Standard accessories
GSK980 CNC control system
RS232 interface
Taiwan 16 umbrella tool station,
Taiwan BT40 8000rpm spindle unit,
3-Axis tursite box guideway,
Taiwan Hiwin leadscrew,
Japan NSK bearing,
Full-cover protection,
Worklight,
Coolant system,
Auto-lubrication,
Electrical handwheel
RS232 interface
Taiwan 16 umbrella tool station,
Taiwan BT40 8000rpm spindle unit,
3-Axis tursite box guideway,
Taiwan Hiwin leadscrew,
Japan NSK bearing,
Full-cover protection,
Worklight,
Coolant system,
Auto-lubrication,
Electrical handwheel
Optional accessories
Magnetic lock
Round type 16/20 tools Magazine
CNC the forth axis
FANUC 0i -MD
SIEMENS 828D
Siemens 808D
KND-2000M
Round type 16/20 tools Magazine
CNC the forth axis
FANUC 0i -MD
SIEMENS 828D
Siemens 808D
KND-2000M
OUR WORKSHOP
RECOMMEND PRODUCTS
Supertech Machine Tool Co.,Ltd is a company including active and professional teams ,specialized in CNC machining Center,CNC Lathe Machine,Wheel Lathe machine . Our team have great experience on manufacturing and exporting. Our service department has experienced technicians that can offer you answers to your technical questions, and in many cases, solve your problem effectively over the phone.We are dedicated to provide customers with the best, highly value added machines. We have earned a strong reputation in design and manufacturing of a wide variety of CNC machine tools. We continuously improve the performance level of our machines, strengthen our quality control system, and offer worldwide support services. Our dedication to the global marketplace will create a new era of CNC machine tools.
PACKING&SHIPPING
1. Q:Are you a factory or trading company?
A: Yes,we are a factory. welcomed to visit us.
2. Q:Where is your factory located? How can I visit there?
A: Our factory is located in Yancheng City, Jiangsu, China.
It takes about 1 hours from Shanghai by plane.
It takes about 1 hours from Shanghai by plane.
3. Q: What is the lead time?
A: It depends on your order quantity.
4. Q: Where is your Loading Port ?
A: Shanghai. port, China or otheres as you request.
5. Q: What are your payment terms?
A: T/T 30% deposit and balance paid before shippment.
