Optional tank capacity:3,000 - 35,000 liters for oil tank truck;30,000 - 60,000 liters for oil tank semi trailer
Optional truck brand:DFAC, JAC, JMC, HOWO, FAW, SHACMAN, YUEJIN, FOTON, North Benz, etc. Optional wheel drive:4x2, 4x4, 6x4, 6x4, 8x4, left hand drive or right hand drive.

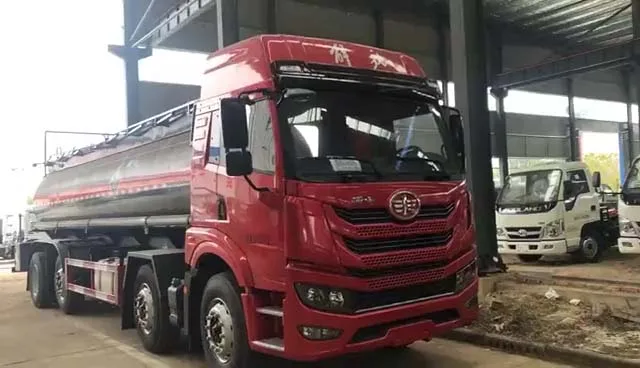

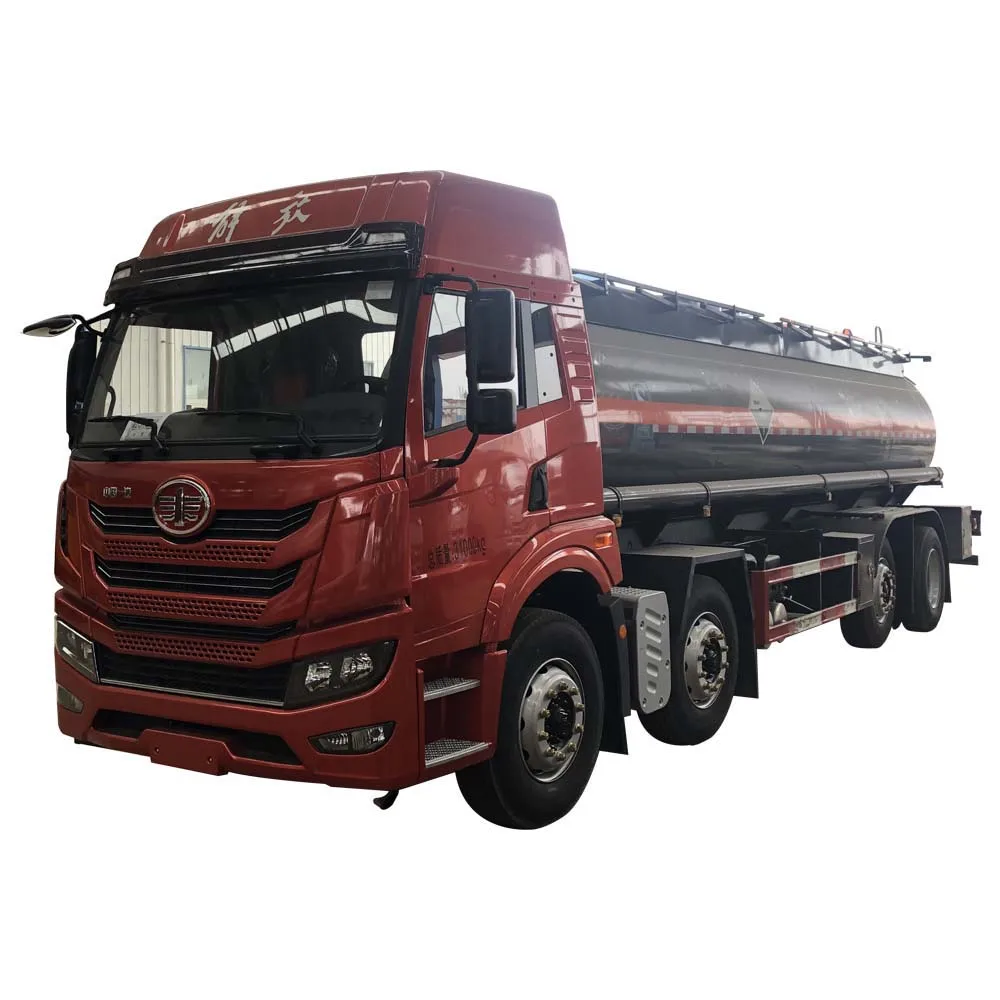

8x4 Safe Loading And Uploading Shell Oil Field Capacity Fuel Tank Truck
Specifications
Item
Specifications
Item
Specifications
Truck
Name
8x4 Safe Loading And Uploading Shell Oil Field Capacity Fuel Tank Truck
Model
CSC5320GYYC5
Gross Weight
32000kg
Overall dimensions
11900*2500*3505mm
Curb Weight
13600kg
Wheelbase
1950+4550+1350mm
Approach angle
13°
Front Track
1987mm
Departure Angle
16°
Rear Track
1860mm
Front Overhang
1460mm
Number of axles
12
Rear Overhang
2590mm
Max speed
80km/h
Number of Tyres
12
Traction system
8*4
Tyre
11.00R20,12R22.5,295/80R22.5
Transmission
manual
Allowable Cab Passengers
3
Chassis
Brand
FAW
Drive type
RDH or LDH
Model
CA5320GYYP63K1L6T4E5
Leaf Spring
3/3/-
Upper
Volume of tank
17-25CBM
Tank Material
Carbon steel
Thickness
4-5mm
Loading
Fuel
Engine (Motor)
Brand
FAW
Type
Diesel
Model
CA6DK1-28E5
Displacement
7146ml
Horse power
284hp
Emission standard
Euro 5
Equipment
Gearbox
5 forwards & 1 reverse
Steering Gear
Hydraulic steering
Clutch
Reinforced diaphragm clutch
Brakes
Dual circuit compressed air brake
1. Equipped with 1 oil pump with 1 inlet valve and 1 outlet valve.
2. Tank divided into 6 compartments, each discharge valve for each compartment.
3. Each European standard man hole cover and each air emergency valve for each compartment.
4. Equipped with folding barrier on top of the tank.
5. Equipped with fire extinguisher, front ladder, grounding wire, plastic fender.
Remark
1. Oil tanker trucks mainly include truck chassis, oil tanker, piping system, manhole, vapor recovery system, manifold system, API valve, emergency valve, etc.
2.Tank shape: Optional for round square, oval, and round;
3. According to users' needs, the tank can be designed as single compartment or several compartments to contain different kinds of oil or chemicals.
4.Oil pump: Users can choose centrifugal pumps, gear pump, copper gear pump, or stainless steel pump according to actual needs. It has advantage of big flow, high suction pressure and speed.
5. According to different purposes, oil tank trucks can be classified to oil-transporting vehicle and refueling vehicle.It can be used to transport or refuel oil, petrol, diesel, lubricant, crude oil and some chemical liquid, etc.
6. The tank is made of high quality 4mm -6mm thick carbon steel, stainless steel and aluminum alloy material. With multiple baffle plates in the tank, it has the advantages of high intensity, stability, transporting safety etc.
7. The butt welding technology is adopted inside the tank, and the high-pressure gas leak detection after the tank is formed, so that the tank has the processes of high strength, stable center of gravity, safe and stable during transporting.
8. After the tank is welded, the shot blasting pretreatment process is adopted to realize descaling and rust-proof. The paint adopts advanced baking varnish technology to make the appearance beautiful and durable.
