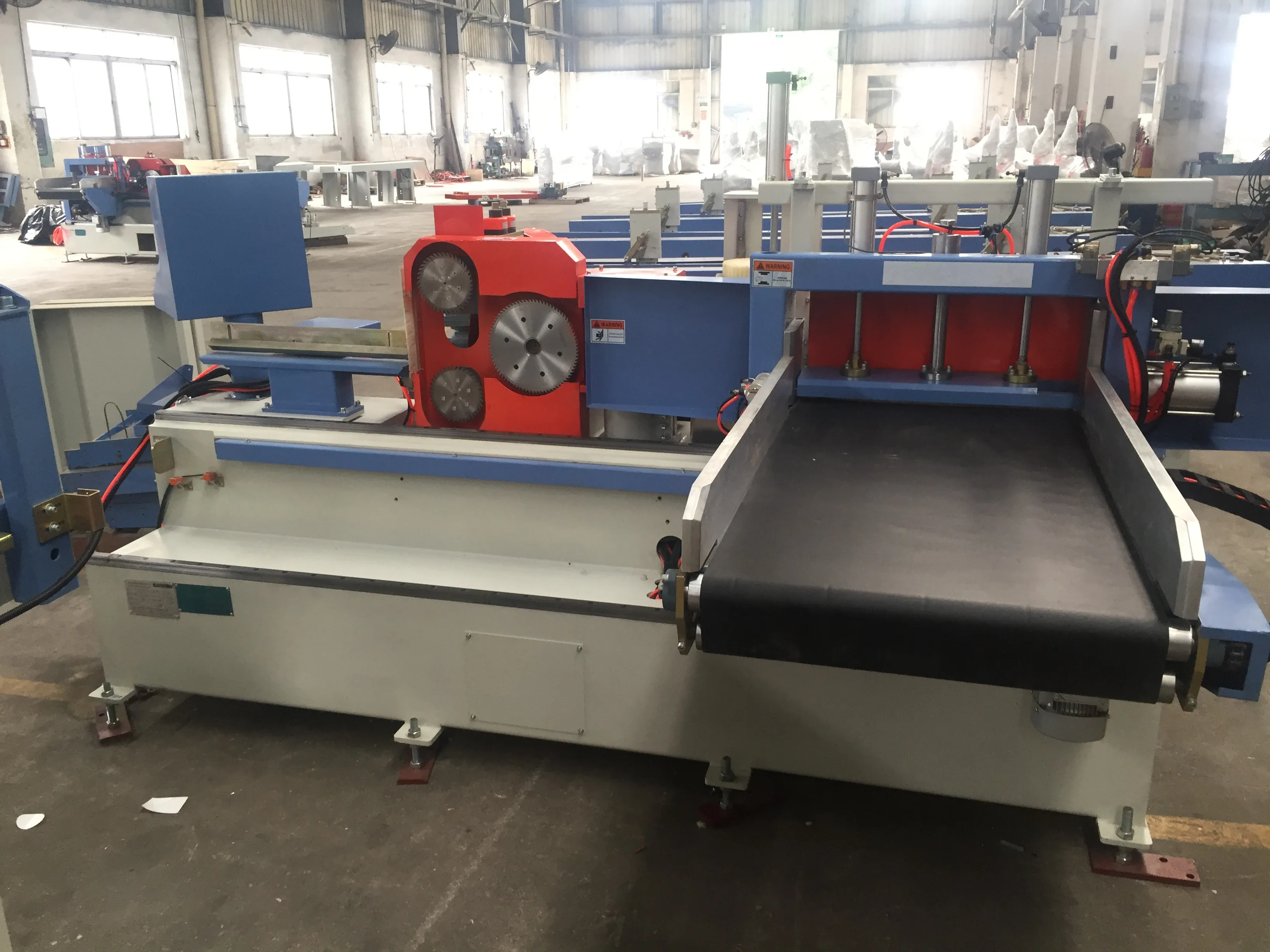

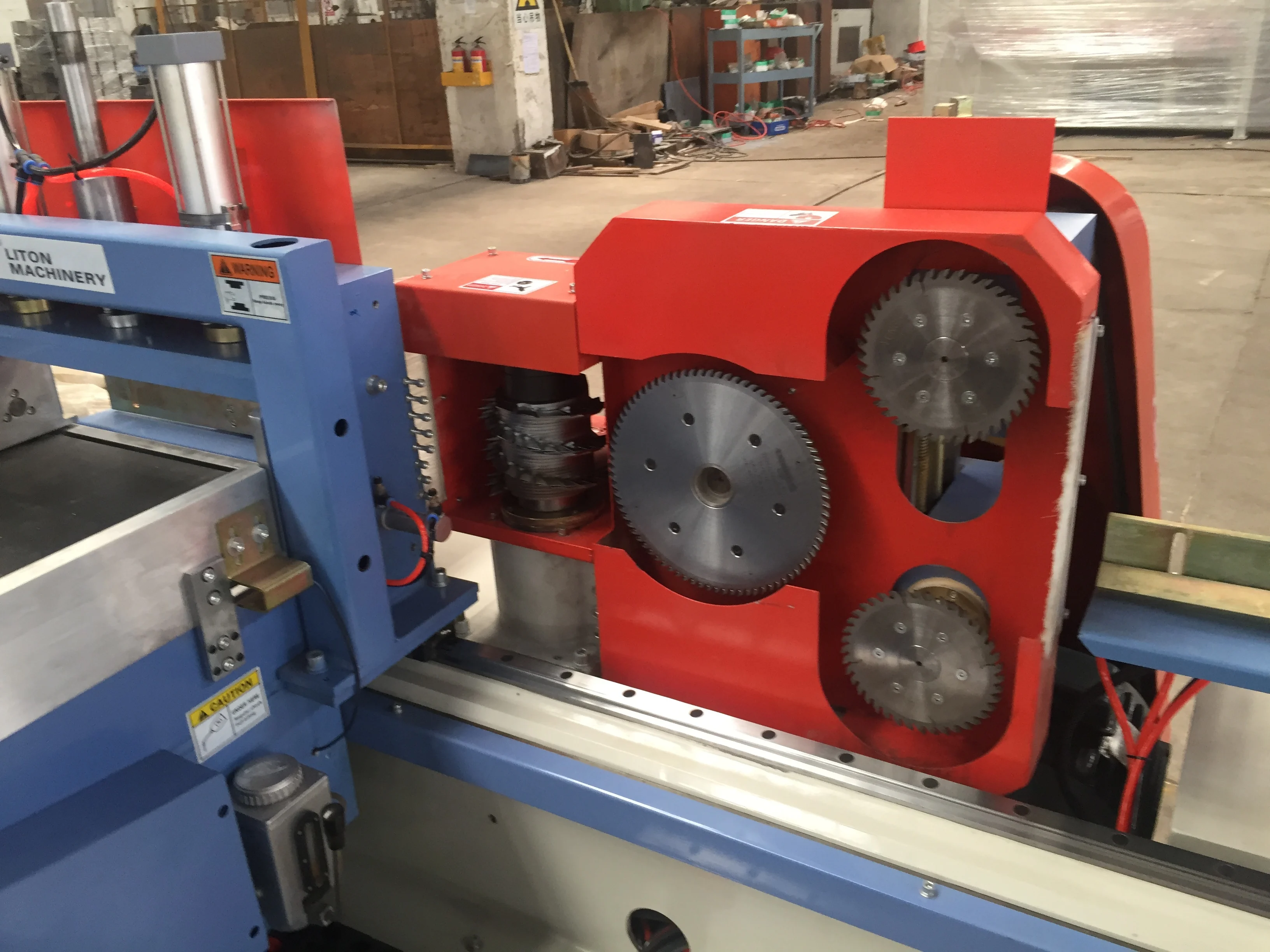

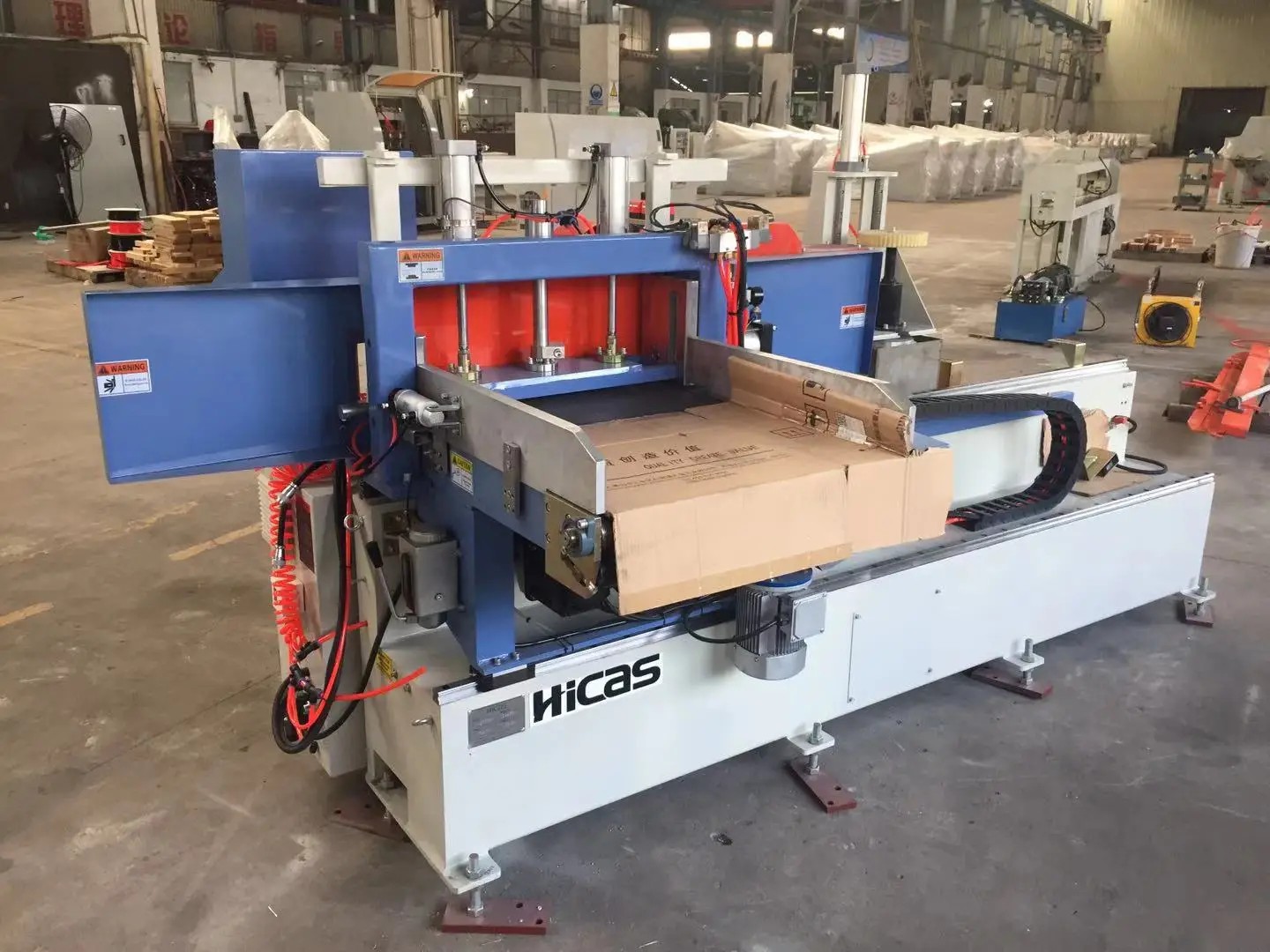

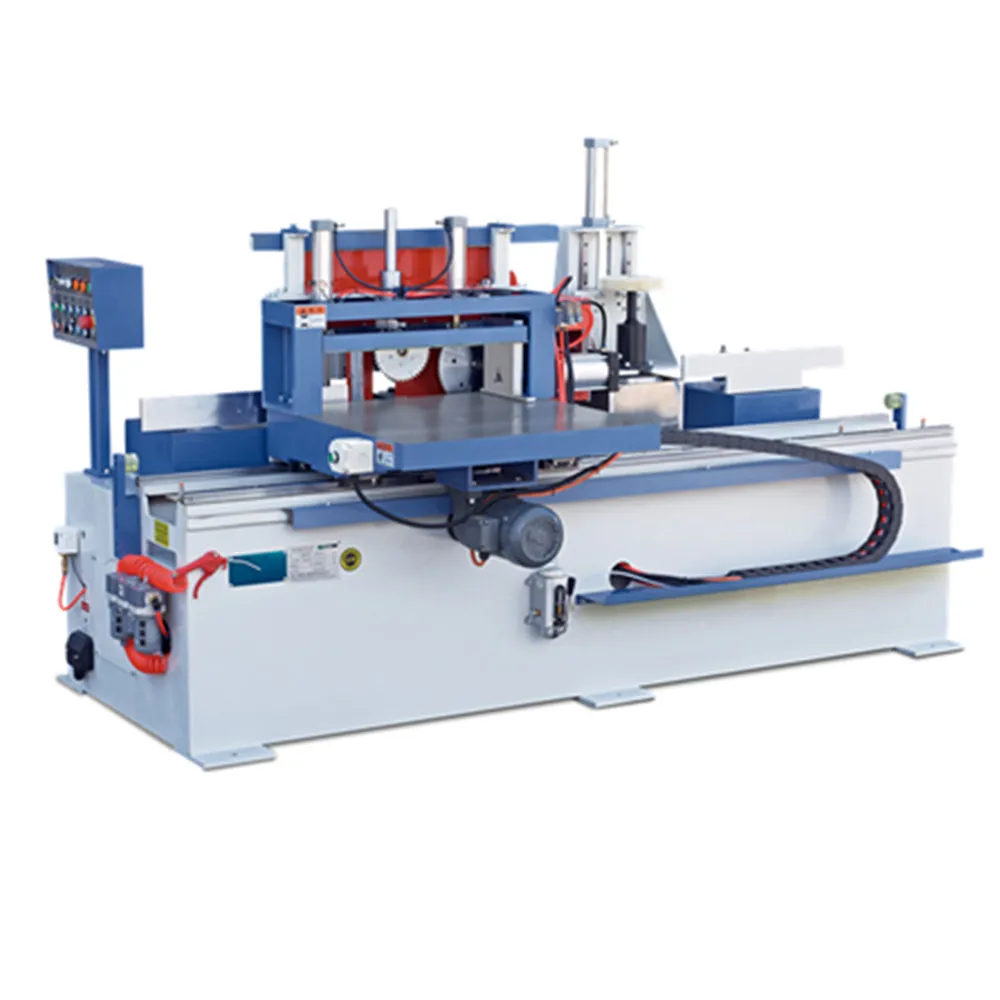

Hicas HCS3515TA finger joint shaper machine with automatic glue
Model
HCS3515A
(without automatic glue)
HCS3515TA
(with automatic glue)
Working table size
760 * 850 mm
760 * 850 mm
Working thickness
Max. 150mm
Max. 150mm
Working width
Max. 600mm
Max. 600mm
Working length
120-850mm
120-850mm
Main saw blade spindle diameter
30mm
30mm
Scoring saw blade spindle diameter
30mm
30mm
Shaper spindle diameter
70mm
70mm
Shaper finger joint cutter diameter
160mm
160mm
Main saw blade spindle speed
2840Rpm
2840Rpm
Shaper spindle speed
6000 rpm
6000 rpm
Shaper spindle power
11kw
11kw
Main saw spindle power
4kw
4kw
Score saw spindle power
0.75kw
0.75kw*2Pcs
Total power
15.75kw
16.5kw
Voltage
380v 50hz 3phase
380v 50hz 3phase
Working air pressure
0.8 Mpa
0.8 Mpa
Machine size
2400*1730*1550mm
2700*1730*1550mm
Machine weight
1800kg
2000kg
Customer Feedback

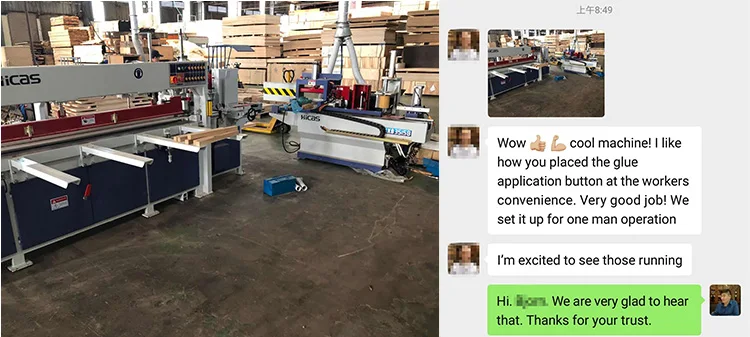

New feedback from our Vietnam customers
