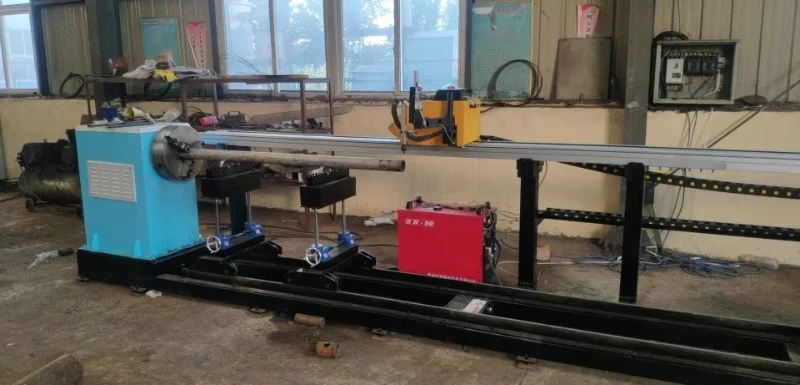

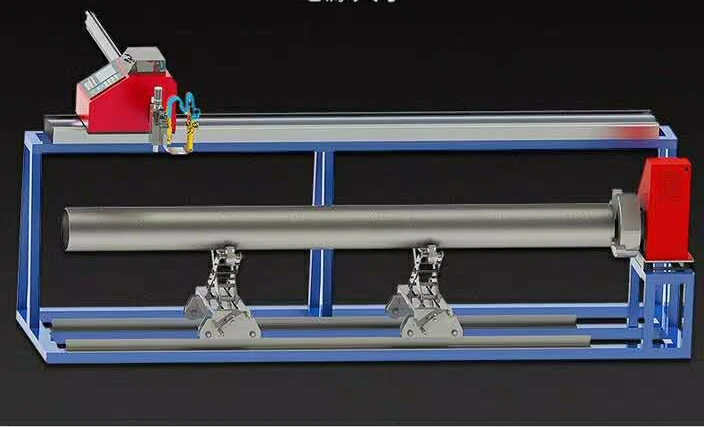

1. three Axis with two linkage intersecting line cutting
2. cutting pipe Ø30-350mm with various intersecting line shape sections; tube telos cutting off, telos slotting ; Mitre elbow cutting; V-shaped shaddle cutting ; Main tube trepanning cutting; kerf compensatory function,etc.
3.Widely used in the ifields like Hardware electrical and mecanical manufactures, Steel structure pipe trusses; Petrochemical nature gasline; Pipeline processing industry.
parameter
Main techinical parematers
Effective cutiing pipe Dia.
30-350mm
Cutting length
6m,8m,10m,12m
Cutting accuracy
±0.75
Chuck clamping load
≤1 T
Cutting speed
100-7000mm/min
Cutting thickness
carbon steel:5-15mm/or more
Applicable material
carbon steel, SS steel, aluminum , copper, and other nonferrous metal
Power source
machine:220V; 50HZ; plasma:380V, 50HZ
Torch lifting distance
≤120mm(electric mode
Product Presentation
1.ALUMINIUM ALLOY RAILS WITH STEEL LINER SLIDES

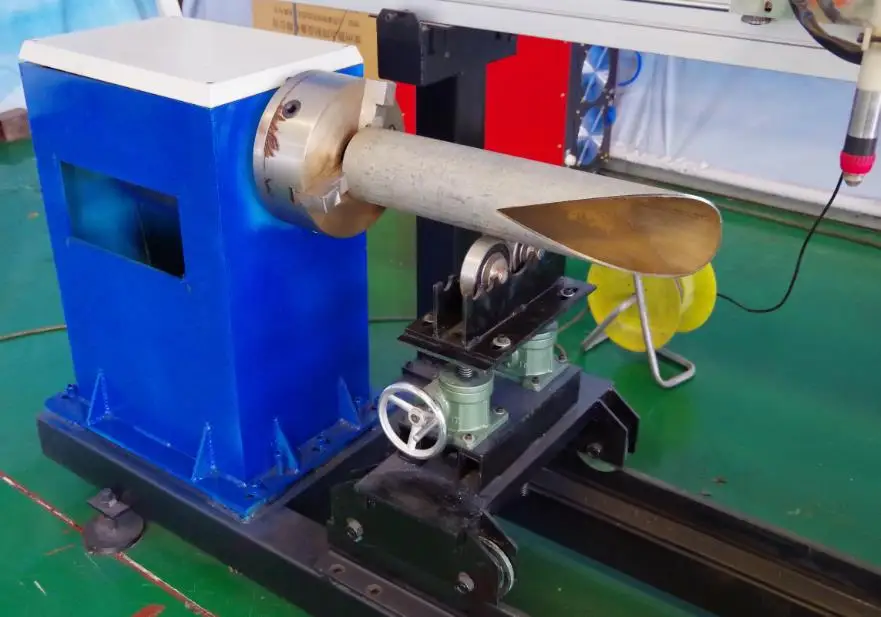

2. HIGH-HARDNESS CHUCK WITH 3 OR 4 JAWS CLAMPING

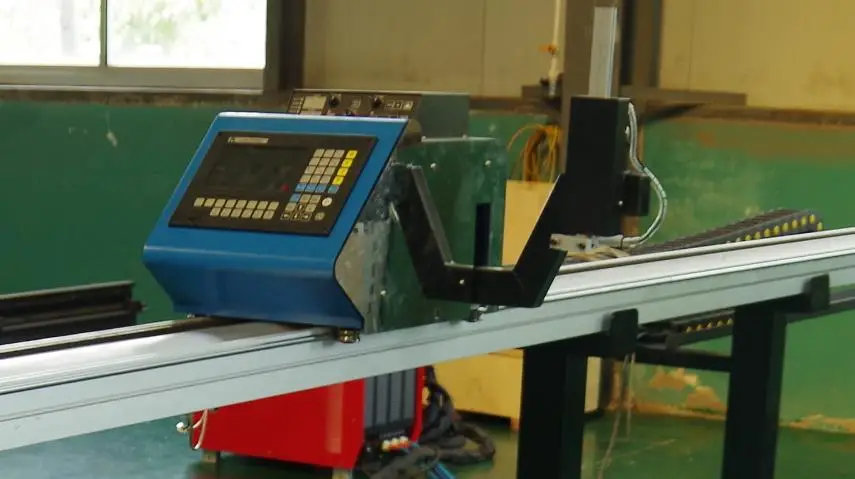

3. FL2300BX CNC CONTROL SYSTERM

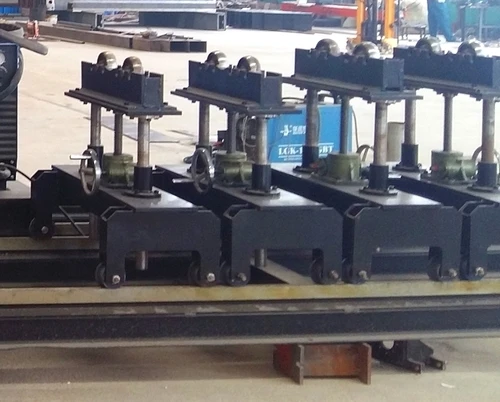

5. RAILS AND SUPPORT TROLLEY

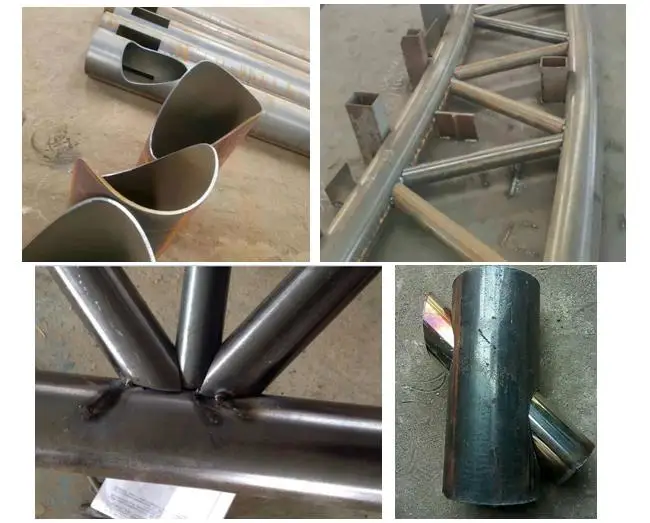

Cutting samples
Samples show
Why choose us?
We are manufacturer of CNC cutting machine & automatic welding equipment for metal plate and metal round pipe ,square pipe ..We have in plasma cutting machine field for more than 10 years , have mature technology . We have customer in worldwide . Widely used in steel structure , ship building ,pressure vessels , fitness equipment , recreational equipment , Marin engineering , tower industry ,oil and nature pipeline , ocean engineering , ect industry . and have a good public praise in our customers.
Seanior CNC Systems
FAQ
FAQS:
1,How about the documents after shipment? After shipment,we'll send all original documents to you by DHL,including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
2,How long is the delivery time?
For standard machines,it would be 7-10 days;For non-standard machines and customized machin
es according to client's specific requirements, it would be 15 to 30 days.
3,Do You Arrange Shipment For The Machines? Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
4,How is the packing? Water-proof plastic film package with foam protection in each corner Solid Seaworthy Wood Box Package with Steel Belt Save space as much as possible for container loading
