China Exporter Light Ceramic Fiber Tube Casting Paper Ceramic Pipe

Product Overview

Description

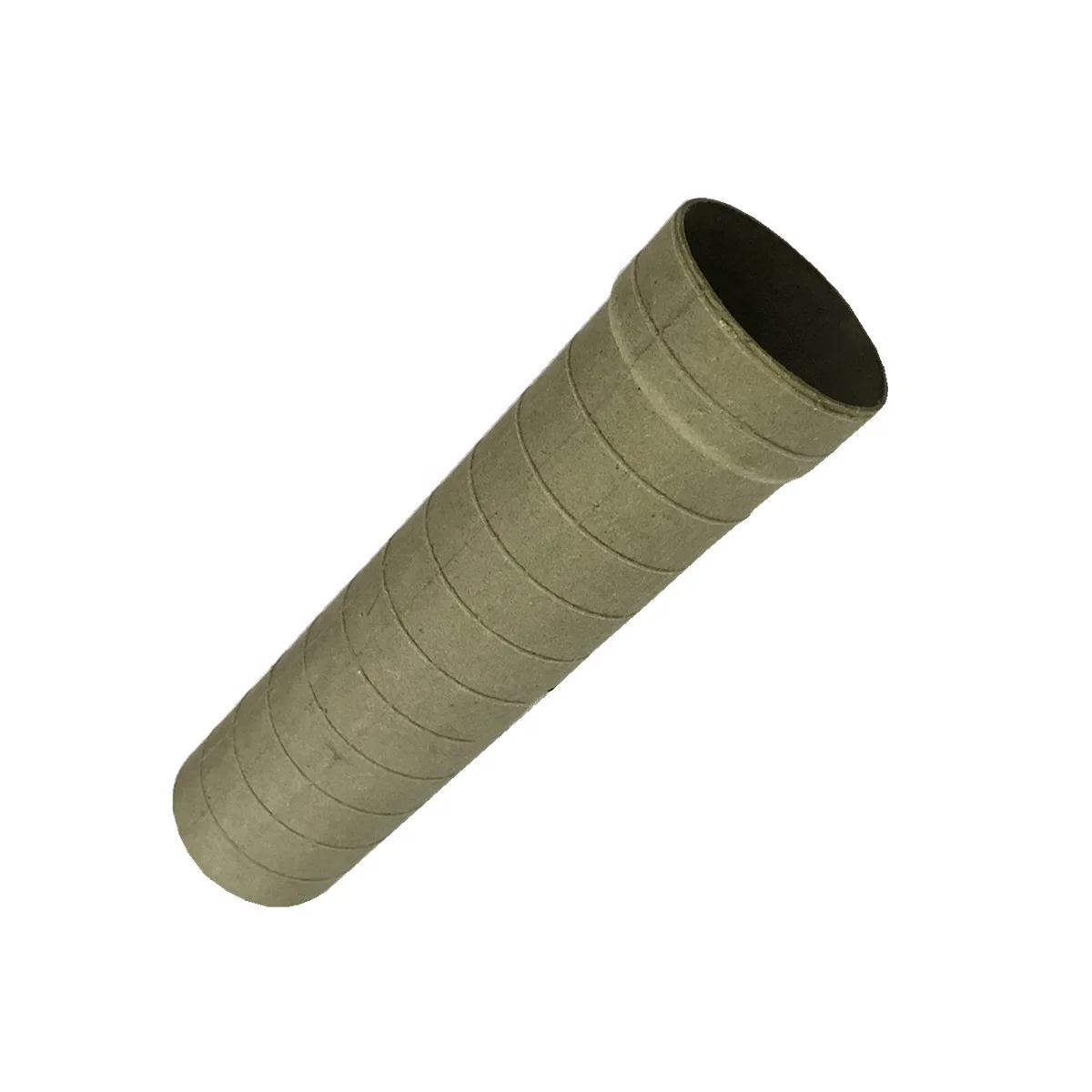

Light Ceramic Fiber Tube China Exporter Casting Paper Ceramic Pipe

 1. Application

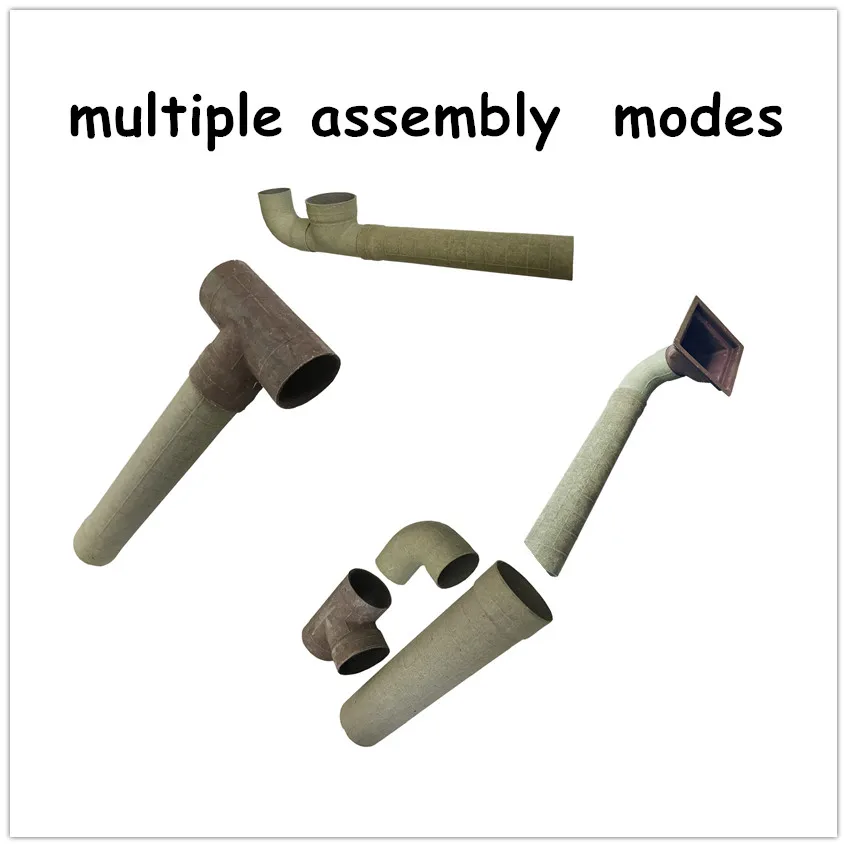

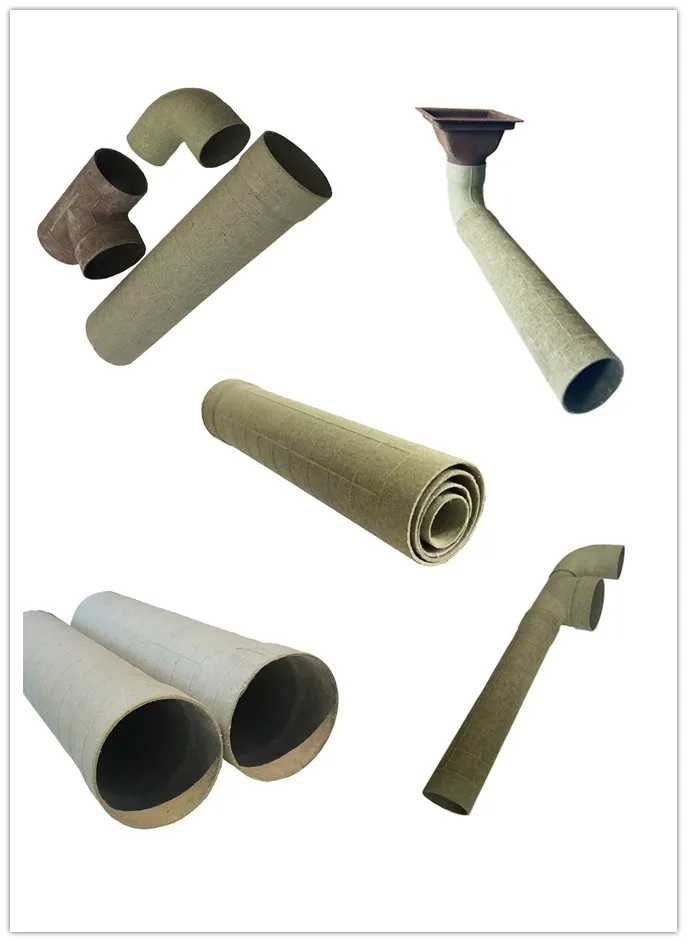

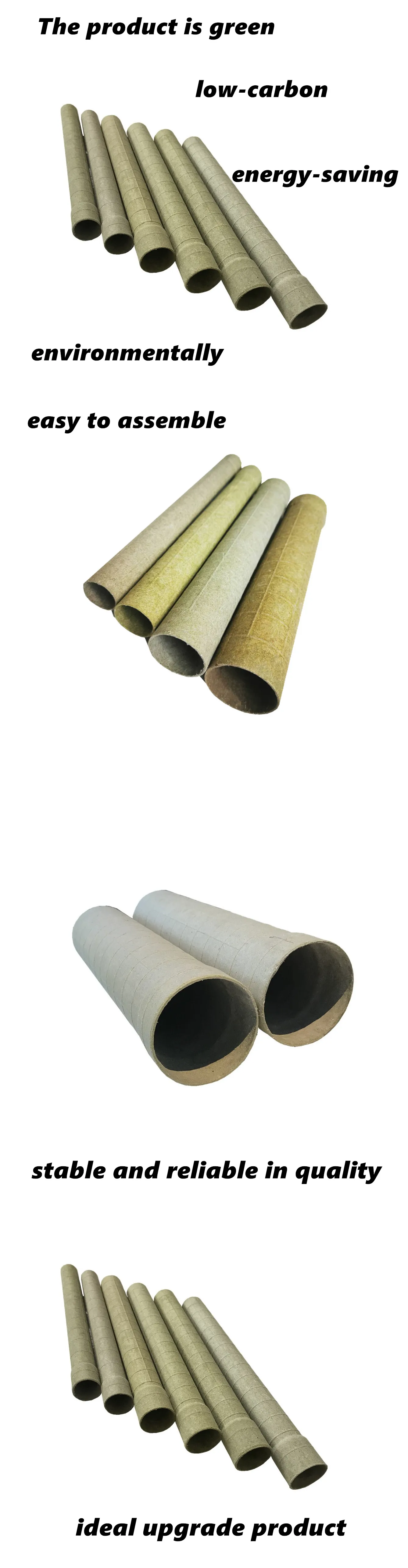

       Made in China paper ceramic fiber tube , it is  used for gating systems include tubes, elbows, tees, pouring cups, filter holders and other special sizes products. The product is green, low-carbon, energy-saving and environmentally, easy to assemble, stable and reliable in quality. It is an ideal upgrade product for ceramic casting system. Light paper- ceramic gating system is widely used in the lost foam and precision casting industries.







     2.  Features of our products



     1.      Light weight, easy to assemble. The weight is only one tenth of the ceramic           products, and the labor intensity of the workers is reduced  more than 70%.

    2.      High temperature resistance and good insulation. The molten iron pouring at 1600 °C without crack, and the fluidity of molten iron increases  more than 60 seconds, which greatly improves the yield of castings.

    3.      Good seal and strict  interface., casting will have lower sand defects since sand can’t go into the gating system through the connection of pouring products, so ensure the quality of castings

   4.      Excellent performance and high strength. During high- speed pouring the metal,without any cracking, non-sticking, anti-slag, anti-corrosion  ,and refractoriness over 1700 °C.

   5.       No carbonation, carburization, and no change in the material and properties of the castings

• accurate and consistent dimensions


•  reduce casting defects of sand holes, sand-flushing, and sand inclusions.


• metal erosion resistance much better than traditional refractories













   3.Technical parameters



Bulk density kg/cm3	Cold compressive strenght MPa	Thermal expansivity 1000°C K-1	Thermal conductivity    600°C W/m.k	Working temperature °C
>1.9	>10	1.65*10-6	0.76	1650















    4. Sizes

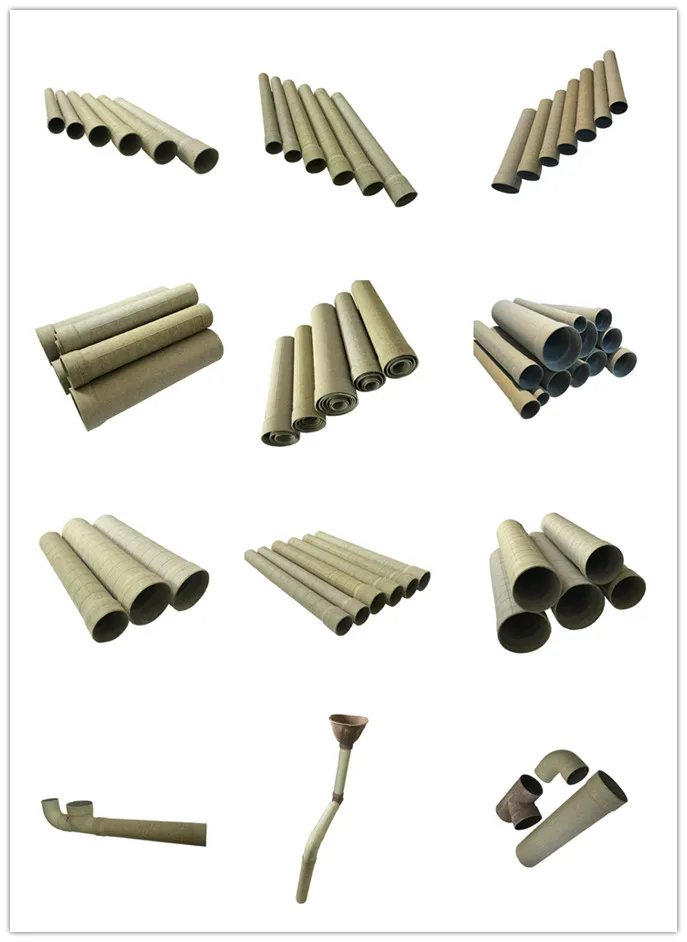

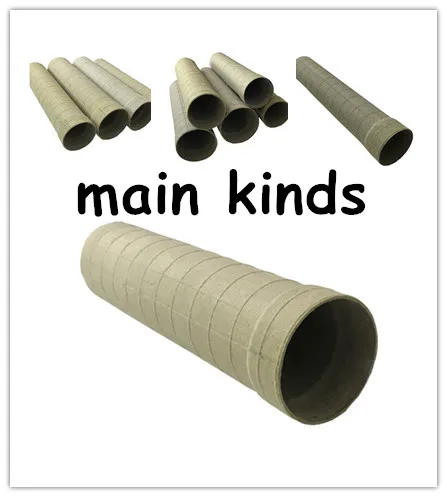

               ceramic tube (pipe)



HYRD-30	φ30×285
HYRD-40	φ40×300
HYRD-50	φ50×300
HYRD-60	φ60×300
HYRD-70	φ70×300
HYRD-90	φ90×300



















    5. Other products

























  6. Quality control



        The process from raw to product are strictly tested by equipment.













 7. Company profile

        “HYRD” was founded in 2005 , it is a professional enterprice specializes in manufacturing  and supplying industrial ceramics, various refractories and engineering servcies. Possessing an international trade team with expertise in materllurgical nidustry, efficient services and whole process tracking are our core  advantages and compettiveness. We are willing to establish mutual beneficial business with friends all over the world.

      Facilities are located in places rich in resources of raw minerals for refractories. Our annual capacity are kinds of bricks are about 50 thousand tons,  monolithics products about 30 thousand tons ( which including repairing mix, ramming mix,gunning mass, etc. ),   400000 pcs ceramic products ( including tubes,bends,tees, pouring cups and special shape ceramics ) used in gating system of casting(foundry), and kinds of purity ceramics widely used in machinery, electronics, chemical industry, textile, metallurgy, construction and aerospace.

      We are dedicated to support our customer and bring values and solutions with our qualityproducts and professional services based on our expertises in production and applications. We are also very proud that we have our customer loyalty and trust, so we can survive anddevelop. We are also very proud to see that our customers also grown up and developed in theirlocal market after our close and sincere cooperation.



  8.  Communication with customers



      Our products are exported to many countries,  Australia, Philippines, the united Arab emirates, Chile,Mexico, Indonesia, Russia etc.

      It's our pleasure to do business with your esteemed company and hope to establish long-term cooperation with you. We hope that we will conclue more business through our mutual efforts in the near future. We will provide  24 hour service after selling.
