NB IOT / LORA / RS485 / MBUS / GPRS/GSM/ультразвуковой теплометр, умный теплометр, калориметр 15 мм 40 мм

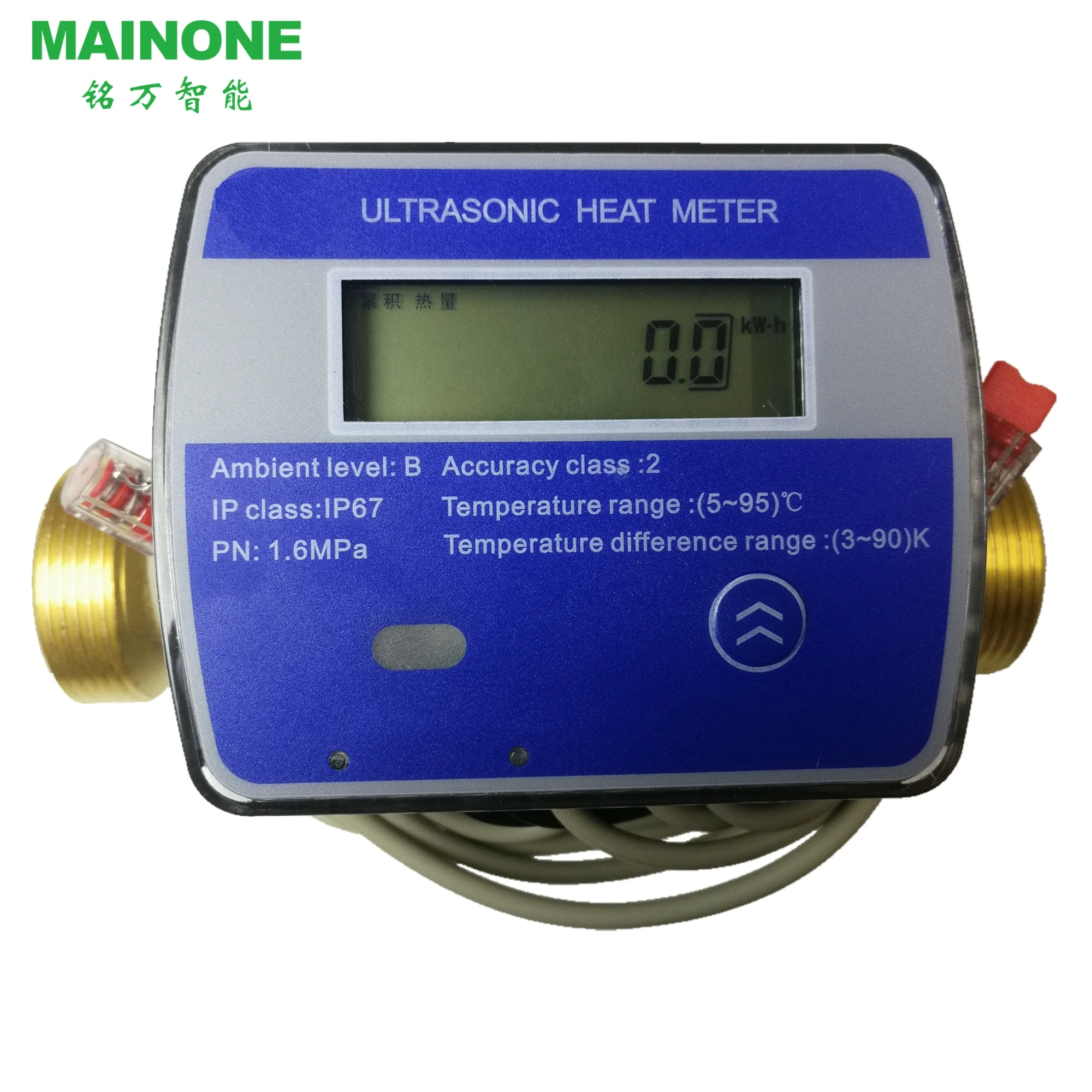

 Ultrasonic heat meter

Using microprocessor technology and micro-power technology, all energy consumption is calculated intelligently;

With dual measurement functions of heat and cold metering;

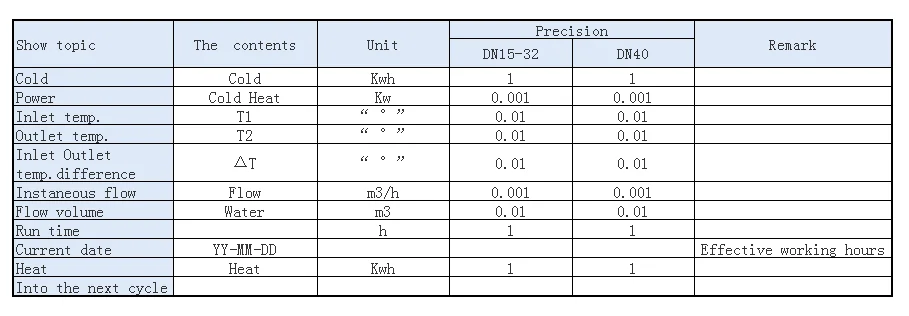

It can display various data required for the heat meter, and all the data are showed by English;

With power-off data protection and data recovery;

With error self-test and alarm function;

Has a low battery alert function;

Has 18 months of data storage and query function;

Infrared photoelectric data reading function;

Data communication interface: M-BUS, RS485 for data remote transmission and centralized control;

The integrator section can be removed for easy reading of values on site.

Measuring the actual heat consumption of the heat supplying facilities users in buildings.

Specifications:

Products are divided into economical, practical and waterproof to meet the needs of different users. Please specify the piping design flow and installation position (inlet or outlet water) when purchasing.

Communication mode information:

Multi-Communication
Wired communication :M-BUS -RS485 -Protocol: EN1434, Modbus, CJ188
Wireless communication :Lora: 470MHz,868MHz,915MHz -LoraWan: 470MHz,868MHz,915MHz -GPRS/GSM: Local mobile operators' support is required/needed.
NB-IoT: Local mobile operators' support is required/needed.

Lora Network Diagram

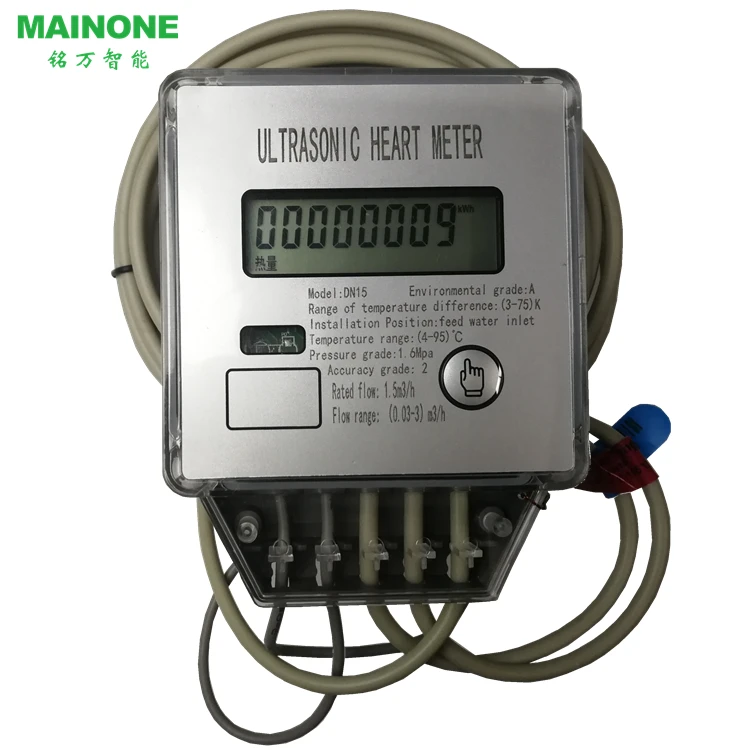

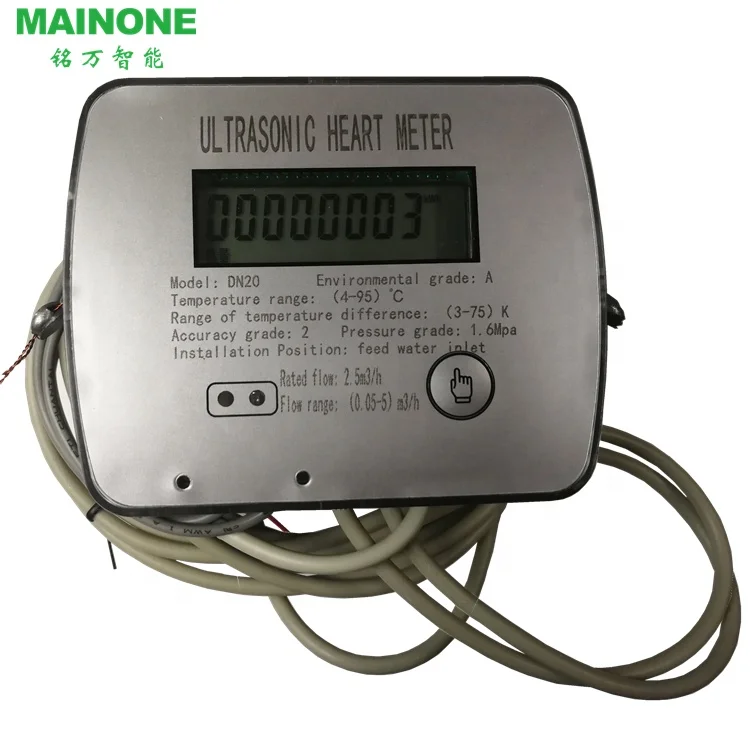

 Meter detail

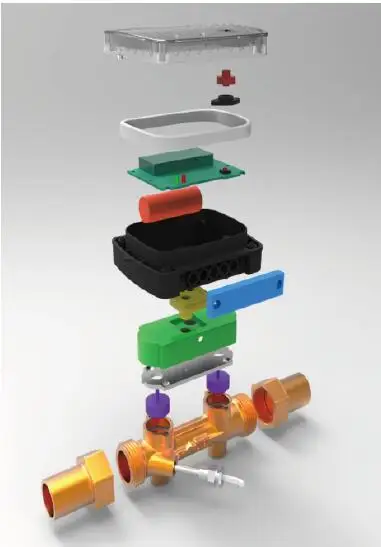

Product Components:

Ultrasonic pipeline:The meter’s body (pipe) structure has no mechanical moving parts and no wear/tear. Which makes it maintenance free. It is resistant to any disturbance of ripple flow, which make the measurement highly accurate. The structure of the pipe is simply built to overcome the high pressure loss and eliminates any leakage.

Transducer:Adopting High-performance piezoelectric devices, makes the metervery stable and highly accurate. The reflector material is stainless steel which prevents all sediments wear resistance, impact resistance, aging resistance, high temperature resistance, corrosion resistance... etc.

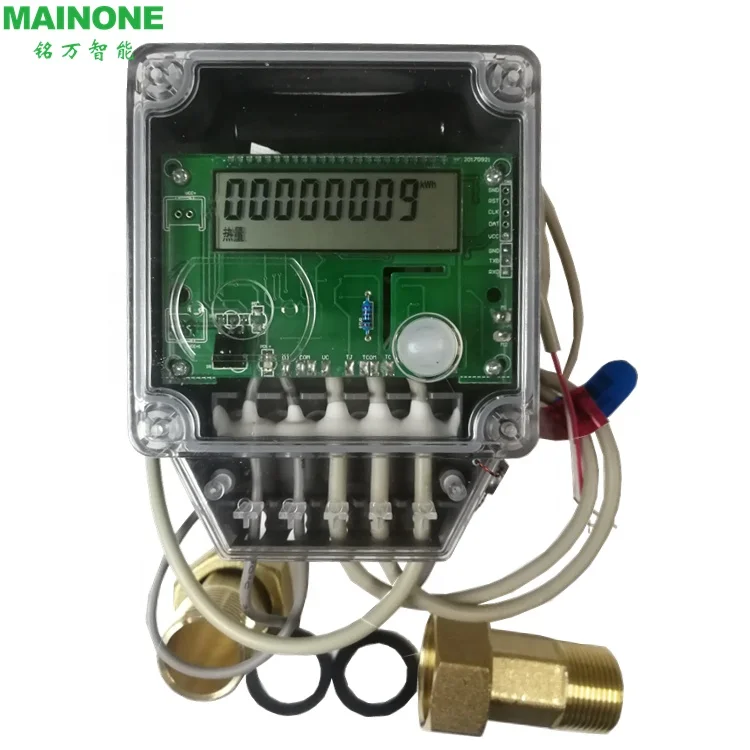

Calculator:

Receive signals from flow sensors and temperature sensors for flow calculation, storage, display systems, data transmission, etc.

Remote reading the meter data from

Smart Ultrasonic heat meter can relate to GSM wireless data collector produced by our company and use GSM mobile public network for data transmission to form a wireless monitoring system. When the pipeline network runs abnormally, it can actively report the abnormal information of the pipeline network. It is easy to manage and save on operating costs.

Installation diagram

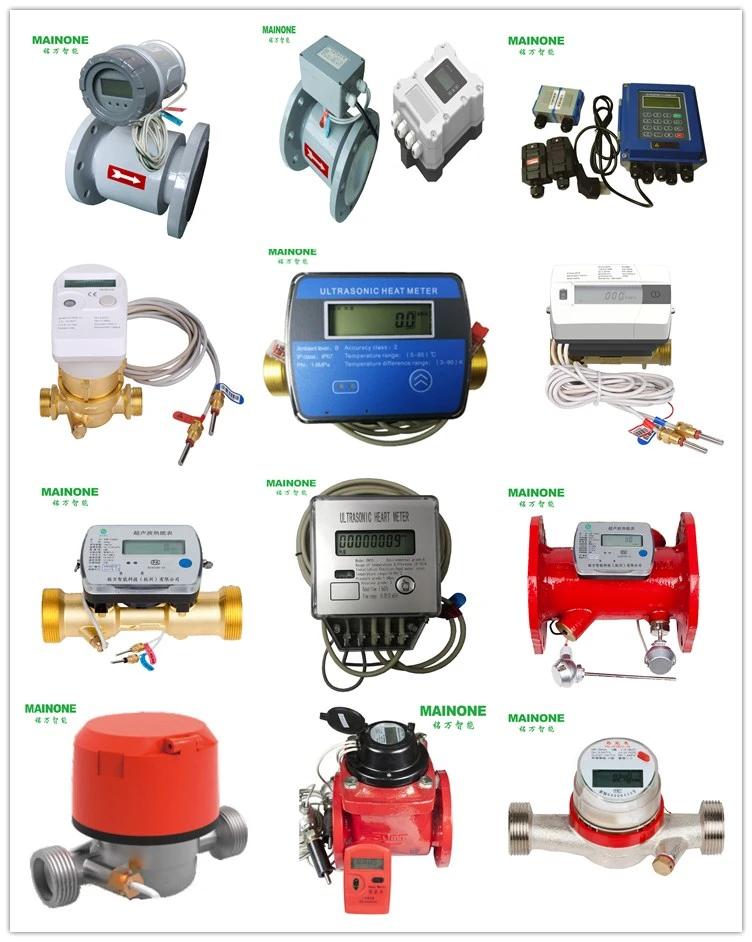

 Provide a variety of flow meters, heat meters

Ultrasonic heat meter application

Shanghai Mingwan Intelligent Instrument Co., Ltd.Company Profile:Shanghai Mingwan Intelligent Instrument Co., Ltd. is a high-tech enterprise established in 2010. Mingwan Instrument is a manufacturer of water and heat meters with a history of 10 years.Mingwan is a high-tech enterprise specializing in the development, production, sales and technical service of intelligent instrument technology. The product range includes: ultrasonic heat meters, mechanical heat meters, ultrasonic water meters, volume water meters, single jet and multi-jet mechanical or magnetic drive water meters, lora water meters, NB-IOT water meters, and other flow meters, electronic modules, and charge management system solutions Solution and system integration. All instruments are direct reading or remote transmission: pulse output, M-BUS, RS485, GPRS, LoRa, LoRawan, NB-IOT remote transmission.The company has three standard SMT production lines, 10 heat meter test benches, 10 water meter test benches, 30 related testing equipment, and an annual production capacity of 1.5 million sets. The annual testing and measurement work complies with the strict national regulations. The company is currently a large-scale, multi-variety, and fully-equipped manufacturing enterprise in China. It is an ISO9001: 2008, ISO 4064 quality system certification enterprise.We have the right to import and export independently. After more than ten years of product export and research and development, we have now become the designated manufacturers for OEM processing in Europe and the United States. Through cooperation and the introduction of foreign advanced technology, the quality of our products is reliable and we continue to meet the domestic market demand At the same time, 500,000 water meters and 400,000 heat meters are sold to more than 40 countries, including Southeast Asia, Europe, America, Africa, and Russia, and are favored by customers.We have ten years of design and development experience. We have a team of professional engineers and advanced technology, and efficient after-sales service. We are willing to provide OEM and ODM products and solutions for all partners. We use flexible and responsive mechanisms to improve our communication efficiency.We look forward to contacting and cooperating with people from all walks of life, striving to meet your special requirements and providing you with quality products and services.
