API 8A/8C Drilling tools SRE25/ SRE30 Sucker Rod Elevators and Hook for oil field



Product Description


API 8A/8C Drilling tools SRE25/ SRE30 Sucker Rod Elevators and Hook for oil field

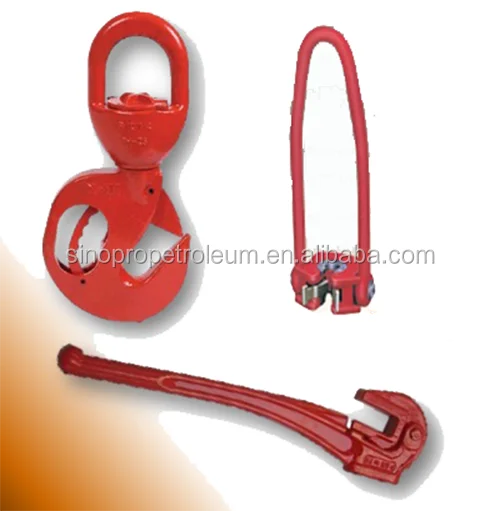

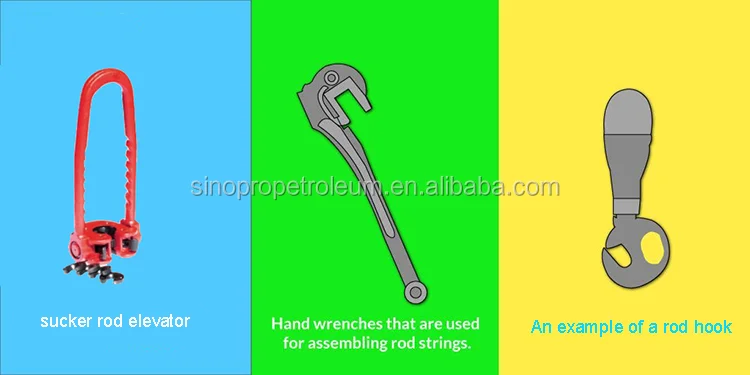

sucker rod wrench (2).pngSucker-Rod-Strings.png




                  API 8A/ 8C SER Sucker Rod Elevators

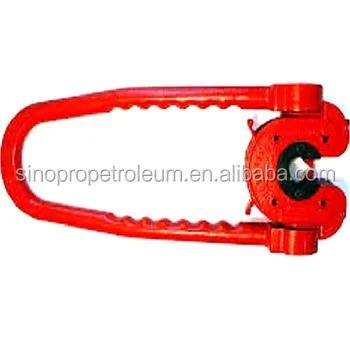

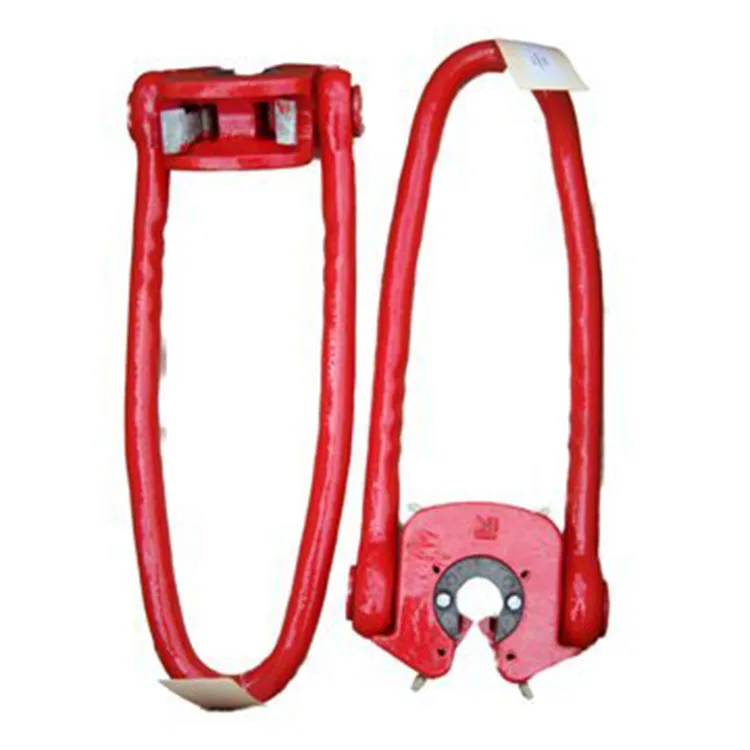

sucker rod elevator 1.jpg


Description of API 8A/ 8C SER Sucker Rod Elevators: SINO petro API 8A/ 8C SER Sucker Rod Elevators series are important apparatus to handle the descending and ascending of the sucker rod in the operation of well-repairing in oilfield.


Sucker rod elevators are hoisting tools for handling sucker rods. They are designed and manufactured according to API 8A/8C specification for dirlling and production hoisting equipment .


Technical specification of API 8A/ 8C SER Sucker Rod Elevators:





















Model



Sucker Rod Size(in)



Max. Load



SRE20



1/2-5/8, 5/8-3/4, 3/4-7/8


1, 1-1/8, 1-1/4, 1-1/2



20tons


(180kN)



SRE25



5/8-3/4, 3/4-7/8, 1



25tons


(225kN)

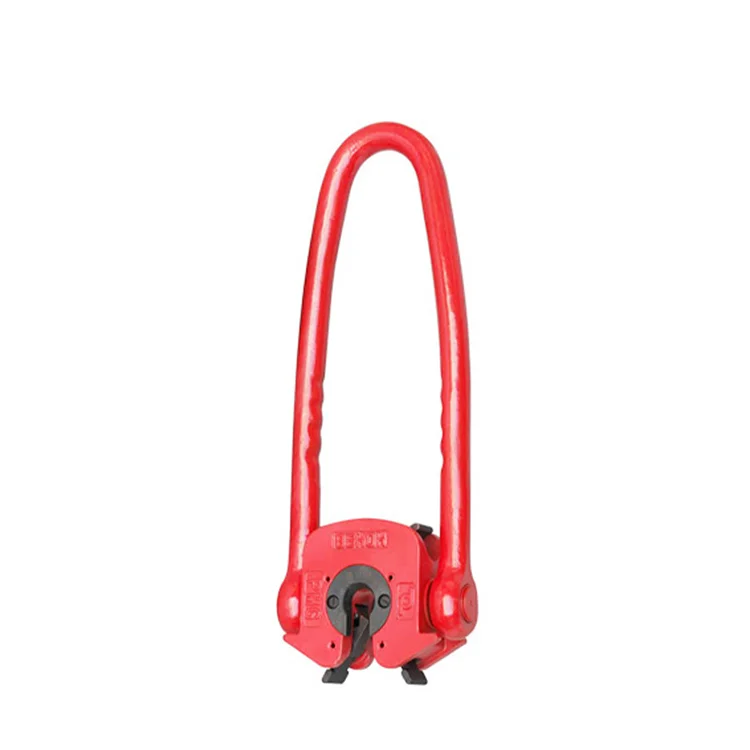

sucker rod elevator.png


API 8A/ 8C SER Sucker Rod Elevators


                                RH sucker rod hook

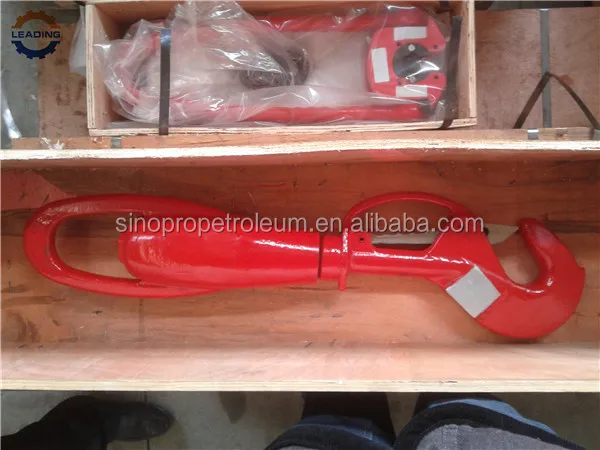

sucker rod hook.jpg

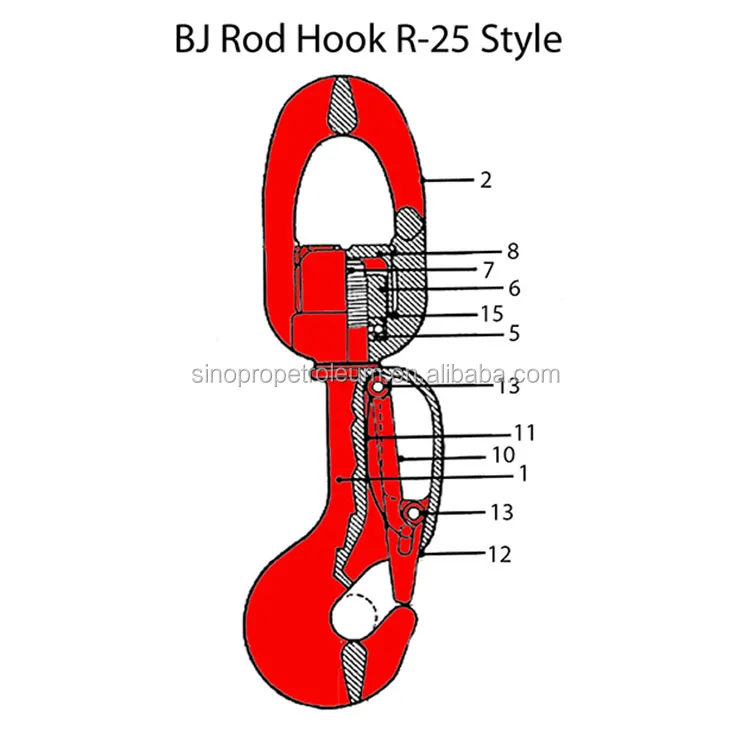

Descriptionof RH sucker rod hook: SINO petro RH sucker rod hook is composed of hook, bail and locking assembly. The bail of suck rod is able to get into the hook without opening the locking arm. After the bail is on right place, locking arm reset (preventing the bail of suck rod get out of hook) under the function of spring which ensures the lifting safety of suck rod hook. In addition, put a bush on the spring in case the something gets into the locking assembly and get the locking assembly lost the function.


Technical specification of RH sucker rod hook:



























Model



RH20



RH25



RH25L



RH35



Rated capacity (short tons)



20 us tons


(180 KN)



25 us tons


(225 KN)



25 us tons


(225 KN)



35 us tons


(315 KN)



length



488 mm



494 mm



798mm



960mm





RH sucker rod hook


                    Sucker Rod Wrench

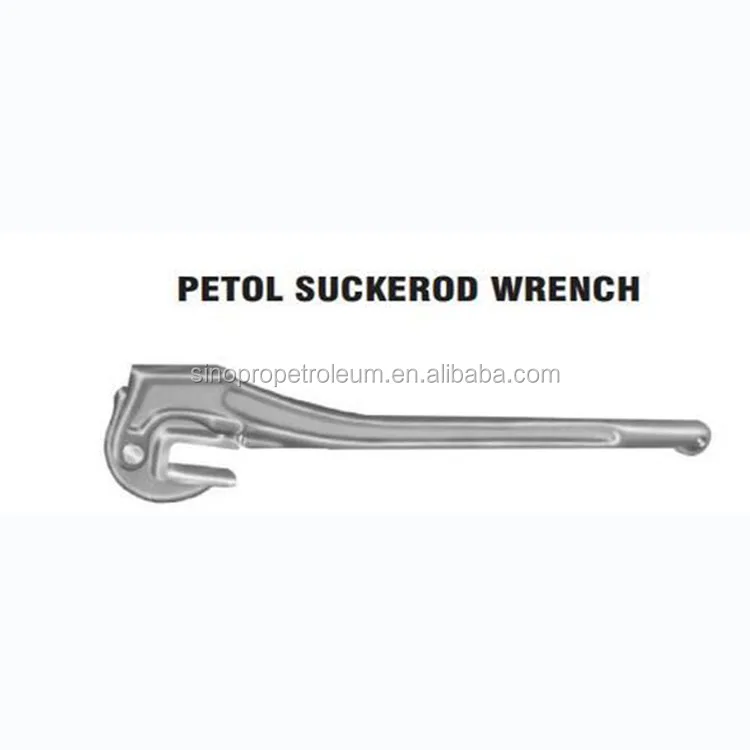

sucker rod wrench (5).jpg


Description of Sucker Rod Wrench: SINO petro Sucker Rod Wrench is made of high-quality alloy steel, and boasts and advantages of hardness and abrasion resistance. Its opening is applicable to the square shape of the steel-made sucker rod. The balanced design of wrench can reduce the fatigue of users, which is an outstanding tool for manual mounting and demounting sucker rod.


Technical specification of Sucker Rod Wrench:

























Specification of Applicable Sucker Rod (in)5/8”3/4”7/8”7/8” HY1”1 1/8”1 1/4
Wrench Opening Width23.8272730.134.939.742.9

sucker rod wrench (7).jpg

Sucker Rod Wrench


Detailed Images


 API 8A/8C Drilling tools SRE25/ SRE30 Sucker Rod Elevators and Hook for oil field




 API 8A/8C Drilling tools SRE25/ SRE30 Sucker Rod Elevators and Hook for oil field

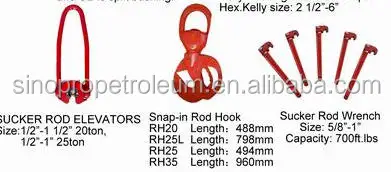

SRE su9.jpg


API 8A/8C Drilling tools SRE25/ SRE30 Sucker Rod Elevators and Hook for oil field

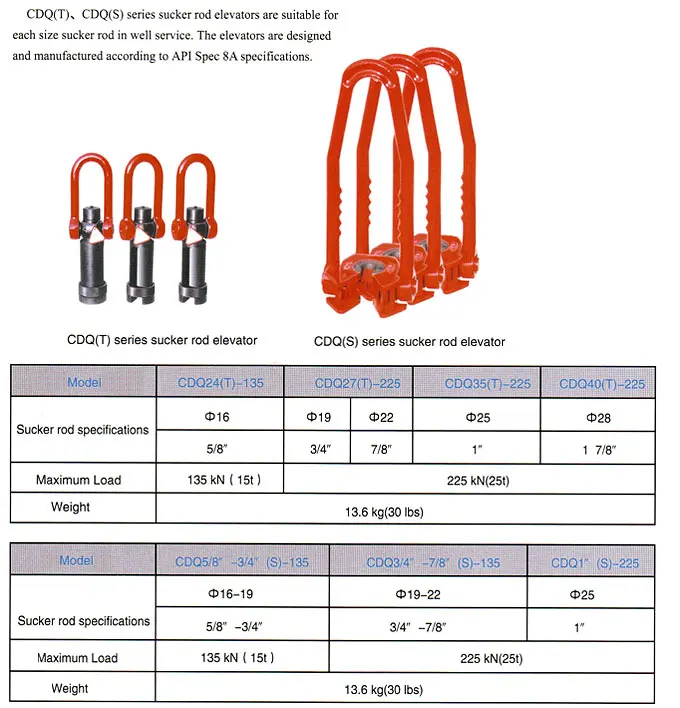

sucker rod elevator (5).jpg


API 8A/8C Drilling tools SRE25/ SRE30 Sucker Rod Elevators and Hook for oil field


rod elevator pack.jpg


 API 8A/8C Drilling tools SRE25/ SRE30 Sucker Rod Elevators and Hook for oil field
