Inspection professional uav drone for commercial purpose with thermal night vision ptz camera
- Category: >>>
- Supplier: Honeycomb Aerospace Technologies (beijing) Co. Ltd.
Share on (62466489776):
Product Overview
Description
Products Description

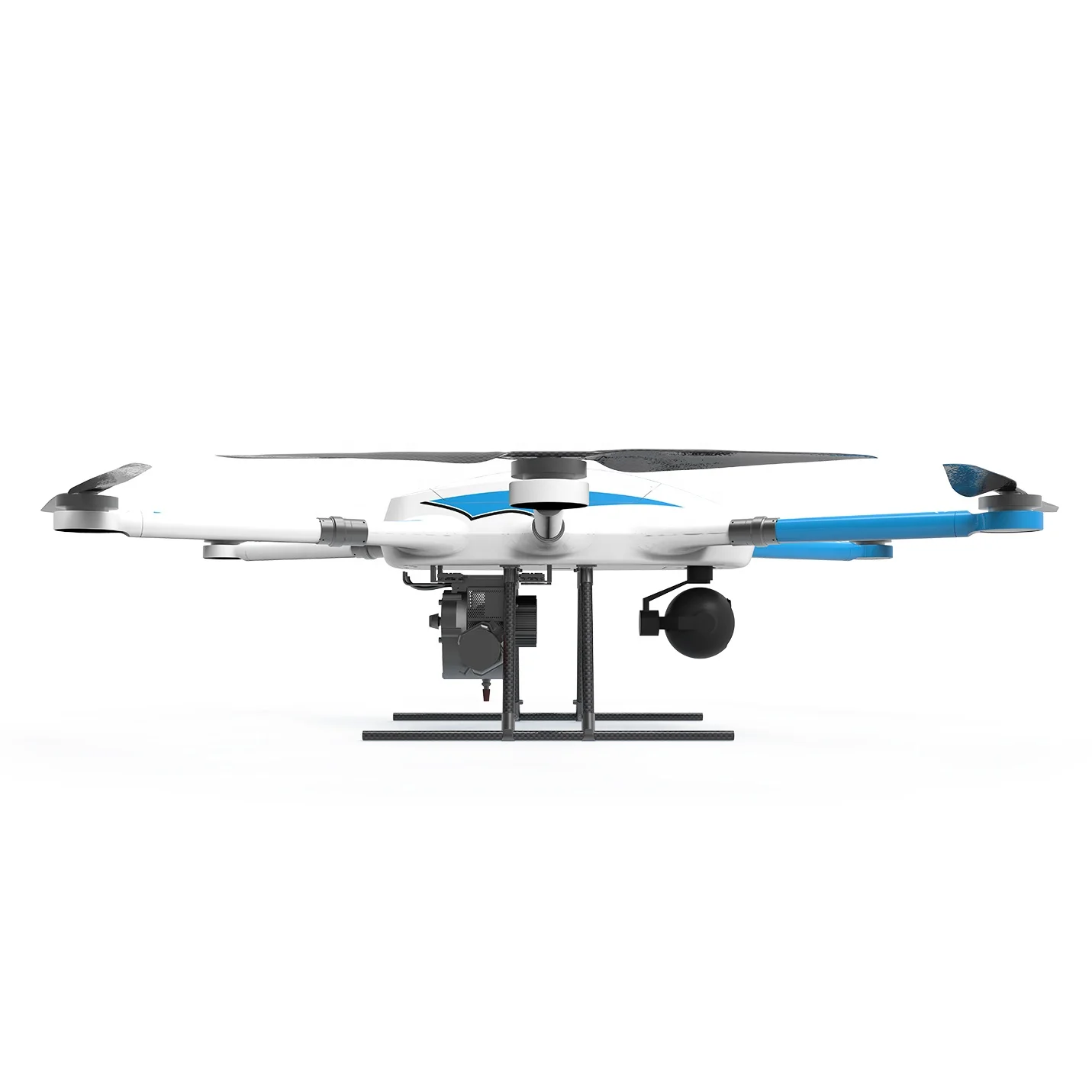

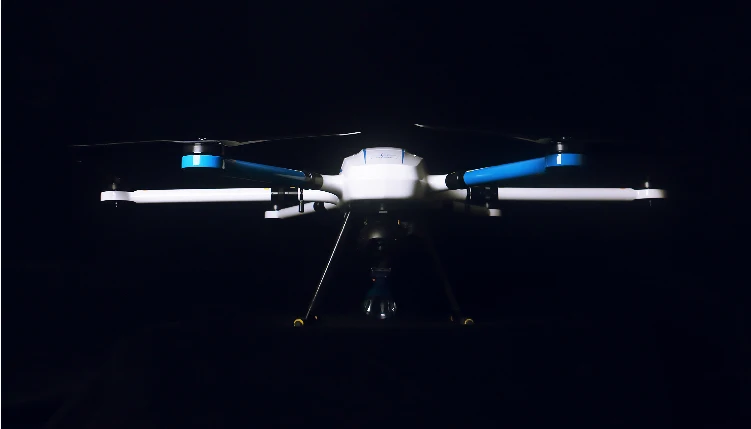

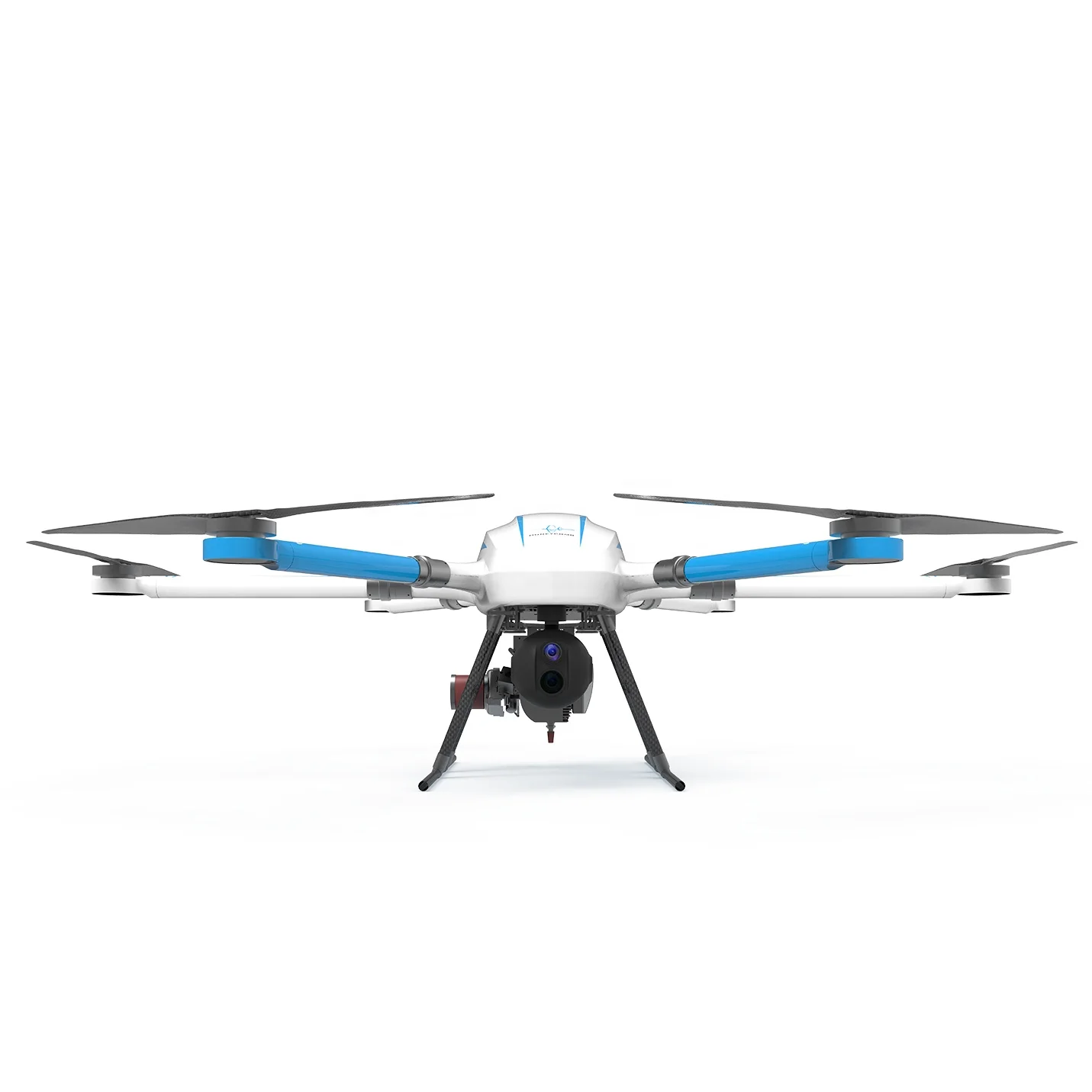

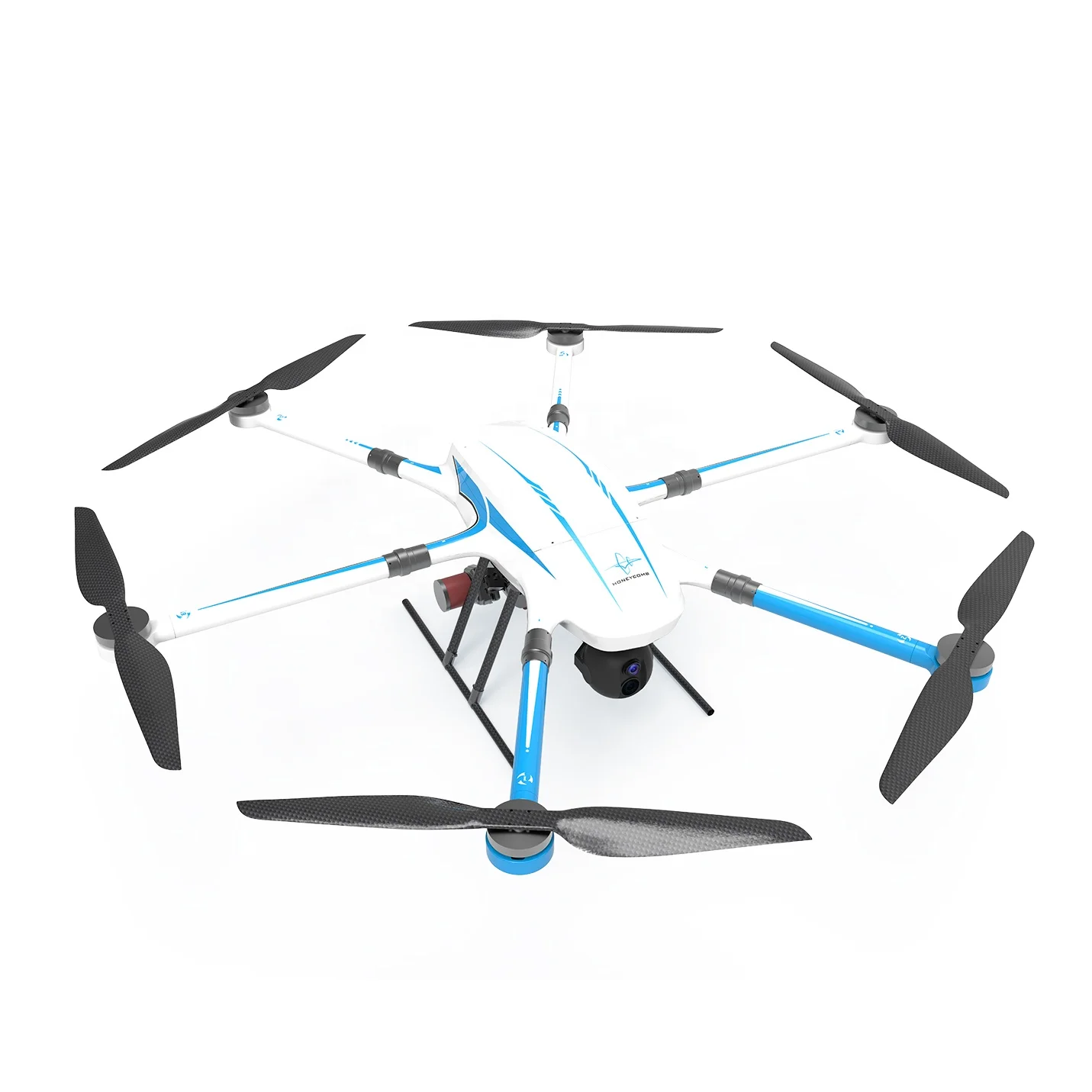

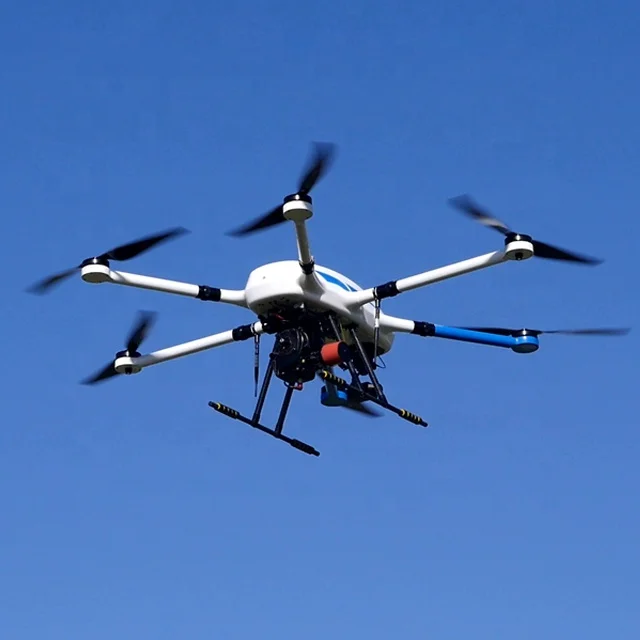

HC-332H Six-rotor Hybrid-Electric UAV
HC-332H Six-rotor Hybrid-Electric UAV system is a high-performance multi-rotor product. It has four-hour ultra-long endurance, carry heavy payload, high reliability, platform versatility, weather resistance and other industry leading advantages. It can be widely used in agriculture and forestry monitoring, material delivery, atmospheric monitoring, power inspection, oil and gas inspection, railway inspection, security investigation, land mapping, environmental monitoring, aerial photography and many other fields.
H2 oil-electric hybrid power system has advantages of stable output power and high reliability,serving drones long endurance after test,optimization for a long period.

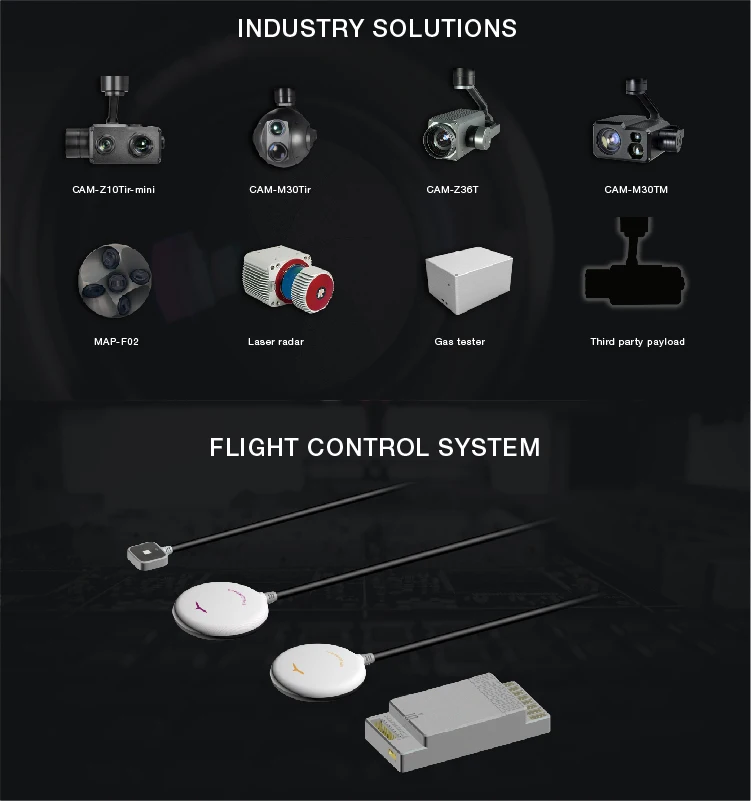

A new generation of avionics, flight control system
Dual GPS redundancy design, New optimized layout ground-based operator interface
Dual GPS redundancy design, New optimized layout ground-based operator interface
For inspection, Mapping, and Emergency. Multi-industry optimization mode.
With Honeycomb Aerospace intelligent drone control software, drone operations are more convenient.
The HC-332 excels in various industries, has the ability to carry multiple loads, and performs outstanding tasks every time.

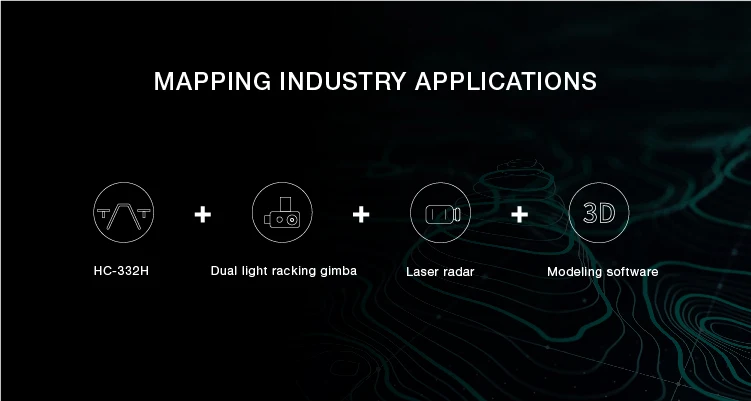

Oblique Camera, Forward facing camera, Lidar and other equipment can quickly obtain surface information, access ultra-high-resolution digital images and high-precision positioning data, generate DEM, 3D orthophoto image, 3D landscape model, 3D surface model and other 2D, 3D visualization data, easy to carry out a variety of applications.
It is equipped with visible light and infrared pod to monitor the safety condition of oil pipeline in 24 hours and send back to the inspection and monitoring center in real time.
Equipped with tilt camera, it can carry out geographic mapping and scene modeling for oilfield planning and construction.
High-resolution and accurate mapping of target areas can be carried out, which provides an accurate basis for power distribution line site planning.
High-definition aerial camera and image post-processing system can carry out aerial photography around long-distance distribution lines to achieve regular inspection of the surrounding environment.
The macro-observation of air, soil, vegetation and water quality provides the basis for decision-making for environmental protection.Intuitive identification of pollution sources. The resulting distribution map can provide a reliable basis for environmental evaluation and environmental monitoring
Equipped with full-automatic water quality sampling system and gas sampling system, the system cooperates with environmental law enforcement personnel to collect the water and air samples for environmental law enforcement.
Search for suspicious people and vehicles on the ground, providing strong air intelligence support. The drone can discover an emergency first, greatly improving the efficiency of emergency response.
Equipped with photoelectric pods and other equipment, patrol the road conditions, adjust and deploy police force in time through the patrol conditions to alleviate the road conditions.
Specifications
Category | Specification | Parameter |
Flight System | Diagonal distance | 1560mm |
Unfolded dimension | 1560×1560×430mm | |
Folded dimension | 980×720×680mm | |
Manufacture material | The arms are of 3K carbon-fiber structure, and the body is of glass-fiber structure | |
Empty weight | 12.8kg | |
Max take-off weight (sea level) | 19.8kg | |
Standard payload | 2kg | |
Max payload | 5kg | |
Standard propeller | 29×9.5mm | |
Cruising speed | 12m/s | |
Max flight speed | 15m/s | |
Max Altitude | 1000m (Above sea level) | |
Endurance | 240min@2kg | |
100min@5kg | ||
Powerplant | 2.1kW Hybrid-Electric | |
Engine | 29cc | |
Electric motor | TM U8II 85KV | |
Electric speed controller (ESC) | 60A brushless ESC | |
Fuel tank capacity | 5L | |
Specific fuel consumption (SFC) | 1L/h | |
Assembly way | Retractable arm | |
Flight Control System | Attitude angle navigation accuracy | Static 0.5˚ / Dynamic 1˚ |
Position navigation accuracy | Horizontal 10cm / Vertical 50cm | |
Positioning accuracy | Normal 10cm / Differential 1cm | |
Attitude control accuracy | ±1˚ | |
Direction control accuracy | ±2˚ | |
Position control accuracy | ±10cm | |
Positioning algorithm | RTK GNSS/GNSS+INS | |
Operating temperature range | -20˚C ~ 40˚C | |
Flight mode | Manual / Auto | |
Emergency measure | Out-of-control return, low voltage return, fault alarm | |
Link system | Control radius | 10km (no obstacles) |
Video Output resolution | 1080P@60fps | |
Operational environment | Wind resistance level | Level 5 |
Operating temperature | -20˚C ~ 40˚C | |
Rain resistance level | IP54 | |
Aircraft Logistics | Control radius | 5-10km (no obstacles) |
Video Output resolution | 1080P@60fps | |
Operational environment | Wind resistance level | Level 5 |
Operating temperature | -20˚C ~ 40˚C | |
Remote Controller | Rain resistance level | IP54 |
Aircraft Logistics | Unfold, fold time | ≤10min |
Fuel | 92 gasoline with engine oil 25:1 mixed fuel | |

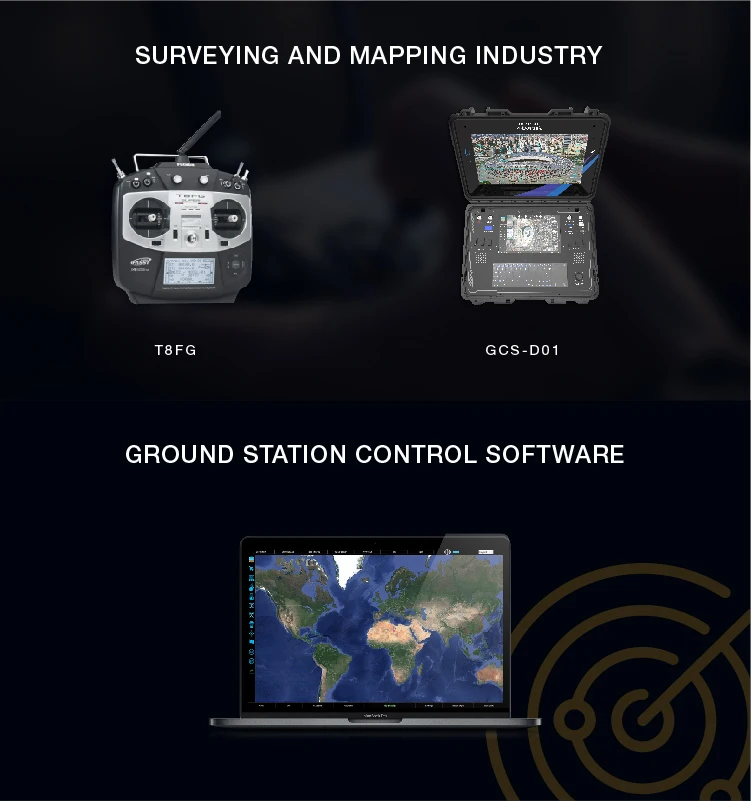

Remote Controller | Model | FUTABA T8FG |
Work frequency | 2.4 GHz | |
Max signal effective distance (no interference, no occlusion) | 2km |
Company Profile
Packaging & Delivery
Technical Training
Training Objectives
In order to make our clients involved in the project, fully understand all the equipment provided by us and enhance the operational skills of the equipment, we will be responsible for organizing comprehensive and high-quality training for equipment operations and management maintenance personnel. In addition to providing the users with technical instructions, operation instructions and relevant documents of the whole equipment.
Click here to get details.
Warranty&After-sales
Maintenance support
The company provide One year of warranty for all Drone Products. Base maintenance is carried out by professional maintenance personnel. Our company will handle free of cost malfunction guidance, online support and on-site support during the warranty period. For on-site support the client will be responsible for (Air-ticket, Hotel reservation, Food, Daily expenses) of technicians and engineers.
FAQ
Q: How will you deliver the goods to me?
A: Alibaba platform will arrange the delivery, and we can negotiate about the transportation (by air, by sea or by express) together. And you can also arrange the delivery yourself if you have a reliable logistics company with which is cooperating steady for a long time.
Q: What are your terms of payment?
A: We support transfers both on Alibaba platform online and company account to company account offline. As for the payment method, we support all such as Visa, Mastercard, T&T.
Q: Can I get an invoice?
A: Alibaba will offer you a PI (Proforma Invoice).
Q. Do you test your aircrafts before delivery?
A: Yes, we have 100% test before delivery, and we will offer you a test report.
Q: What is your warranty and after-services?
A: Our warranty is 12 months after you received the goods. We will pay high attention to after-sales service. Click here to get the details.
Q: Can you provide OEM services?
A: We can negotiate for OEM services.
Q: What is the lead time? (How long will it take to prepare my order?)
A: The exact time will be based on quantity, your specific requirements and area of delivery. (normally 10 to 90 days). You can directly contact us and we will give you exact timing.
Q: Do you accept the order which requires some modifications on your drones or customized design?
A: Yes, we do
Q: Can you offer some other payloads meeting my requirements?
A: Yes, we can. We can offer solutions of the payloads based on your specific requirements. You can also buy our flight platform and integrate the payload by yourself.
Q: Is there any tracking number for my order?
A: Yes, we ship every order with unique Tracking number, and you can view the shipment status on corresponding website.
