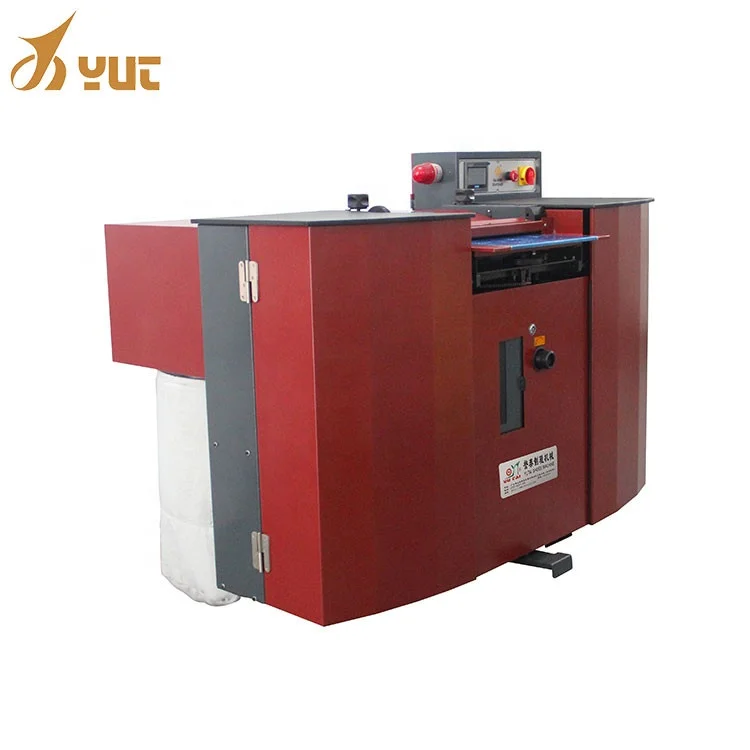

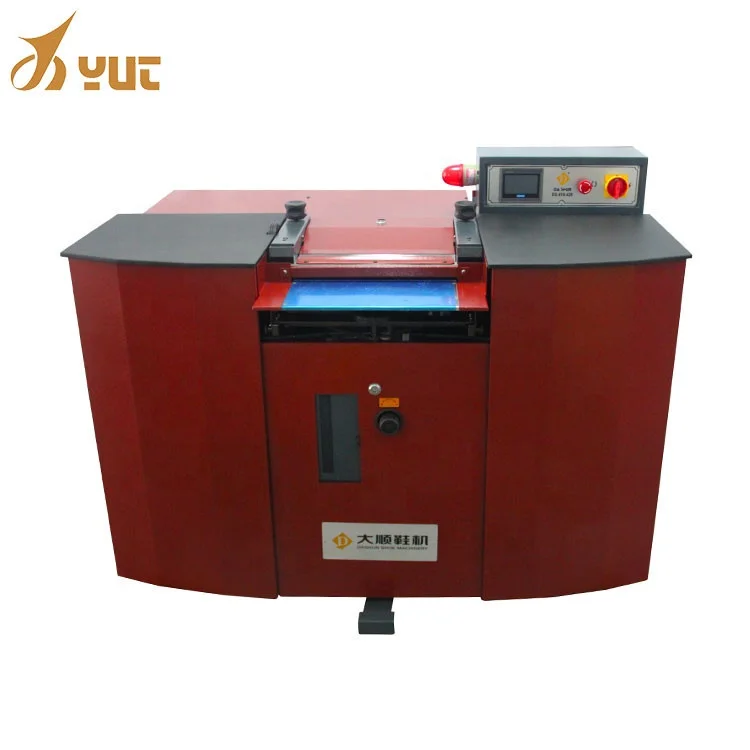

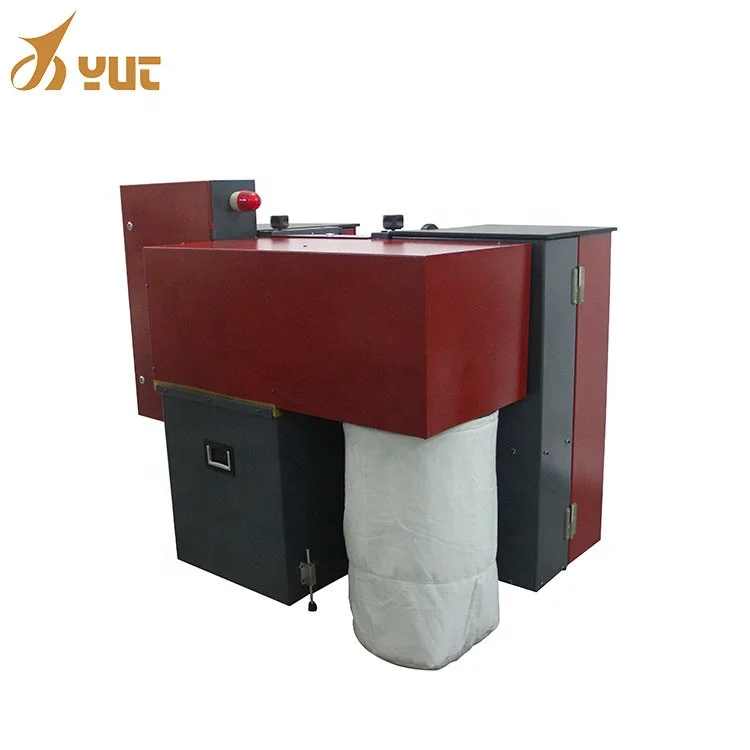

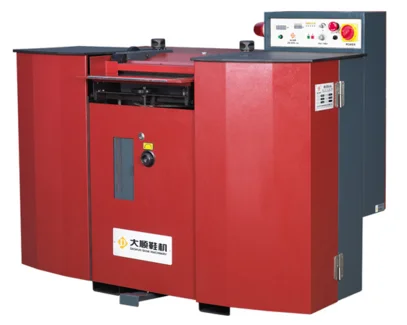

Band Knife Splitting PU Machine Leather Belt Shoe Making 420mm Splitting Machine
- Category: >>>
- Supplier: Foshan City Yutai Machinery Automatic Technology Co. Ltd.
Share on (62466564262):
Product Overview
Description
| Main Function |
Used for leather layer splitting of shoes, bags and cases, which is highly efficient and accurate.
| Product Information |
| Number | YT-801 | ||
| Name | Edge Trimming Machine | Band Knife Splitting Machine | Semi-automatic Thermo Cementing & Folding Machine |
| Application | trimming of shoe edge welt lining | Shoemaking, leather bags, luggage, leather split | shoes sides edge-folding of leather shoes and cloth shoes |
| Power(kw) | 0.37 | 3.6 | 1.1 |
| Voltage | 220V | 380V | 220V |
| Edge Folding Width (mm) | / | / | 3—6 |
| Splitting thickness | / | 0.15—8mm | / |
| Max. splitting width | / | 420mm | / |
| N.W.(kg) | 60 | 643 | 110 |
| G.W.(kg) | 85 | 750 | 155 |
Machine Dimensions (mm) | 1200*550*1180 | 1600*1090*1230 | 1200*550*1280 |
Package Dimensions (mm) | panel:1250*580*140 head:560*430*250 Motor:360*250*270 | 1720*1240*1420 | 1330*680*1330 |
| Product Display |
Features:
1.The thickness of required leather sheets is adjusted by hand-wheel.
2.When any gate or cover is not closed to right position, or the charging basket is overfilled the dynamo cannot start up and the red light will flash to alarm, which is highly secure.
3.Charging rate is adjustable as required and adopts digital display.
4.The thickness of leather adopts accurate and convenient digital display. The minimum thickness can reach 0.15mm and the sheet precision is ±0.05mm.
5.The knife griding abrasive wheel is adjusted by hand-wheel. The upper and lower abrasive wheels grind synchronously, and the knife can restore position during the course of grinding, which makes grinding geometric shape remains unchanged.
6.If you want to know more about it, pls click here to contact us.
Related Product
| Cutting Machine | YT-116 | YT-526 | YT-527-30T | |
| Leather, artificial leather, cloth, rubber sheets, bags, etc. | Non-metallic materials such as leather, plastic, foam, cloth, cardboard, synthetic fiber, etc. | Leather, rubber, plastic, cardboard,Cloth and other materials | ||
| YT-525-20T | YT-818A-420 | YT-988 | ||
| leather, plastic, flooring, cork, etc. | shoe, purse, luggage, leather split | joints for shoes, bags, clothing, Pvc, pu, natural leather and fabrics | ||
| Press Machine | YT-2005SD cover | YT-01S | ||
| manual hood sole | leather sports high heels shoes | sports casual high-top and riding boots | rolling of the sneaker tongue | |
| YT-2006 barrel | YT-700 | |||
| sports shoes, casual shoes and other rubber outsole shoes | sports shoes, casual shoes | sports shoes, casual shoes | shoe upper | |
| Lasting Machine | ||||
shoe last grasping | Toe Lasting | auto back tacking | ||
| YT-860 |
| ||
hydraulic shoe heel lasting | / | toe lasting | hydraulic toe lasting --9 Pincers | |
