DC 96V 192V 384V 100A 120A MPPT mppt solar charger controller for 10kw 20kw 30kw 40kw 50kw 80kw 100kw solar inverter
- Category: >>>
- Supplier: Foshan Top One Power Technology Co. Ltd.
Share on (62466609904):
Product Overview
Description
Product Description
Product introduction :
Product name :100A 96V DC MPPT solar charge controller
Model No:MPPT-100A
Classfication :Battery charger /MPPT solar charge controller
Appication :off-grid solar power system ; home power system ;Industry appliance; Farm ; frezzer truck power use,battery charge appliance : solar power charging application
Product advantage :
1.\tThe efficiency is up to 99%.
2.\tIntelligent DSP control chipset.
3.\tIntelligent LCD display with multiple function.
4.\tSwitching power is supplied by independent system.
5.\tTrue Over Temperature Protection.
6.\tNew and original electronic components.
7.\tInternal circuit lines and signal lines are based on plug-pull blocks,
not welding.
Product name :100A 96V DC MPPT solar charge controller
Model No:MPPT-100A
Classfication :Battery charger /MPPT solar charge controller
Appication :off-grid solar power system ; home power system ;Industry appliance; Farm ; frezzer truck power use,battery charge appliance : solar power charging application
Product advantage :
1.\tThe efficiency is up to 99%.
2.\tIntelligent DSP control chipset.
3.\tIntelligent LCD display with multiple function.
4.\tSwitching power is supplied by independent system.
5.\tTrue Over Temperature Protection.
6.\tNew and original electronic components.
7.\tInternal circuit lines and signal lines are based on plug-pull blocks,
not welding.

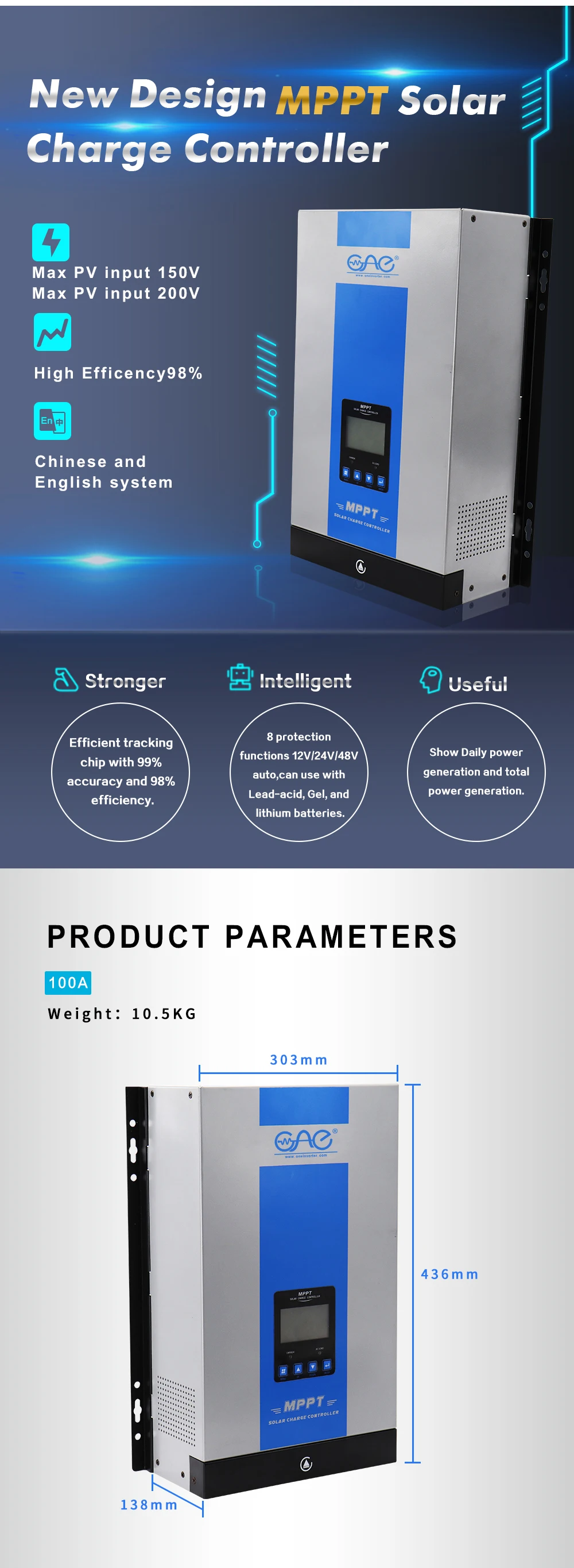

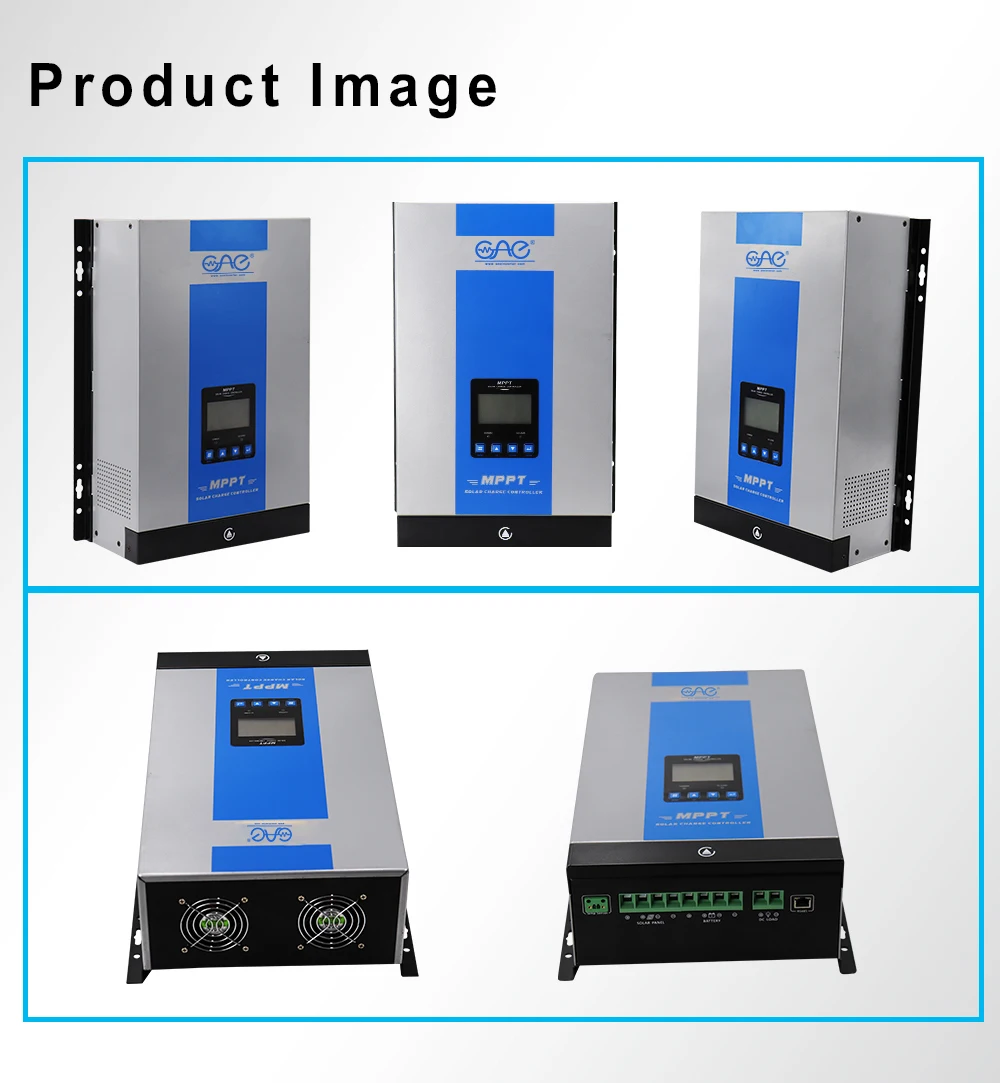

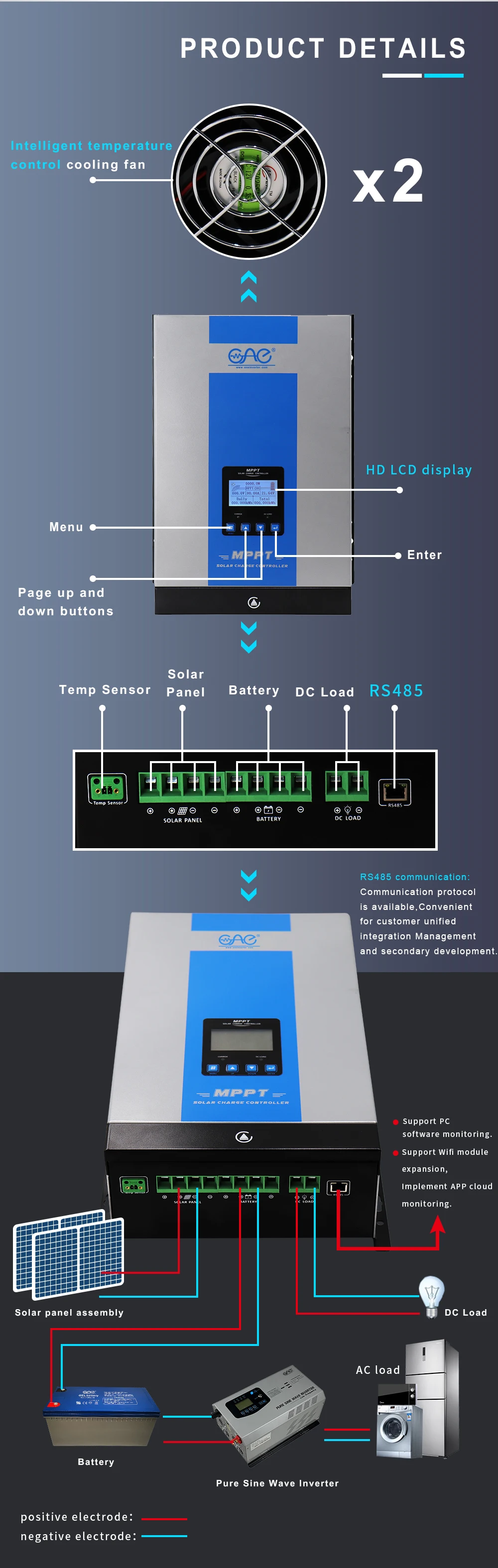

Products Display
Our product have real shape and exquisite as pictures ,more easy and fast operation and mutiple function.
Specification :
Model No.: | MPPT 20A | MPPT 30A | MPPT 40A | MPPT 50A | MPPT 60A | MPPT 80A | MPPT 100A | MPPT 120A | |||||||||
MPPT Range @ Operating Voltage | 12V System | 18VDC ~ 80 VDC | |||||||||||||||
24V System | 30VDC ~ 100 VDC | ||||||||||||||||
36VSystem | 40VDC ~ 100VDC | ||||||||||||||||
48V System | 60VDC ~ 150 VDC | ||||||||||||||||
96VSystem | 120VDC-200VDC | ||||||||||||||||
Maximum PV Array Open Circuit Voltage | 12V/24V/36V /48V/96V | 200VDC | |||||||||||||||
Maximum PV Array Power | 12V System | 280W | 420W | 570W | 700W | 900W | 1140W | 1400W | 1800W | ||||||||
24V System | 550W | 840W | 1130W | 1400W | 1700W | 2260W | 2800W | 3400W | |||||||||
36V System | 840W | 1260W | 1710W | 2100W | 2700W | 3420W | 4200W | 5400W | |||||||||
48V System | 1100W | 1650W | 2270W | 2800W | 3400W | 4540W | 5600W | 6800W | |||||||||
96V System | 5600W | 7200W | 9120W | 11200W | 14400W | ||||||||||||
Connected Battery Type | 12V/24V/36V /48V/96V | Sealed lead acid. Gel, Nicad battery (User customization ) | |||||||||||||||
Rated current | 12V/24V/36V /48V/96V | 20A | 30A | 40A | 50A | 60A | 80A | 100A | 120A | ||||||||
Maximum Charging Current | 12V/24V/36V /48V/96V | 22A | 32A | 42A | 52A | 62A | 82A | 102A | 122A | ||||||||
Maximum Efficiency | 12V/24V/36V /48V/96V | 299% | |||||||||||||||
Temperature compensation | 12V/24V/36V /48V/96V | -3mV/°C | |||||||||||||||
Charging Method | 12V/24V/36V /48V/96V | Three stages: constant current ( MPPT )f equalizing charge, floating charge | |||||||||||||||
High temperature protection | 90°C | ||||||||||||||||
LCD Display | LCD panel indicating solar power; load level, battery voltage/capacity, charging current, and fault conditions | ||||||||||||||||
LED Display | Charging indication, direct current output indication | ||||||||||||||||
PC host computer (communication port) | Rs485 (optional) | ||||||||||||||||
Humidity | Oto 90%RH( No Dew) | ||||||||||||||||
OperatingTemperature | -20°C to 60°C | ||||||||||||||||
StorageTemperature | -40°C to 70°C | ||||||||||||||||
Altitude | 0 to 3500 m | ||||||||||||||||
Product Size, Lx Wx H (mm) | 191*215*89 | 230x279x91 | 230x304x91 | 303x436x138 | |||||||||||||
Carton Size, Lx Wx H (mm) | 315x235x150 | 355x270x135 | 426x400x185 | 570X360X200 | |||||||||||||
Net Weight (kg) | 1.9 | 3.62 | 3.9 | 9.35 | |||||||||||||
Gross Weight | 2.2 | 4.03 | 4.5 | 9.85 | |||||||||||||
Type of Mechanical Protection | IP32 | ||||||||||||||||

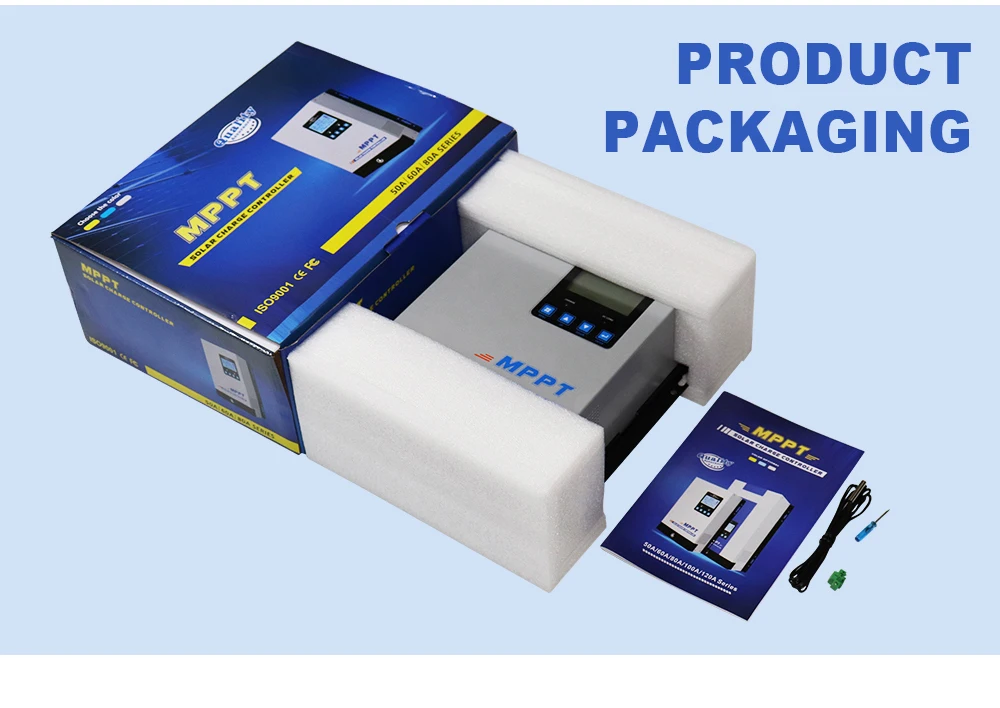

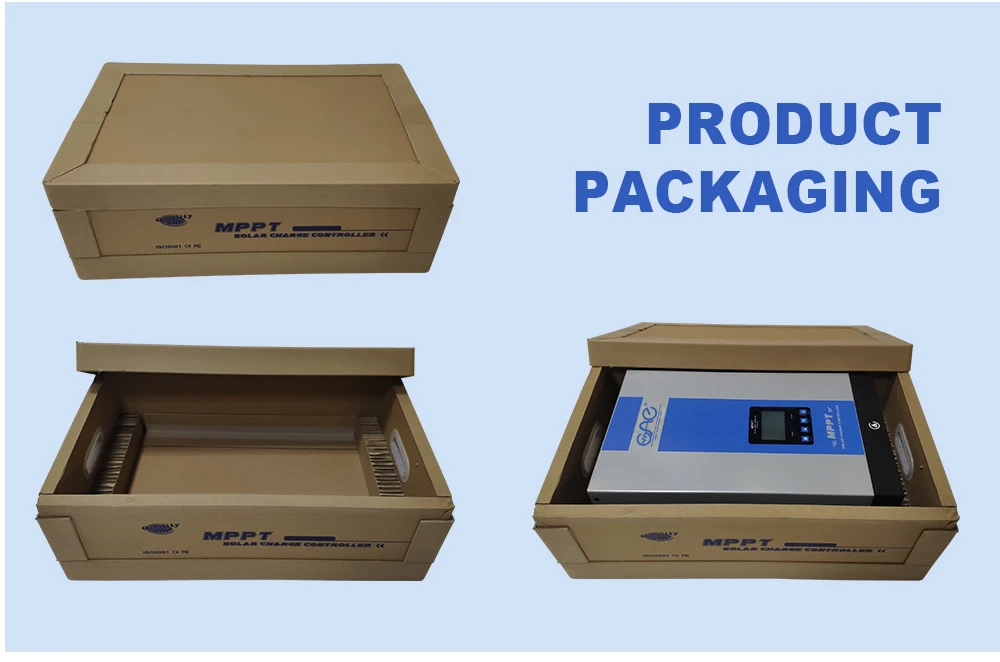

Shpping and Package
Samples order and small order shipped by air or express with fast delivery , Bulk order shipped by Sea save much cost.
Company profiles :
Foshan Top One Power Technology Co.,Ltd (Abbr. One -Inverter ) is a professional designer, manufacturer in inverter ,power inverter , solar power inverter, solar controller ,pure sine wave inverter ,MPPT solar controller ,frequency inverter ,battery inverter ,UPS uninterrupted power and so on .Our factory awarded National High-tech Enterprise and certified to the ISO 9001:2008 international quality system.The performance of our products have reached CE,FC ,IEC and EMC standards.

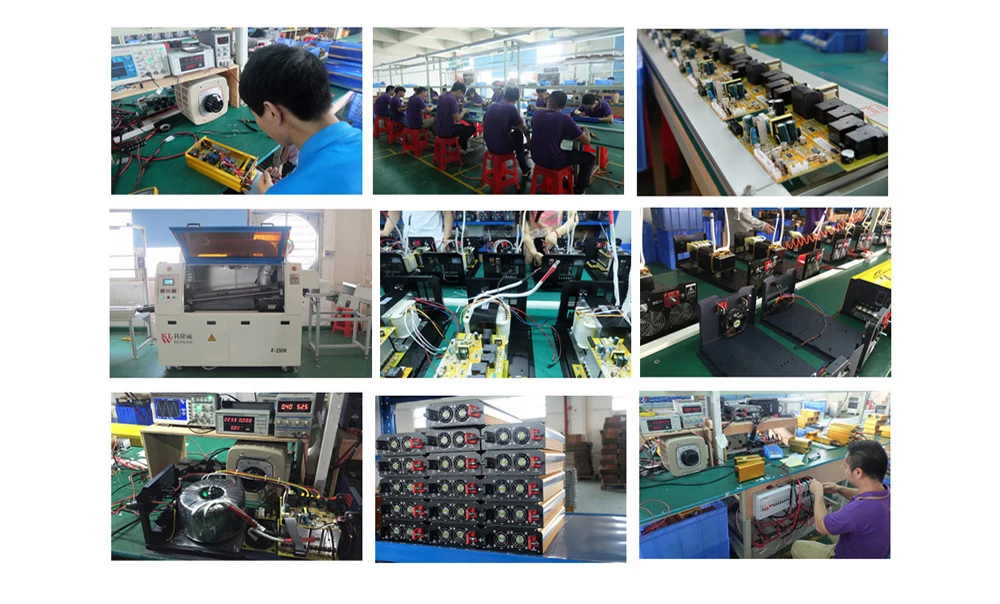

The company has a series of automated production equipment, professional technical team, using high quality raw materials to ensure our products can be through all kinds of testing standard, we provides the high-quality service for the customers with professional knowledge.We insist on adhering to the concept of "constantly updated products and endless service", and provide the best products and perfect pre-sale, after-sale services for every customer.
The company has a series of automated production equipment, professional technical team, using high quality raw materials to ensure our products can be through all kinds of testing standard, we provides the high-quality service for the customers with professional knowledge.We insist on adhering to the concept of "constantly updated products and endless service", and provide the best products and perfect pre-sale, after-sale services for every customer.
We will continue to improve our quality and service level as always. We will adhere to the business philosophy of "innovation, prudence and mutual gains" to meet the needs of our customers to the greatest extent. We sincerely hope to cooperate with you in a friendly way to achieve mutual gains situation and seek common development.
FAQ:
Q1:Does your company also provide other solar products except Pure Sine Wave inverter?
A1:Yes, We also provide other solar products,Like MPPT solar controller ,poly solar panel,off-grid solar inverter,ongrid solar inverter,solar battery.portable solar system,solar charger and other accesories related the the solar power system.
Q2:How to choose a right inverter?
A2:Tell us your demand ,then our sales will recommend a suitable inverterto you.
Q3:How about the delivery time ?
A3:5 days for sample; 7-15 days for bulk order.
Q4:What is warranty of products?
A4:2 years warranty on one-inverter products.
Q5:How to solve the technical problem?
A5:24 hours after-service consultancy just for you and to make your problem to solve easily.

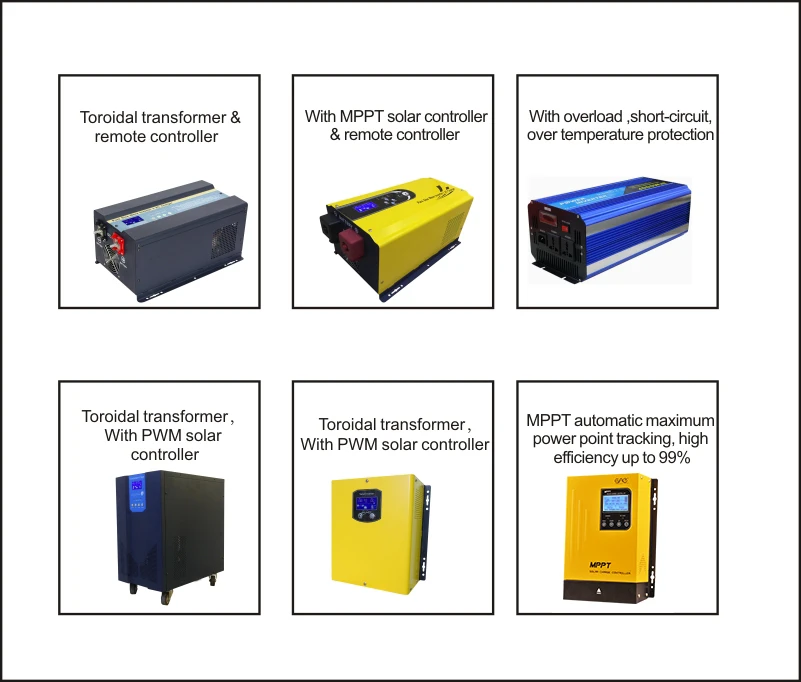

Q6:What other items does your factory producing?
Q1:Does your company also provide other solar products except Pure Sine Wave inverter?
A1:Yes, We also provide other solar products,Like MPPT solar controller ,poly solar panel,off-grid solar inverter,ongrid solar inverter,solar battery.portable solar system,solar charger and other accesories related the the solar power system.
Q2:How to choose a right inverter?
A2:Tell us your demand ,then our sales will recommend a suitable inverterto you.
Q3:How about the delivery time ?
A3:5 days for sample; 7-15 days for bulk order.
Q4:What is warranty of products?
A4:2 years warranty on one-inverter products.
Q5:How to solve the technical problem?
A5:24 hours after-service consultancy just for you and to make your problem to solve easily.
Q6:What other items does your factory producing?
