High efficiency wind turbine L model 1kw off grid wind power system
- Category: >>>
- Supplier: Foshan Esg New Energy Technology Co. Ltd.Foshan Ltd.
Share on (62466610065):
Product Overview
Description
High efficiency wind turbine L model 1kw off grid wind power system
High efficiency wind turbine L model 1kw off grid wind power system
High efficiency wind turbine L model 1kw off grid wind power system application
High efficiency wind turbine L model 1kw off grid wind power system
High efficiency wind turbine L model 1kw off grid wind power system
High efficiency wind turbine L model 1kw off grid wind power system details
High efficiency wind turbine L model 1kw off grid wind power system
High efficiency wind turbine L model 1kw off grid wind power system

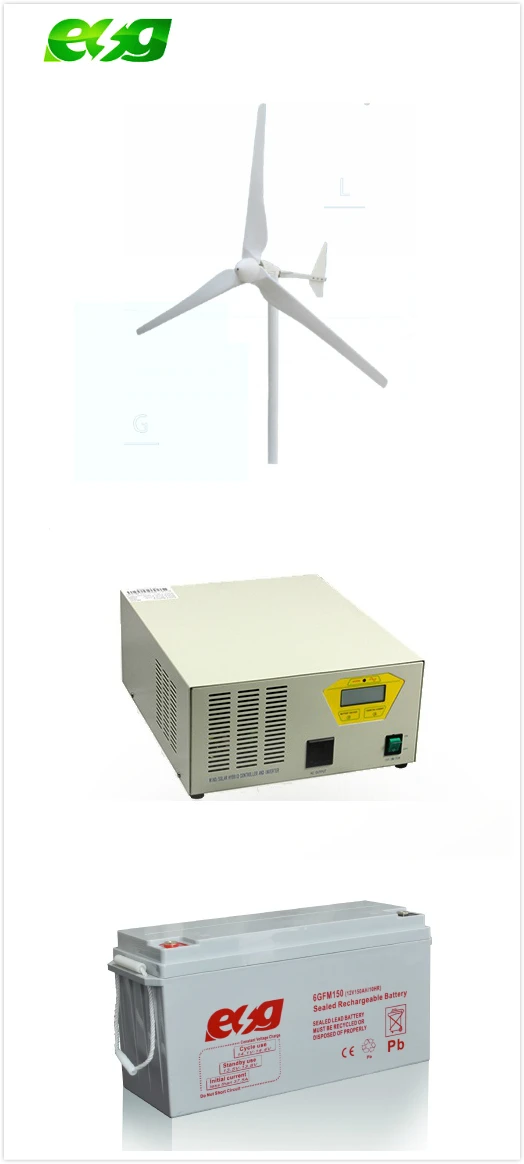

High efficiency wind turbine L model 1kw off grid wind power system Fatures details (Average daily energy storage 3-5kw/h) | ||
| Item | Model | Fatures |
| 1 | Wind turbine | 1. Low start up speed; high wind energy utilization; beautiful appearance; low vibration; 2. Human friendly design, easy installation,maintenance and repair; 3. Precise injection molding blades together with the optimized design of aerodynamic contour and structure. the blades have such advantages: high utilization of wind energy which contributes to the annual energy output; |
| 2 | Wind controller | Small size, strong waterproof, and affordable |
| 3 | Inverter | 1.Increase the intelligent human-machine information exchange display. Basically, the working status and various operating parameters of the inverter can be understood intuitively in the display in real time. Wait 2, fault prompt function. In addition to different audible prompts, it is more intuitively displayed on the display. For example, battery undervoltage, battery overvoltage, excessive load, high operating temperature, output short circuit, etc. 3.The High efficiency wind turbine L model 1kw off grid wind power system has added the overload delay shutdown function. It solves the sensitive problem of inverter protection when the soluble appliances are started. For example, the user cannot afford a 50W LED lamp with a 300W traditional inverter or a 500W inverter The transformer cannot afford a laptop and other issues. |
| 4 | Battery | Full capacity and full power battery, 1-3 years warranty |
High efficiency wind turbine L model 1kw off grid wind power system
Technical parameter

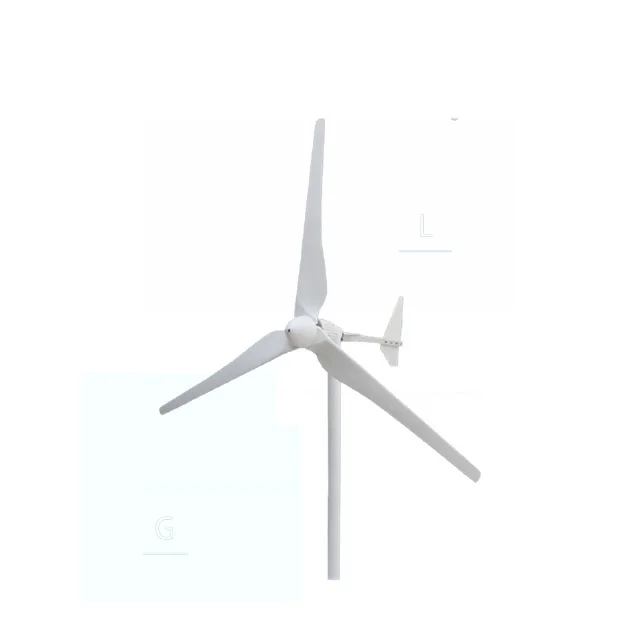

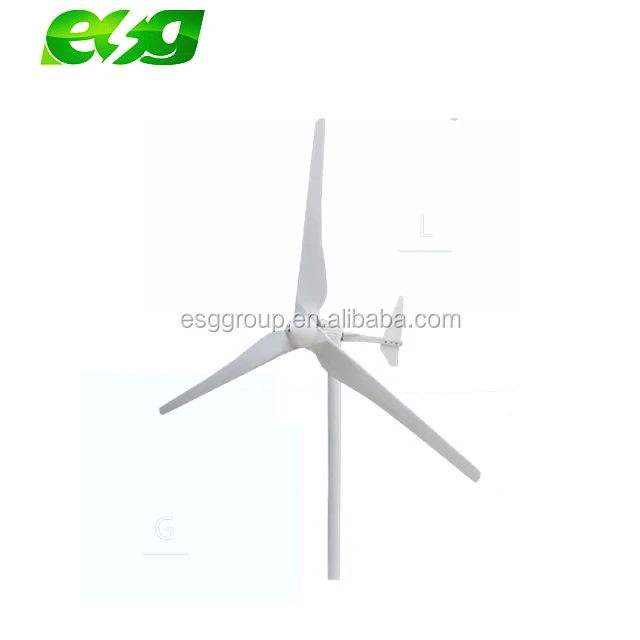

High efficiency wind turbine L model 1kw off grid wind power system Wind turbine | Model | ES-1000M5 | ES-1000L |
| Picture |  |  | |
| Rated power | 1000W | 1000W | |
| Maximum power | 1050W | 1500W | |
| Rated voltage | 48V | 48V | |
| Start-up wind speed | 2.5m/s | 3m/s | |
| Rated wind speed | 12.5m/s | 10m/s | |
| Survival wind speed | 40m/s | 45m/s | |
| Top net weight | 30kg | 37kg | |
| Wheel diameter | 2.4m | 2.8m | |
| Number of blades | 3 | ||
| Blades material | Nylon fiber | Nylon fiber/Reinforced glass fiber | |
| Generator | Three phase permanent magnet ac synchronous generator | ||
| Magnet | NdFeB | ||
| Generator case | Casting aluminum alloy | ||
| Control system | Electromagnet/wind wheel yaw | ||
| Speed regulation | Automatically adjust windward direction | Tail furling | |
| Working temperature | -40℃-80℃ | ||
| Suggest tower height (m) | 6m(3m*2) | ||
High efficiency wind turbine L model 1kw off grid wind power system
High efficiency wind turbine L model 1kw off grid wind power system

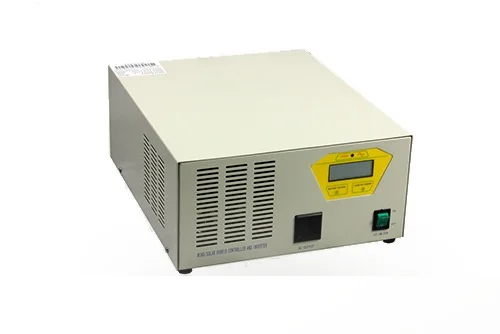

High efficiency wind turbine L model 1kw off grid wind power system controller and inverter all in one | Model | WWSI1010-48-3N01 |
Wind turbine power (W) | 1000 | |
Solar panel power (W) | 300 | |
Battery voltage (V) | 48 | |
Output capacity (VA) | 1000 | |
AC output (V) | 220 | |
AC output phases | Simplex | |
Output AC frequency | Power frequency | |
Waveform | Pure sine wave | |
Reference size (mm) | 400×340×160 | |
High efficiency wind turbine L model 1kw off grid wind power system reference net weight (kg) | 16 |
High efficiency wind turbine L model 1kw off grid wind power system

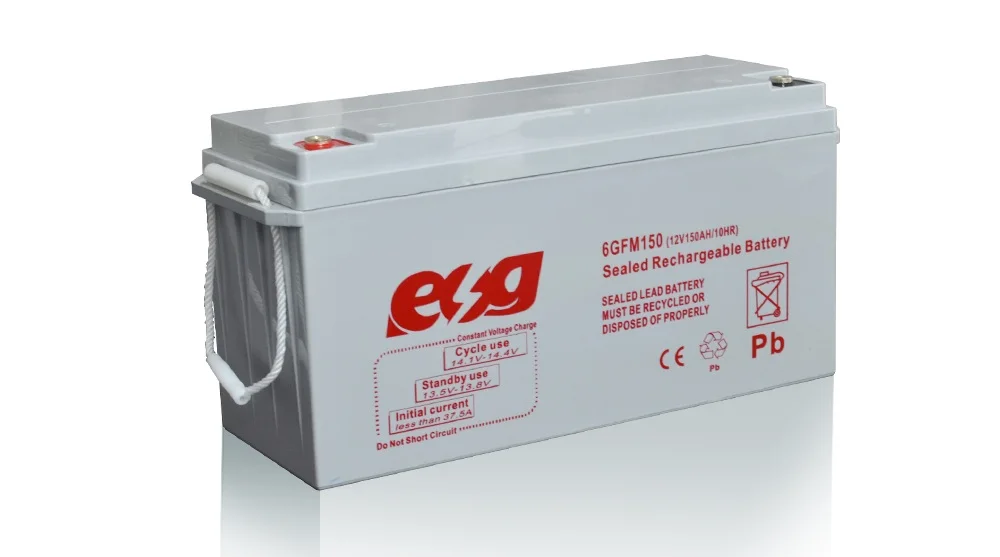

| High efficiency wind turbine L model 1kw off grid wind power system Battery |  |
High efficiency wind turbine L model 1kw off grid wind power system
| High efficiency wind turbine L model 1kw off grid wind power system Recommend Guyed cable tower With Locking Pole |  |
High efficiency wind turbine L model 1kw off grid wind power system
*If the standard supporting High efficiency wind turbine L model 1kw off grid wind power system s are not enough to satisfy you, we can communicate more and choose the plan that is unique to you.
Click "Send Inquiry" to start communication!
Working principle
To convert the kinetic energy of wind into mechanical kinetic energy, and then convert the mechanical energy into electric kinetic energy, this is wind power generation. The principle of wind power generation is to use the wind to drive the blades of the windmill to rotate, and then through the booster engine to increase the speed of rotation, so as to promote the power generation of the generator. According to the windmill technology, about three meters per second of breeze speed (the degree of breeze), you can start generating electricity. Wind power is becoming a worldwide craze because it doesn't require fuel, radiation or air pollution.
High efficiency wind turbine L model 1kw off grid wind power system
High efficiency wind turbine L model 1kw off grid wind power system
High efficiency wind turbine L model 1kw off grid wind power system
High efficiency wind turbine L model 1kw off grid wind power system advantage
vGreen energy, energy saving and environmental protection
vStable and continuous power supply
vRainy days work as usual
vEasy installation
vSuitable for many complex environments
High efficiency wind turbine L model 1kw off grid wind power system
High efficiency wind turbine L model 1kw off grid wind power system ion & QC
High efficiency wind turbine L model 1kw off grid wind power system
High efficiency wind turbine L model 1kw off grid wind power system
High efficiency wind turbine L model 1kw off grid wind power system
Certification and reporting High efficiency wind turbine L model 1kw off grid wind power system
High efficiency wind turbine L model 1kw off grid wind power system
High efficiency wind turbine L model 1kw off grid wind power system

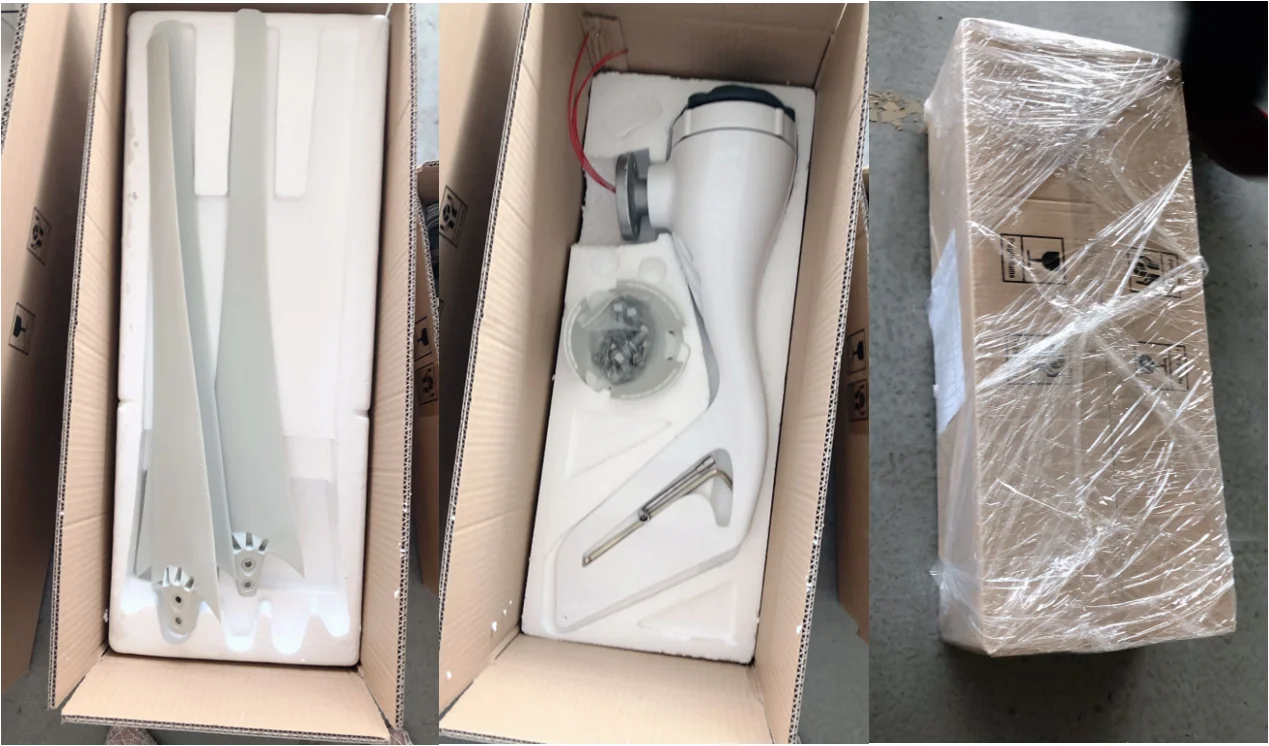

Packaging and transportation High efficiency wind turbine L model 1kw off grid wind power system
High efficiency wind turbine L model 1kw off grid wind power system
High efficiency wind turbine L model 1kw off grid wind power system
Project display High efficiency wind turbine L model 1kw off grid wind power system
High efficiency wind turbine L model 1kw off grid wind power system
High efficiency wind turbine L model 1kw off grid wind power system
Company profile and team High efficiency wind turbine L model 1kw off grid wind power system
ESG New Energy Technology Co. Ltd Committed to engage in off-grid system, We are producing batteries, pure sine wave inverter,solar controller , wind and solar power generation system High efficiency wind turbine L model 1kw off grid wind power system ion, We have a High efficiency wind turbine L model 1kw off grid wind power system ion line and scientific quality management system. Development and sales of high-tech enterprises.
Our factory has 33years history, we have 3 brand in China. ESG was established in 2013, a newest brand are specialized in solve green energy project.
high-quality, high efficiency, Adapt to market demand, the research management team,and with the domestic institutions of higher learning, scientific research institutions to establish a broad and close relations of cooperation, thus ensuring the company sustainable development and High efficiency wind turbine L model 1kw off grid wind power system development of advanced technology.
ESG New Energy Technology Co. Ltd., integrity, strength and quality of High efficiency wind turbine L model 1kw off grid wind power system s recognized by the industry.
Welcome friends to visit, guidance and business negotiation. High efficiency wind turbine L model 1kw off grid wind power system
High efficiency wind turbine L model 1kw off grid wind power system
High efficiency wind turbine L model 1kw off grid wind power system
Exhibition High efficiency wind turbine L model 1kw off grid wind power system
High efficiency wind turbine L model 1kw off grid wind power system
High efficiency wind turbine L model 1kw off grid wind power system
FAQ
1. Q: Does installation Easy ?
A: Very easy, every customer can do it by themselves, we will supply all the components for installation and very details installation manual.
2. Q: Does our wind is enough for a wind generator ?
A: As our wind generator can start running at low wind speed2.5m/s. so your average annual wind speed is more than 5m/s then you can use it .
3. Q: Which model of wind generator is suitable for me?
A: Please contact our sales with following points :
1. What appliance do you want to running by the system? How many watts are they and their working time .
2. Your annual wind speed .
3. What kinds of system do you want ? On-grid or off-grid
4. Q: Can I only buy parts not whole system?
A: Yes, for example you can manufacture tower on local , we can supply you tower drawing.
5. Q: For horizontal axis wind turbines VS vertical axis wind turbines, which kind of efficiency is better.
A: For same model at same wind speed, the output of horizontal axis wind turbines is more efficient than that of vertical axis wind turbines
