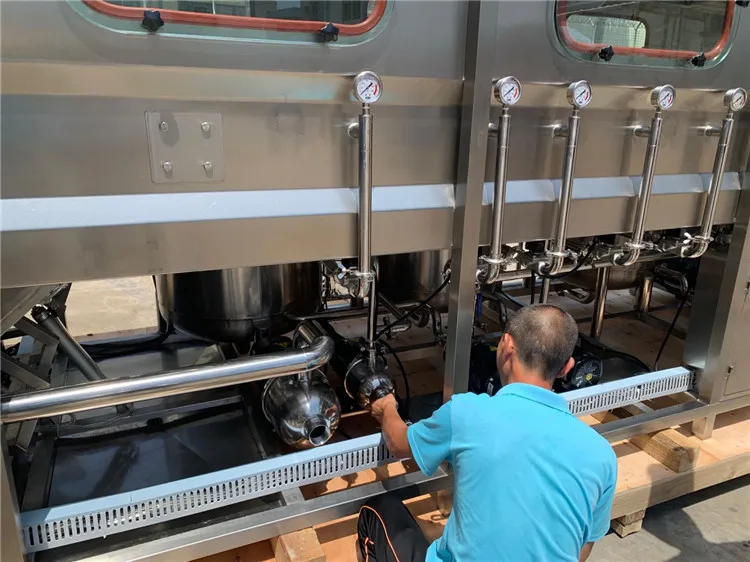

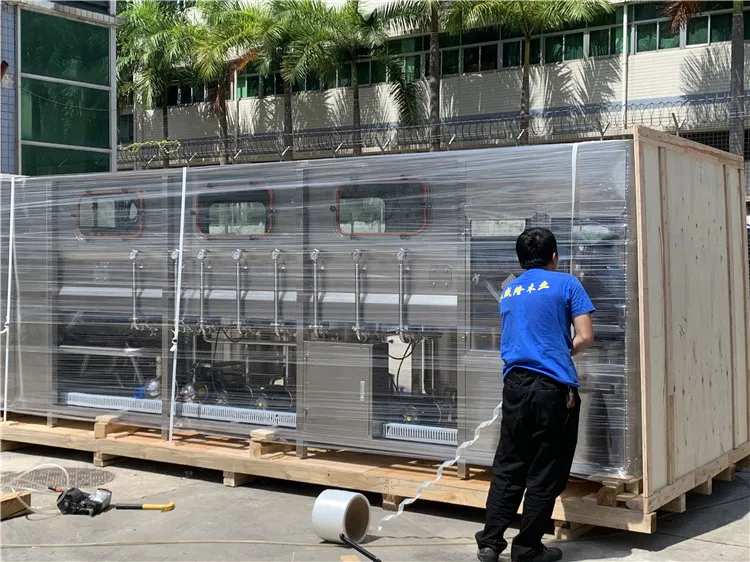

Beverage Machine with 36kW Rated Power and 220V AC Voltage Hot filling beverage machine
- Category: >>>
- Supplier: Shenzhen Chunjing Toys Co. Ltd.
Share on (62466682137):
Product Overview
Description
The fastest way to contact
Our company has more than 20 years of experience in the mechanical industry, bottle blowing machine injection molding machine baling water purification equipment and so on
At present, we have a professional team, many different departments and factories to produce various machinery and daily necessities, serve customers and occupy the market！！
GOOD quality and best price
WELCOME TO CONTACT US:.
wechat or whatsapp:
+86 13620077702
+86 13580841800
At present, we have a professional team, many different departments and factories to produce various machinery and daily necessities, serve customers and occupy the market！！
GOOD quality and best price
WELCOME TO CONTACT US:.
wechat or whatsapp:
+86 13620077702
+86 13580841800
Product Description
Product Details
Model Number:XG-100(900BPH)
Brand Name:J&D
Origin:China (mainland)
Advantages
1. Protection for power leakage and short circuit
2. Lower-pressure protection: when incoming air’s pressure is≦0.5Mpa, the equipment will be automatically stopped.
3. Water-shortage protection: when level of the water tank is lower than that of the liquid switch, the equipment will be automatically stopped.
4. Low water level protection water tank (water tank with filler’s water supply): when the water level of the tank is lower than hat of the liquid switch, the equipment will be automatically stopped.
5. Special filling principle-dual filling(at the early filling stage, the two filling valves work simultaneously, after some time, the auxiliary filling valve stops working , while main filling valve keeps working), avoid water waste.
6. Filling time adjustable 0.1S-1S, ensuring the precision of filling amount.
7. We can add other function as customer’s requirements, such as hot water washing, cap washing, daily counter, user-friendly interface control, etc.
8. Washing, filling, capping integrated, high quality of stainless steel.
9. Precise filling avoid spill and wastage, micro-computer controlled.
Notes
We can add other function as customer’s requests, such as hot water washing, cap washing, daily counter, user-friendly interface control, etc. One thing we should mention is that the washing, filling, capping section will be changed according to the output of the machine.
Brand Name:J&D
Origin:China (mainland)
Key Specifications/Special Features:
Applications:
Applications:

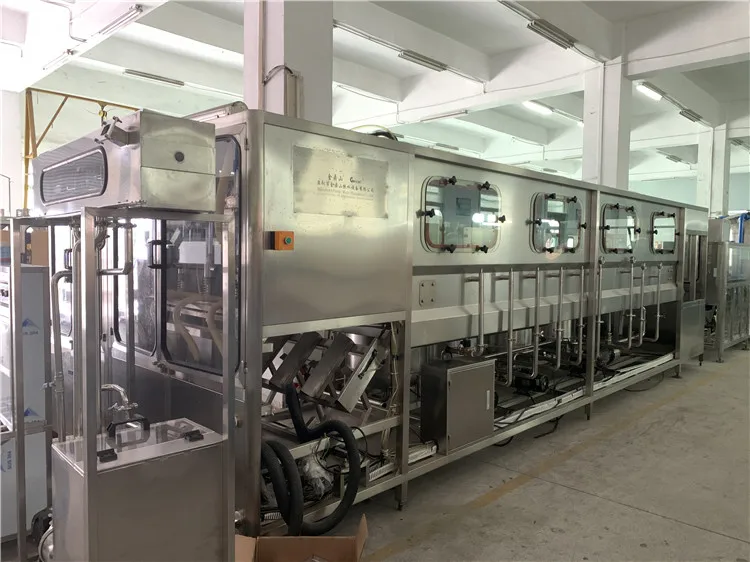

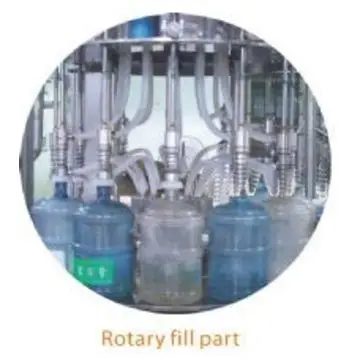

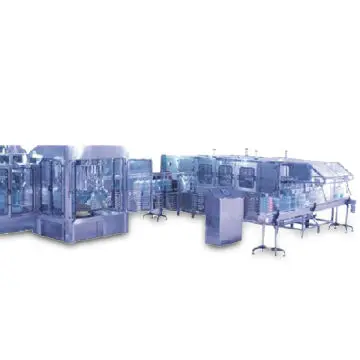

The production process of 5 gallon filling machine generally can be classified into three categories: washing, filling, capping. Fist, the bottle passing through the auto bottle lifting machine, and then decapping. The washing section has three parts, chemical rinsing, drip-dry and pure water washing. Finally, the bottle will be filled and capped automatically.
Advantages
1. Protection for power leakage and short circuit
2. Lower-pressure protection: when incoming air’s pressure is≦0.5Mpa, the equipment will be automatically stopped.
3. Water-shortage protection: when level of the water tank is lower than that of the liquid switch, the equipment will be automatically stopped.
4. Low water level protection water tank (water tank with filler’s water supply): when the water level of the tank is lower than hat of the liquid switch, the equipment will be automatically stopped.
5. Special filling principle-dual filling(at the early filling stage, the two filling valves work simultaneously, after some time, the auxiliary filling valve stops working , while main filling valve keeps working), avoid water waste.
6. Filling time adjustable 0.1S-1S, ensuring the precision of filling amount.
7. We can add other function as customer’s requirements, such as hot water washing, cap washing, daily counter, user-friendly interface control, etc.
8. Washing, filling, capping integrated, high quality of stainless steel.
9. Precise filling avoid spill and wastage, micro-computer controlled.
Notes
We can add other function as customer’s requests, such as hot water washing, cap washing, daily counter, user-friendly interface control, etc. One thing we should mention is that the washing, filling, capping section will be changed according to the output of the machine.
Model | XG 100 |
Output | 900BPH |
Voltage | AC200V/380V±5％ |
Rated Power | 36KW |
Filling Capacity | 18.9L(5GAL) |
Air Pressures | 0.5 to 0.6Mpa |
Washing Step | 10 |
Filling Heads | 6 |
Capping Heads | 1crawler type |
Bottle Size(MM) | Φ270x490xΦ56 |
Cap Size (MM) | Φ58x40 (Tail: LXW=18x7.5) |
MOQ | 1 |
Bottle Size | Φ290x490xΦ56 |
Shipping Information:
* FOB Port:China (Mainland)
*
* Lead Time:25 - 30 days
*
* Lead Time:25 - 30 days
Primary Competitive Advantages:
* Brand-name Parts * Origin
* Distributorships Offered * Experienced Staff
* Green Product * Guarantee/Warranty
* International Approvals * Packaging
* Price * Product Features
* Product Performance * Prompt Delivery
* Quality Approvals * Reputation
* Service * Small Orders Accepted
* Distributorships Offered * Experienced Staff
* Green Product * Guarantee/Warranty
* International Approvals * Packaging
* Price * Product Features
* Product Performance * Prompt Delivery
* Quality Approvals * Reputation
* Service * Small Orders Accepted
Jinding mountain group covers household water purifier, commercial water purifier, and industrial water treatment equipment."Quality is the life of the enterprise, innovation is the direction of the enterprise", the company attaches great importance to technical innovation and quality, especially in the hot water public drinking water equipment and reverse osmosis water purifier, has 8 inventions and 13 utility model technology.
Jin Dingshan energy-saving product success by state guesthouse, changsha city government, China construction bank, fudan university, shenzhen pei kindergarten, south Australia people hospital, foxconn group, belle group, changsha tong cheng hotel and other government agencies, international organizations, enterprises and institutions, hotels, hospitals, schools selected, become the industry's leading energy-saving products and low carbon life service providers
