HM ZD350D Automatic Rigid Box Machine Cake Box Machine With Double Wrapper
- Category: Packaging Forming Machines >>>
- Supplier: Guangdong Hongming Intelligent Joint Stock Co. Ltd.
Share on (62466814299):
Product Overview
Description
Product Description

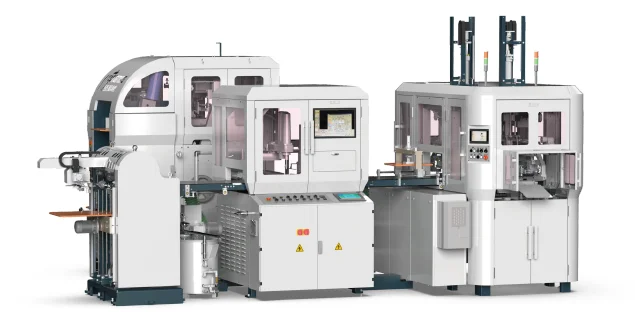

HM-ZD350D Automatic Rigid Box Machine with Double Wrapper, which suitable for medium-size premium boxes
in mass production. It is suitable to make various types of rigid boxes such as jewelry boxes, mobile phone boxes, gift
boxes, cosmetic boxes, watch boxes, etc. Its maximum length 350mm and maximum width 250mm,Size range is bigger,
more suitable for current packaging market. Machine's appearance is new design which is safer and more beautiful.

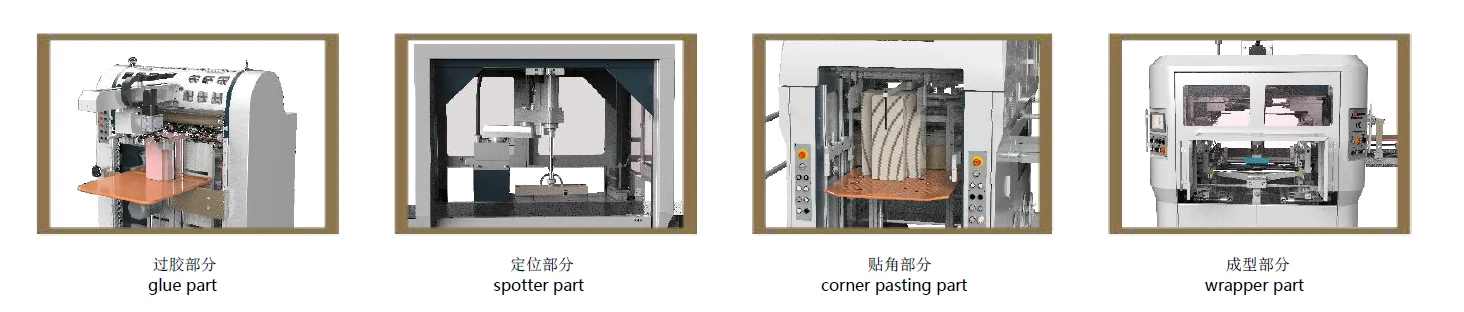

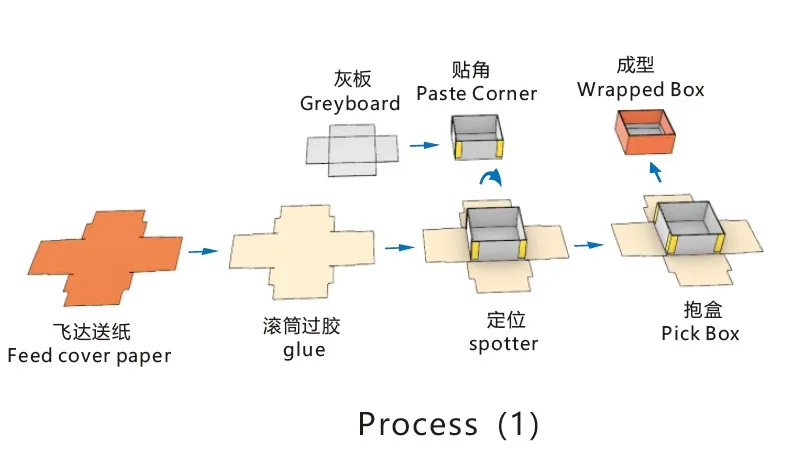

HM-ZD350D adopts PLC and man-machine control, camera tracing system, and can automatically feed cover
paper, feed greyboard, paste four corners, spot greyboard, lift box, wrap box, fold corner edges and form box.
The feeder, the gluer and the conveyor are driven by servos, the machine has continuously variable transmission
and enjoys high accuracy, easy adjusting, and less time consumption. The spotting unit adopts camera tracing system
and robot arm to pick and spot the greyboard ,enhancing the spotter accuracy to ± 0.05mm. The forming unit
employs Japan THK linear slider and virtual cam driving system, guaranteeing the stable quality and fluent movement
and enlarge the folding-in depth and corner edges.
in mass production. It is suitable to make various types of rigid boxes such as jewelry boxes, mobile phone boxes, gift
boxes, cosmetic boxes, watch boxes, etc. Its maximum length 350mm and maximum width 250mm,Size range is bigger,
more suitable for current packaging market. Machine's appearance is new design which is safer and more beautiful.
HM-ZD350D adopts PLC and man-machine control, camera tracing system, and can automatically feed cover
paper, feed greyboard, paste four corners, spot greyboard, lift box, wrap box, fold corner edges and form box.
The feeder, the gluer and the conveyor are driven by servos, the machine has continuously variable transmission
and enjoys high accuracy, easy adjusting, and less time consumption. The spotting unit adopts camera tracing system
and robot arm to pick and spot the greyboard ,enhancing the spotter accuracy to ± 0.05mm. The forming unit
employs Japan THK linear slider and virtual cam driving system, guaranteeing the stable quality and fluent movement
and enlarge the folding-in depth and corner edges.
Details Images
Specification
Model | HM-ZD350D | ||
Greyboard Size (D=Length, C=Width) | D(Max) | 510mm | |
D(Min.) | 80mm | ||
C(Max.) | 410mm | ||
C(Min,) | 70mm | ||
Thickness(T) | 0.5-3mm | ||
Paper Size B=Length, A=Width | B(Max.) | 600mm | |
B(Min.) | 180mm | ||
A(Max.) | 455mm | ||
A(Min.) | 70mm | ||
Thickness | 80-160gsm | ||
Finished Box Size (L=Length W=Width H=Height) | L(Max.) | 350mm | |
L(Min.) | 60mm | ||
W(Max.) | 250mm | ||
W(Min.) | 50mm | ||
H(Max.) | 110mm | ||
H(Min.) | 10mm | ||
Paper Corner Edge(E) | E | 10-90mm | |
Folding-in Depth(R) | R | 10-80mm | |
Paper Pile Height Max. | 750mm | ||
Greyboard Pile Height Max. | 850mm | ||
Glue Tank Volume | 40L | ||
Air Supply | 460L/min, 0.8MPa | ||
Speed | ≤45pcs/min | ||
Total Power/Voltage | 43kW/AC380V | ||
Power Consumption | 11kW/h | ||
Net Weight | 5200kg | ||
Machine Dimension | 6000 x 5000 x 3200mm | ||
Features function
1. Suit to all kinds of rigid boxes in mass production;
2. Parameters adopts computer digital setting;
3. Auto error stop and display;
4. Automatic feed paper and greyboard;
5. 24-hours control for glue pre-heating;
6. Wrapper can input 300 product formulas;
7. Corner pasting part with independent man-machine control and
heating system;
8. Adopt YASKAWA servo and PLC;
9. Spotter by camera tracing system and SCARA (Selective
Compliance Assembly Robot Arm) (spotting accuracy ±0.05mm);
10. Wrapper can automatic lift and wrap box;
11. Automatic control system for glue viscosity (optional).
12. Digital setting with memory system (optional)
2. Parameters adopts computer digital setting;
3. Auto error stop and display;
4. Automatic feed paper and greyboard;
5. 24-hours control for glue pre-heating;
6. Wrapper can input 300 product formulas;
7. Corner pasting part with independent man-machine control and
heating system;
8. Adopt YASKAWA servo and PLC;
9. Spotter by camera tracing system and SCARA (Selective
Compliance Assembly Robot Arm) (spotting accuracy ±0.05mm);
10. Wrapper can automatic lift and wrap box;
11. Automatic control system for glue viscosity (optional).
12. Digital setting with memory system (optional)
NOTE:.
1, The finished Box Max sizes are determined by paper size.
A(Min.)≤W+2H+2T+2R≤A(Max.); B(Min.)≤L+2H+2T+2R≤B(Max.)
2, Either the Max. Sizes or the Min. Sizes can not be fulfilled on the same box.
3, If finished box height is 110mm,the length>80mm;when the length <80mm,the finished box height≤90mm
4, The production speed of the rigid box machine is determined by the box size, the paper and the greyboard materials.
5, Seller doesn't provide air compressor. (8atm=0.808MPa, 7.5kW compressor is needed)
A(Min.)≤W+2H+2T+2R≤A(Max.); B(Min.)≤L+2H+2T+2R≤B(Max.)
2, Either the Max. Sizes or the Min. Sizes can not be fulfilled on the same box.
3, If finished box height is 110mm,the length>80mm;when the length <80mm,the finished box height≤90mm
4, The production speed of the rigid box machine is determined by the box size, the paper and the greyboard materials.
5, Seller doesn't provide air compressor. (8atm=0.808MPa, 7.5kW compressor is needed)
