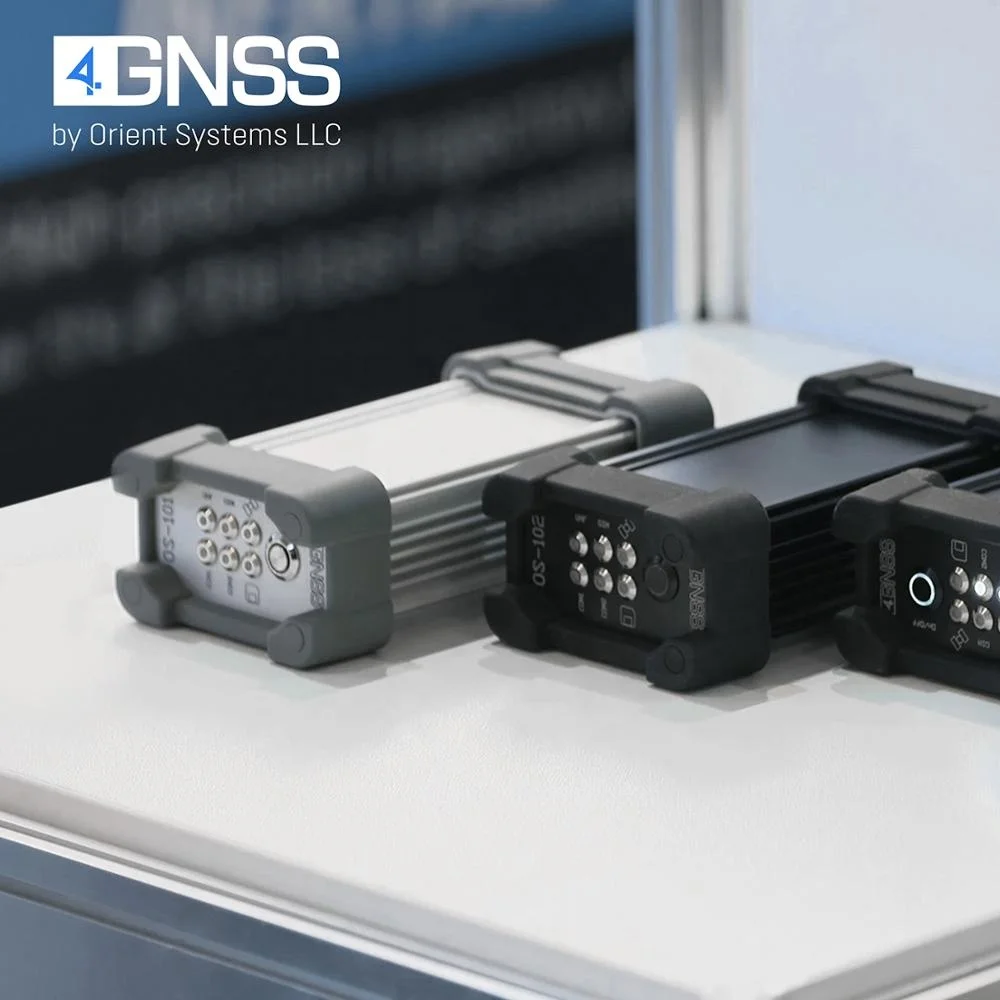

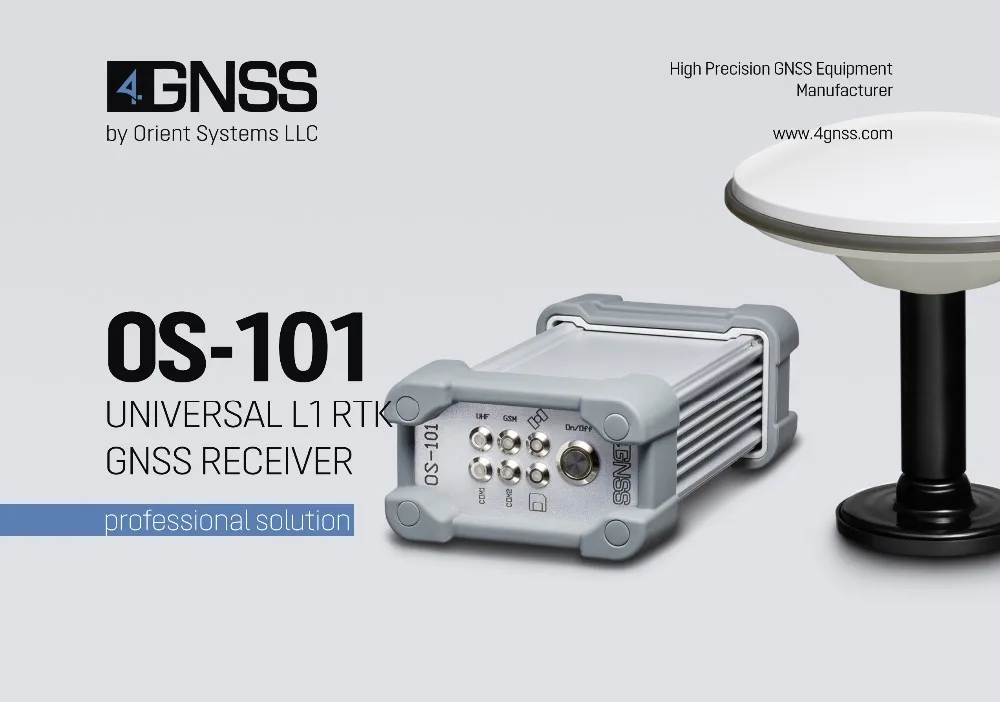

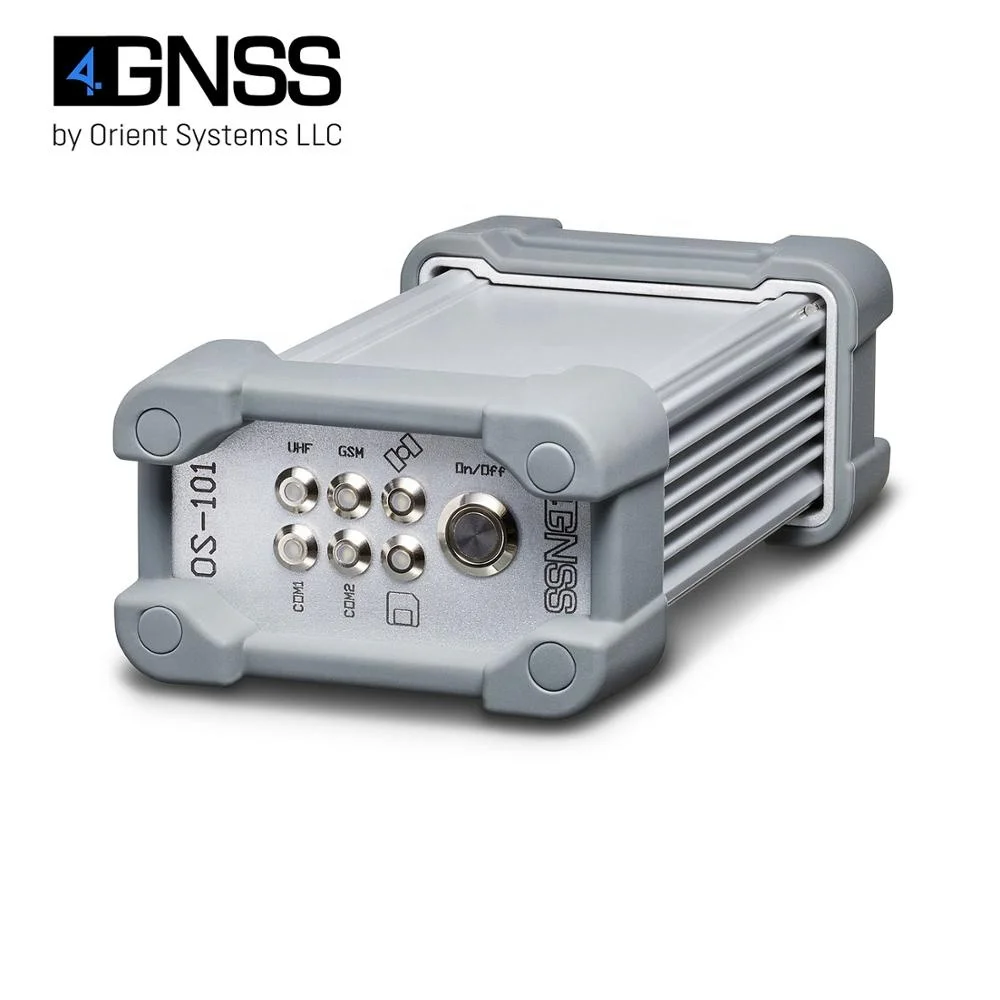

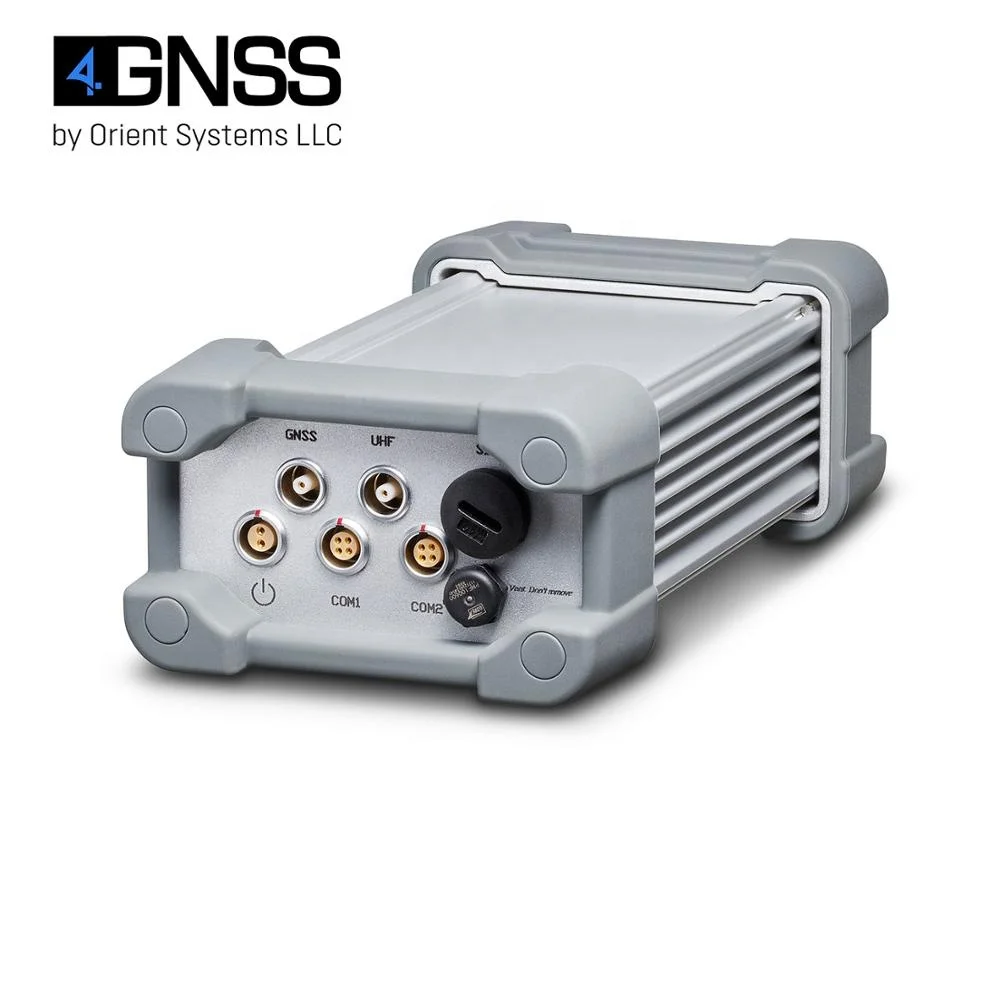

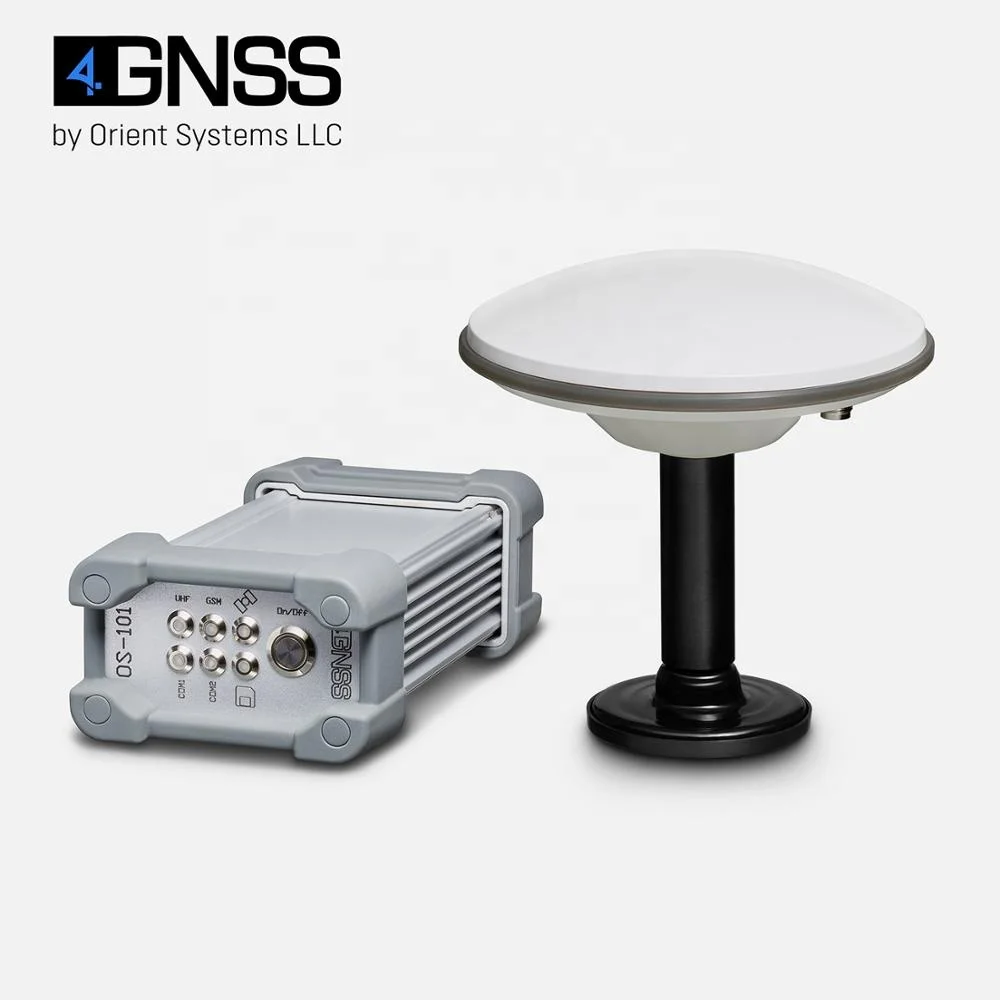

L1 single frequency OS 101 4GNSS high accuracy receiver with antenna

Measurements are recorded in the internal memory of 8 GB (up to 32 GB). Supports RTCM 2.x, 3.x, CMR corrections. Raw data is easily converted to RINEX by the receiver's internal WebUI or PC free utility. WebUI to configure and control the receiver. Optionally includes an internal battery for 10 hours of autonomous working.

Purpose: mobile or base station.

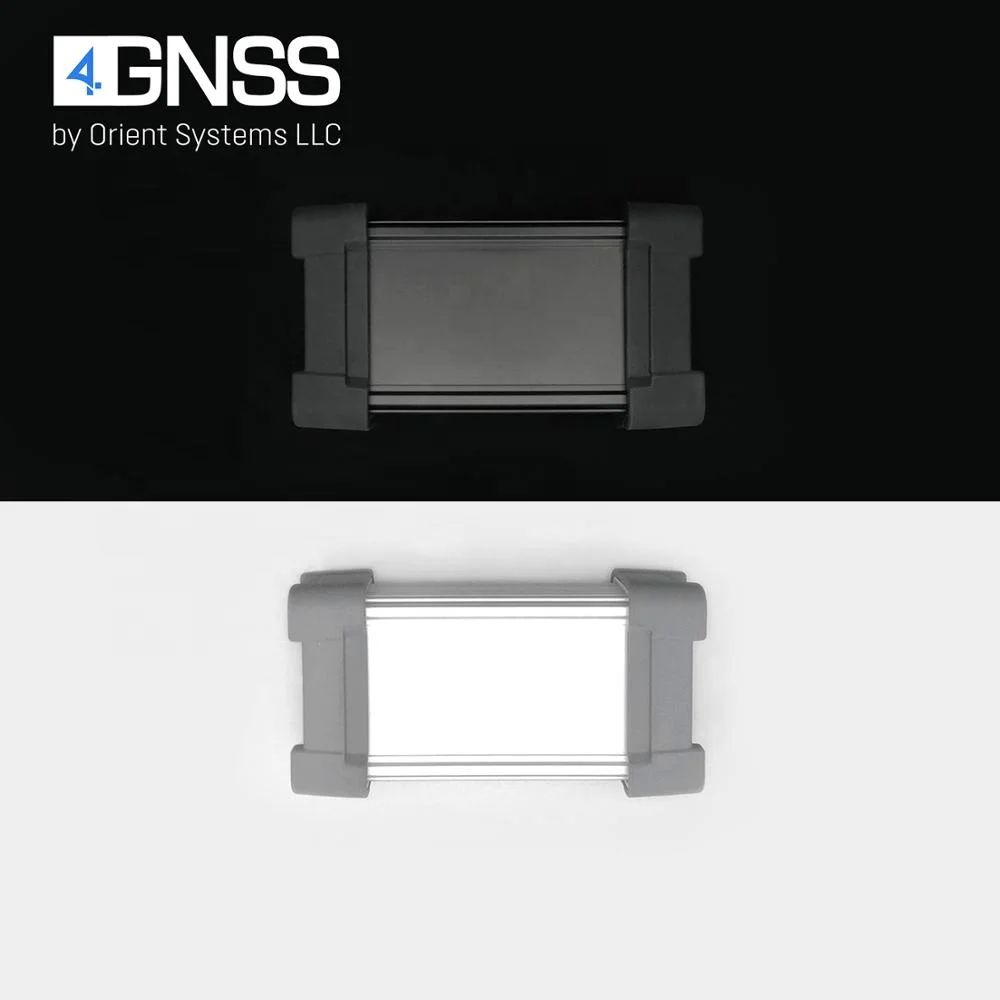

Design features: IP67. Supplied with shock-absorbing rubber bumpers.
Frequencies: 200 channels: GLONASS L1, GPS L1, BeiDou B1
Size (LxWxH), mm: 164 x 87.4 x 53.6
Weight, kg: 0.6

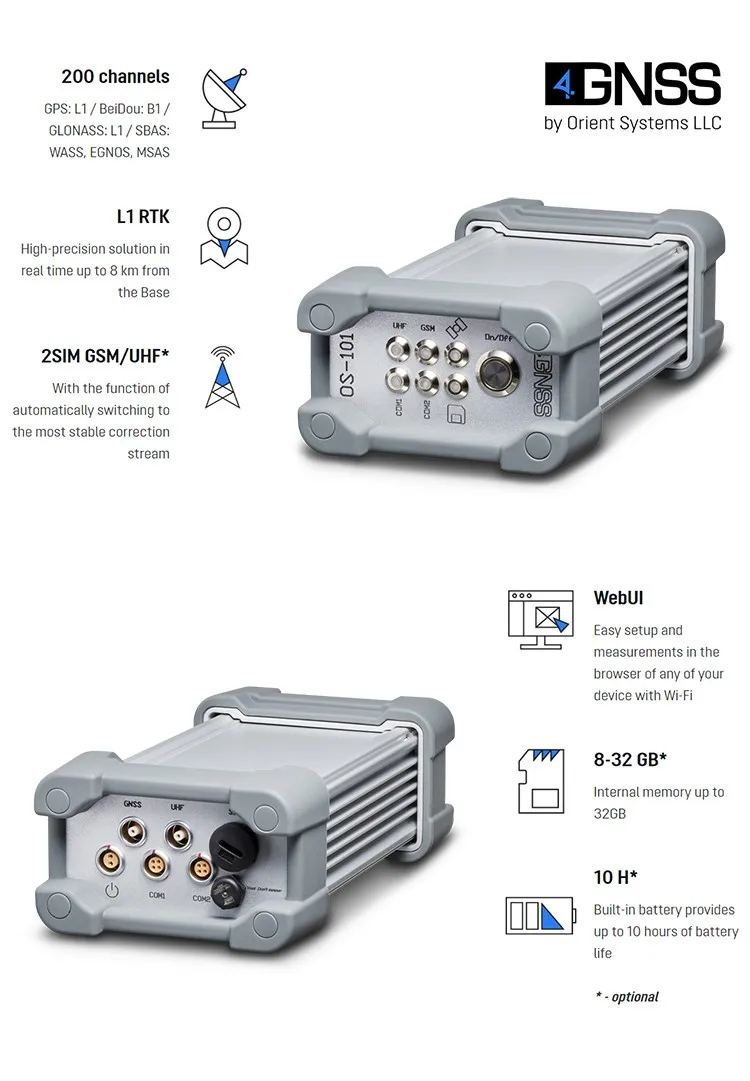

FEATURES

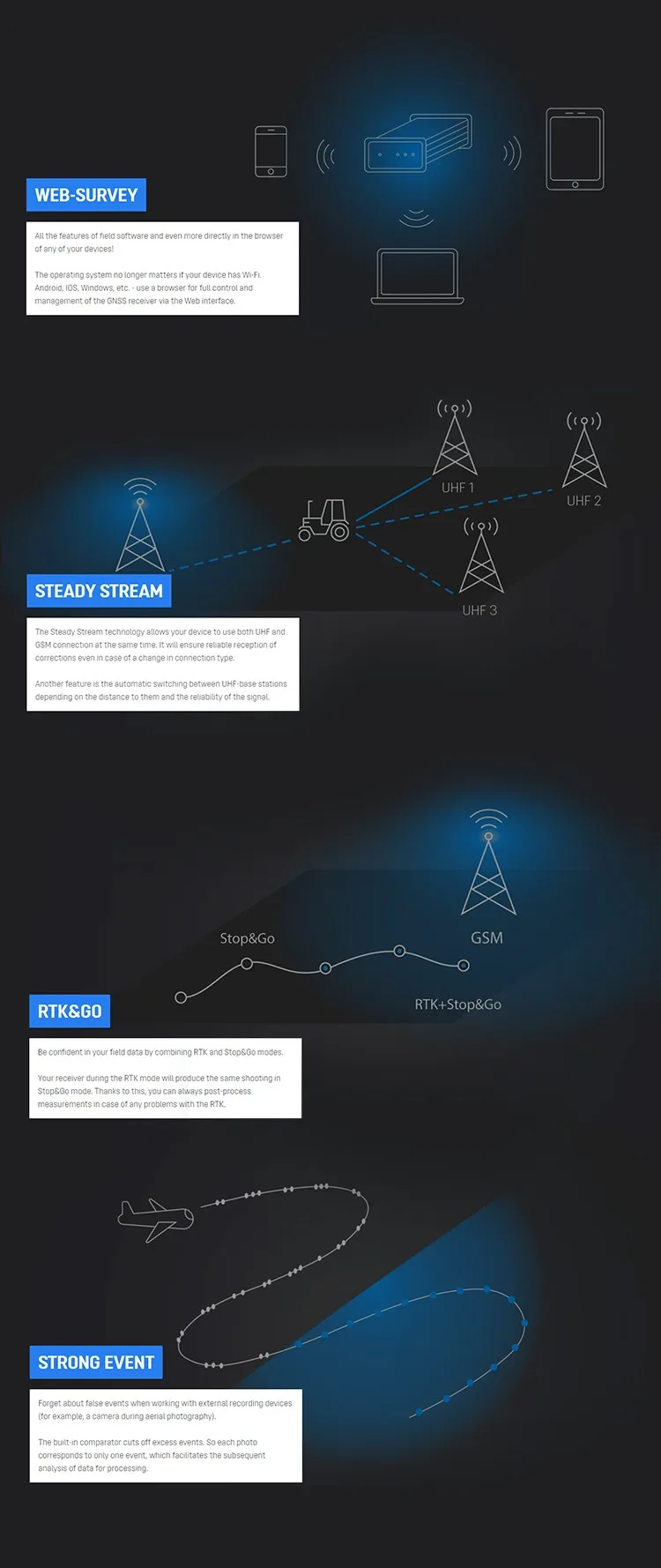

TECHNOLOGIES

SPECIFICATION

Signal Tracking

200 channels

GPS L1 C/A

BeiDou B1

GLONASS L1 C/A, L1P

SBAS: WAAS, EGNOS, MSAS, GAGAN

Performance Specifications

Acceleration 4g

Overload 15g

Cold start <50s

Warm start <45s

Signal reacquisition <2s

Velocity Accuracy 0.03m/s

Time Precision	20ns
Positioning Specifications
Post Processing Static	2.5 mm+1 ppm Horizontal
	5 mm+1 ppm Vertical
Single Baseline RTK (<8km)	10 mm + 1 ppm Horizontal
	20 mm + 1 ppm Vertical
DGPS	0.4 m 3D RMS
SBAS	1 m 3D RMS
Standalone	1.5m 3D RMS

Communications
Communication port	2 Lemo0 4pin (female) RS-232 ports, baud rates up to 921600 bps • 2 RS232 Lemo4 (f) baud rates up to 230400bps • 1 Pulse Per Second (PPS) output • 1 Event Marker input • Bluetooth • Wi-Fi 802.11 (APN, client) • GNSS antenna Lemo1 (f) • 6 LED indicators show the working status
Build-in GSM modem	2G/3G: 900/2100 MHz • TCP-IP/UDP-IP (client, server) • NTRIP (client, server) • OS-Stream
Built-in UHF modem*	- 410-470 MHz - Up to 2W - TRIMTALK, TRANSEOT, TRIMMK3 - UHF antenna Lemo1 (f)
WebUI	FTP-server and FTP-Push
Positioning data outputs	1Hz, 2Hz ,5Hz, 10Hz, 20Hz (depends on installed option)

Data Format
Correction data I/O	CMR, RTCM 2.x,3.x, RTCM COMPASS
Position data output	ASCII: NMEA-0183 GSV, RMC, HDT, VHD, GGA, GSA, ZDA, VTG, GST; PTNL, PJK; PTNL, GGK; PTNL, AVR; NAVPOS
	ComNav Binary data

Physical
Size(L×W×H)	164mm × 87.4mm × 53.6mm
Weight	0.6 kg
Antenna	1 x SMA female (GNSS), 1 x SMA female (UHF)

Environmental
Working temperature	-40℃ to +85℃
Storage temperature	-40℃ to +85℃
IP protection	IP67

Electrical
Input voltage	7-28 VDC
Power consumption	1.6W (3 constellations)
Memory	8 GB up to 32 GB*

Features

UHF 2W (OC-101UHF) without internal battery

GPS L1, BeiDou B1, GLONASS L1, SBAS

WebUI

Advanced QuantumTM Algorithm

Support short baseline RTK

Support PPS and Event Marker

Low power consumption and compact size

* - optional

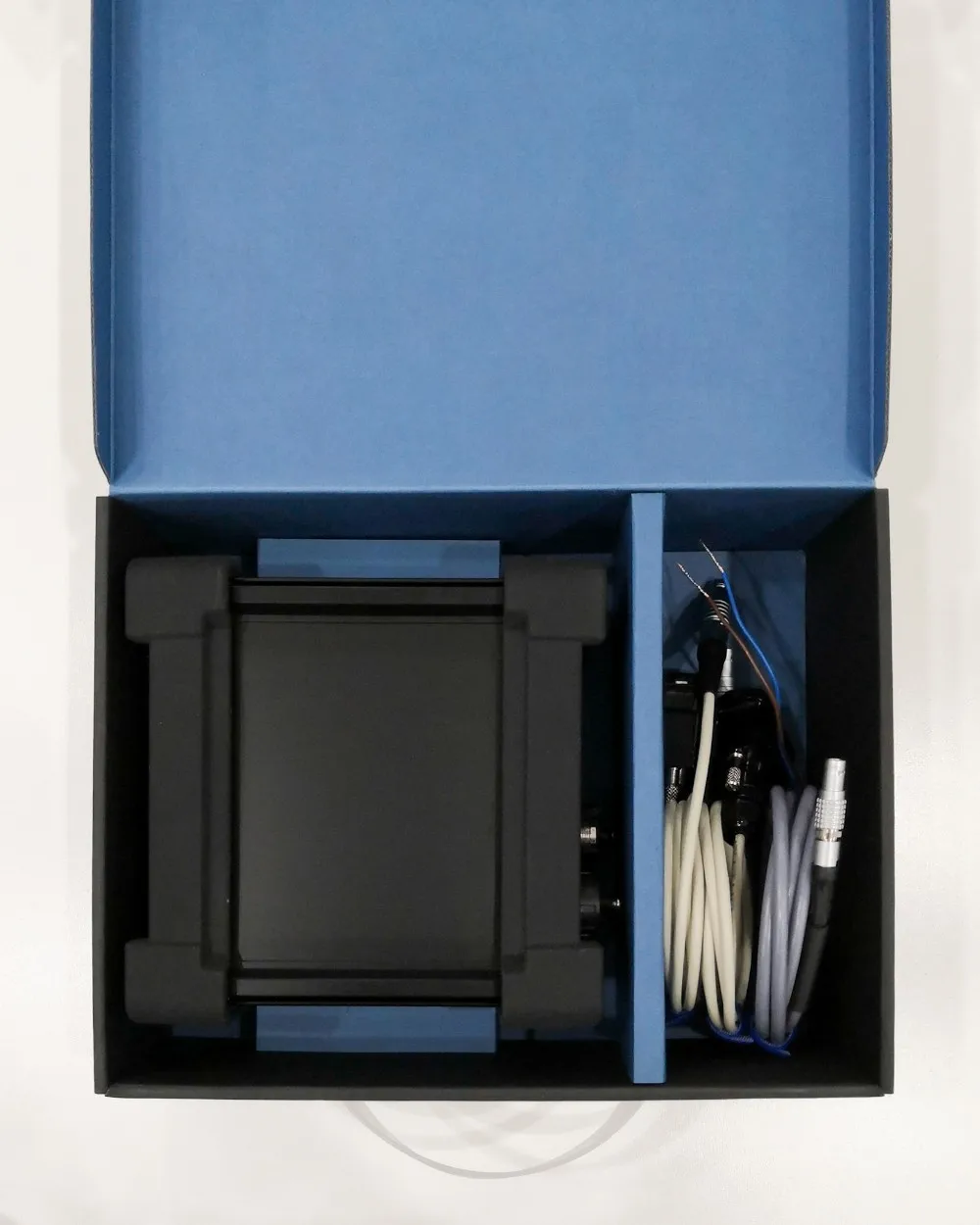

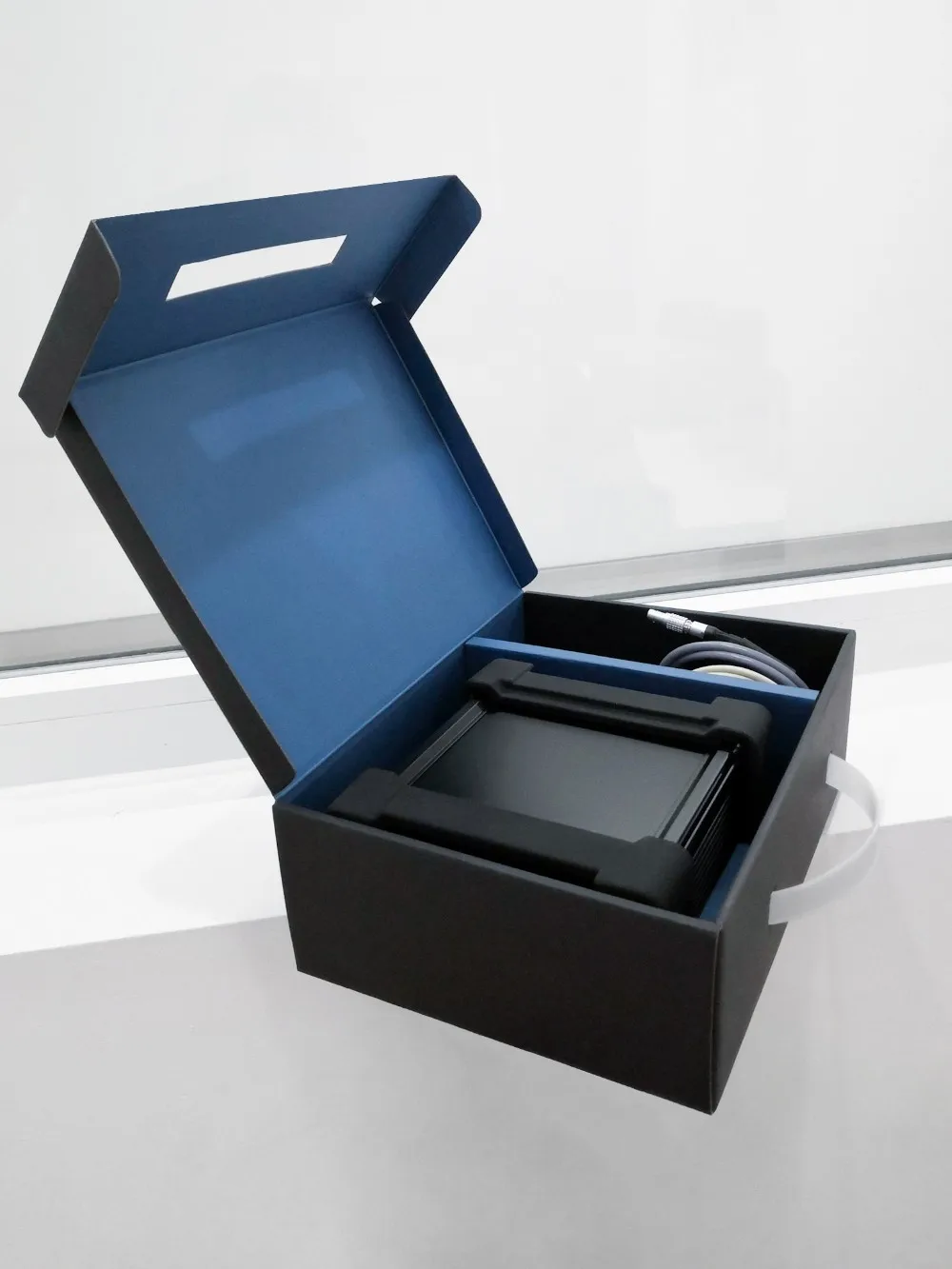

PACKING & DELIVERY
