manufacturer supply cryogenic liquid oxygen /nitrogen/argon storage tank
- Category: >>>
- Supplier: South China Special Gas Institute Co. Ltd.
Share on (62467161850):
Product Overview
Description
Product Description

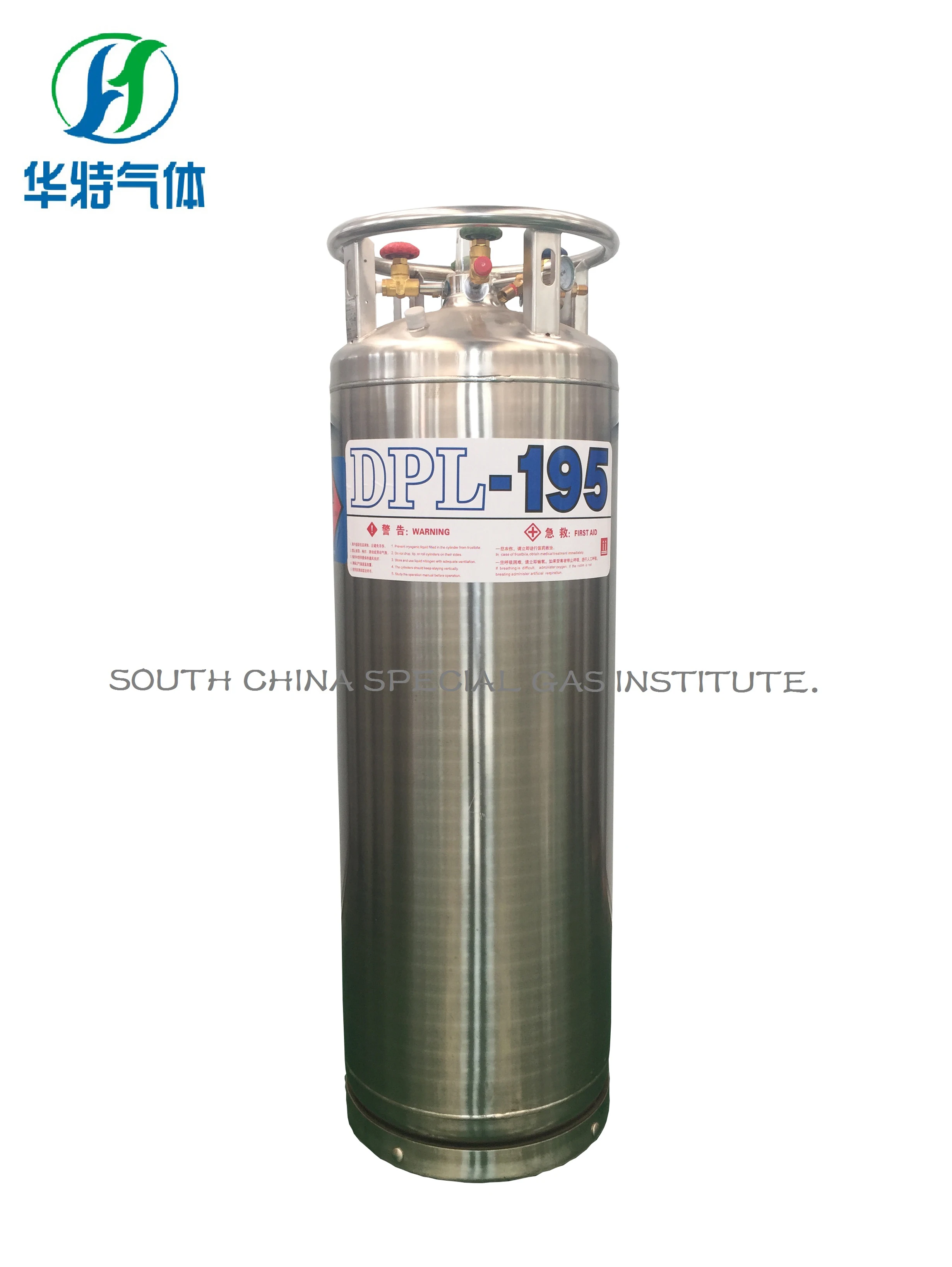

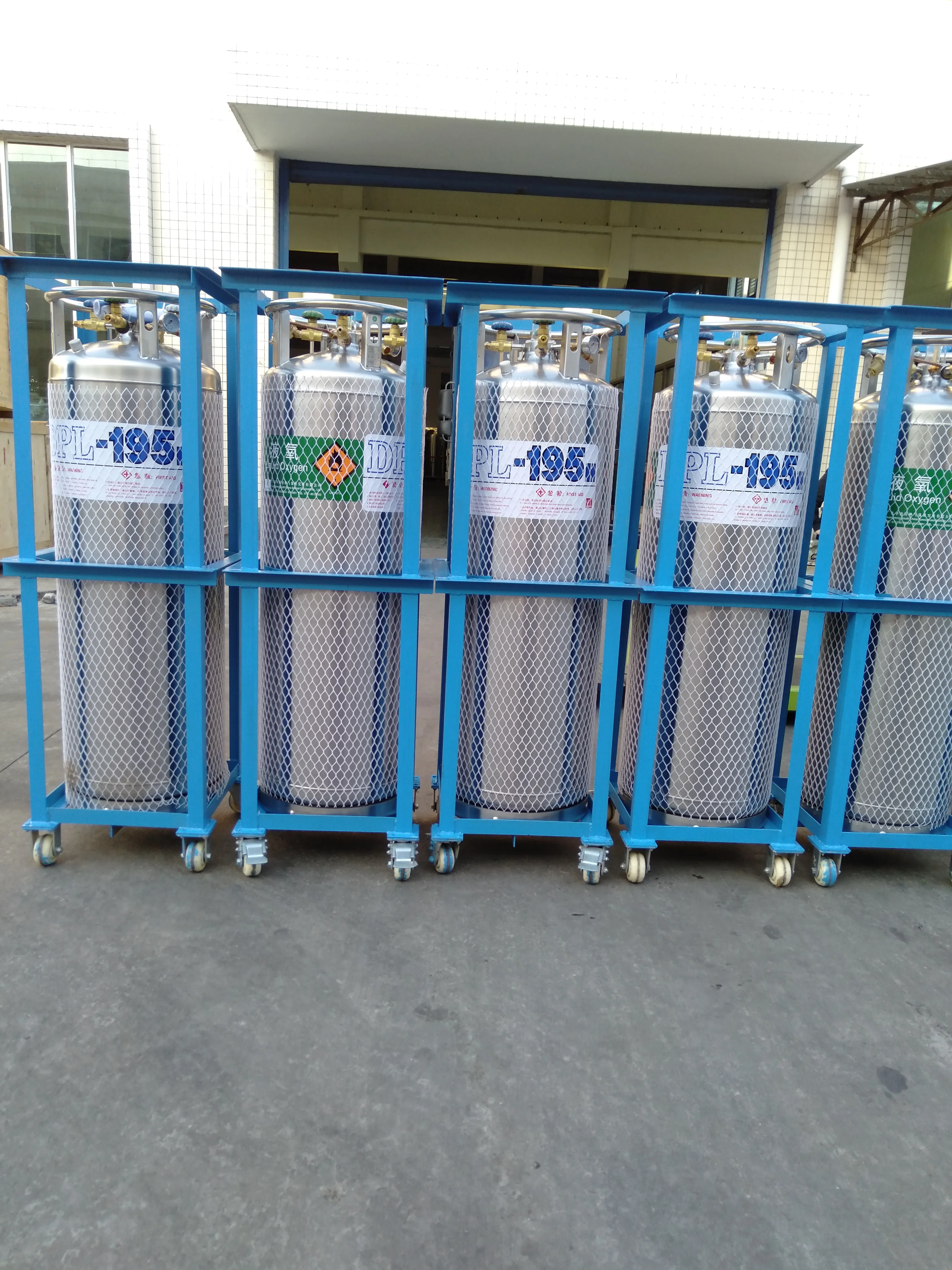

The DPL series containers are vacuum insulated, Stainless steel containers designed to store
And transport cryogenic liquid oxygen, nitrogen or argon. Containers may be used for over the road transportation of cryogenic fluids, as well as on-site storage and supply in a wide range of applications.
As rugged, long holding time, self-contained gas supply systems, these cylinders are capable of providing continuous flow rates of up to 9.2 cu.m/h, with a delivery pressure of approximately 100psig (6.9bar/690Kpa)
Product Specification | |||||||||||||
Product Model | Product Model | DPL-100 | DPL-175 | DPL-195 | DPL-210 | DPL-410 | DPL-450 | ||||||
Diameter*Height(mm) | 454*1247 | 508*1500 | 508*1620 | 508*1707 | 750*850*1707 | 750*850*1900 | |||||||
Working Pressure(MPa) | 1.33 | 1.4 2.01 2.88 | 1.4 2.01 2.88 | 1.4 2.01 2.88 | 1.4 3.17 | 1.4 3.17 | |||||||
Pressure Relief Valve(MPa) | 1.59 | 1.59 2.41 3.45 | 1.59 2.41 3.45 | 1.59 2.41 3.45 | 1.59 3.45 | 1.59 3.45 | |||||||
Inner Container Bursting Disc(MPa) | 2.60 | 2.60 3.62 5.17 | 2.60 3.62 5.17 | 2.60 3.62 5.17 | 2.60 5.70 | 2.60 5.70 | |||||||
Maximum Liquid Capacity(L) | 100 | 175 | 195 | 210 | 410 | 450 | |||||||
Usable Liquid Capacity(L) | 95 | 166 | 185 | 197 | 389 | 427 | |||||||
Normal Evaporation Rate | ≤2.1% | ≤2.1% | ≤2.1% | ≤2.1% | ≤1.8% | ≤1.8% | |||||||
Tare Weight(Kg) | 70 | 110 | 117 | 123 | 282 | 289 | |||||||
Filling Capacity | Oxygen(kg) | 100 | 172 | 191 | 205 | 443 | 487 | ||||||
Nitrogen(Kg) | 73 | 121 | 135 | 145 | 315 | 346 | |||||||
Argon(Kg) | 127 | 208 | 233 | 250 | 548 | 602 | |||||||
Natural Gas (Kg) | ----- | 70.1 | 76 | 86.3 | 161 | 176 | |||||||
CO2(Kg) | ----- | 138 | 154 | 164 | 325 | 357 | |||||||
N2O(Kg) | ------ | 191 | 213 | 227 | 448 | 492 | |||||||
Product Application
Detailed Images
S30408 Refined Polish.
Each of our cylinder must strictly go through degreasing and refined polish.
Digital level gauge
we provide digital level gauge for option, which is show by precision percentage
Anti-Shock Rubber Cushion
The thicken rubber cushion can
greatly prevent the inner container
from any Sudden shock and buffer
the impact.
25 layers of Vacuum insulated quiit
We use 25 layers of mutiple thermal insulated quilt to ensure the vacuum effectiveness
High Vacuum Performance
Each unit of tank will under vacuumized processing, we provide three-year warranty to each user.
Firm Foundation Structure
Our DPL-450L&410L serials are all fabricated by bolts and nuts with strong frame foundation
Certifications

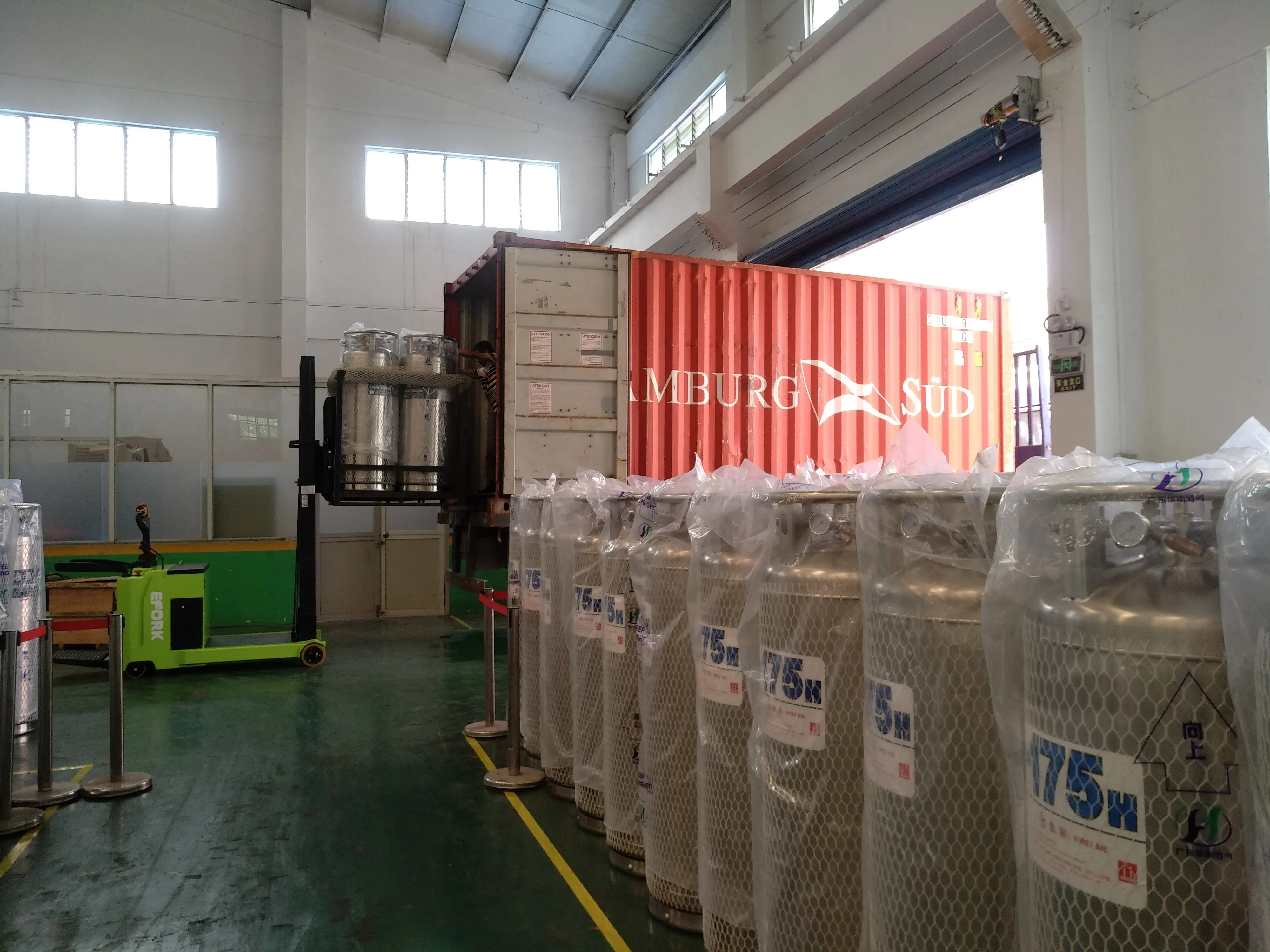

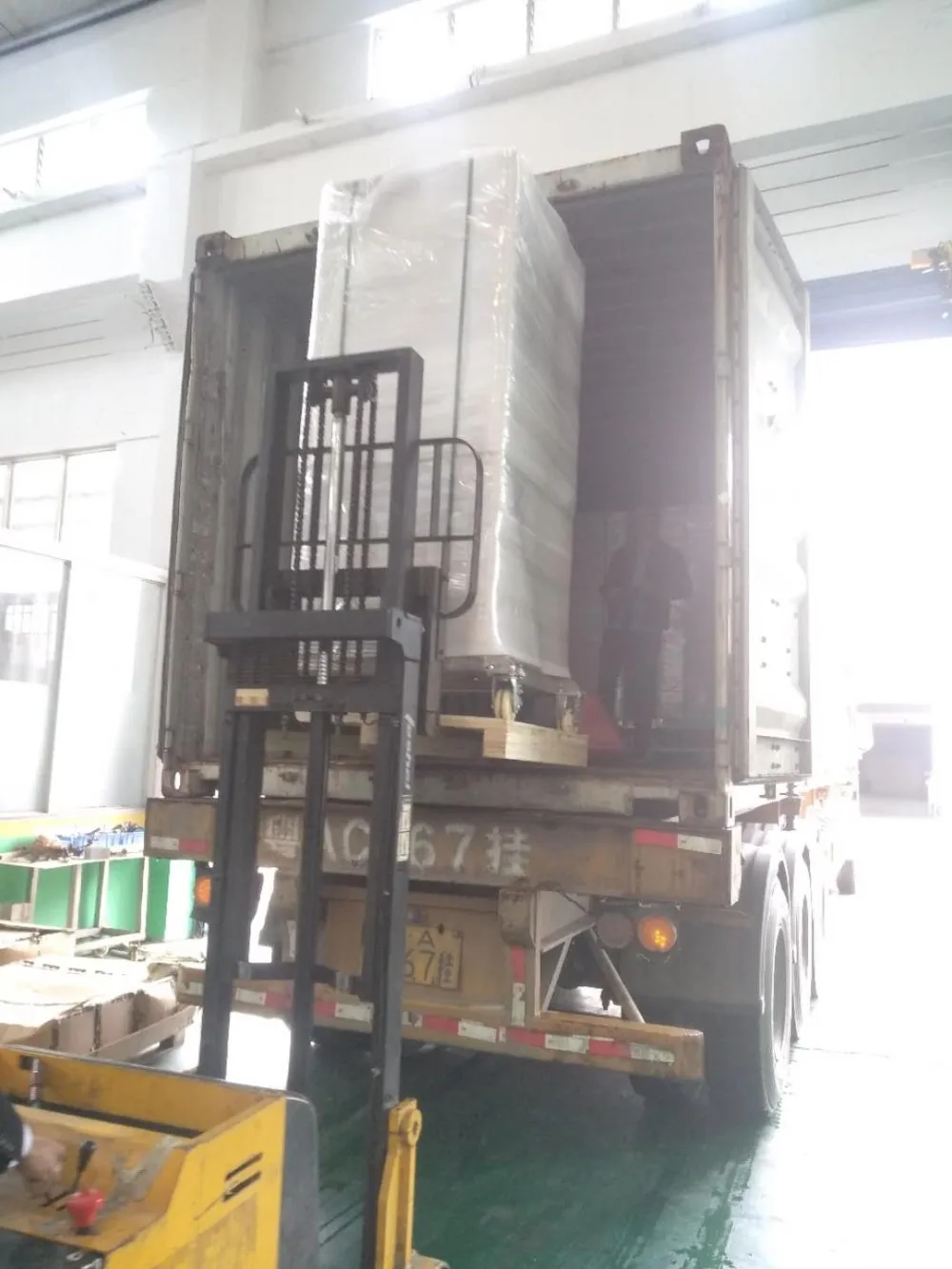

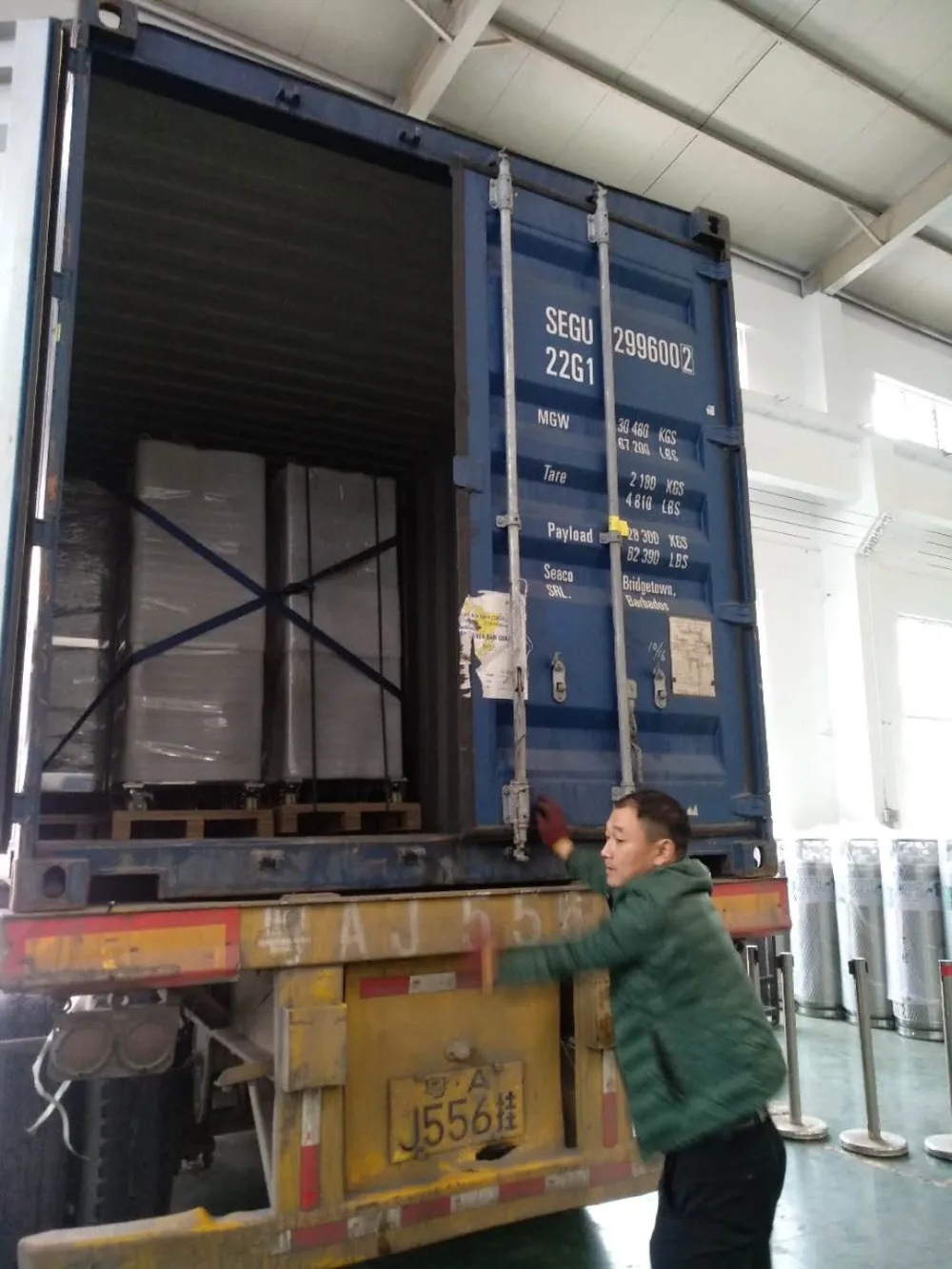

Packing & Delivery
