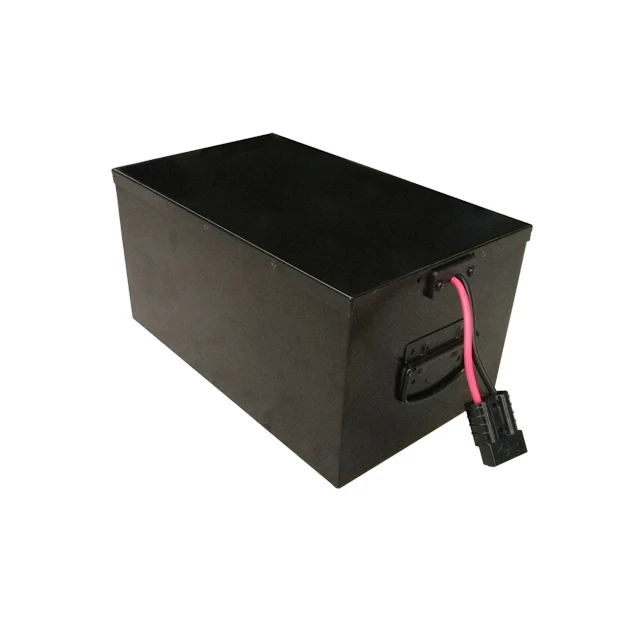

Prius 72v 57Ah 4.3kWh lithium battery module for scooter
- Category: >>>
- Supplier: Shenzhen Yihui Energy Technology Company Ltd.
Share on (62467238921):
Product Overview
Description
Product Introduction
Details

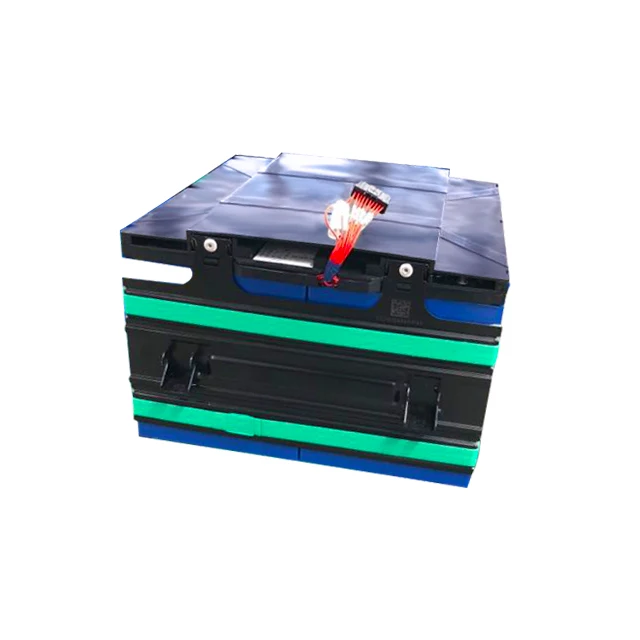

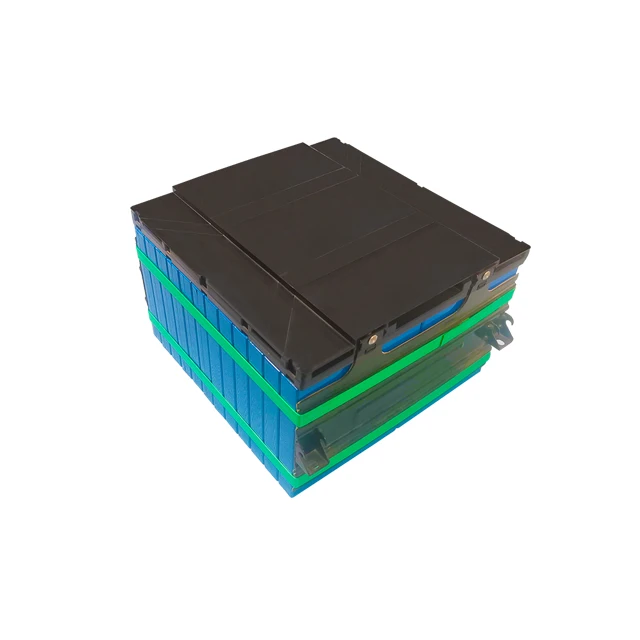

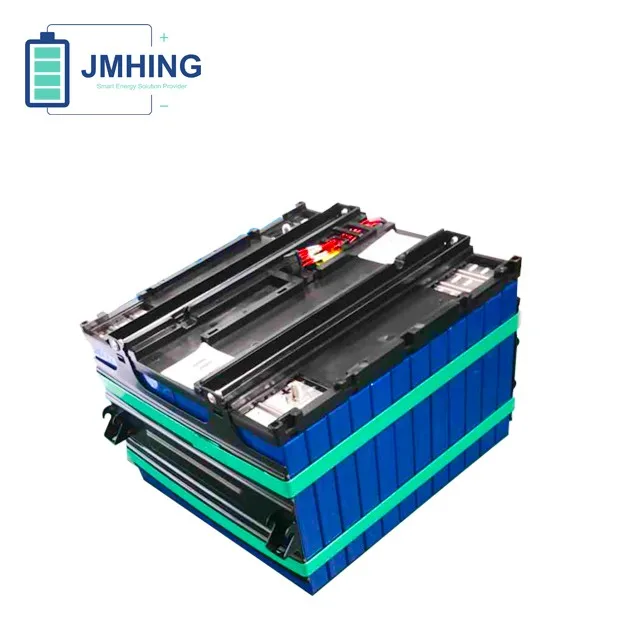

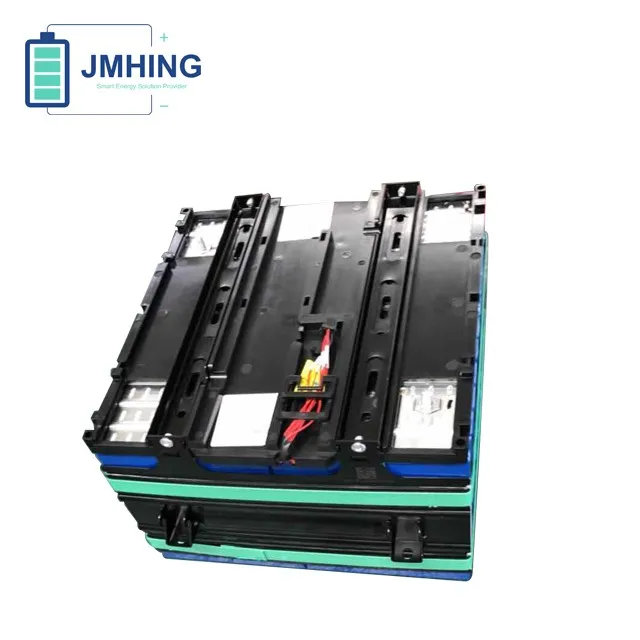

4.3kWh 76.8V 57Ah LiFePO4 module
Product Parameters
Item | Description |
Product Name | 4.3kWh 76.8V 57Ah LiFePO4 module |
Cell Connection | 24S |
Cell Number | 24 cells |
Cell Capacity | 57Ah |
Pack Capacity | 4.3kWh |
Nominal Voltage | 76.8V |
Voltage Range | 60~87.6V (Cell2.5V~3.65V) |
BMS cables | Teflon cables. Active equalization is available |
Weight | 30±1kg |
Maximum Discharging Current | 2C |
Maximum Charging Current | 1C |
Dynamic differential voltage between the cells | ≤50mv |
Self-consumption/month (25℃,SOC100%) | <5% |
SOC Range | 15%-100% |
Life-Span | 6000 cycles |
Working Temperature | Charging and Discharging:-20℃~+60℃ |
Storage Temperature | -20℃~+35℃ |
Working Humidity | 20%-90% |
Cuztomized Details

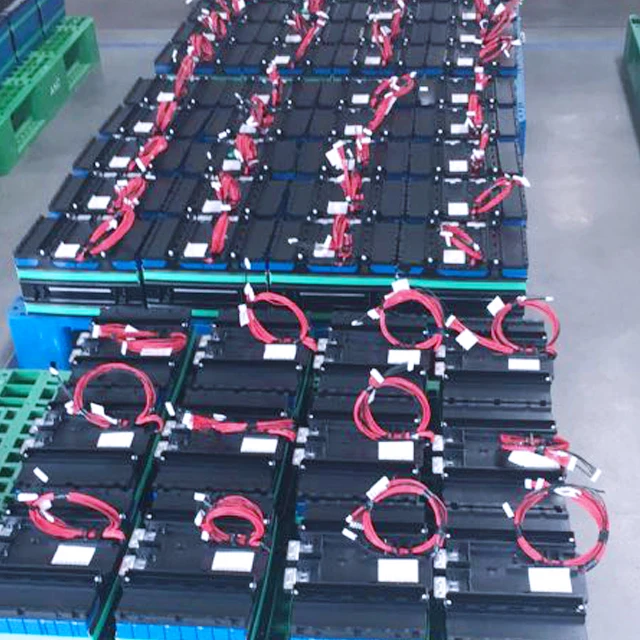

Customized Modules based on 8 cells, 16 cells and 24 cells. Please see customized voltage and capacity information in red below.
8 cells module solutions | 16 cells module solutions | 24 cells module solutions |
8 series connected 8S 55Ah ~ 25.6Vdc | 16 series connected 16S 55Ah ~ 51.2Vdc | 24 series connected 24S 55Ah ~ 76.8Vdc |
2 parallel 4 series connected 2P4S 110Ah ~ 12.8Vdc | 2 parallel 8 series connected 2P8S 110Ah ~ 25.6Vdc | 2 parallel 12 series connected 2P12S 110Ah ~ 38.4Vdc |
4 parallel 4 series connected 4P4S 220Ah ~ 12.8Vdc | 3 parallel 8 series connected 3P8S 165Ah ~ 25.6Vdc | |
4 parallel 6 series connected 4P6S 220Ah ~ 19.2Vdc | ||
6 parallel 4 series connected 6P4S 330Ah ~ 12.8Vdc |
Dimensions
