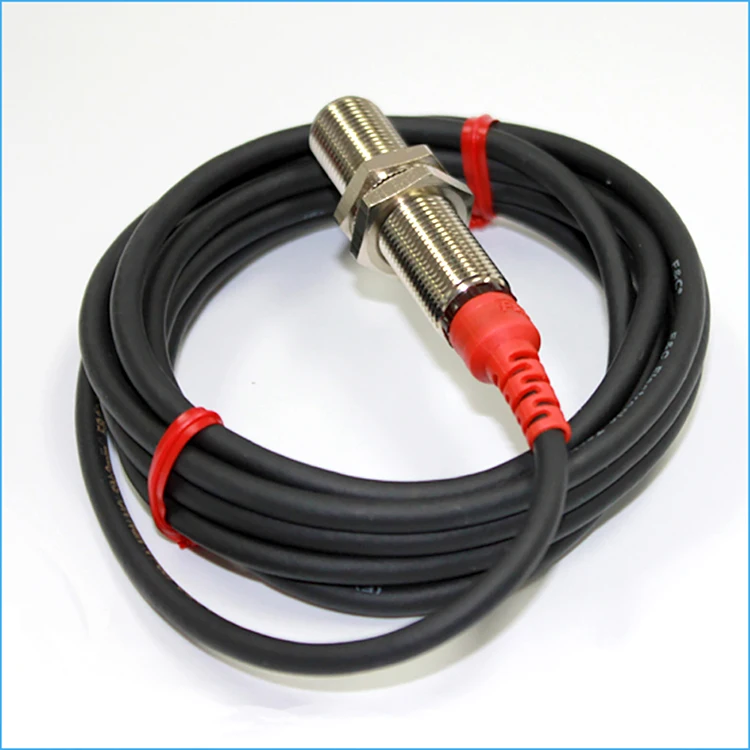

F&C F3C NPN or PNP metal detector positon sensor M12 inductive proximity switch
- Category: >>>
- Supplier: F&C Sensing Technology(Hunan) Co. Ltd.
Share on (62467435212):
Product Overview
Description
F&C F3C NPN or PNP metal detector positon sensor M12 inductive proximity switch
Why Choose F&C sensor?
(1) 23+ years manufacture and 10+ years OEM service sensor experience.
(2) 4000+ models Sensors
(3) Long service time, 8+ years
(4) 18 months years warranty time
(5)Fast delivery time. Most delivery within 1 days (Stocks)
(6) IP67 protection grade
(7) CE, RoHS certification
Product Description
Feature of Proximity sensor
*Diameter:8mm proximity sensor,
*DC 3-wires(12-24VDC+/-10%) ,customize 5VDC model
*PNP or NPN
*Detection distance:2mm,4mm(F3L series)
*Standard; Sensing Object: iron 8*8mm

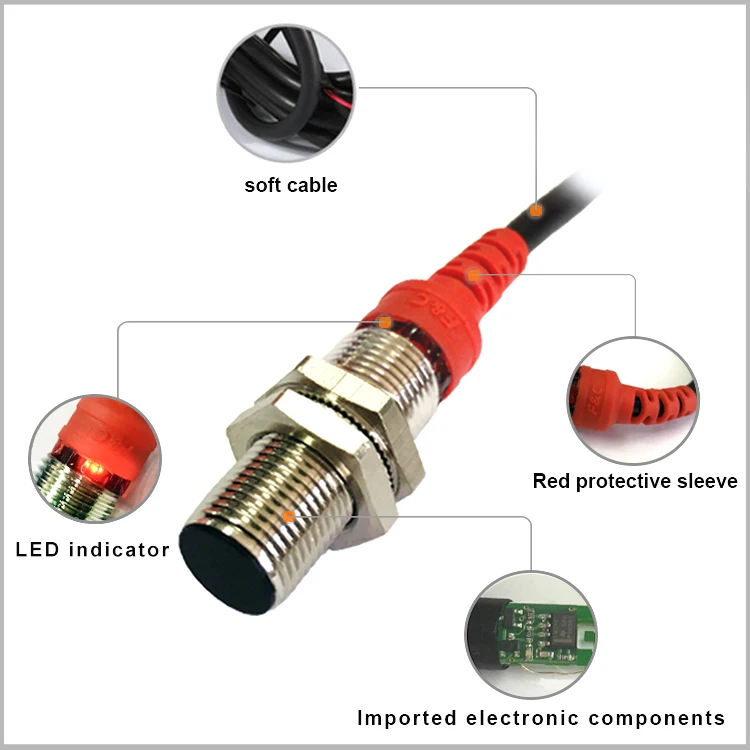

*With 360 degree view Red indicator.
*Circuit Protection: polarity reverse and Short-Circuit protection
*Protection Grade: IP67

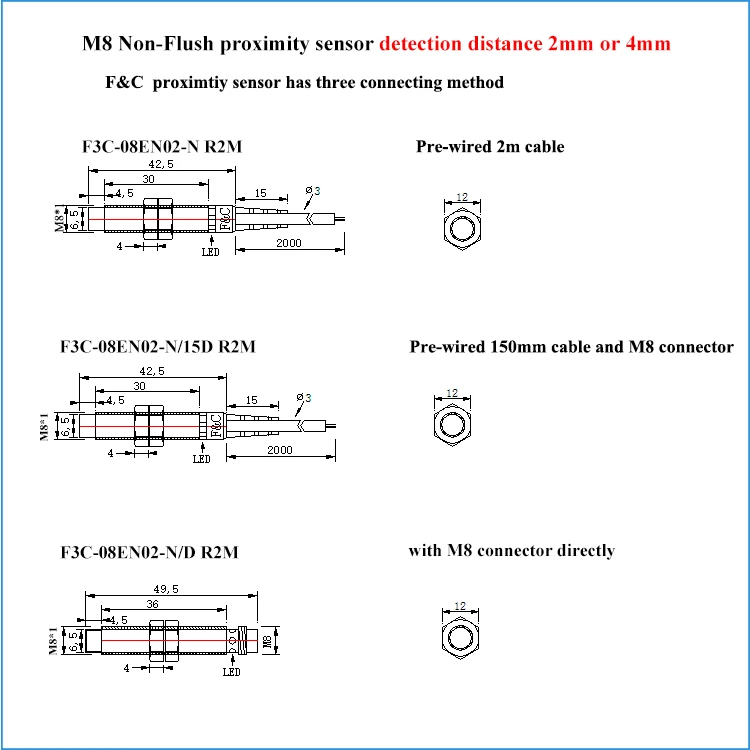

*Connection Method:Pre-wired 2m cable, pre-wired 150mm cable and M8 connector
*Diameter:8mm proximity sensor,
*DC 3-wires(12-24VDC+/-10%) ,customize 5VDC model
*PNP or NPN
*Detection distance:2mm,4mm(F3L series)
*Standard; Sensing Object: iron 8*8mm
*With 360 degree view Red indicator.
*Circuit Protection: polarity reverse and Short-Circuit protection
*Protection Grade: IP67
*Connection Method:Pre-wired 2m cable, pre-wired 150mm cable and M8 connector
| Product name | Automatic drilling machine M8 NPN PNP Inductive Proximity sensor proximity Switch | |||
| Type | Standard Head | |||
| Mounting | Non-Flush | |||
| Length | Standard Body | Standard Body | Short Body | Short Body |
| Distance | 2mm | 4mm | 2mm | 4mm |
| NPN NO | F3C-08KN02-N | F3L-08KN04-N | F3C-08EN02-N | F3L-08EN04-N |
| NPN NC | F3C-08KN02-N2 | F3L-08KN04-N2 | F3C-08EN02-N2 | F3L-08EN04-N2 |
| PNP NO | F3C-08KN02-P | F3L-08KN04-P | F3C-08EN02-P | F3L-08EN04-P |
| PNP NC | F3C-08KN02-P2 | F3L-08KN04-P2 | F3C-08EN02-P2 | F3L-08EN04-P2 |
| Sensing Object | 8×8×1(iron,metal) | 12×12×1(iron,metal) | 8×8×1(iron,metal) | 12×12×1(iron,metal) |
| Response Frequency | 1000HZ | |||
| Hysteresis | within 10% of sensing distance | |||
| Operating Voltage | 12~24V DC | |||
| Operating Temperature | -25~70℃ | |||
| Material | PBT and SUS304 | |||
| Connection | M8 Connector | |||
| Certificate | CE | |||
| Protection Class | IP67 | |||
| Circuit Protection | Polarity reverse protection and Short -Circuit Protection. | |||

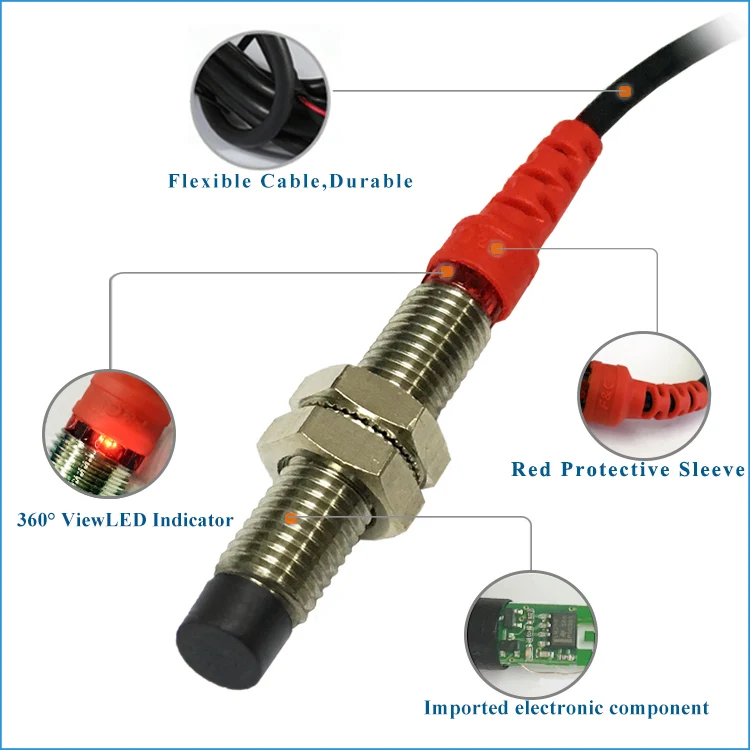

Details of Proximity sensor:
F3C Series proximity sensor

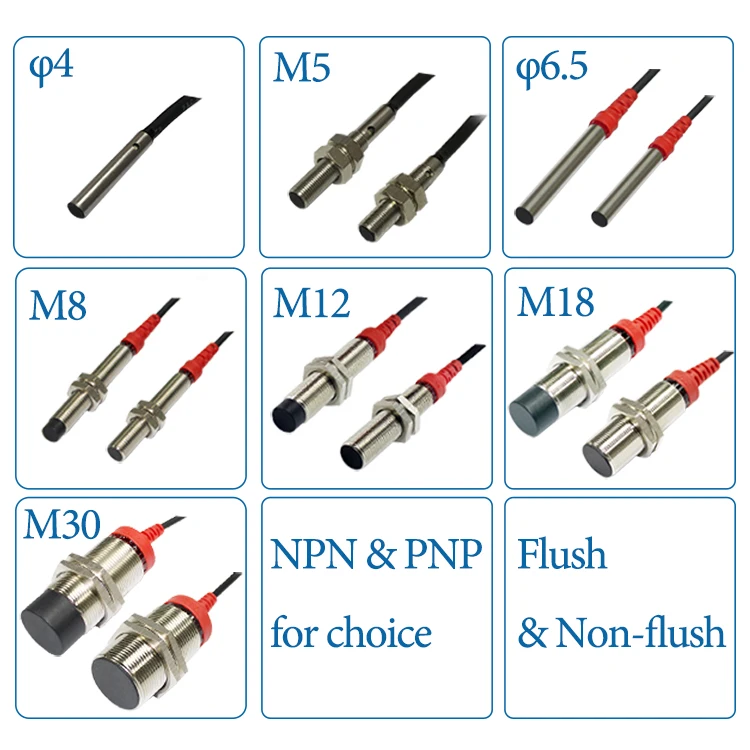

F&C Sensor products range:
(1)proximity sensor 1000+ models,
(2)Fiber amplifier and Optic Sensor 3000+ models,
(3)Photoelectric Sensor 500+ models
(4)Magnetic Switch 100+ models,
(5)Lable sensors 40+ models

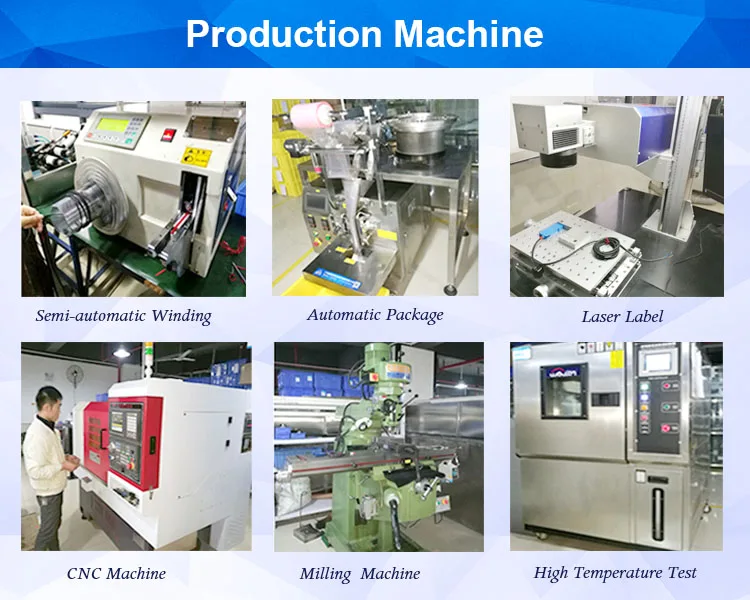

F&C sensor production Machine:
