multi fruit juice pressing sugarcane juice extracting machine
- Category: >>>
- Supplier: HENAN ONPHON MACHINERY CO. LTD
Share on (62467438102):
Product Overview
Description
Product Description

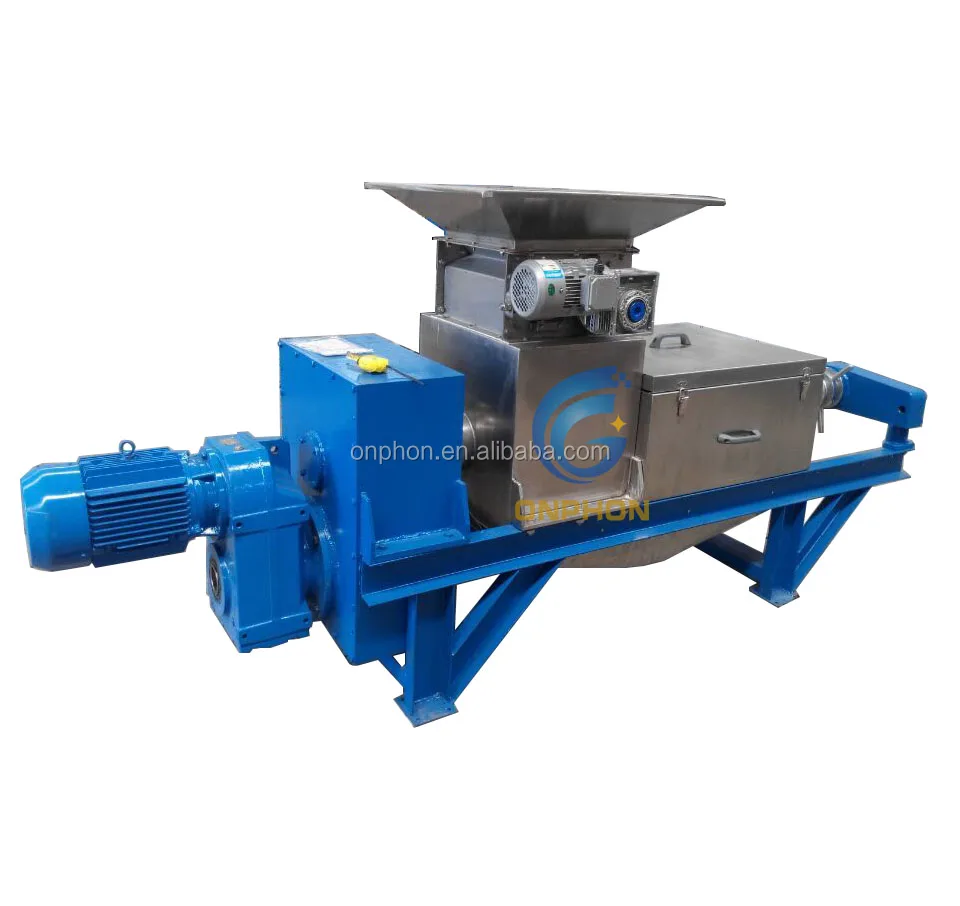

multi-fruit juice pressing sugarcane juice extracting machine
sugarcane juice extracting machine is continuous double-screw pressing process. This machine is used for solid-liquid separation operations that contain certain fibrous or viscous materials of the macro world. Such as fermented grape skin residue, ginger, carrot, grape, apple, strawberry, pear, orange, cherry, spinach, lemon, pineapple, Hippophae rhamnoides, sea-buckthorn rubber, Chinese herbal medicine Jujube, winter jujube, and other fruits and vegetables containing certain fibers. . The sieve holes are specially made according to the size of sea-buckthorn seeds
Working Thoery
conveying screw pushes the material entering the bin to the pressing screw, and the screw pitch of the pressing screw decreases and the shaft diameter increases, and the resistance of the screen wall and the cone makes the material contain The liquid (juice) is squeezed out. The squeezed liquid flows out from the sieve holes and is concentrated in the juice hopper. The squeezed fruit residue is discharged out of the machine between the end of the screen and the cone, and the cone A spring is installed in the part, and by adjusting the pretension force and position of the spring, the discharge resistance and the size of the slag outlet can be changed to adjust the wetness and dryness of the press.
Product Paramenters
Model | Motor Power | Voltage | Processing Capacity | RPM | Dimension |
FJ001 | 3KW+5.5KW | AC380V/3PH/50Hz | 1.5T/H | 12 | 2100*1100*1550mm |
FJ002 | 5.5KW+7.5KW | AC380V/3PH/50Hz | 3T/H | 20 | 3500*750*1500mm |
Details Images

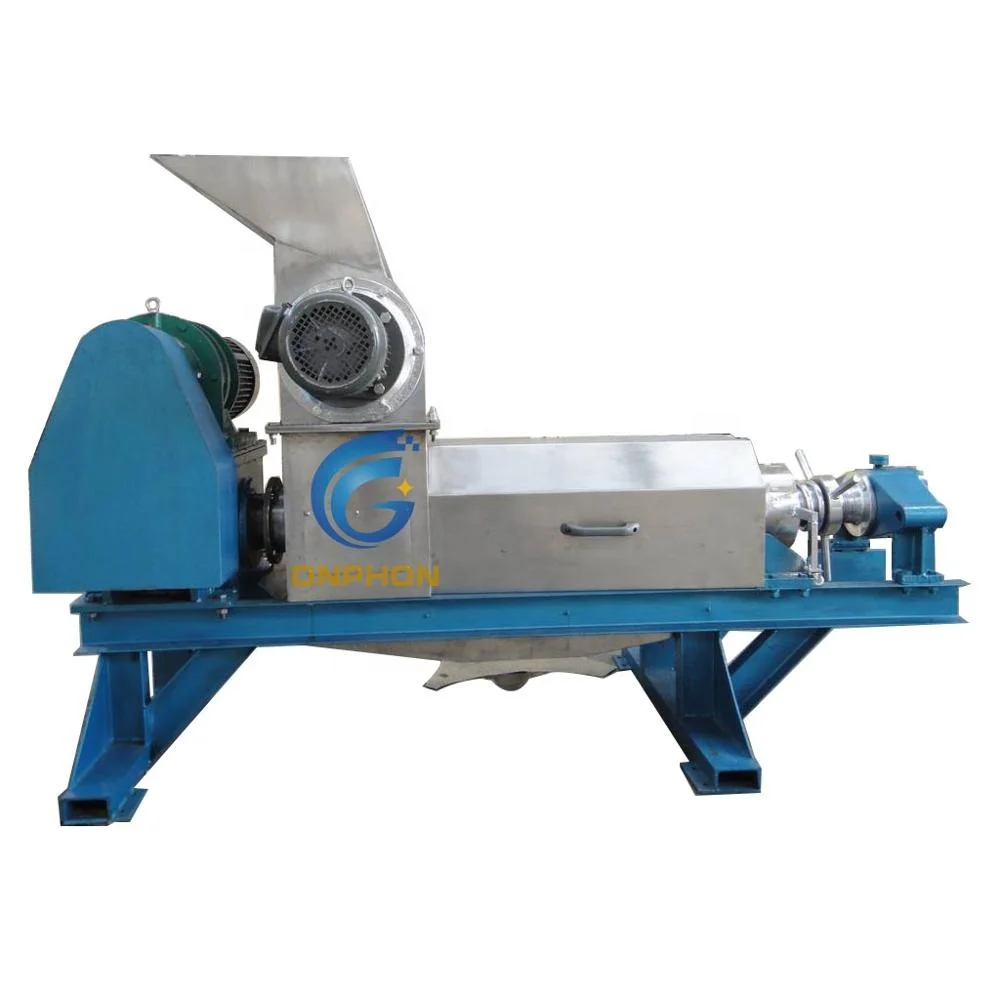

Crushing Motor and Pressing Motor
Fruit can be pressed into juice without crushing or core or seeds removing
Screen mesh
customize screen mesh size according to the fruit you press
Crushing blade
customize crushing blade accroding to different material
Product packaging
