Shenchen Flow Rate Peristaltic Metering Pump Dosing Pump
Shenchen Flow Rate Peristaltic Metering Pump Dosing Pump

Shenchen Flow Rate Peristaltic Metering Pump Dosing Pump

Share on (62467438226):


Price:$1,475.00 - $1,485.00

Quantity:


Product Overview

Description



Product Description




Technical Parameters

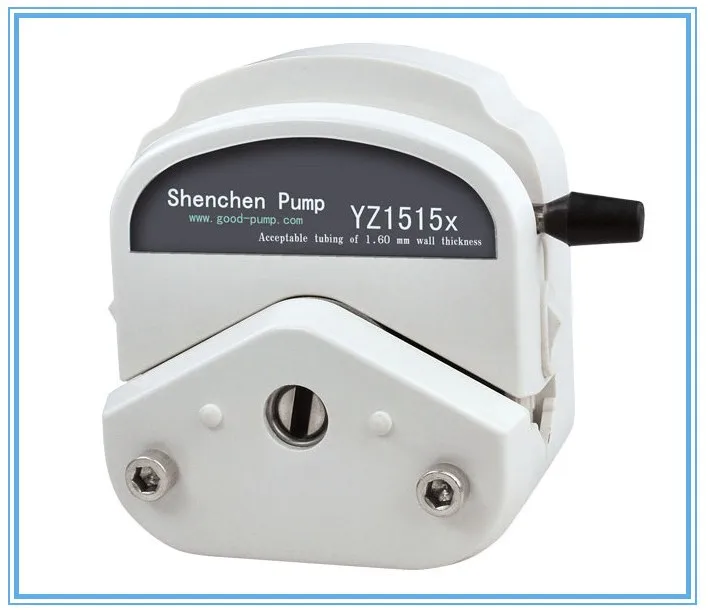

Pump Head
2*YZ1515x
Flow rate range
0.007-2280mL/min
Speed range
0.1-600rpm
Speed resolution
0.01rpm
Flow rate resolution
0.001μL
Flow rate accuracy
±0.5%
Back suction angle
0-360°
Output pressure
0.1Mpa ( 0.86-1.0mm wall thickness tubing), 0.1-0.27Mpa ( 1.6-2.4mm wall thickness tubing)
Motor type
Stepper motor
Circuit system
Shenchen-V-CIR
Operation system
Shenchen-V-EMB
Display
4.3 inch industrial grade true color LCD screen
Control method
Touch screen and membrane keypad
External control signal
0-5V, 0-10V, 4-20mA for option
Start/Stop, direction signal
Passive switch signal, such as: foot pedal;
Active switch signal: 5V, 12V, 24V for option
Communication
RS232 and RS485, support MODBUS protocol ( RTU) mode
Output interface
Output motor working status ( Open-Collector output)
Power supply
AC220V 10%, 50Hz/60Hz ( standard), AC110V 10%, 50Hz/60Hz ( optional)
Drive dimension
219.6x152x211.6mm (LxWxH)
Drive weight
4.4kg
Power consumption
<50W
Environment temperature
0-40℃
Relative humidity
<80%
IP rate
IP31


Pump Head and Flow Rate
Drive
Speed
Pump Head
Tubing Size
Flow Rate(mL/min)
LabV6
0.1-600rpm
2*YZ1515x
13#, 14#, 19#, 16#, 25#, 17#, 18#
0.007-2280


Optional Accessories


Peristaltic Pump LabV1
Flowrate:0.000166-570mL/min

Peristaltic Pump V3
Flowrate:0.000166-1330mL/min

Peristaltic Pump V6-12L
Flowrate:0.69-12000L/min


Peristaltic Pump LabV3
Flowrate:0.000166-1330mL/min

Peristaltic Pump V6
Flowrate:0.000166-2280mL/min

Peristaltic Pump V6-3L
Flowrate:0.211-3600mL/min


Customer Reviews




Packing & Delivery


Packing: 1 set/carton.

Delivery Time: within 3 days after payment.

Courier: DHL, TNT, UPS, Fedex, delivery door to door.

Power Plug: GB, European standard, American standard, British standard.





FAQ


Q: What is your application with the pump?
A: For continously transfering, we has the basic pump for you. For dispensing, we have the automatic filling pump.

Q: Can the pump dispense visous liquid?
A: Yes, our F6 series pump has the speed filling function, special for viscous liquid.

Q: Are you trading company or manufacturer?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 3-5 days; It is according to quantity.

Q: What is your term of payment?
A: Payment: T/T, western union, Paypal or credit card.

Q: How can I get the peristaltic pump if I place an order to you.
A: We usually ship by express including DHL, FedEx, and also ship by air freight.



Our Company


Baoding Shenchen Precision Pump Co., Ltd. was founded in 2006, which is a enterprise integrating design, R&D, manufacturing, marketing and service. We manufacture and supply different flow range of peristaltic pump.





Shenchen Team is a young and innovative team, with research engineer, application engineer, sales and service team.
