replace nylon mesh monofilament PE PP NMO 200 micron chemical industry drinking water felt liquid filter bag for water treatment
- Category: >>>
- Supplier: Guangzhou Jielv Environment Technology Co. Ltd.
Share on (62467440688):
Product Overview
Description
Product Description

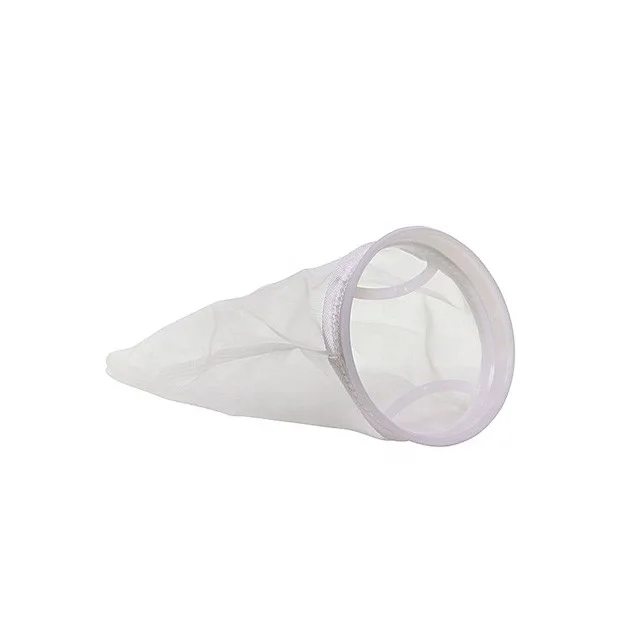

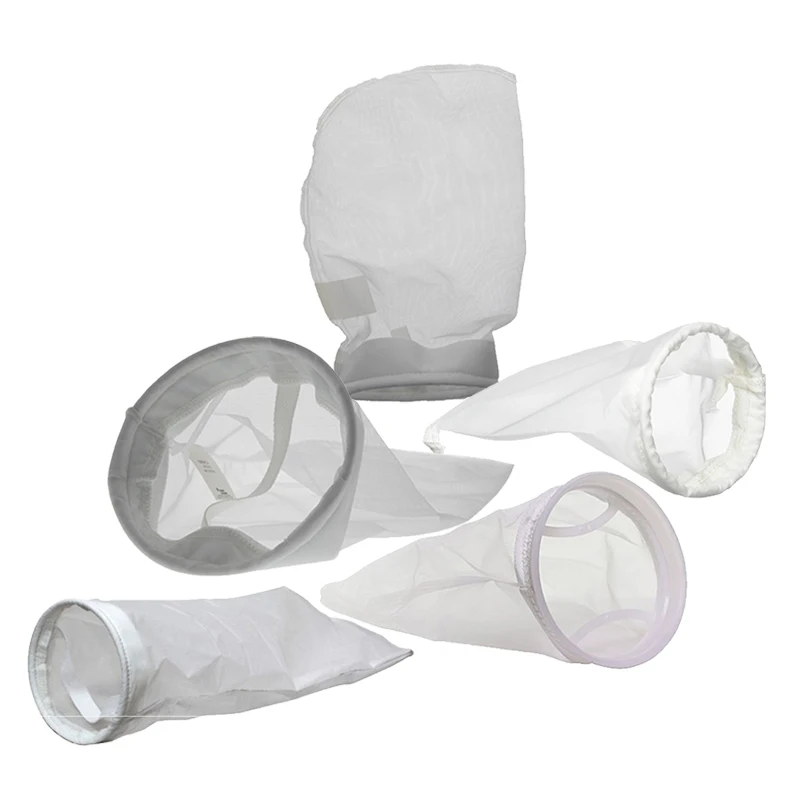

Nylon Mesh Liquid Filter Bag is sewn by high strength nylon braided net car, and it adopts unique edge wrapping technology to prevent the leak of the needle hole to the greatest extent.
The impurities in the filter bigger than its own mesh are directly trapped on the surface of the material, particles with diameters smaller than the number of meshes enter the downstream through the meshes, so the nylon monofilm filter bag realizes the surface filtration. In addition, the smooth surface is also easy to clean, can be used repeatedly.

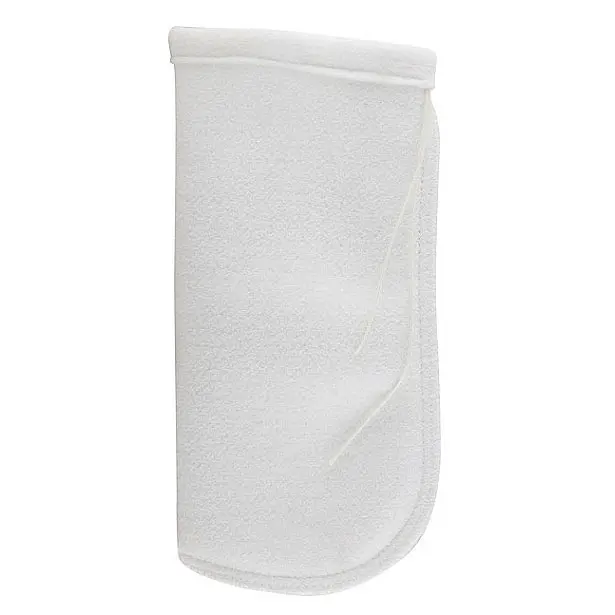

PP/PE Felt Liquid Filter Bag is designed to withstand higher solid loading, and is suitable for applications using vessel or open filtration systems. Industries that would need liquid filter bags consist of chemical, food, paper, petroleum, adhesives, paints and many others.
They are widely used in alumina, phosphate fertilizer industry, cement, smelting, chemical industry, chemical fiber and other continuous production of the environment, non-ferrous metals such as zinc oxide, cobalt oxide, alumina, potash, nickel cobalt ore, manganese ore and other mineral smelting, dye chemical industry, coal mining and other industries.
They are widely used in alumina, phosphate fertilizer industry, cement, smelting, chemical industry, chemical fiber and other continuous production of the environment, non-ferrous metals such as zinc oxide, cobalt oxide, alumina, potash, nickel cobalt ore, manganese ore and other mineral smelting, dye chemical industry, coal mining and other industries.
All the materials we use contain no toxic elements, and they are recyclable and environment-friendly. The needle felt is durable, can be used for a long time. And it can be provided in different specifications.
Key Benefits:
* Micron ratings from 1 to 1500.
* All industry standard and custom sizes available.
* High flow/low pressure drop media.
* Surface-retention filtration.
* Wide chemical compatibility.
* Sewn construction.
* Handles standard on all bags.
* Choice of steel ring or plastic flange.
* Economical removal of non-deformable contaminants.
* Non-fiber releasing.
* Good removal effiencies.
* Temperature ratings to 350°F (some felt liquid filter bag may reach higher).
* Polyester and nylon materials reach food grade.
* Silicone-free construction.
* Micron ratings from 1 to 1500.
* All industry standard and custom sizes available.
* High flow/low pressure drop media.
* Surface-retention filtration.
* Wide chemical compatibility.
* Sewn construction.
* Handles standard on all bags.
* Choice of steel ring or plastic flange.
* Economical removal of non-deformable contaminants.
* Non-fiber releasing.
* Good removal effiencies.
* Temperature ratings to 350°F (some felt liquid filter bag may reach higher).
* Polyester and nylon materials reach food grade.
* Silicone-free construction.
Bag Materials:
Nylon Mesh filter bag media is woven from threads made of smaller fibers. Bags made from this material are low cost and disposable. Monofilament Mesh is woven from single-fiber threads. The openings are square and uniform. Bags made from this material have excellent strength.

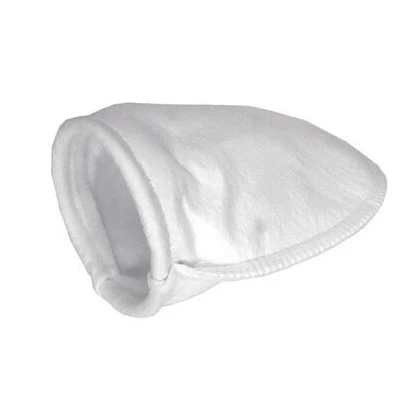

PP/PE felt filter bag is using 100% synthetic fibers in polypropylene, polyester, Nomix and Taflon. The proper combination of fiber diameters, weights and thicknesses result in an economical depth filter media. To reduce fiber migration, Polypropylene bags are treated with a glazed finish, while Polyester and Nomix bags are singed.
Bag Styles:

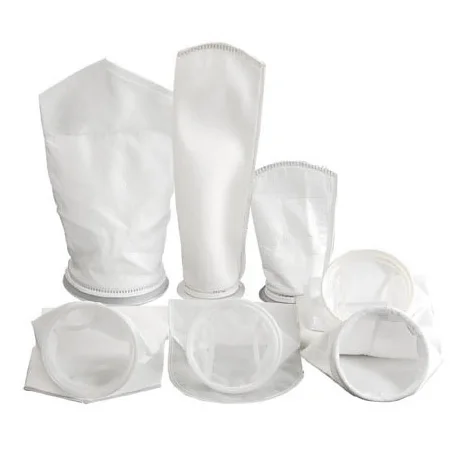

① Steel-ring bags (left) have a galvanized steel ring (stainless steel optional) sewn into the top of the bag. They are supplied with sewn seams standard.

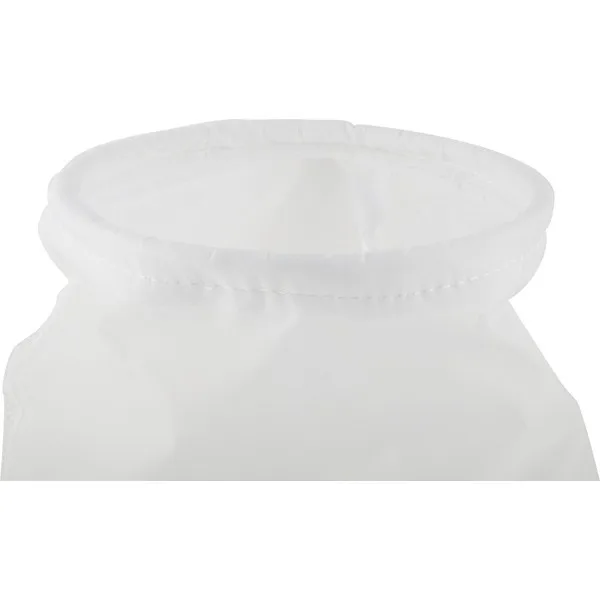

② Plastic flange bags (right) have a specially-designed flange sewn to the top of the bag. They are supplied with sewn seams standard (welded collars available upon request).
① Steel-ring bags (left) have a galvanized steel ring (stainless steel optional) sewn into the top of the bag. They are supplied with sewn seams standard.
② Plastic flange bags (right) have a specially-designed flange sewn to the top of the bag. They are supplied with sewn seams standard (welded collars available upon request).
Please feel free to contact us if you have any questions!
Product Paramenters
Item | Max.Flow(m³/h) | Filter Area(m²) | Volume(L) | Diameter(inch) | length(inch) | mm |
#1 | 20 | 0.25 | 8 | 7″ | 17″ | 180X450 |
#2 | 40 | 0.5 | 17 | 7″ | 32″ | 180X810 |
#3 | 6 | 0.09 | 1.3 | 4″ | 9″ | 105x230 |
#4 | 12 | 0.16 | 2.5 | 4″ | 15″ | 105X380 |
#5 | 18 | 0.22 | 6″ | 20" | 155x500 |
Material | PE, PP, NMO |
Bag top ring | Plastic ring , Stainless steel ring |
Filtration micron | 0.22, 1, 5, 10, 25, 50, 100, 200 ,300µm |
Airtight method | Hot Melt, reverse sewing |
Custom Made | Special requirement of diameter and collar extension can be customized |
About Filter Media | As part of any filter system the correctly sized and best quality consumable filter media are key to an efficient, smooth running process. We can accommodate your requirements when it comes to the supply of all types of filter media; filter bags and filter cartridges, for wet and dry applications. Filter bags and cartridges come in a variety of media types from needle felts to mesh and with micron ratings to suit. In addition to the more common filter media, we can also provide spray booth filter media, of the concertina-type or synthetic foam, and powder booth filter cartridges. |
Production Process
Packing & Delivery
Certifications
FAQ
Q: Why choose JIELV?
A: Guangzhou Jielv Environment Technology Co., Ltd. is famous for high-tech filtration, separation and purification, committed to provide the highest quality filtration products to meet worldwide customers various needs with excellent service.
On the basis of the powerful technical force, standard testing equipment, strict quality-controlled systems and the excellent after-sales services, we won the trust and good remarks of a numbers of customers because of the high quality and reasonable price.
On the basis of the powerful technical force, standard testing equipment, strict quality-controlled systems and the excellent after-sales services, we won the trust and good remarks of a numbers of customers because of the high quality and reasonable price.
Q: Are you trading company or manufacturer?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: Do you support OEM made?
A: OEM is warmly welcomed, we can arrange your own color or label,print your OEM package,and make your own shape according to your drawing.
Q: How's the after-sale service?
A: We’ll take photos for your check before loading container and confirm all of documents within 48 hours after shipment.For any other supplier order,you just ask them to deliver us for combine container,we’ll do this favor to arrange everything very well.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us!
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: Do you support OEM made?
A: OEM is warmly welcomed, we can arrange your own color or label,print your OEM package,and make your own shape according to your drawing.
Q: How's the after-sale service?
A: We’ll take photos for your check before loading container and confirm all of documents within 48 hours after shipment.For any other supplier order,you just ask them to deliver us for combine container,we’ll do this favor to arrange everything very well.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us!
