Power supply 220 240v transformer for smart glass, Smart film remote control

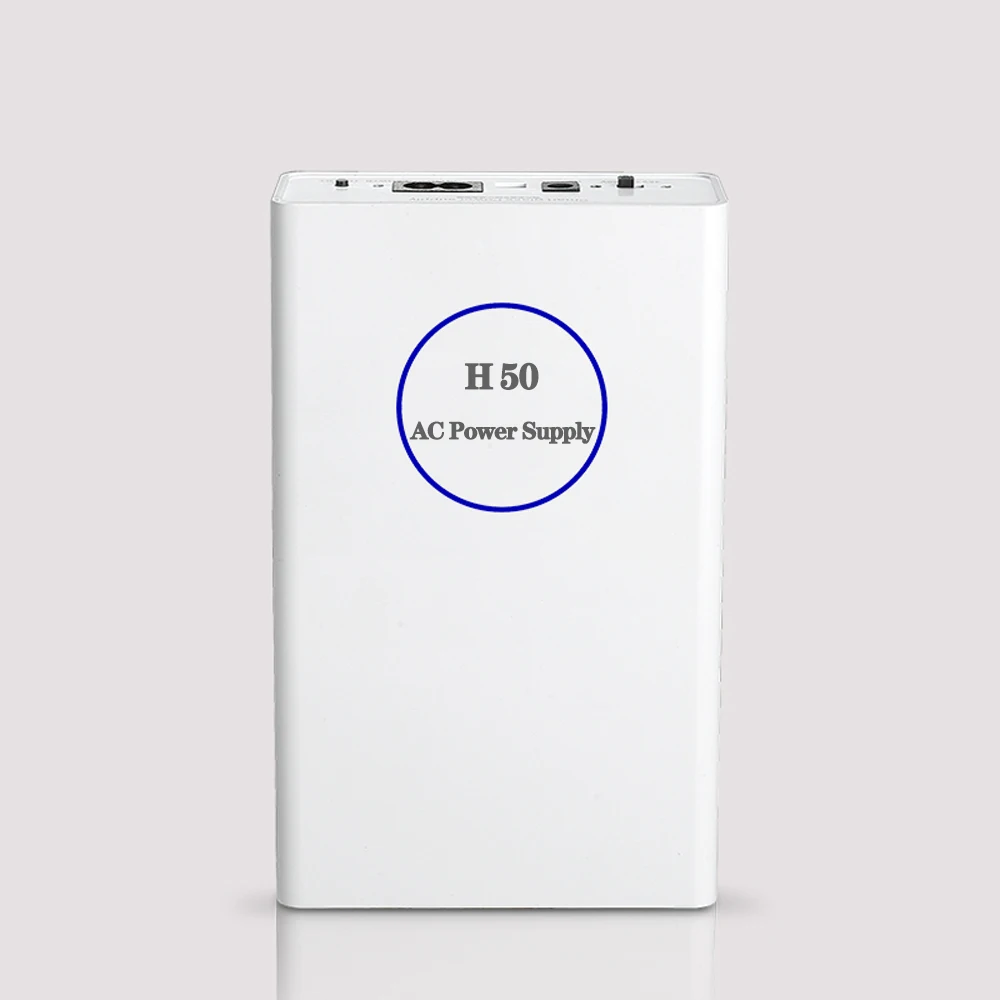

H Series Power Supply

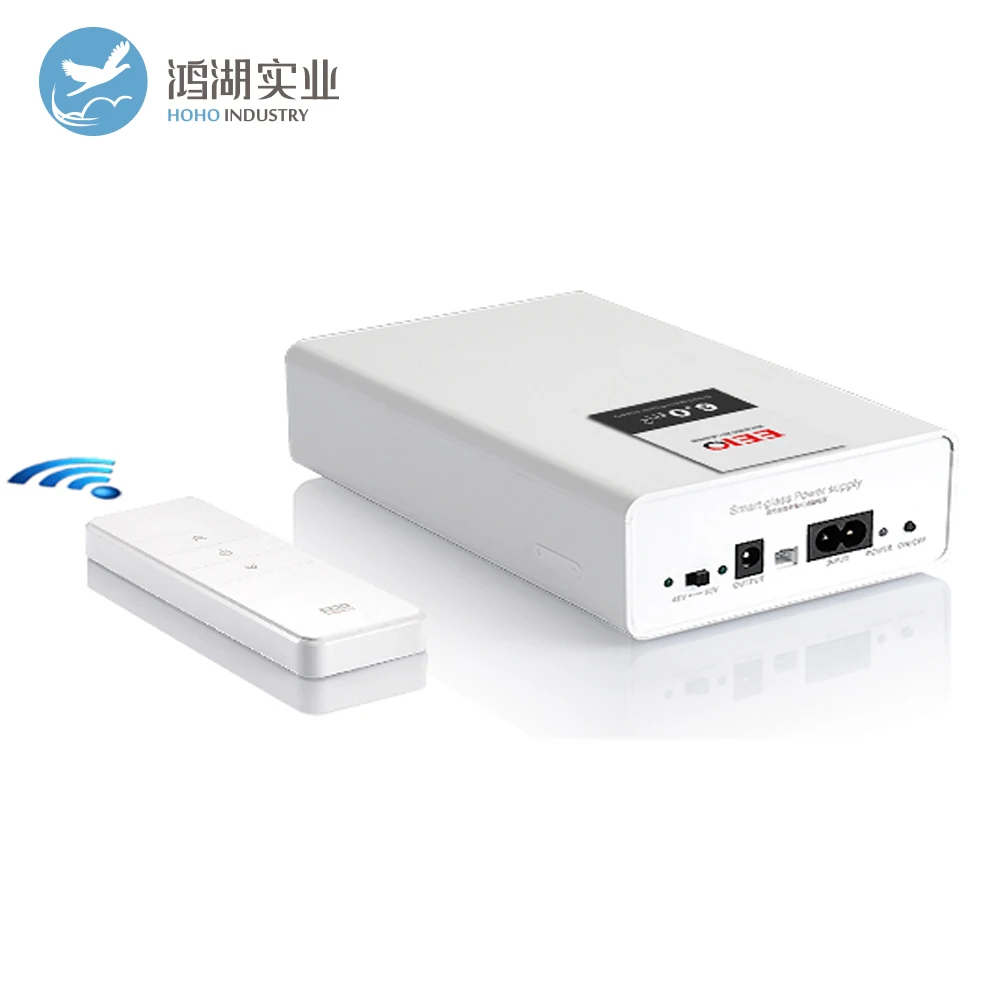

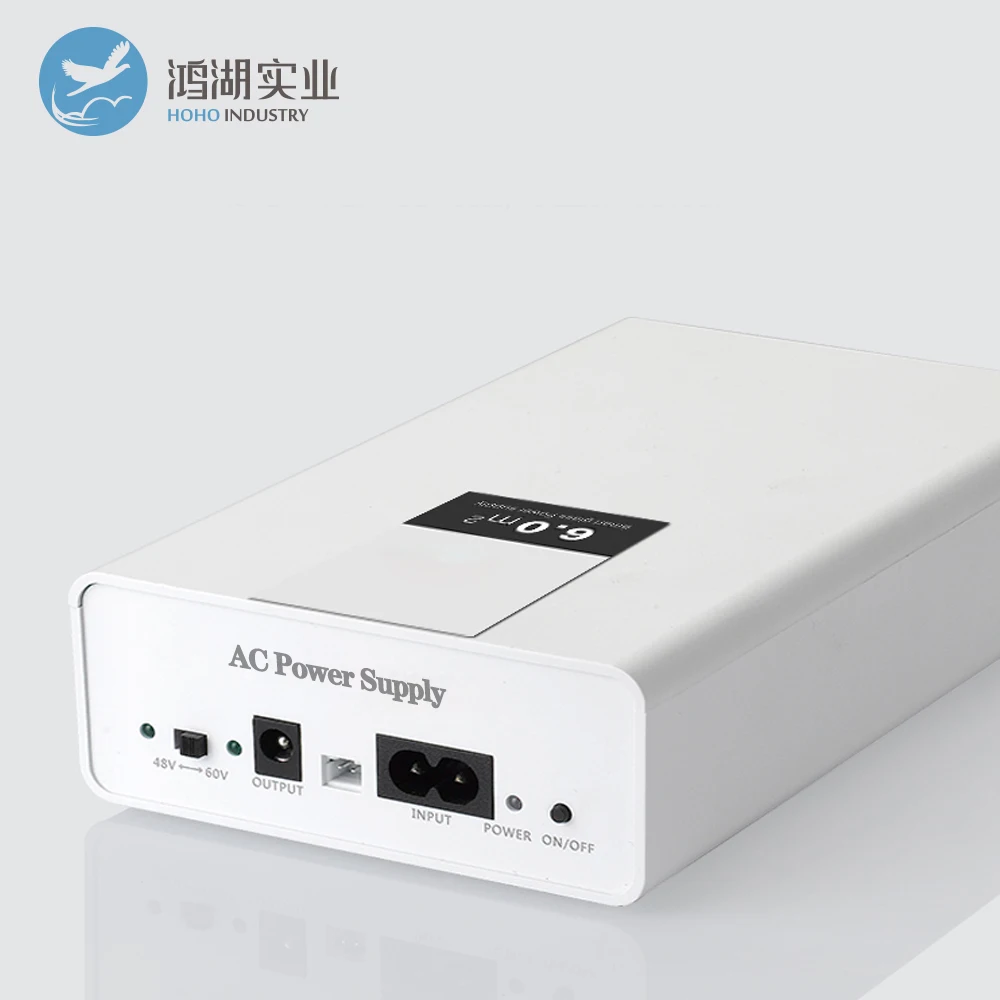

H Series Smart Film transformer can realize the film from clear to opaque by Switch control, wireless remote control, reliable switch output, long switch life, with over-voltage protection, overload protection, overcurrent protection, can be used in high different field. H Series transformer is small size, light weight, easy installation, greatly improve the intelligent level of smart glass controller.

Transformer specification parameters

Power: 50W,100W

Input:220-240VAC or 110VAC

Output: 48V/68V

Frequency:45-70Hz

Switch voltage:9V

Output Current:0.8A,1.6A

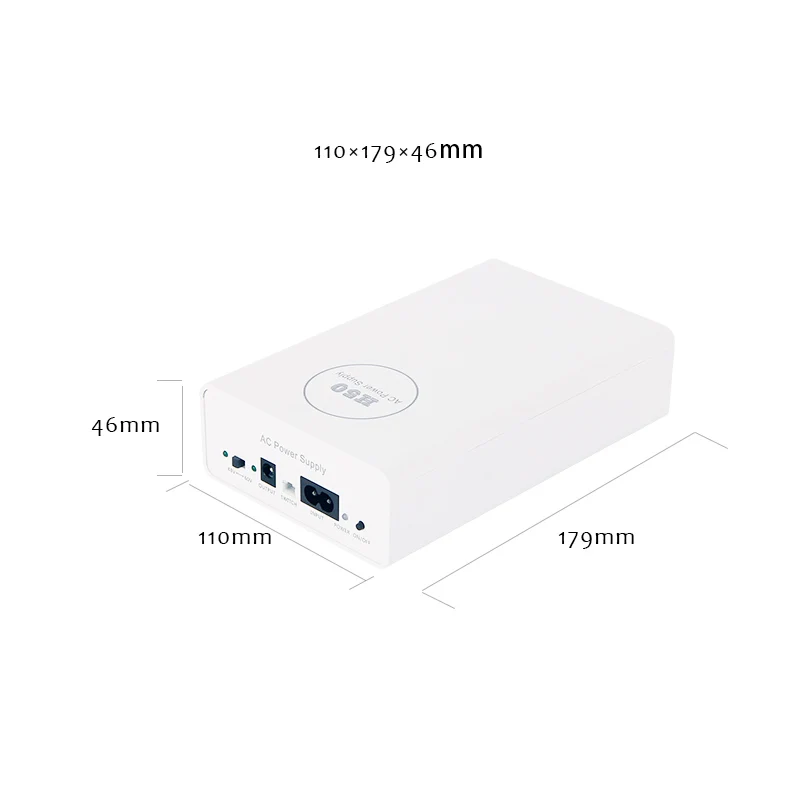

Size: 50W   180*108*45mm 1.7kg

    100W  180*108*45mm 1.9kg

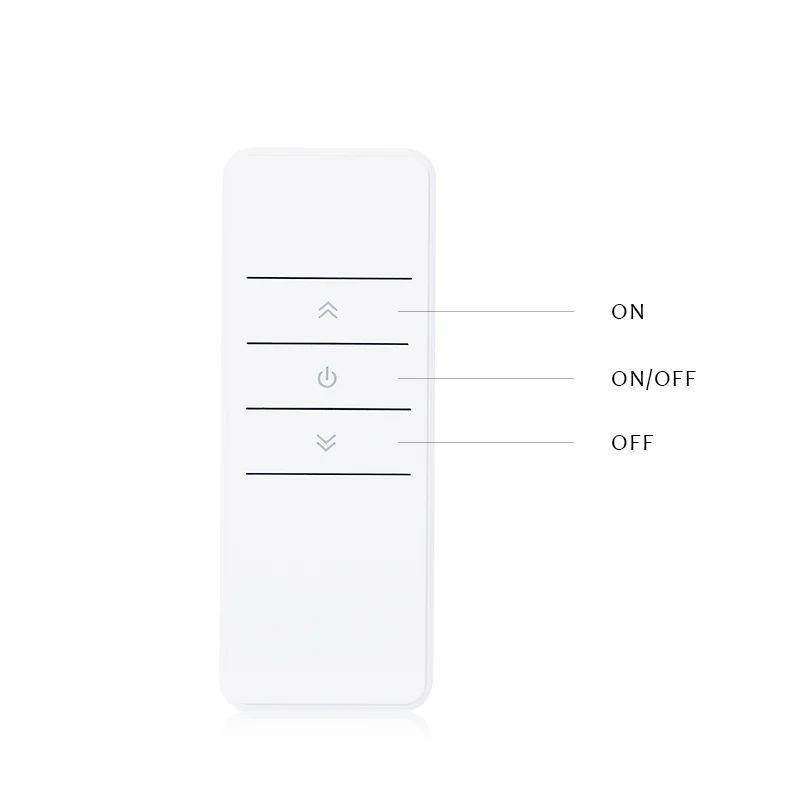

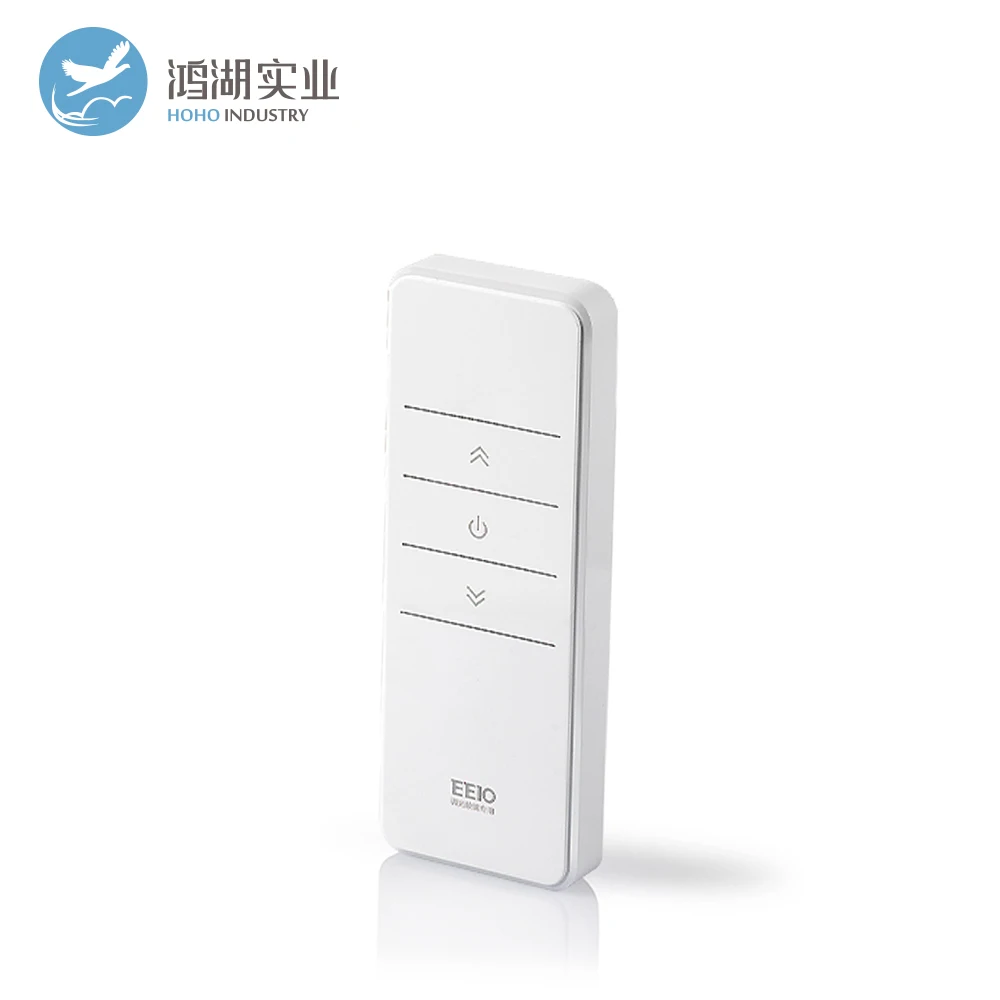

Remote controller specification parameters

Battery: 1 pcs 23A/12v battery

Function: ON/OFF(No dimmer)

Standby power consumption: ≤ 0.04mW

Remote control distance: 25 meters or less

Spectrum: 433.92 MHz

Size: : 120 x46x14mm

Conditions of Use

Working temperature: -20 ℃ - 60 ℃

Relative Humidity: 10% -93% (non-condensing)

Package Include

1pcs transformer

1pcs Remote controller

1pcs Input cable

1pcs Output cable

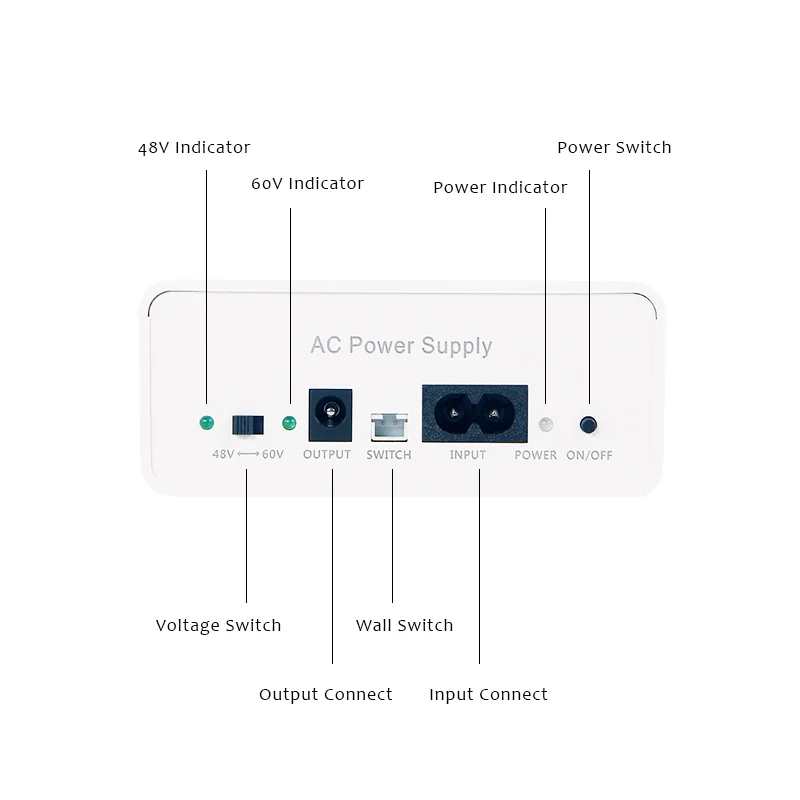

1pcs Wall Switch cable

How to pair with remote control

•   Confirm that the wires connected correctly at both ends.

•   Make sure your battery isn't low and replace if needed.

•       Close the transformer

•       Long press Upper and middlebutton together and Open Transoformer

•       Release the buttons immediately once the smart film become transparent

•       It was paired success now

Precautions:

 1. The installation position of the controller should not be water and away from the heat source.

 2. Prohibit the use of more than the specified input voltage, rated output power.

 3. All wiring operations must be cut off power

 4.   Before connecting the smart film and controller, the output voltage must be confirmed at no load.

 5.   All terminals must be strictly in accordance with the wiring diagram wiring, otherwise it will cause serious damage to the controller and smart film.

6.    Please check the battery power of the remote control when the remote control is not stable or malfunction, if the battery power is insufficient, then to replace the battery, if the battery power is sufficient, it may be caused by electromagnetic interference nearby, please check the source of interference.

Warranty

The Seller guarantees that the product will meet the technical specs . In the case of product failing to perform against the spec, the Seller will Share the related expenses . In addition, the Seller provides Two-year after-sales. This product warranty extends to the Buyer and its final customer of the products covered in this contract. The product warranty starts from the date of arrival at the destination, and ends at the end of the 24th month from the start date.

In case that the product requires warranty service or maintenance, the following protocols will be followed:

1.  For simple repairs that can be handled by the final customer with replacement parts alone, the Seller will send necessary replacement parts to the final customer.

2.  If the problem is more complicated and the customer can find a local repair person to take care of  it at reasonable cost, the Seller is willing to share for the parts and labor, provided that the customer can

a) establish the need of services via third party evaluation and certification;

b) obtain prior approval of cost from the Seller before commencing the service.

3.  In case that the repair needs cannot be handled locally, the product can be send to the seller for maintenance.

The foregoing warranty does not apply to the damages caused by reasons other than product quality, including but not limited to the following:

1.  The product is incorrectly or improperly repaired by the customer;

2.  Unauthorized modification or misuse;

3.  Operate the product outside the designated environment or install and repair the product at an improper locale.

4.  The damage caused by the circuit self-installed by the customer;

5.  The product model or machine body serial number is altered, deleted or illegible;

6.  The damages are caused by accidents, including but not limiting to lightening, water penetration and fire disaster, etc.
