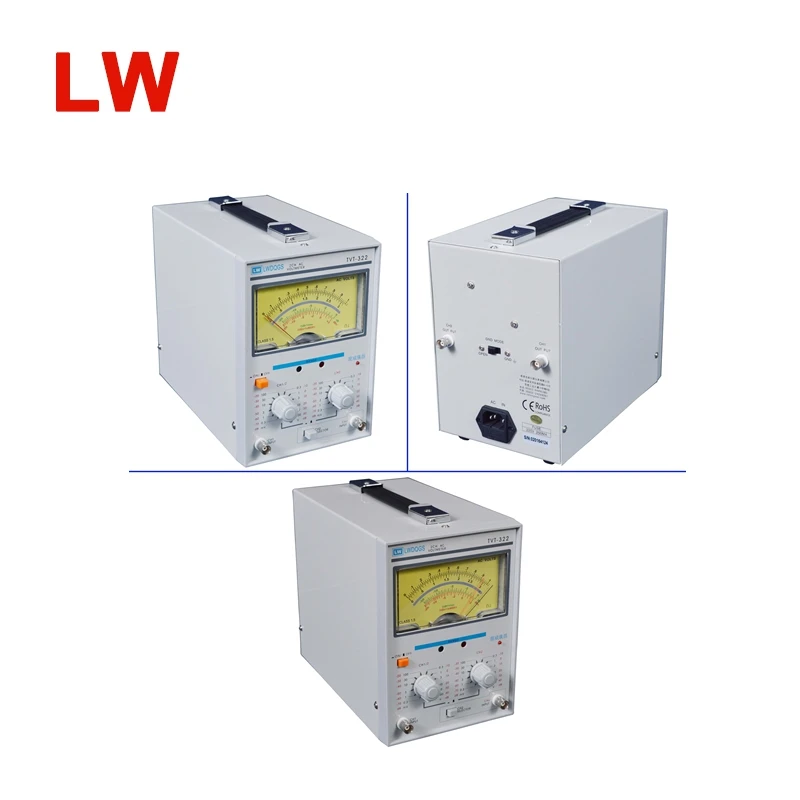

TVT322 Digital dual channel 110v ac millivoltmeter

110v Ac millivoltmeter

300uV --100V analog voltmeter

Features:
1. Complete technologies of Japanese electrical equipment and assembly with imported components ensure minimum accuracy deviation.
2. Dual needle, solely and tracing measurement.
3. Frequency: 5Hz--1MHz.
4. AC Voltage: 300uV--100V, Max. (DC+AC300V).
5. dB measurement:-70dB--+40dB.
6. 3600 revolving switch
7. 10Mohm input impedance.

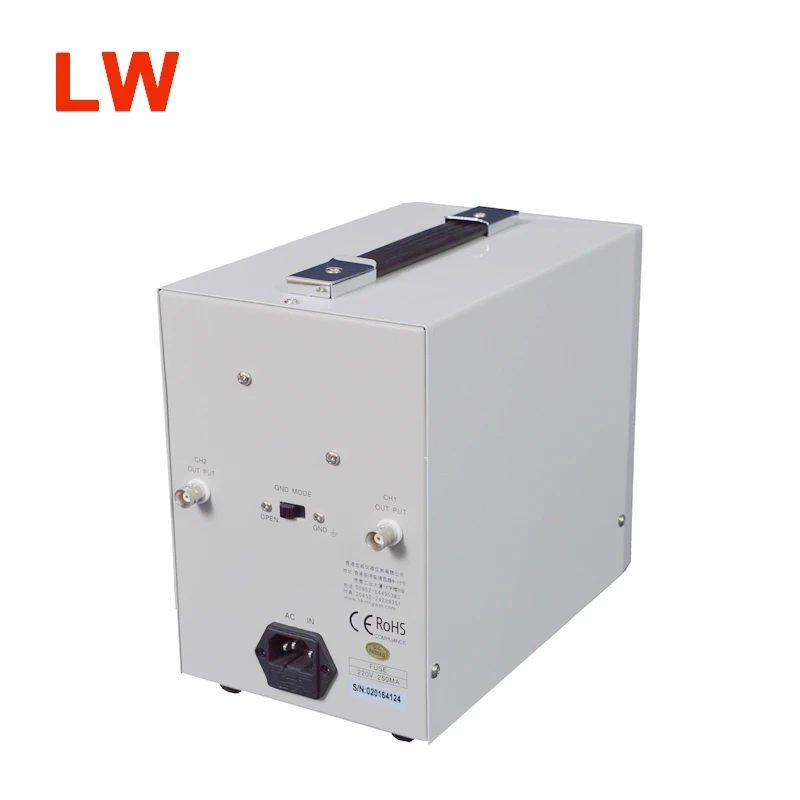

8. Internal grounding
9. Observation of internal output.

Specifications:

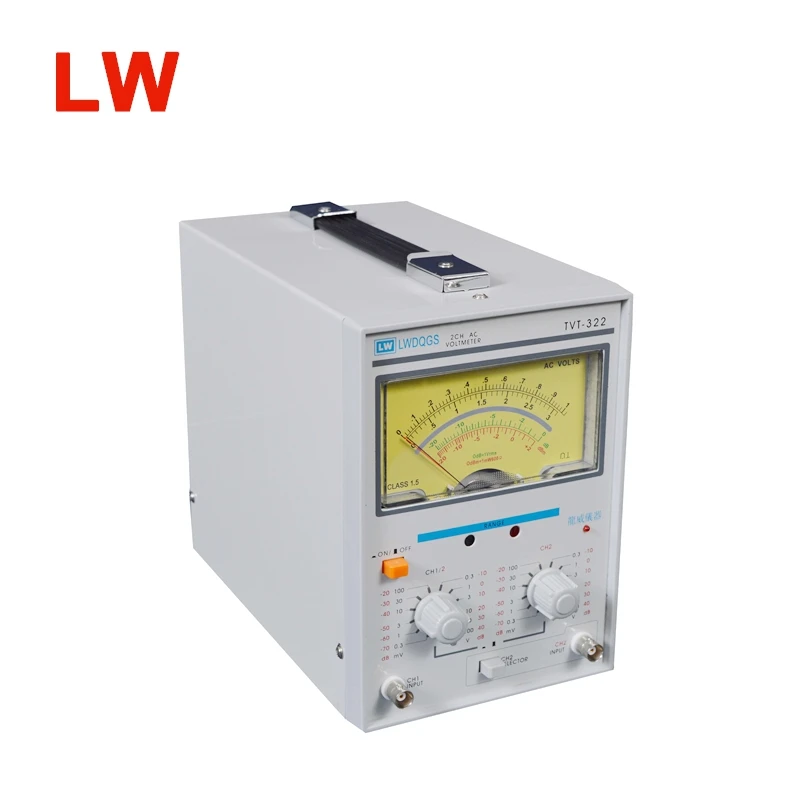

 TVT-322 dual channel Millivoltmeter
Measuring range\tVoltage:300µV-100V in 12 steps
dB:-70dB to +40dB
dBm:-80 to +52dBm (0dB=1Vrms, 0dBm=0.755V)
Measuring mode\ttraceable
Error\tWithin 3% at 1KHz, full scale
Frequency response\t5Hz~1MHz:±10%
10Hz~500KHz::±5%
20Hz~200KHz::±3%
30Hz~100KHz::±2%
Readout at 1KHz as reference
Input impedance: 10Mohm:±5%, 45pF
Max input voltage: 500V(DC+AC peak) (within in 3V-100V)
300V(DC+AC peak)( within 300µV-1V)
Stability:  ±5% of full scale, at 10% variety of line voltage
Survival voltage :Less than 200µV at 1mV range and short-circuit of input
Cross-talk\tIndependent less than 80dB connecting 600ohm load
Consistent:less than 50dB connecting 600ohm load
Gain\t60dB
Output voltage :0.1Vms±20% ai full scale without load
Output resistance :600ohm±20% at 1KHz
Distortion :Less than 1% at full scale
Signal to noise ratio: More than 30dB at 0.3mV range
Frequency response :5Hz~500KHz: within ±3%
Ambient :10℃~40℃ 85% RH
Power supply: 220V/110V±10% 50Hz/60Hz
Dimension: 239*140*200mm
Weight: About 3Kg

           a.c. millivoltmeter
