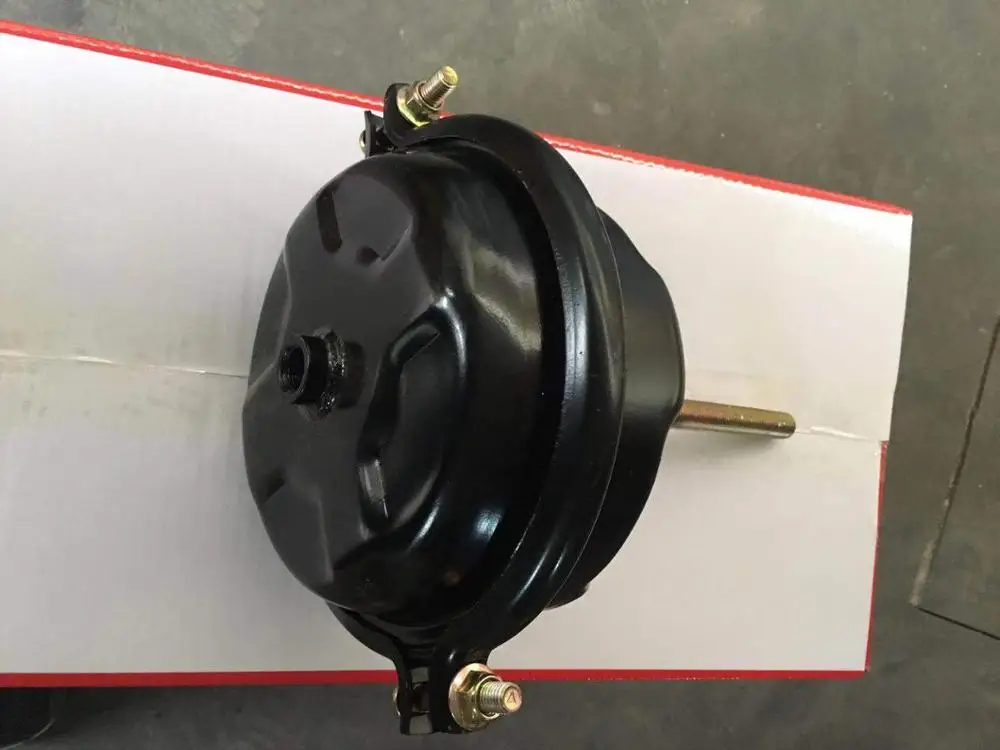

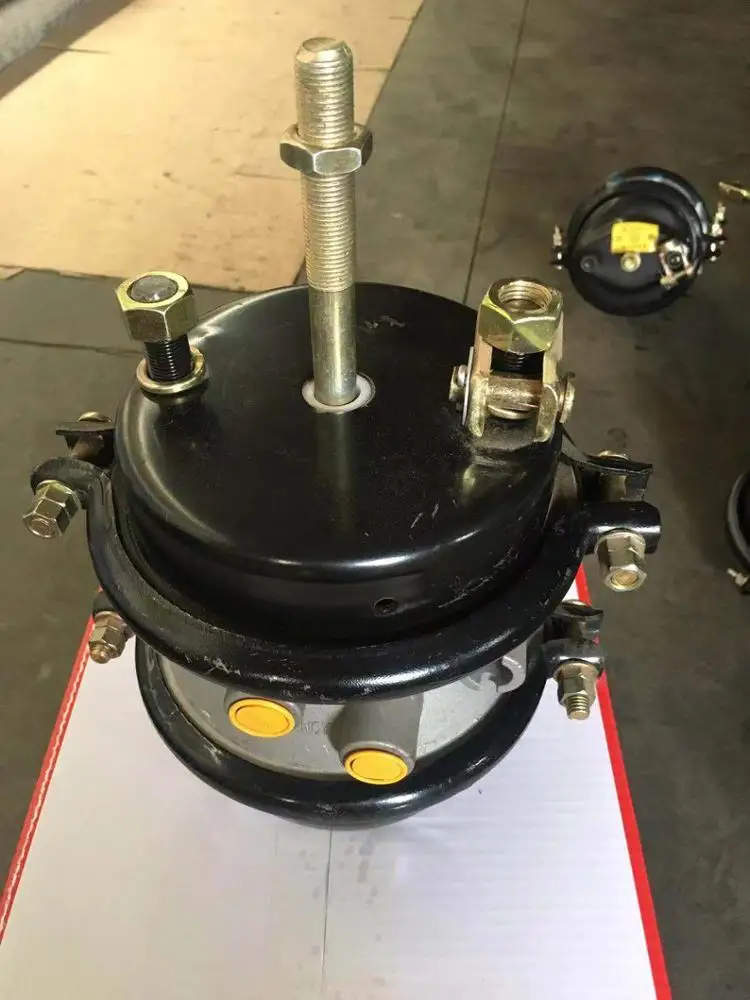

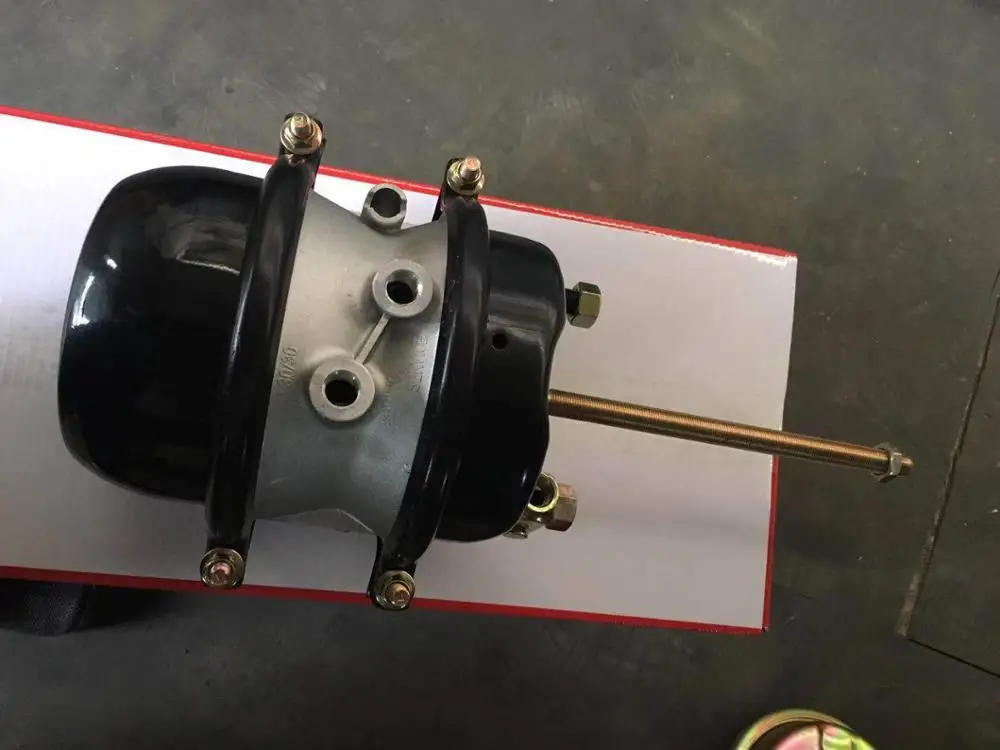

T2424DP Heavy Duty Truck Brake Drum Air Spring Brake Chamber

PARAMETER

Supply Ability

Supply Ability:

10000 Set/Sets per Month

Packaging & Delivery

Packaging Details

Standard Packing

Port

QINGDAO

Brake chamber

Brake chamber also known as pump, its role is to transform the pressure of compressed air into the brake camshaft rotational mechanical force, to achieve the braking action.

Brake chamber consists of an intake port, the cover, the diaphragm, the bearing plate, the return spring, the shell, the push rod, connecting fork, and the composition of the clip bolt.

Specification:

1) Working pressure: 800kPa
2) Maximum working pressure: 1MPa
3) Pushrod stroke: 0 - 64mm
4) Ambient temperature: - 40 ~ +80°C

6) Surface finish: 100hrs clear or yellow zinc plated, Black powder coating

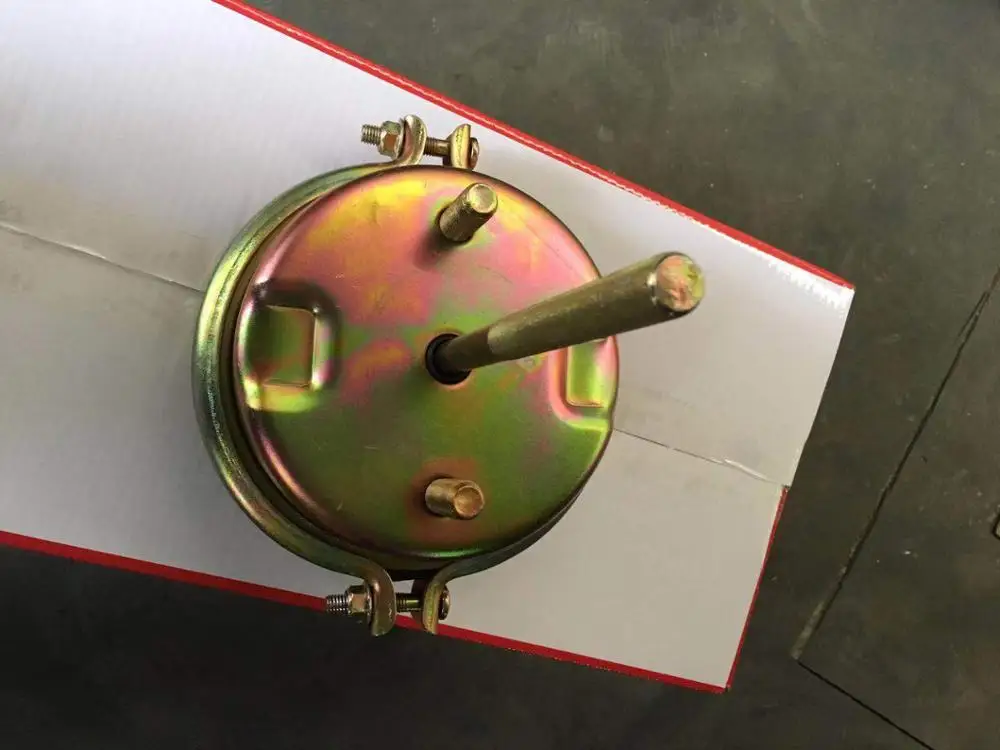

 T24 single air chamber for semi trailer/single brake chamber

Model No.:T24

Stoke: 64

Port thread: M16*1.5

Bolt thread: M16*1.5

Bolt Centre:120.7

Push rod thread: M16*1.5

Push rod length: 270mm

Material: SPHC steel

Weight:3.8kg

T30 single air chamber for semi trailer

Stoke: 64

Port thread: 3/8”NPT

Bolt thread: 5/8”UNC

Bolt Centre:120.7

Push rod thread: 5/8”UNC

Push rod length: 210mm

Material: SPHC steel

Weight:4kg
