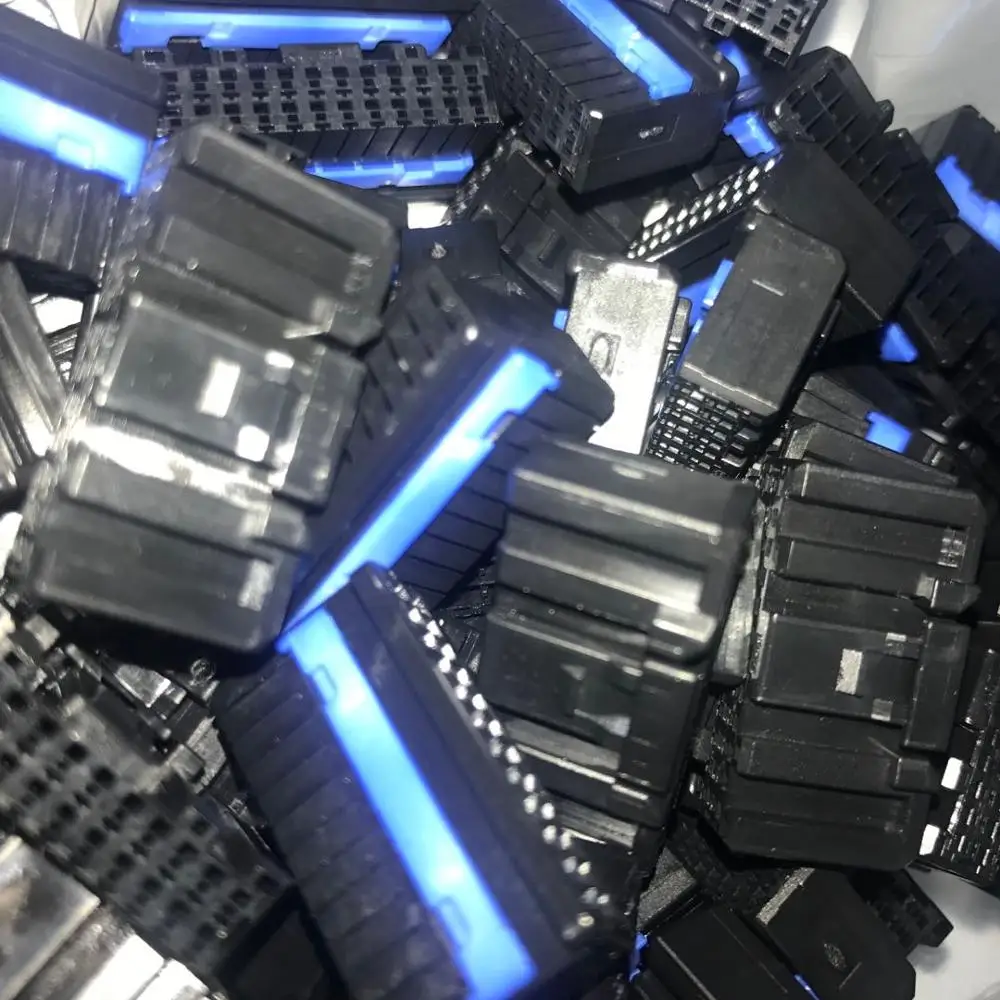

JST 24 pin female connector of Anhui Hong Tron

Product Overview

Description

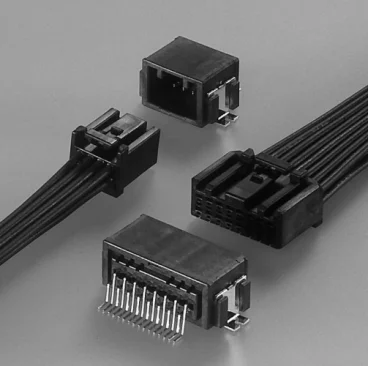

JST 24 pin female connector of Anhui Hong Tron:
Introduction



Compact design

2.0mm pitch is realized miniaturization and low profile as the connector for automobile.

Terminal construction

Female terminal is designed for simple box structure by having spring structure on male terminal.



Developed in pursuit of miniaturization and low profile as PC board connector for automobile.

This connector is surface mounting type connector having the spring structure on male terminal disproving the conventional concept.



Specifications

Current rating: 3 A AC, DC (0.3mm², Single circuit)

Voltage rating: 50 V AC, DC

Temperature range: -40°C to +100°C

(including temperature rise in applying electrical current)

Contact resistance: Initial value/ 8 max.

After environmental tests/ 16 max.

Insulation resistance: 100 min.

Withstanding voltage: 1,000 VAC/minute

Applicable wire: AESSX-f/ AVSS

0.3 mm2

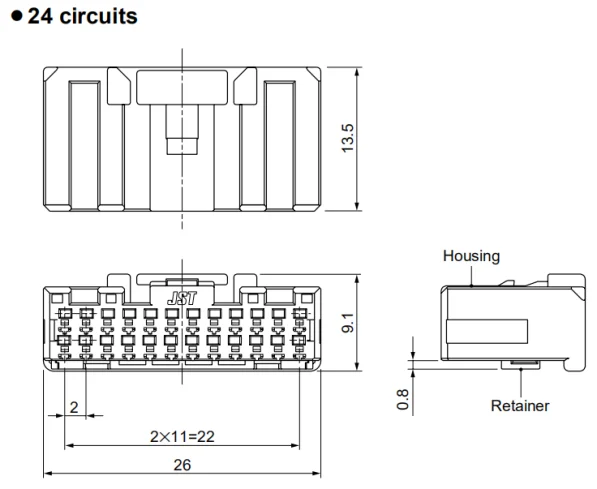

24 pin female connector
