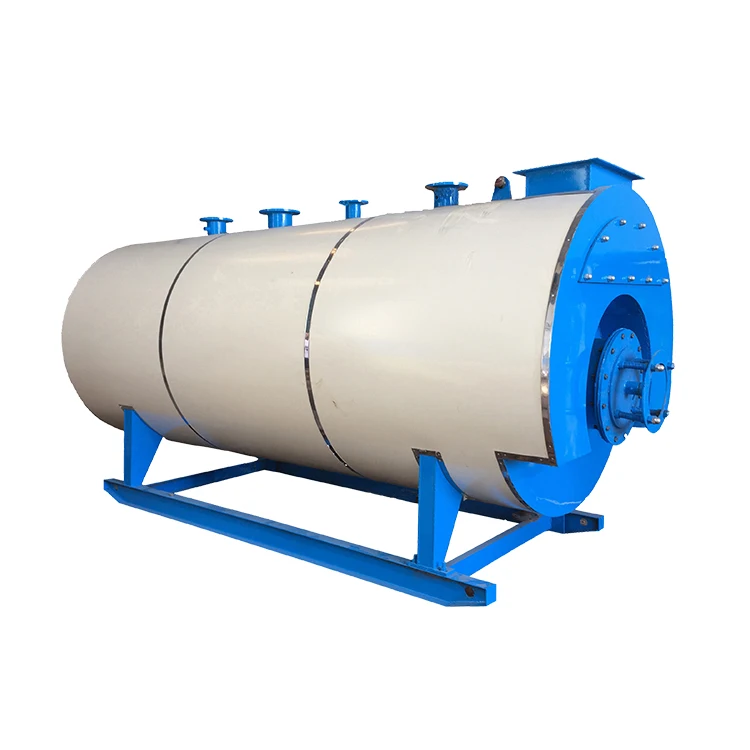

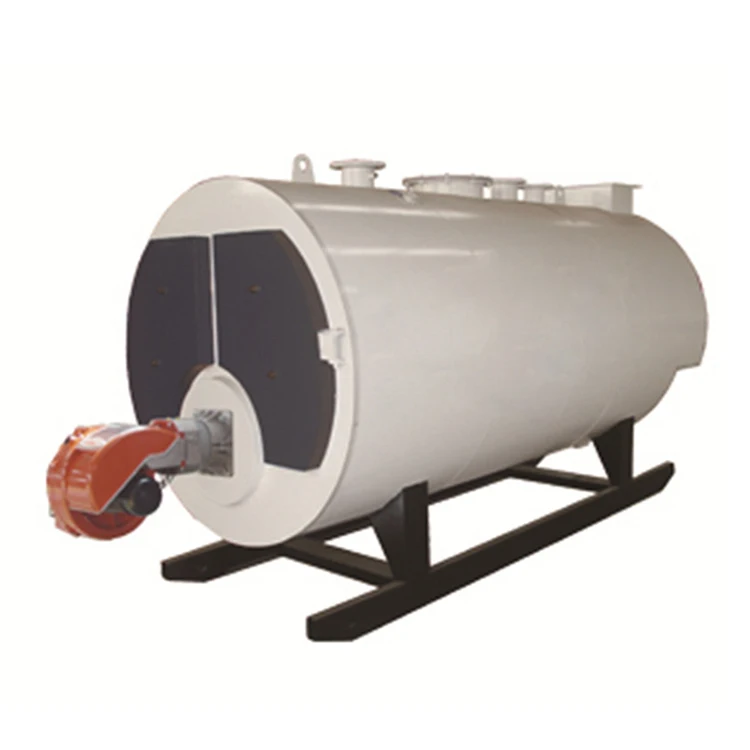

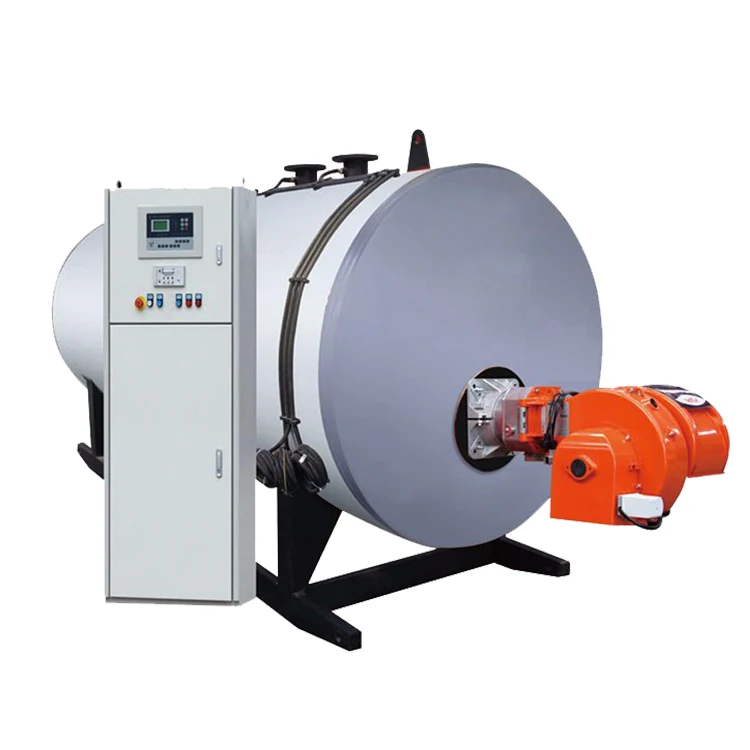

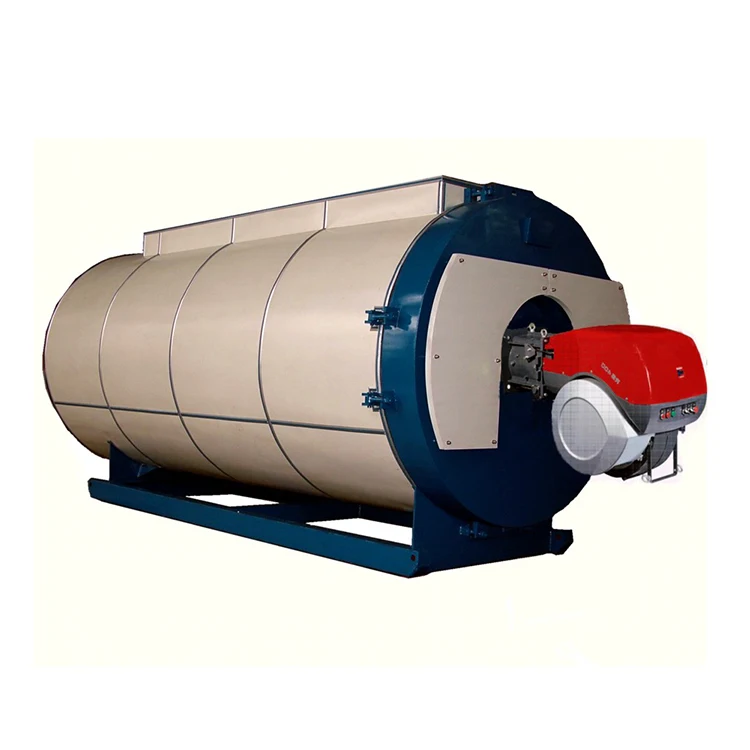

Scientific structure diesel fired boiler with good service




Product Description

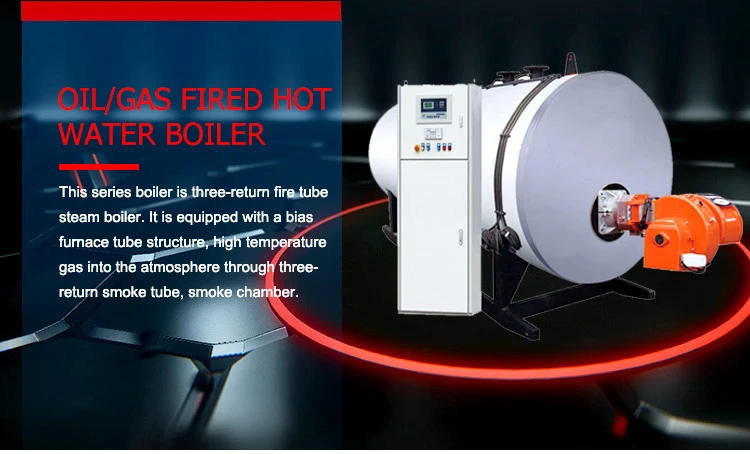

 WNS series horizontal china hot water boiler is the use of natural gas and other gaseous fuels mainly hot water boiler. Efficient automatic control system with complete security protection, including water protection, over voltage protection, flame protection, abnormal pressure protection, flue over temperature protection. Horizontal gas boiler scientific structure, small size, easy to install, easy to operate, intelligent regulation, the fuel pressure atomization, using positive pressure combustion fuel combustion, reduce heat loss, is the most energy saving industrial boiler hot water boilers.








































































































































































































































Type





             Item



Unit



CWNS


0.35-0/85/60-YQ



CWNS


0.7-0/85/60-YQ



CWNS


1.05-0/85/60-YQ



CWNS


1.4-0/85


/60-YQ



CWNS


2.1-0/85/60-YQ



CWNS


2.8-0/85


/60-YQ



CWNS


4.2-0/85


/60-YQ



CWNS


5.6-0/85/


60-YQ



CWNS


7.0-0/85/


60-YQ



Rated Capacity


power



MW



0.35



0.7



1.05



1.4



2.1



2.8



4.2



5.6



7.0



Rated calorific value



x104Kcal/h



30



60



90



120



180



240



360



480



600



Rated pressure



MPa



0



0



0



0



0



0



0



0



0



Rated


outlet/inlet temperature


·








85/60



85/60



85/60



85/60



85/60



85/60



85/60



85/60



85/60



Thermal efficiency



%



93-96



93-96



93-96



93-96



93-96



93-96



93-96



93-96



93-96



Heat efficiency of condensing boiler



%



96-103



96-103



96-103



96-103



96-103



96-103



96-103



96-103



96-103



Fuel


Consumption



light diesel oil



Kg/h



32



64.5



97.5



128



195



256



364



501



607



Alcohol-based fuel



Kg/h



48



80



130



160



240



350



500



700



880



Natural gas



Nm3/h



40



70



110



140



210



280



420



619



756



Liquid gas



Kg/h



15



30



45



60



90



120



180



240



300



Town gas



Nm3/h



90.7



164



274



330



549



686



989



1319



1650



Heating area



m2



3000



6000



9000



12000



18000



24000



36000



48000



60000



The 50 ℃ hot water








The 50 ℃ hot water









T/h



7.0



13



20



26



40



55



70



104



130



Boiler


Dimension



Length



mm



2280



2715



2925



3500



3725



5100



5700



6000



6800



Width



mm



1090



1280



1500



2000



2200



2500



2600



2800



2800



Height



mm



1320



1560



1655



2100



2100



3500



2800



3200



3200






Product Display

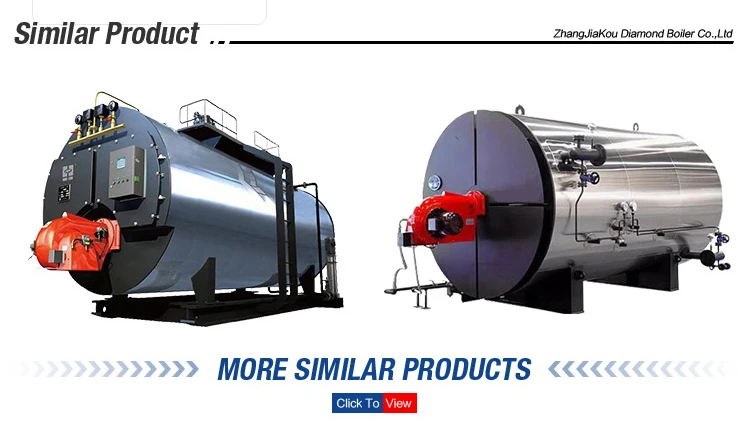

More Product


_34

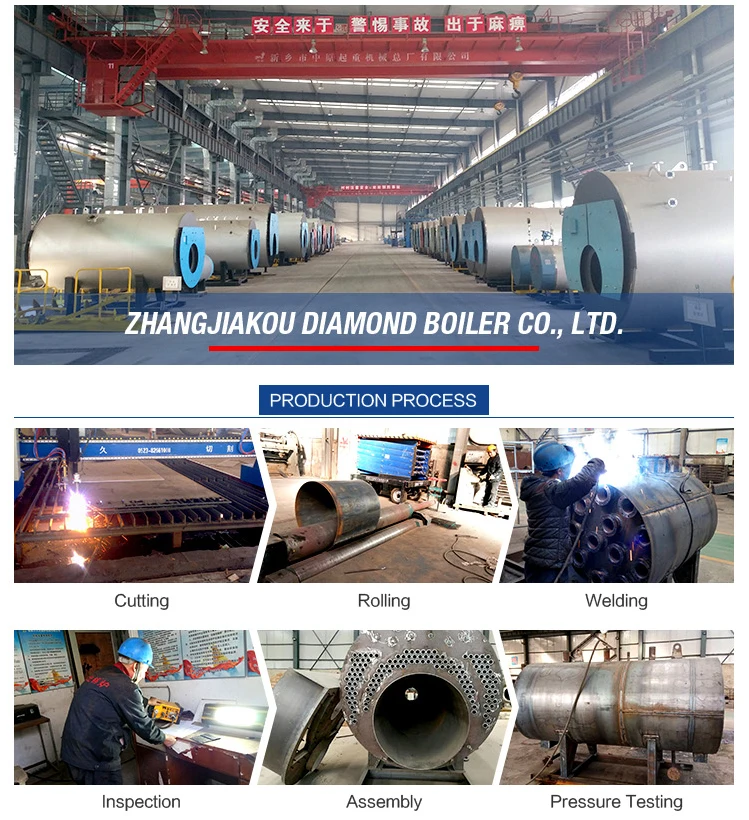

Company Information

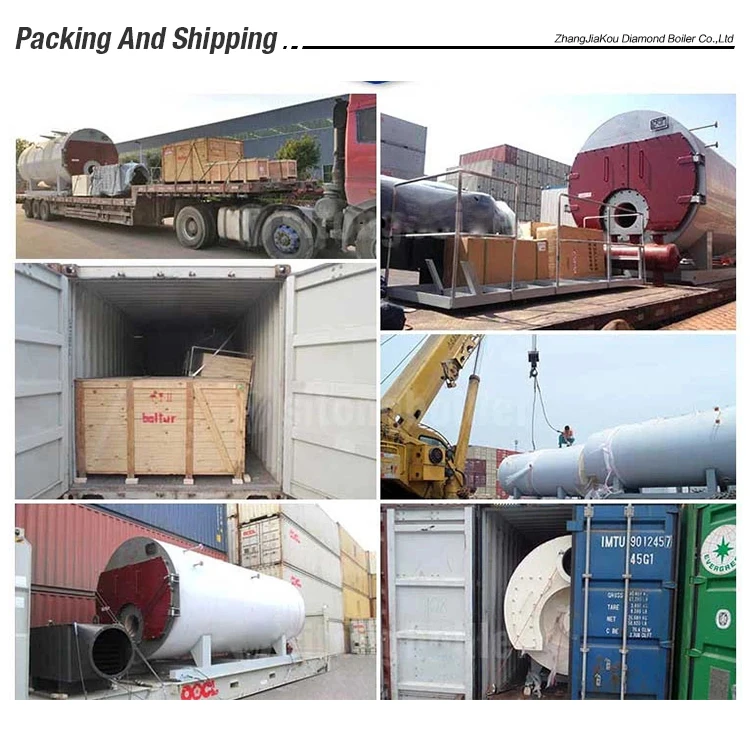

Packaging & Shipping








FAQ





Q1: How to choose a boiler model?


A1: Confirm the type (steam or hot water), capacityworking pressure (or output temperature) and fuel (coal, biomass, gas or oil or other fuel) of the boiler, we will suggest a suitable model based on your usage.





Q2:What is the using life of your boiler?


A2: Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.








Q3: What is your MOQ?


A31 piece/set.





Q4: Do you have any one in stock?


A4Yes, we have. There are some Chinese popular boilers in stock.





Q5: Can you supply OEM or ODM product?


A5: Yes, we can.





Q6: How to install a boiler?


A6: We will provide a video and document for installation. If you still have problem,we will send engineer to your site for guiding and training.





Q7: How is the warranty term?


A7: If any problems caused for quality during the warranty period, we will repair or replace the broken parts for free, if the problem caused from the client’s side, we will help supply the spare parts at lowest cost.
