CE 100M Fiber Media Converter Twisted Pair Ethernet Media Converter FC Fiber Optic Port to 2*RJ45 Network Ports
- Category: >>>
- Supplier: Nanjing Coecom Optoelectronic Equipment Co. Ltd.
Share on (62468376598):
Product Overview
Description
Product details

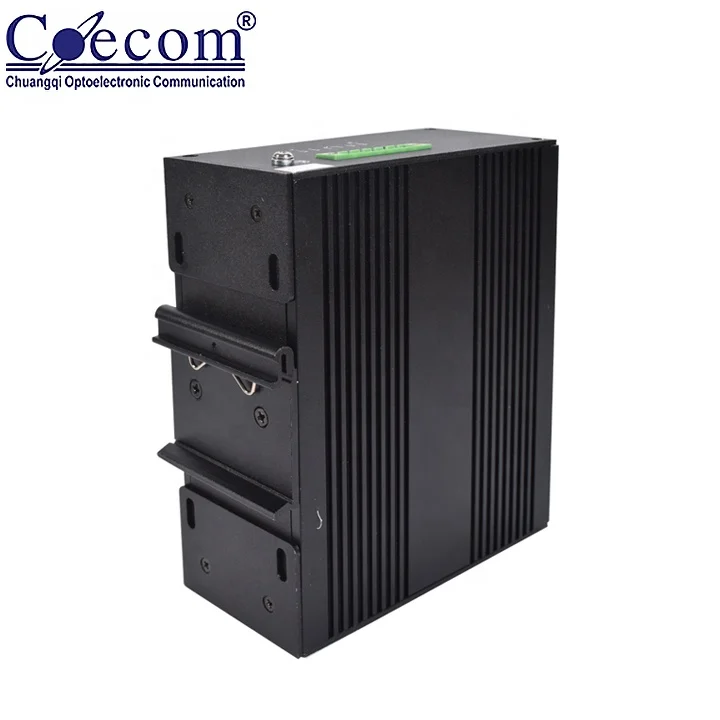

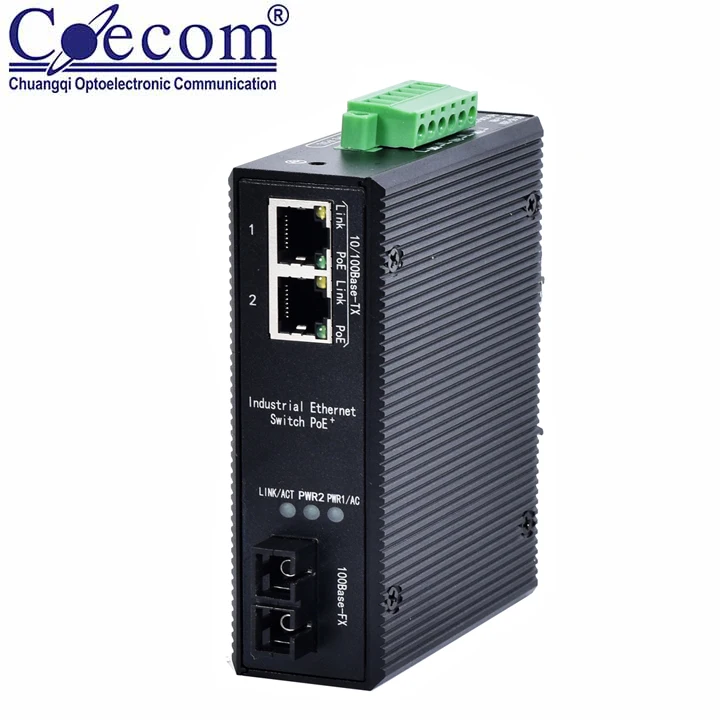

CE 100M Fiber Media Converter Twisted Pair Ethernet Media Converter FC Fiber Optic Port to 2*RJ45 Network Ports
- Supporting one 100M optical port and two 10/100M adaptive network ports;
- Setting optics default FC, SC/ST/LC (SFP) optional;
- Using industrial grade optical module and chip to keep long-term running in extreme temperature environment;
- Equipping with strong surge protection on (2KV) per port;
- Adopting the “store&forward” mechanism to handle packet transfer and support MDI-MDIX Auto-Negotiation function;
- Reserving POE module interface to support POE power supply;
- Having two installation ways DIN-Rail and Wall-Mount;
- Conforming to FCC, CE, ROHS, etc.
Packing
Dimension(mm)
Mounting
Product parameters
CE 100M Fiber Media Converter Twisted Pair Ethernet Media Converter FC Fiber Optic Port to 2*RJ45 Network Ports
|
Product name |
CE 100M Fiber Media Converter Twisted Pair Ethernet Media Converter FC Fiber Optic Port to 2*RJ45 Network Ports 1*FC+2*RJ45 |
|
Product type |
COE-10/100-FC/M2-2KI-2*DC12-48V |
|
Fiber optic interface port |
1*FC multi mode duplex fiber |
|
Network interface port |
2*RJ45 socket, MDI /MDIX Auto-Negotiation |
|
Wavelength |
1310nm (default) |
|
Fiber optic rate |
155M |
|
Network rate |
10/100M Adaptive Port Rate |
|
Optical transmission |
Multi mode≤2km, others can be customized |
|
Network transmission |
Cat5, Cat5e or higher frequency twisted pairs |
|
Outline dimension |
55×139×118(mm) |
|
Power supply |
2*DC12-48V |
|
IEEE standard |
IEEE802.3i 10Base-T;IEEE802.3u 100Base-TX/FX |
|
Power consumption |
4W |
|
Indicator light |
2pcs (PWR1,PWR2) |
|
Weight |
0.45kg |
|
Working environment |
Working environment:-40℃~+85℃,5~95%RH |
|
Storage temperature: -40℃~+85℃,5~95%RH |
|
|
Installation method |
DIN-Rail mounted / Wall-mounted optional |
|
Note |
We also supply other specifications and products, please contact with our sales. |
Product catalog
Hot sale
Company information
Certifications
Advantages
FAQ
1.Are you factory or trading company?
We are factory in Nanjing, China. We have 3500 square meters production area and more than 100 employees.
2. What's your main product?
Our main product includes, optical fiber jumper, optical fiber cable terminal case, ODF, industrial ethernet swtich, optical fiber transceiver and fiber optic modem.
3.How to get samples from your company?
Please contact our sales for samples.
4. Do you accept the small order?
Sure.We accept small order if your order quantity is less than MOQ,we do our best to help you by giving you the competitive price with best service.
5. Do you accept OEM?
Yes, OEM is acceptable. The research, design and production will proceed according to your requirement.
6.What kind of packing for this item?
Export carton packing for each one piece.
7. What is your payment way?
Alibaba Trade Assurance ,Western Union,T/T ,L/C, etc.
