Tobee Effluent Handling
$12,600
Dubao Chemical Permanent Magnetic Drive Fuel Pump For Acid Transfer
- Category: >>>
- Supplier: Jinshuo Environmental Protection Equipment Co. Ltd.
Share on (62469118230):
Product Overview
Description

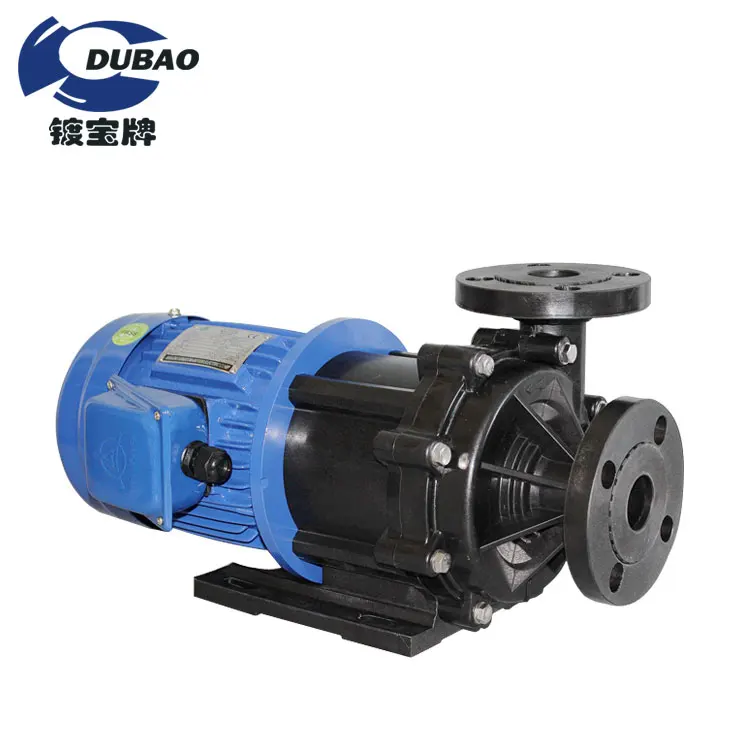

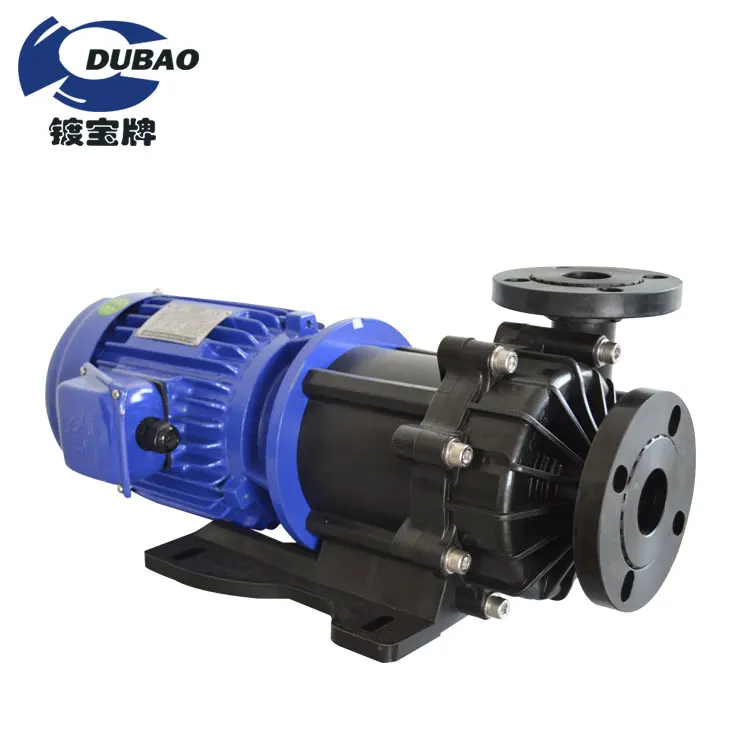

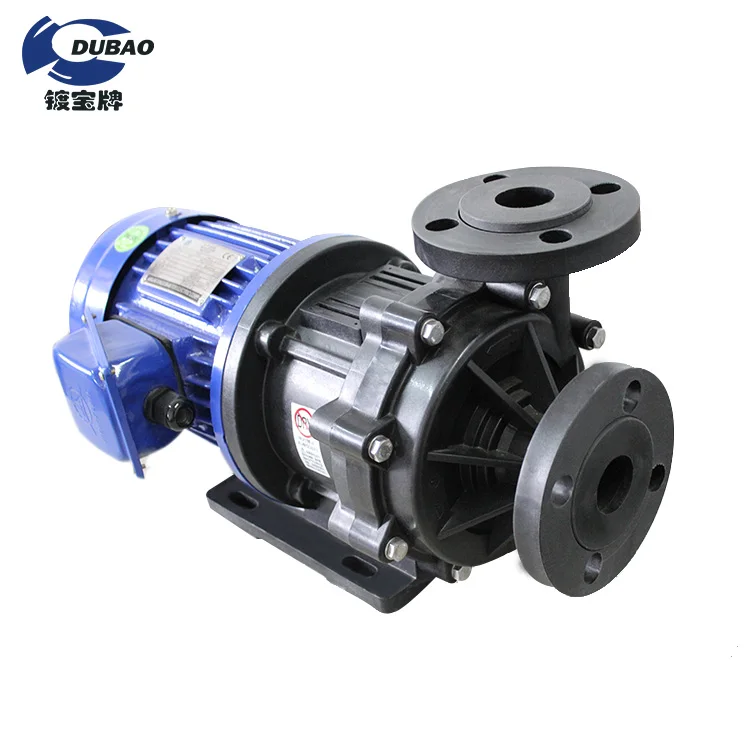

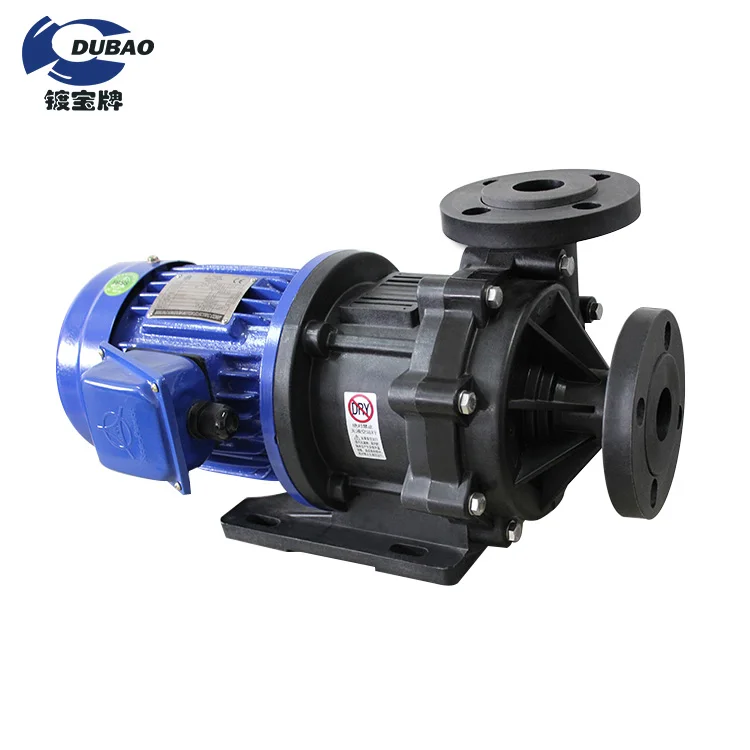

Dubao Chemical Permanent Magnetic Drive Fuel Pump For Acid Transfer
Product Characterist
• use magnetic drive, no shaft seal design, pump body fully sealed.• use FRPP and PVDF material injection molding, suitable for most chemical acid base liquid delivery.
• impeller and magnet integrated injection molding, in high-speed operation and high temperature is not easy to damage.
• this series of pumps because of its innovative design of resistance to idling, the magnetic pump running without water for a long time without damage, improve product durability. Pump bearings are made of silicon carbide, ceramic and titanium materials, which can meet the needs of different workplaces.
Product Analysis
Product Display
Model | Caliber | Horse Power(HP) | Power(kW) | Pole | S.G | Min Capacity L/min-m | Standard Capacity-Head L/min-m | Max capacity L/min | |
Inlet | outlet | ||||||||
MDH-400 | G1 1/2XG1 1/2 (40X40) | 1/2 | 0.37 | 2P | 1.05 | 10-12.5 | 150-8.5 | 280 | |
MDH-401 | 1 | 0.75 | 2P | 1.05 | 10-18.0 | 200-12.0 | 330 | ||
MDH-422 | G2XG1 1/2 (50X40) | 2 | 1.5 | 2P | 1.2 | 20-23.0 | 200-18.5 | 400 | |
MDH-423 | 3 | 2.2 | 2P | 1.2 | 20-24.0 | 300-20.5 | 500 | ||
MDH-425 | 5 | 3.7 | 2P | 1.0 | 50-29.0 | 400-25.5 | 600 | ||
MDH-525 | 65*65 | 5 | 3.7 | 2P | 1 | 60-32.0 | 500-18.5 | 700 | |
About us
Other Products
Certificate showing
Workshop Show
1. suitable for all kinds of acid and alkali liquid cooling, spraying and washing equipment, waste gas tower, carving machine, waste water treatment and so on
2. controllable operation, never by air instead of damage
3. dry seal design, can protect the motor to prevent acid gas into the damaged bearing
4. it is suitable for the cyclic transportation of electroless nickel, electroless copper and various s pecial electroplating liquid
5.explosion-proof motor can be used according to the environment
Click here>>>>>>Get more information of product ,discount and shipping cost
