Ультра яркий 2,8 3,6 В 3 мм 5 мм белый прозрачный 5 мм светоизлучающий диод Светодиодная лампа 25000 35000mcd
- Category: >>>
- Supplier: Ningbo Junsheng Electronics Co. Ltd.
Share on (62469178102):
Product Overview
Description
Product Description
Title goes here.

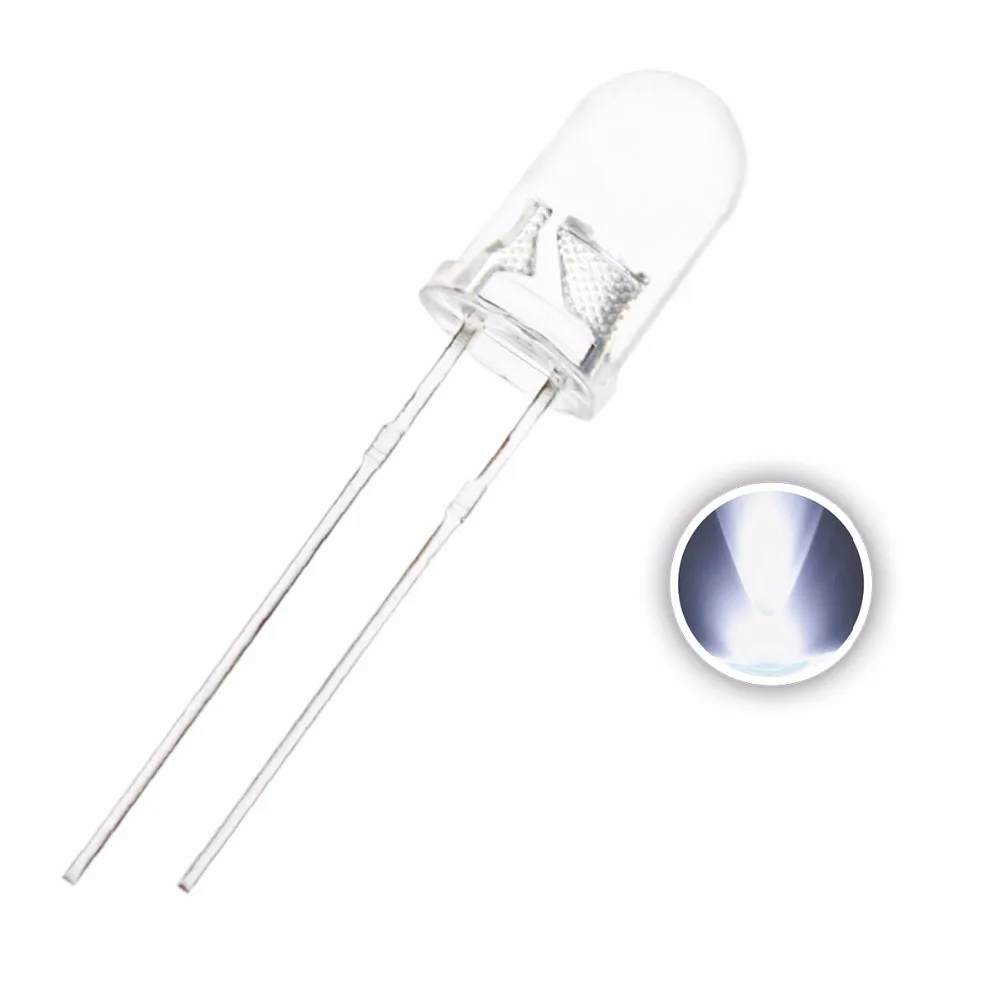

5mm Round LED Water Clear Ultra Bright LED Diode.
* Ultra Bright Color
* Size: 5mm Round Top
* Color: White, Yellow, Red, Yellow, Green, Blue, etc.
* Forward Voltage: 1.8-3.2V, Current: 20mA, Power: 0.06W
* Viewing Angle: 20 Degrees, Mount Style: Through Hole (DIP), Lens Color: Clear
* Size: 5mm Round Top
* Color: White, Yellow, Red, Yellow, Green, Blue, etc.
* Forward Voltage: 1.8-3.2V, Current: 20mA, Power: 0.06W
* Viewing Angle: 20 Degrees, Mount Style: Through Hole (DIP), Lens Color: Clear
Part No. | Emitted Color | Lens Color | Wavelength (nm) | IV(mcd)@IF=20mA | Voltage(V) | Angle (deg) |
JSL-502URC | Red | Water Clear | 620-625 | 4000-8000 | 1.8-2.2 | 20 |
JSL-502UYC | Yellow | Water Clear | 588-593 | 4000-8000 | 1.8-2.2 | 20 |
JSL-502UAC | Orange | Water Clear | 600-610 | 3000-5000 | 1.8-2.2 | 20 |
JSL-502UGC | Yellow Green | Water Clear | 570-575 | 500-1000 | 1.8-2.2 | 20 |
JSL-502UBC | Blue | Water Clear | 460-470 | 4000-8000 | 2.8-3.2 | 20 |
JSL-502BGC | Bluish Green | Water Clear | 500-505nm | 10000-20000 | 2.8-3.2 | 20 |
JSL-502PGC | Green | Water Clear | 520-525 | 15000-25000 | 2.8-3.2 | 20 |
JSL-502UPC | Pink | Water Clear | -------- | 3000-5000 | 2.8-3.2 | 20 |
JSL-502UVC | Violet | Water Clear | 395-405 | 200-500 | 2.8-3.2 | 20 |
JSL-502WWC | Warm white | Water Clear | 2800-3300K | 15000-30000 | 2.8-3.2 | 20 |
JSL-502UWC | White | Water Clear | 6000-8000K | 20000-30000 | 2.8-3.2 | 120 |
LED DIODES
1. We provide 3mm LED, 4.8mm LED, 5mm LED, 8mm LED, 10mm LED, Flux LED.
2.Chip material: InGaN. AlGaIn
3. Emitting color: White, Red, Yellow, Pure Green, yellow green ,Blue, Amber, Orange.
4.Lens color: Water clear, color transparent, color diffused, white diffused
5. Available Wavelength: 470nm, 525nm, 585nm, 610nm, 630nm, 640nm(Tolerance of measurement of peak Wavelength 5.0nm)
6.Available Temperature color: 3300K, 6500K,7000~8000K
7.Application: Lighting, Upholster, Project Building, Display, Traffic Light, etc.
8. Available Angle: 20 degree, 30degree, 40degree, 45degree, 70degree, 110degree
9.Superior performance in outdoor/indoor environment
10.The sample delivery time: Within 3-5days; The order delivery time: Within 7~15days upon payment done
Dominant Wavelength
Red: 640nm to 645nm
Hight bright red: 620nm to 625nm
Blue: 460nm to 475nm
Pure green: 515nm to 525nm
Yellow: 585nm to 595NM
Amber: 600nm to 605nm
Forwarder Voltage:
Red / Yellow / Yellow Green: 1.8-2.1V
Blue / Pure Green / White: 3.0~3.6V
1. We provide 3mm LED, 4.8mm LED, 5mm LED, 8mm LED, 10mm LED, Flux LED.
2.Chip material: InGaN. AlGaIn
3. Emitting color: White, Red, Yellow, Pure Green, yellow green ,Blue, Amber, Orange.
4.Lens color: Water clear, color transparent, color diffused, white diffused
5. Available Wavelength: 470nm, 525nm, 585nm, 610nm, 630nm, 640nm(Tolerance of measurement of peak Wavelength 5.0nm)
6.Available Temperature color: 3300K, 6500K,7000~8000K
7.Application: Lighting, Upholster, Project Building, Display, Traffic Light, etc.
8. Available Angle: 20 degree, 30degree, 40degree, 45degree, 70degree, 110degree
9.Superior performance in outdoor/indoor environment
10.The sample delivery time: Within 3-5days; The order delivery time: Within 7~15days upon payment done
Dominant Wavelength
Red: 640nm to 645nm
Hight bright red: 620nm to 625nm
Blue: 460nm to 475nm
Pure green: 515nm to 525nm
Yellow: 585nm to 595NM
Amber: 600nm to 605nm
Forwarder Voltage:
Red / Yellow / Yellow Green: 1.8-2.1V
Blue / Pure Green / White: 3.0~3.6V
