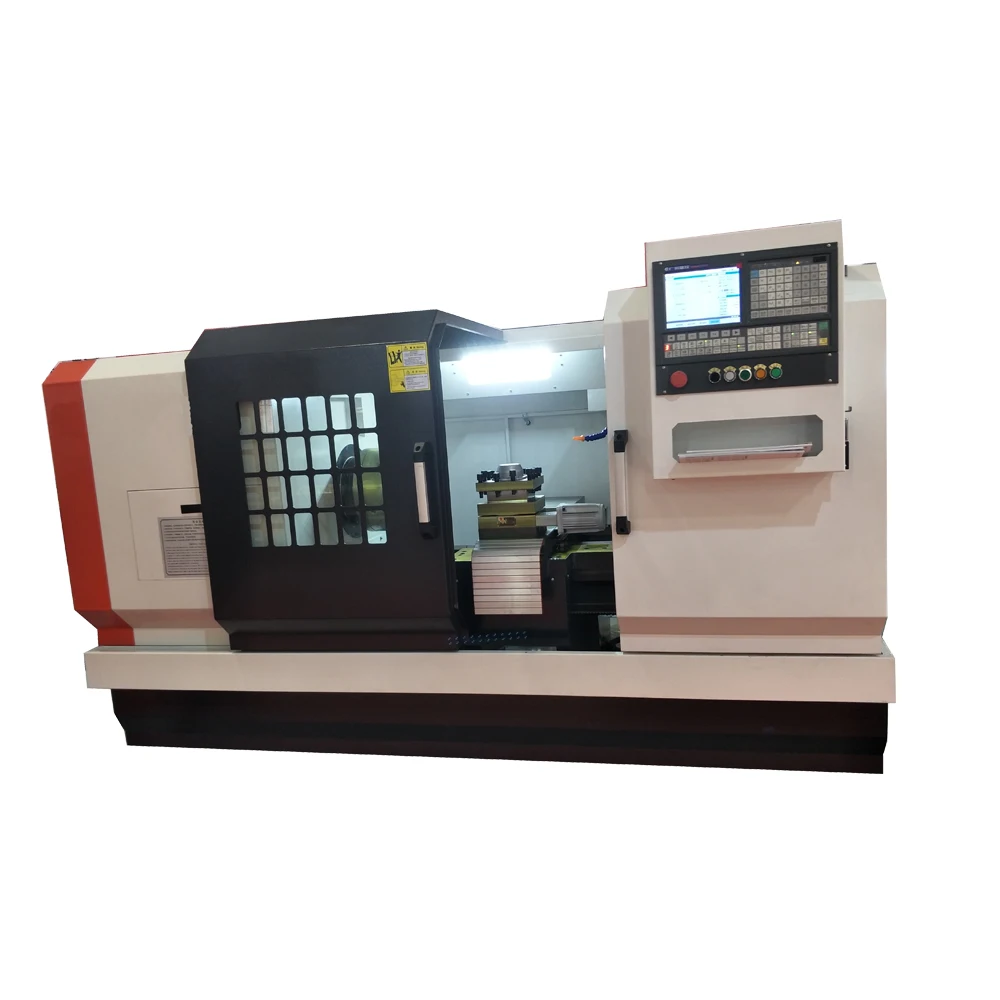

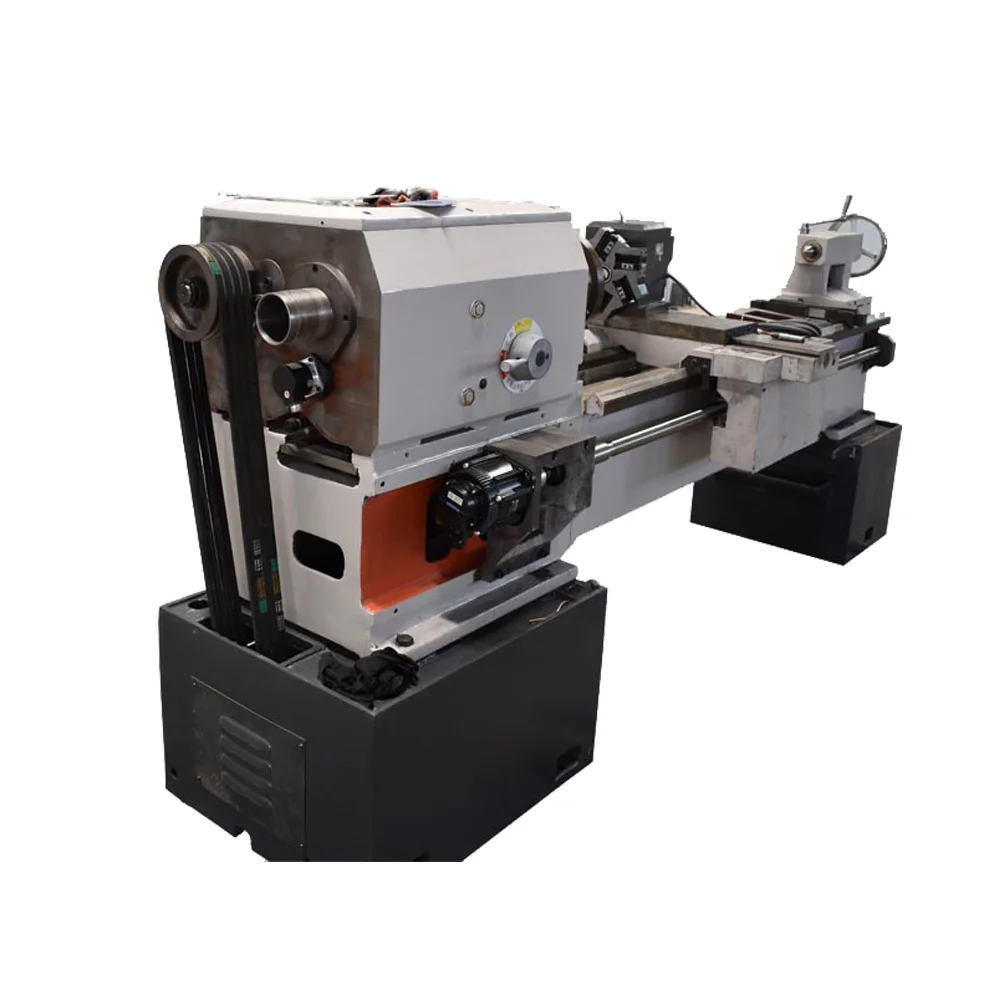

Horizontal CNC mini lathe for mechanic use with motor
Horizontal CNC mini lathe for mechanic use with motor
Horizontal CNC mini lathe for mechanic use with motor
Horizontal CNC mini lathe for mechanic use with motor
Horizontal CNC mini lathe for mechanic use with motor
Horizontal CNC mini lathe for mechanic use with motor
Horizontal CNC mini lathe for mechanic use with motor

Horizontal CNC mini lathe for mechanic use with motor

Share on (62469182552):


Price:$11,600.00 - $11,800.00

Quantity:


Product Overview

Description


Product Description
It can process linear cylinders, oblique cylinders, circular arcs and various threads, grooves, worms and other complex workpieces, with various compensation functions for linear interpolation and circular interpolation
Technical parameter
Iterm
Parameter
Max.swing Over Bed
mm
500
Max.Swing Over Slide
mm
300
Max.Processing Length
mm
1000/1500/2000
Guideway Width Of Bed
mm
390
X Axis Travel
mm
260
Z Axis Travel
mm
1000/1500/2000
X/Z Axis Lead Screw
2505/4010
X/Z Axis Rapid Speed
m/min
6/8
X/Z Axis Positioning Precision
mm
0.02/0.03
Processing Precision
mm
0.012/0.016
Ellipticity
IT6-IT7
Surface  Roughness
Ra≤1.6
Spindle Speed Range
rpm
60-200,200-650,650-1600
Spindle Head Type
C-5
Dia. Of Spindle Through Hole
mm
82(105)
Spindle Hole Tapper
105,  1:20

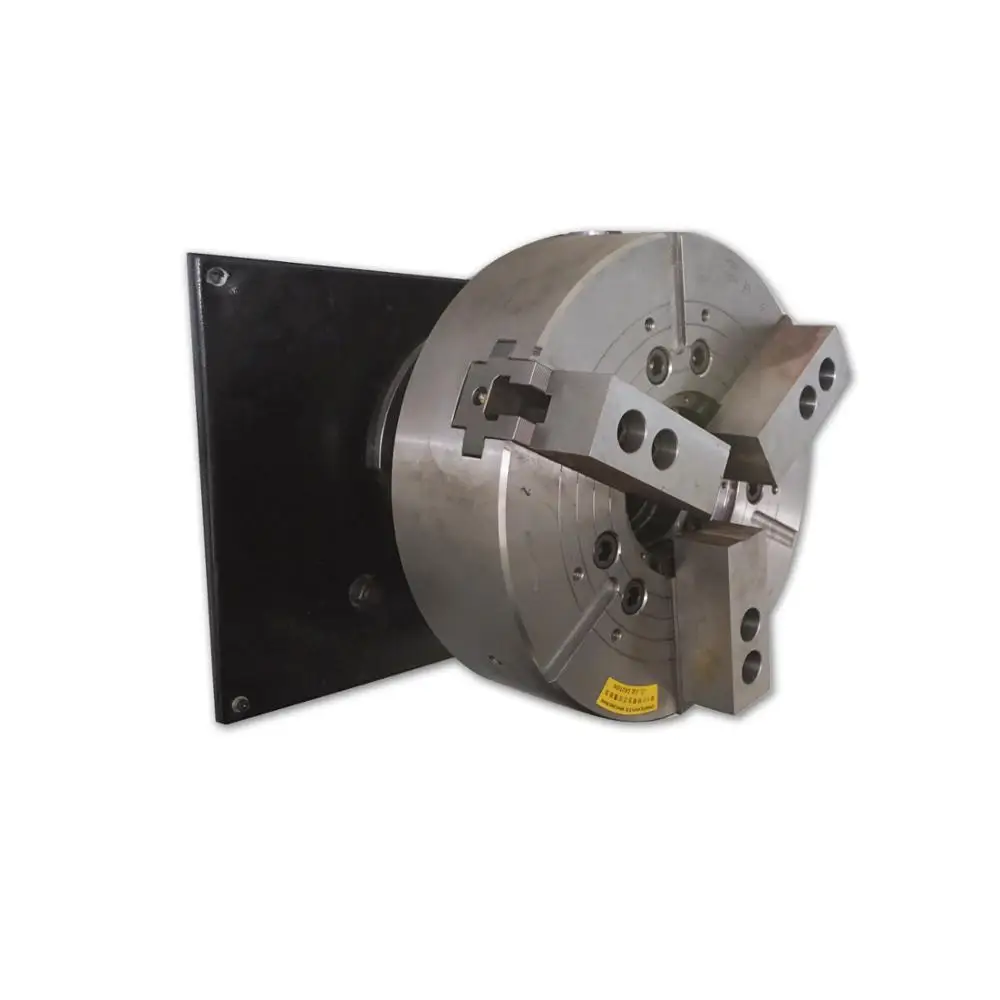

Chuck Size
mm
250
Spindle Motor Power
kw
7.5
Tool Holder Type
Vertical 4 Station Electric Tool Turret
Turning Tool Size
mm
25*25
Tailstock Sleeve Travel
mm
150
Tailstock Sleeve Dia.
mm
75
Tailstock Sleeve Tapper
MT5
Net.Weight
kg
2600
Dimension
mm
2800*1200*1700

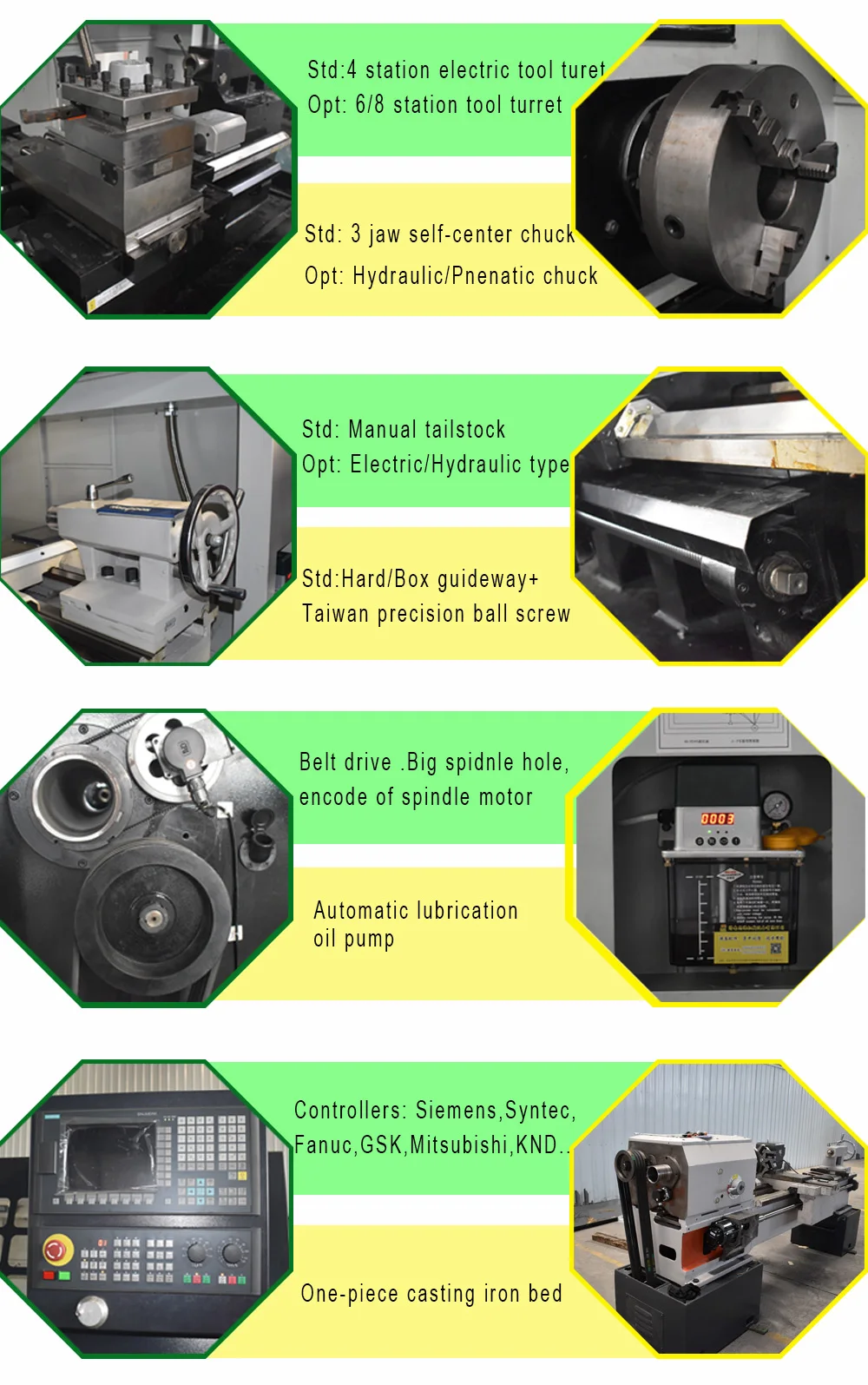

Detailed Images
* 4 Station eletric tool turret
* Schneider eletric parts
* Automatic lubrication system
* Full cover en-closed
* Controller: Siemens,Fanuc,GSK,Syntec and so on
* Taiwan ball screw and box guideway
Related Products
Packing&Shipping
Sea transport
Bubble form,wooden box and steel frame
Company Introduction
Jinan Hankui International Trade co., LTD. is a high tech enterprise and also an exporter, integrated with manufacturing,processing and sales of machine tools, which has more than 10 years experience in machine tools production. As the strategic partner of Jinan First Machine Tool Co., Ltd, we have mastered the advanced machine tool technology and dedicated to customers domestic and abroad and made an excellent achievement. The main products are machine tools and metal parts, the production base locates in Qingzhou, Shandong province. Have a strong technical force and rich experience, the designers, R&D and engineering technicians have taken part in the design and production of advanced level machine tools in China, such as general utility horizontal machining center,vertical machining center, CNC vertical lathe, CNC slant bed lathe, etc.With more than 10 years development, our products have occupied a large share in domestic and overseas market.
FAQ
Q1.Payment term
30% by T/T as deposit, balance 70% by T/T before delivery. If others payment terms, we can discuss.Welcome to inquiry sales.
Q2.How long is the warranty for machines?
Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing.
Q3.After-sale service
All life on line technolgy support and free consult service
More questions,just feel free to contact me.
