Product Overview
Description

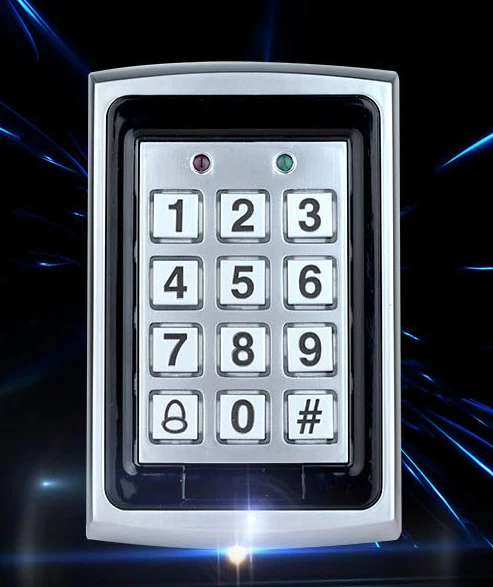

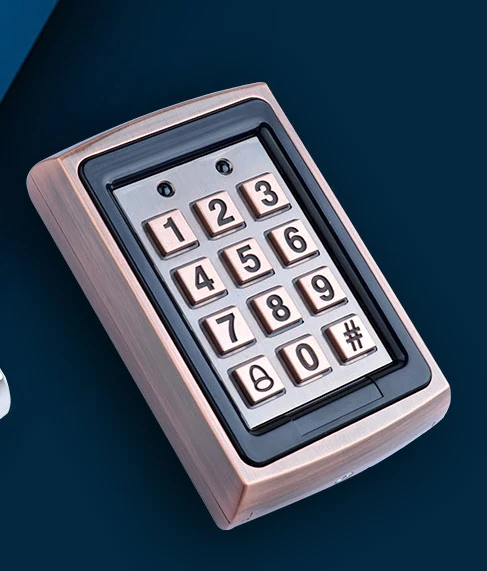

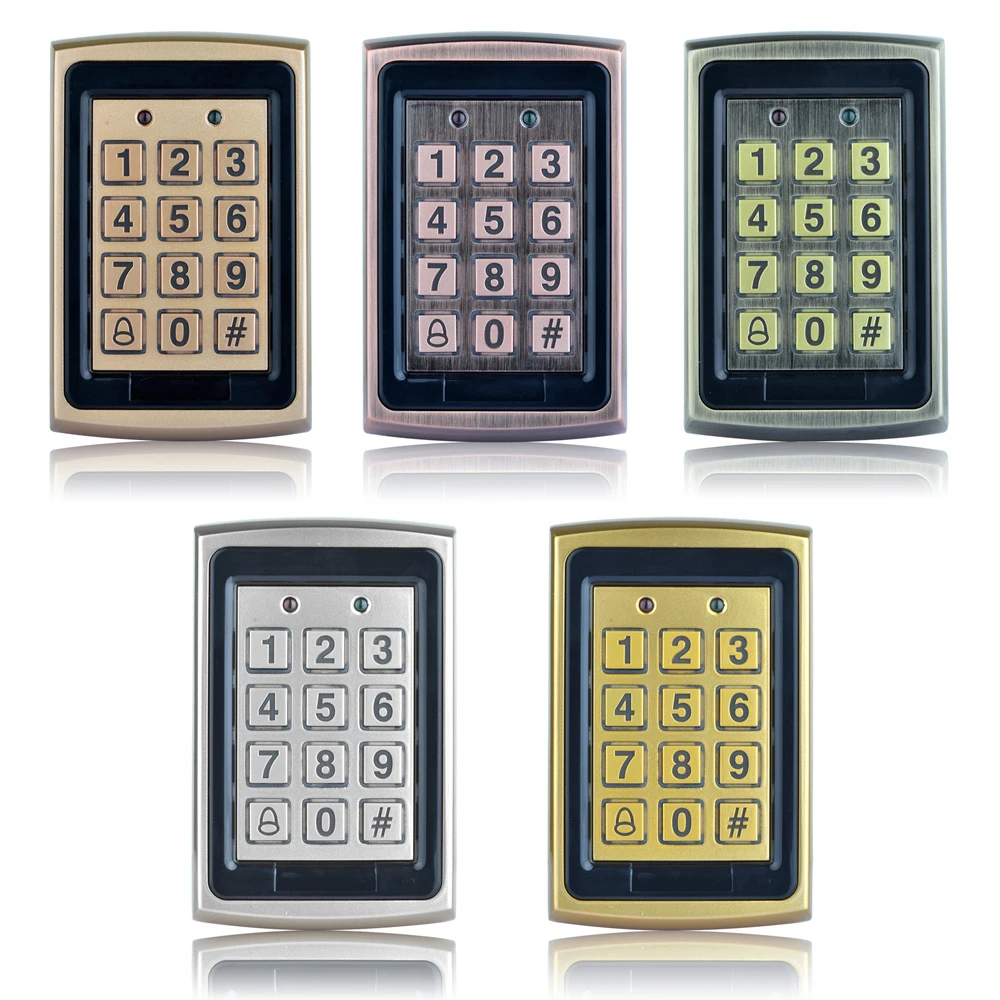

Single door access control metal keypad access control
1.Access Contol Features
Can be used as card reader or standalone access controller
Metal case, anti-vandal
Digital backlit keypad
Multi-function standalone access controller and reader, can be used as WG26 reader
Capacity: 8000 cards / codes
Three accesses: card, pin, card + pin
WG interface: WG26 Input / output Doorbell support and interface: button and circuit segregate,any doorbell can be connected
2.Access Control Specifications
|
Operating Voltage |
12V DC |
|
Card type |
ID CARD ,125KHZ |
|
Reading Distance |
3-10 cm |
|
≤50mA |
|
|
Operating Temperature |
-25℃~70℃ |
|
Operating Humidity |
0%- 90% RH |
|
Open time |
0-255 s (adjustable) |
|
Dimension |
120 * 76 *30mm |

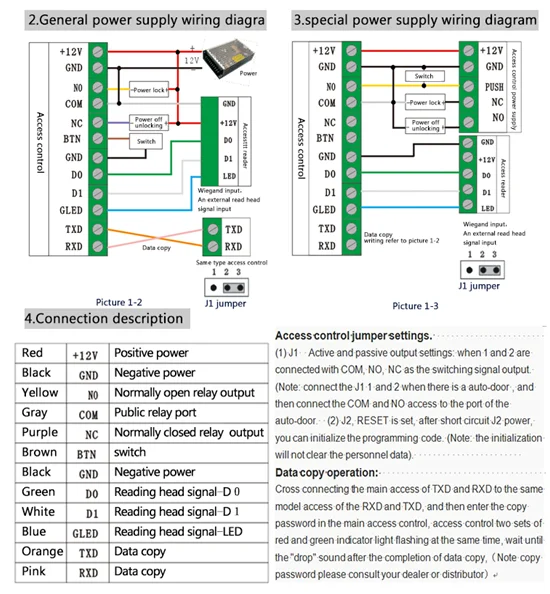

3.Access control Wiring
4.Access contol Packing List
|
Name |
Model |
Quantity |
Remarks |
|
metal access control |
NP-A12 |
1 |
|
|
User manual |
NP-A12 |
1 |
|
|
Rubber plug |
|
2 |
Φ6mm×30 mm, used for fixing |
|
Self tapping screws |
|
2 |
Φ4mm×28 mm, used for fixing |
