10 kWh 11.6kWh lifepo4 battery system for home energy storage
- Category: >>>
- Supplier: Shenzhen Yihui Energy Technology Company Ltd.
Share on (62469283686):
Product Overview
Description
Home Battery Packs
Battery SPEC

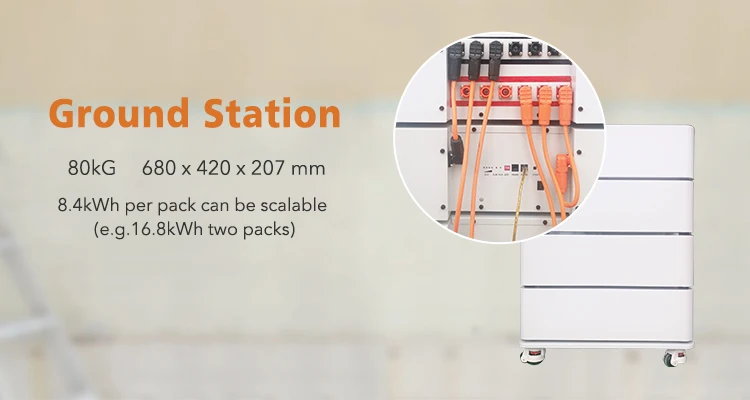

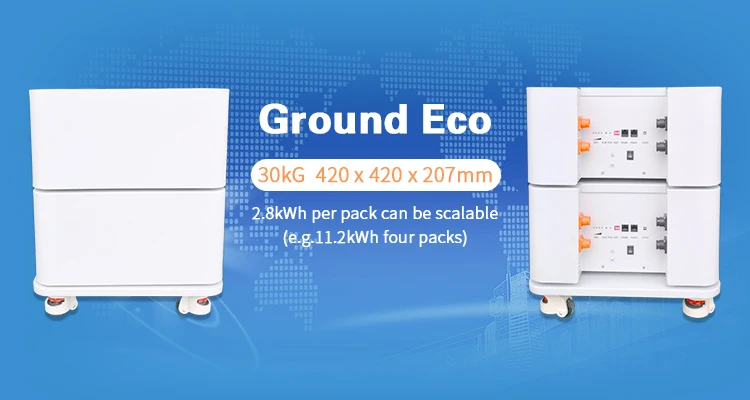

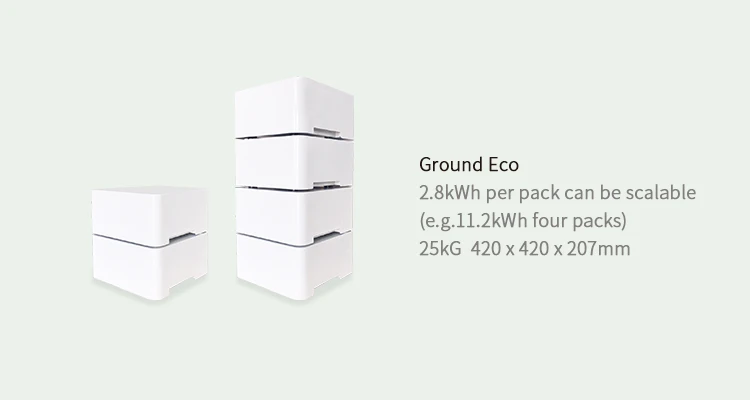

Model Capacity | Ground Eco 5.8kWh | Ground Eco 11.6kWh | Ground Station 17.5kWh | ||
Capacity Energy | 5.8kWh | 11.6kWh | 17.5kWh | ||
Capacity Ah | 114A | 228Ah | 342Ah | ||
Suggested SOC | 10%-95% | 10%-95% | 10%-95% | ||
Usable Capacity | 5.3kWh | 10kWh | 15.7kWh | ||
Nominal Voltage | 51.2V | 51.2V | 51.2V | ||
Operation Voltage | 46.4V – 57.6V | 46.4V – 57.6V | 46.4V – 57.6V | ||
Maximum Charging/Discharging Current | 70A/70A | 100A/100A | 100A/100A | ||
BMS | Robust Multi point monitoring BMS pre installed | ||||
Life Cycling (0.5C 25℃) | 5000 cycles | 5000 cycles | 5000 cycles | ||
Warranty BTT | 10MWh per kWh | ||||
5 years， whichever comes sooner | |||||
Operation Temperature | 0℃ ~ 45℃ | ||||
Storage Temperature | -20℃ ~ 35℃ | ||||
Weight | 28kG | ||||

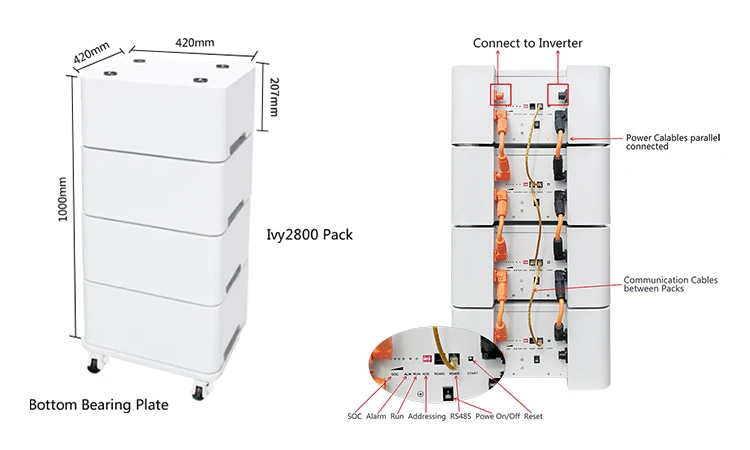

Dimensions | 420x420x 600 mm | 420x420x 920 mm | 620x420x600 mm | ||
Scalable | yes | ||||
Certifications | MSDS, UN38.3, RoHS, IEC62619, UL | ||||
Communication | RS485, CAN, Bluetooth optional | ||||
Notice

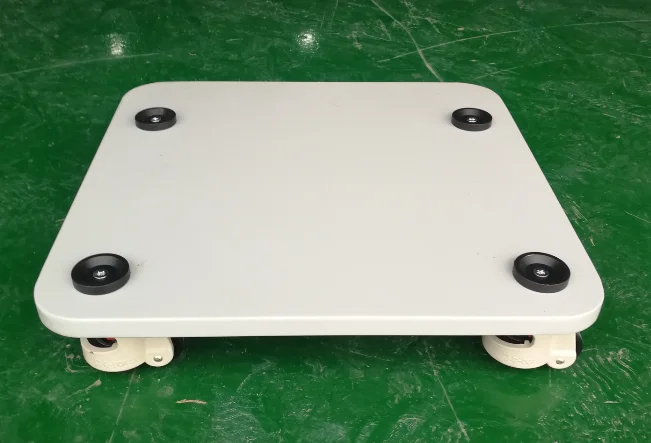

Please be aware one pair 2 meter length cables for inverter connection and bottom plate need to purchase.

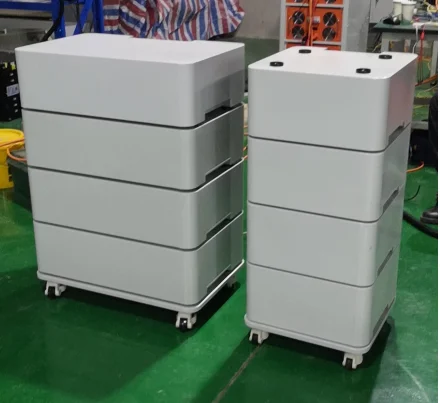

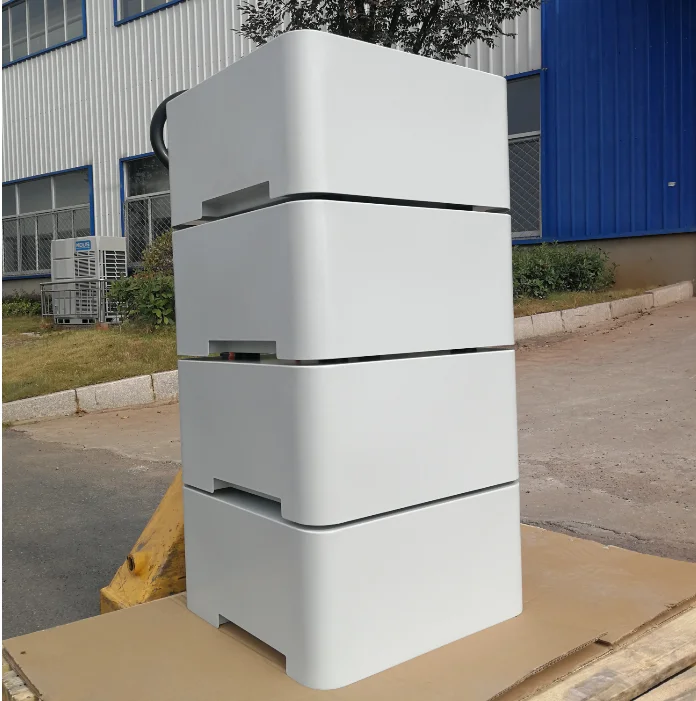

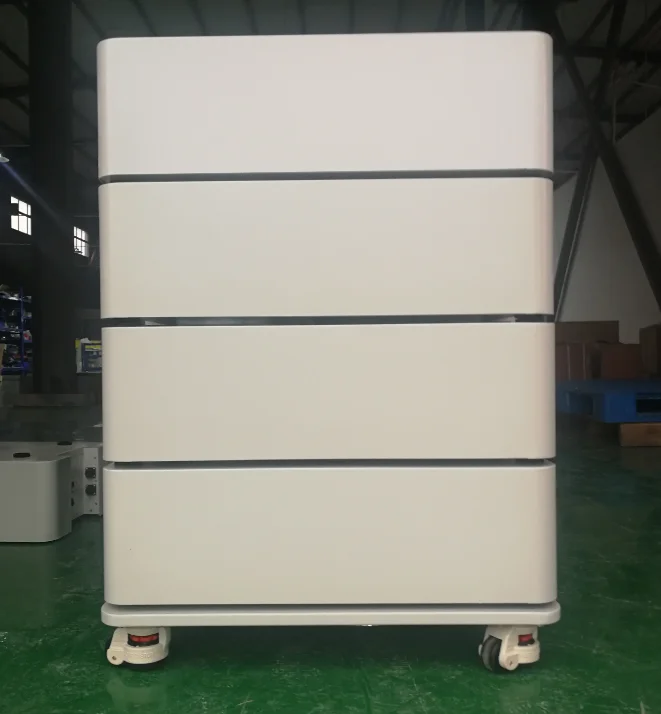

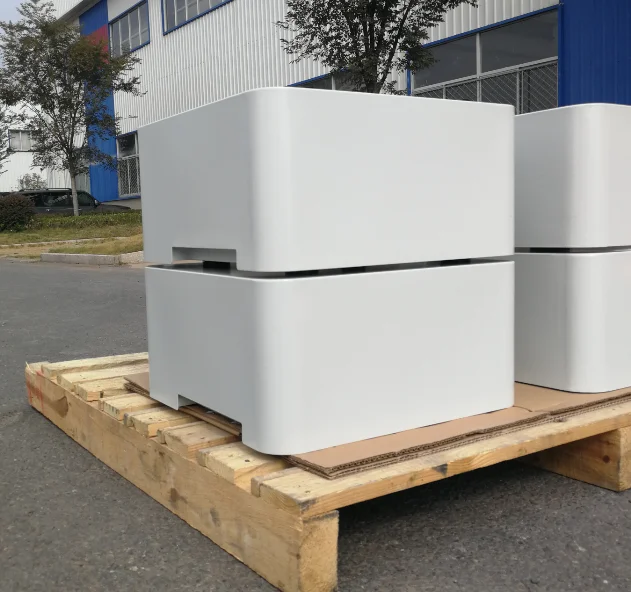

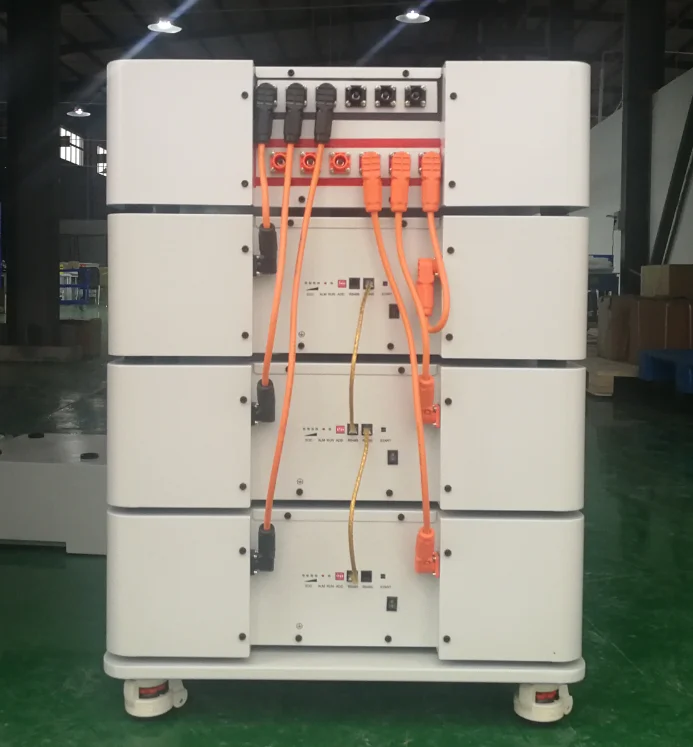

Pictures
