Normal Working Conditions: 1 Power conditions: AC100-240V, 50-60Hz 2 Environmental temperature: 5℃-40℃ 3 Relative humidity: when the temperature is lower than 31℃, the max. relative humidity is 80%; when the temperature us 40℃, the relative humidity declines to 50%.
4 Atmosphere pressure: 86 kPa - 106kPa 5 Working position: horizontal 6 Working times: 8 hours continuously 7 Working times: 8 hours of continuous intense light interference.
Company Information
Technical parameters
Main Paramwters
1
Lamp
DC12V 22W Tungsten ha logen lamp
2
Optical path
8 channels vertical light path system
3
Wavelength range
400-900nm
4
Filter
Default configuration 405,450,492,630nm.
Can be installed up to 10 filters
5
Reading range
0-4.000Abs
6
Linear Range
0-3.000Abs
7
Wavelength
indication error
≤±2nm
8
Resolution
0.001Abs
9
Accuracy
≤±0.01Abs
10
Stability
≤±0.3%
11
Repeatability
≤0.3%
12
Vibration plate
Three kinds of linear vibration plate function,
Adjustable 0-255 seconds
13
Display
Can link tablet,laptop,desktop computer
operation English software
14

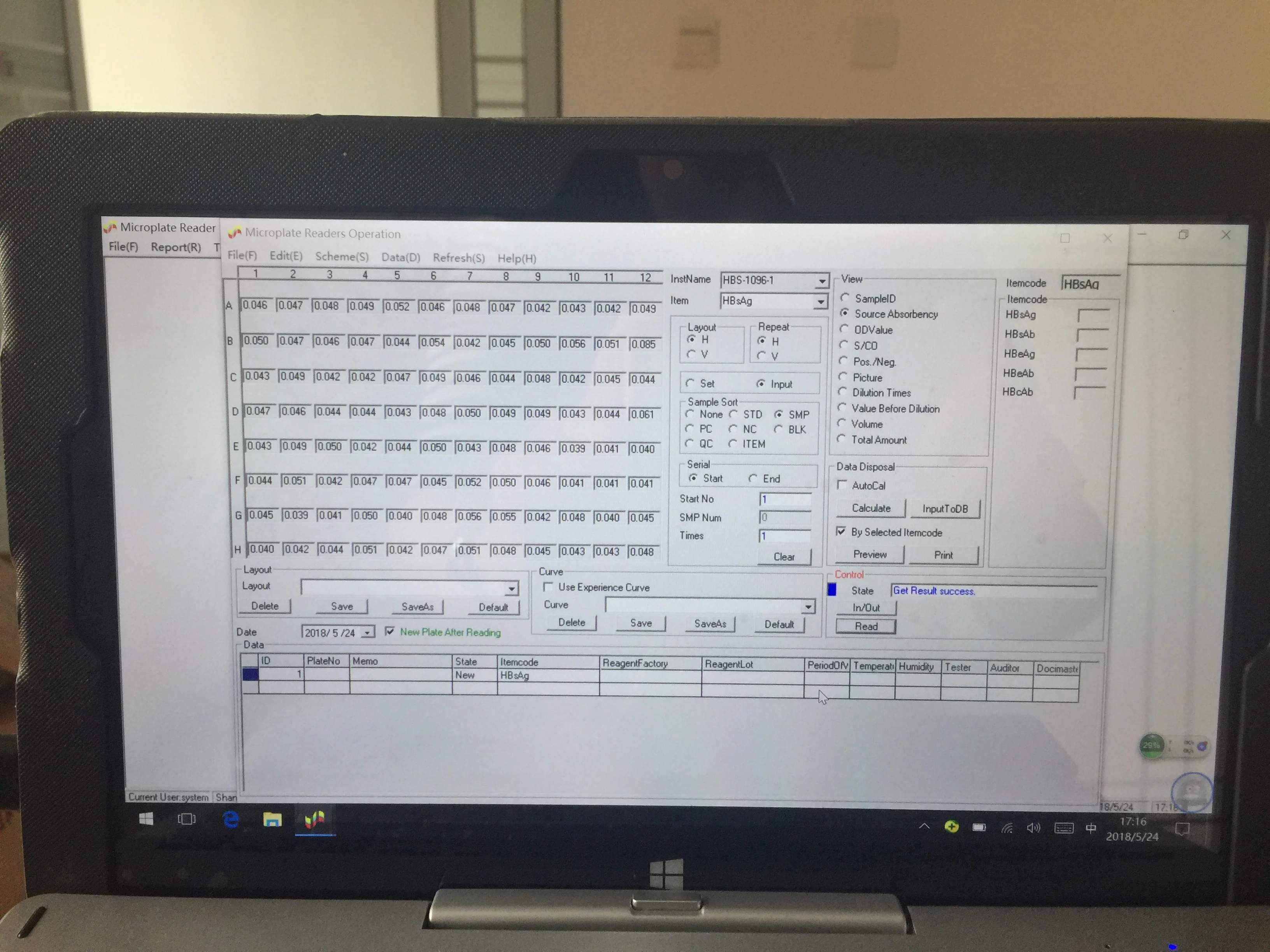

Software
Professional software,Can store 100 grops program,
100000 sample results,More than 10 kinds of curve fitting equation
15
Power input
AC100-240V 50-60HZ
Packing List
NO
Name
Quantity
Accrptance
Remark
1
Microplate Reader
1
2
USB-RS232 CAble
1
3
Power Cable
1
4
Operation Manual
1
5
Qualified Certificate
1
6
Fuse
2
Packaging & Shipping
This Microplate reader adopts three-layer packaging. Inner packaging uses the moisture-proof plastic bag,
middle packaging uses rigid shockproof foam, and the outer packaging,
rigid cardboard box or wooden box. Packaging provided by the manufacturer should be adopted for the delivery of this Microplate reader.
A well-packed Microplate reader can use motor, rail, air ad sea transport and some other modes.
A Microplate reader is a precision instrument. During the delivery, rain, snow and strong shock overweight heap pressure, over temperature, super wetting should be avoided.
