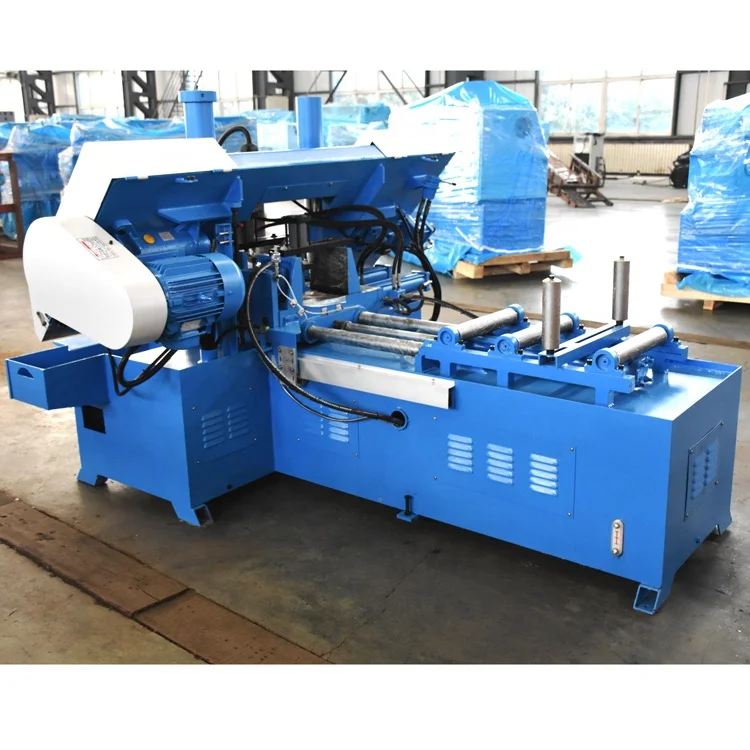

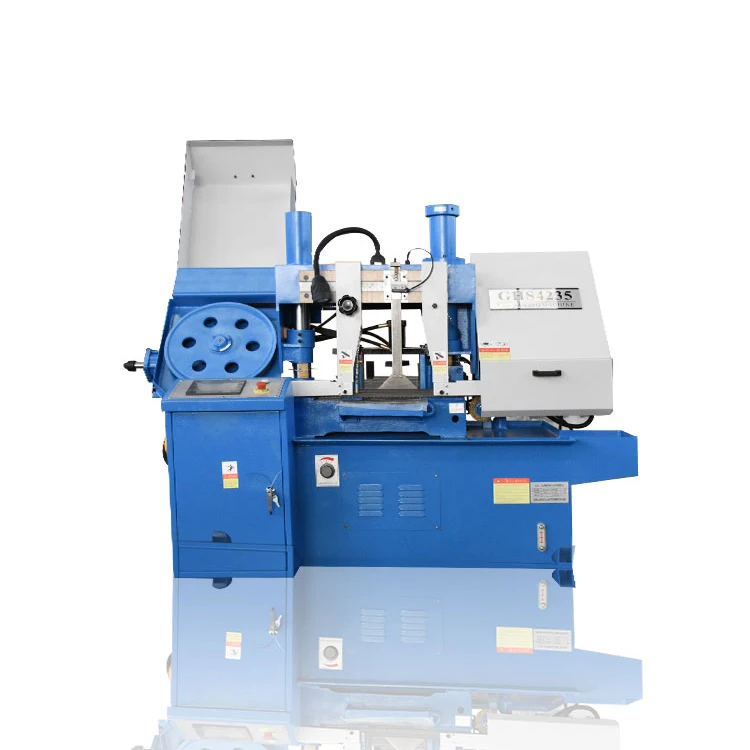

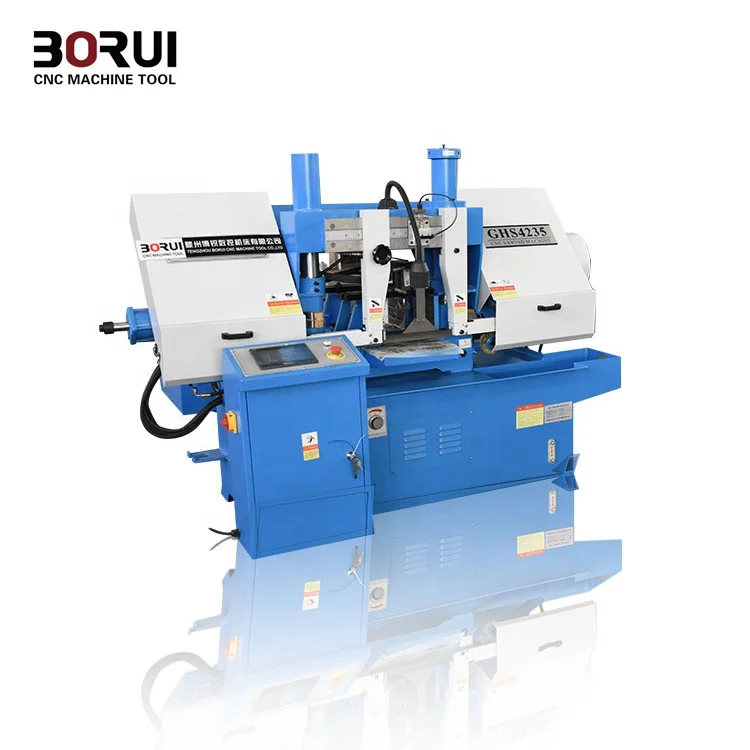

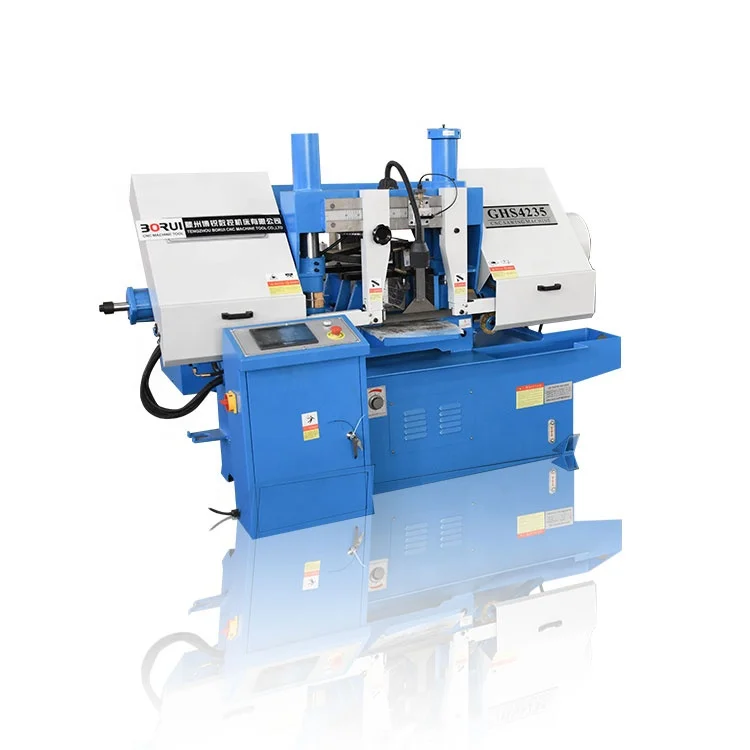

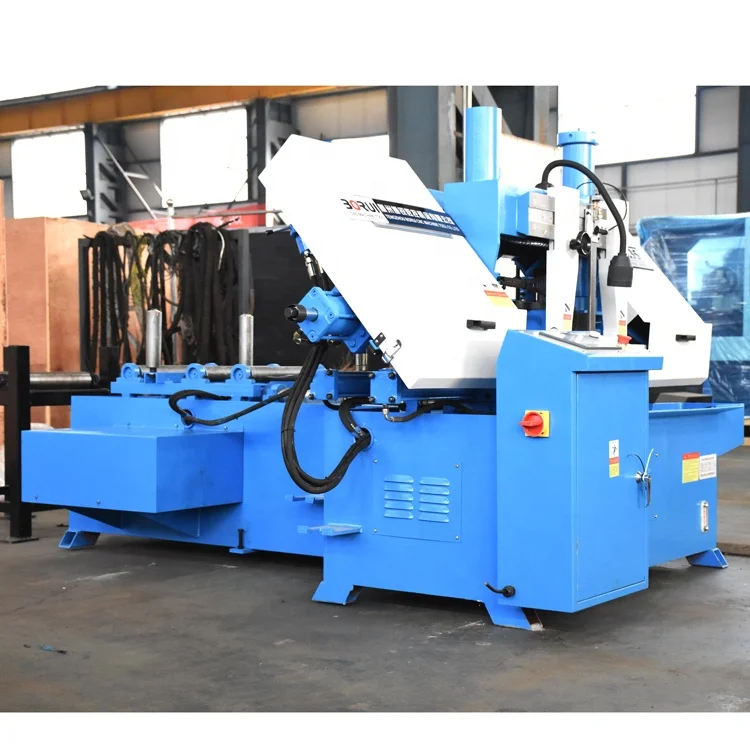

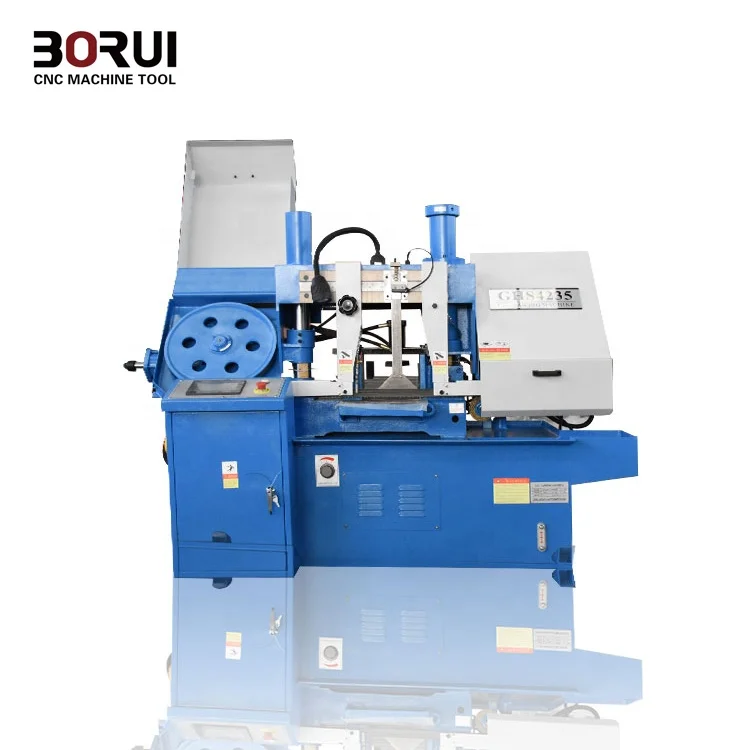

GHS4228 GHS4235 Auto Feed Horizontal CNC Band Saw Double Column CNC Band Saw Machine
- Category: >>>
- Supplier: Tengzhou Borui CNC Machine Tool Co. Ltd.
Share on (62469664931):
Product Overview
Description
GHS4228 GHS4230 GHS4235 GHS4240 automatic cnc band saw sawing machine
Product Description
Application:
Cutting speed hydraulic control, stepless regulation speed,
The guide block of scientific and reasonable structure, prolong the service life of the saw blade;
Double upright column structure, stable operation;
Sawing stability, high precision;
Work piece clamping use manual clamping, convenient operation
Application:
For high precision metal cutting, is the ideal equipment for the industrial and mining enterprises and small workshops, use is very extensive.
The guide block of scientific and reasonable structure, prolong the service life of the saw blade;
Double upright column structure, stable operation;
Sawing stability, high precision;
Work piece clamping use manual clamping, convenient operation
Application:
For high precision metal cutting, is the ideal equipment for the industrial and mining enterprises and small workshops, use is very extensive.
Product main technical parameters:
Specifications | GHS4228 | GHS4235 | GHS4240 | GHS4250 | |||||
Max Diameter(mm) | 280m280W×280H | 350m350W×350H | 400m400W×400H | 500-500W×500H | |||||
Saw Blade | size | 3505×27×0.9mm | 4115×34×1.1mm | 5000×41×1.3mm | 5800×41×1.3mm | ||||
speed | 27、45、69m/min | ||||||||
Guides | Carbide and bearing blade guides | ||||||||
Cleaning | Power wire brush & flood coolant | ||||||||
Tighten | manual | ||||||||
Feed travel | 500mm | ||||||||
Feed precison | ±0.2mm | ||||||||
Motor output | Blade | 3kw | 4kw | 4kw | 5.5kw | ||||
hydraulic | 0.75kw | 1.5kw | 1.5kw | 1.5kw | |||||
Coolant | 0.04kw | 0.04kw | 0.0125kw | 0.0125kw | |||||
Work Vise | hydraulic | ||||||||

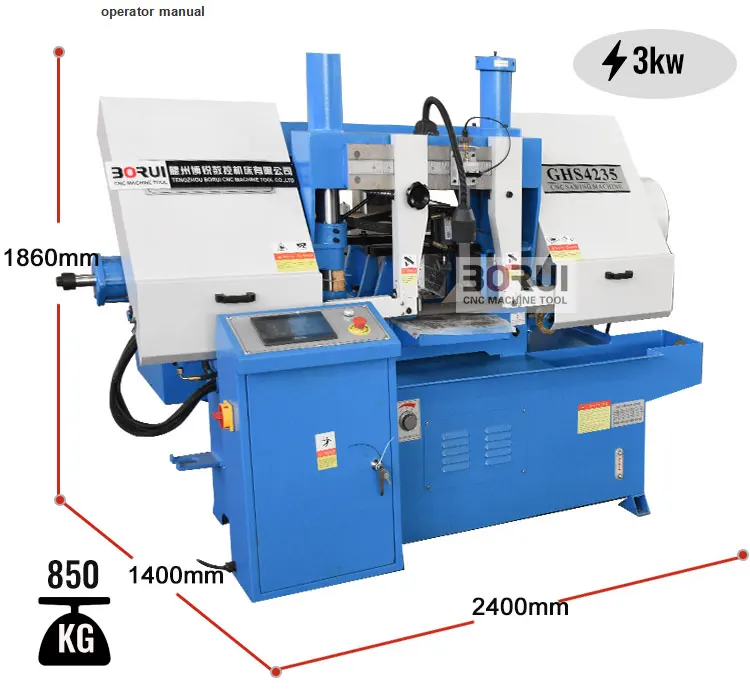

Machine size(mm) | 2370×1800×1600 | 2350×2000×1700 | 2400×2320×1800 | 2800×2300×2000 | |||||
Machine Weight(kg) | 1300 | 1400 | 1800 | 2800 | |||||

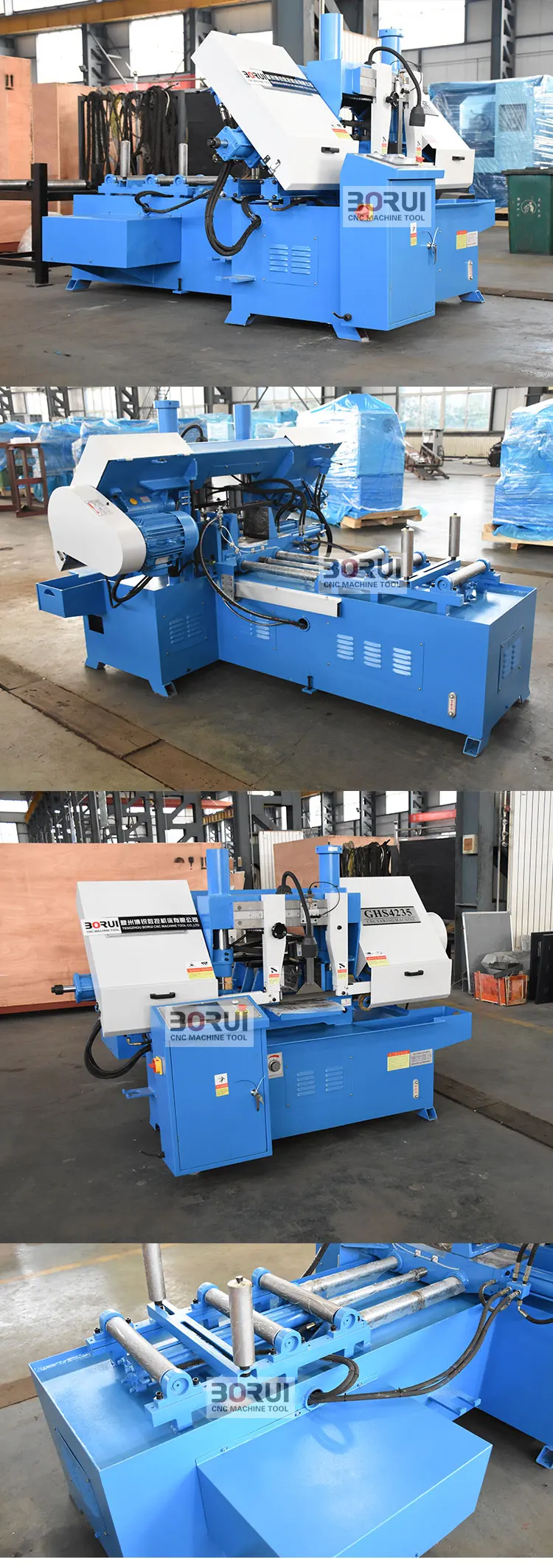

Details Display
Recommend Products
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine,gear hobbing machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine,gear hobbing machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
