underground water filter system carbon sand filter tankwith automatic valve
- Category: >>>
- Supplier: Guangzhou Yilongfa Trading Co. Ltd.
Share on (62469816491):
Product Overview
Description
Product Description

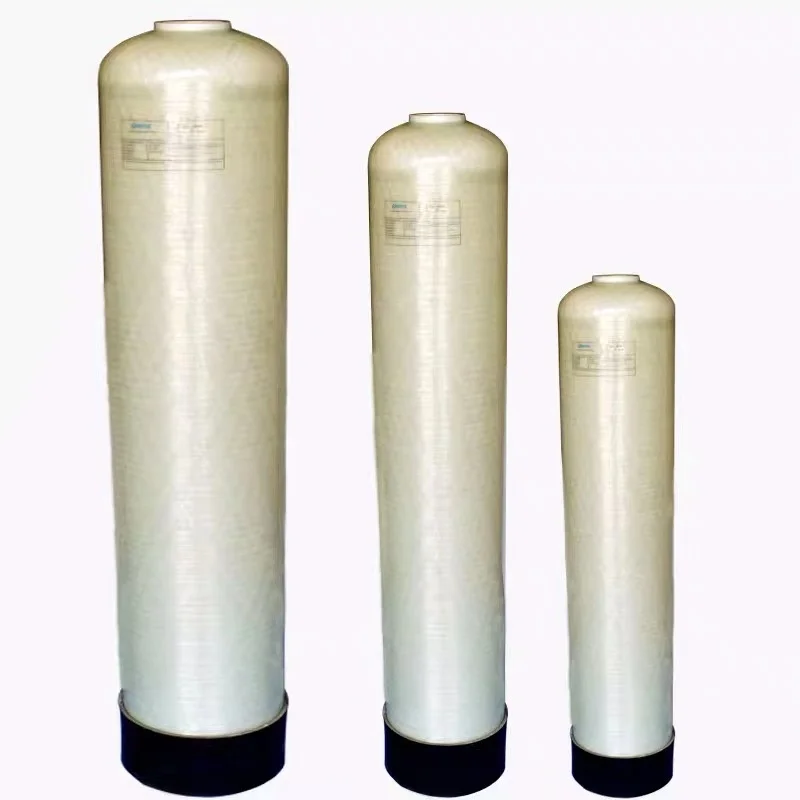

Top mounted Strong Fiberglass Quartz sand carbon filter with automatic valve for Mineral Drinking Water treatment
Sand filter is mainly used to remove the water suspended particles, organic matter, microorganisms, colloidal particles, chlorine and some heavy metal ions. It will reduce the turbidity of raw water. For example,while the raw water is less than 20 degrees,the turbidity of water will up to 3 degrees.
Activated Carbon Filter
Activated Carbon filter is mainly used to absorb odor, organic matter, colloid,residual chlorine in the water. When the filtration completed, the turbidity of water, chroma and pollution will all reduce
Softener
Softener is mainly used to remove calcium, magnesium and certain other metal ions .It will protect the membranes from scaling and blocking Product.
Application
Application Pretreatment system is a process which uses one or several filter media to purify high turbidity water under
pressure. As an important complement to the water treatment plants, it is designed to improve the water quality, especially to guarantee the RO and UF membrane's service life and finally protect the whole water treatment equipment. The common filter materials are quartz sand, activated carbon,manganese sand and resin.
pressure. As an important complement to the water treatment plants, it is designed to improve the water quality, especially to guarantee the RO and UF membrane's service life and finally protect the whole water treatment equipment. The common filter materials are quartz sand, activated carbon,manganese sand and resin.
Project case
For water softening
Features and Advantages of Manganese Sand Filter: 1. Automated Filtration Process: This device automates the process flushing process through a program control device. 2. Labor Saving: The entire washing process does not require special personnel, easy to install. 3. Provincial water: The water production rate is above 98%. 4. Power saving: Use AC power, power 30W. 5. Easy adjustment: The flush cycle can be adjusted as needed. 6. Tank anti-corrosion: The tank adopts glass steel and stainless steel lining plastic technology to avoid pollution. Technical Parameters of Manganese Sand Filter: Filtration accuracy: <80UM Water supply pressure: 0.2-0.6Mpa Tank pressure: ≤ 0.6 Mpa Interface type: Thread or ABS flange Ambient temperature: 2°C-50°C Flush control: timing, quantitative type Power supply: 220V+-22V/50Hz Power: 10W-40W The main fillers are: high white sand 8-12 mesh/10-20/ mesh/20-40 mesh.
Size Information
Quartz sand filter is also called pressure sand filter, for it filtrates water by passing pump with 0.6 MPa pressure. It can be divided into uniflow type and double-flow type. The water flows in former from upper to lower and in latter inversely. By filter material, it can be divided into monolayer and double-deck or multi-deck mechanical filter.
water quartz sand filter Stainless Steel Quartz Sand Filter
water quartz sand filter Stainless Steel Quartz Sand Filter
Different function we choose different media ,different capacity we choose different size tank!Please advise us your function and
capacity ,then we will give you a sullution soon!
capacity ,then we will give you a sullution soon!
