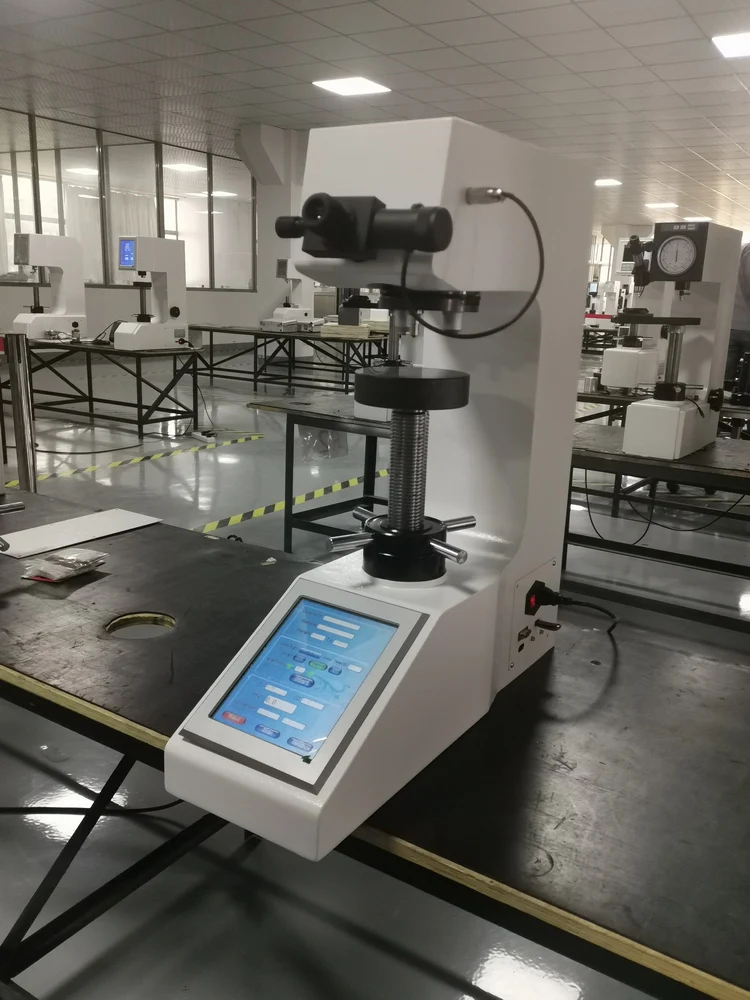

AUTO TURRET TOUCH SCREEN DIGITAL DISPLAY VICKERS TYPE HARDNESS TESTER Model HVS 100TZ

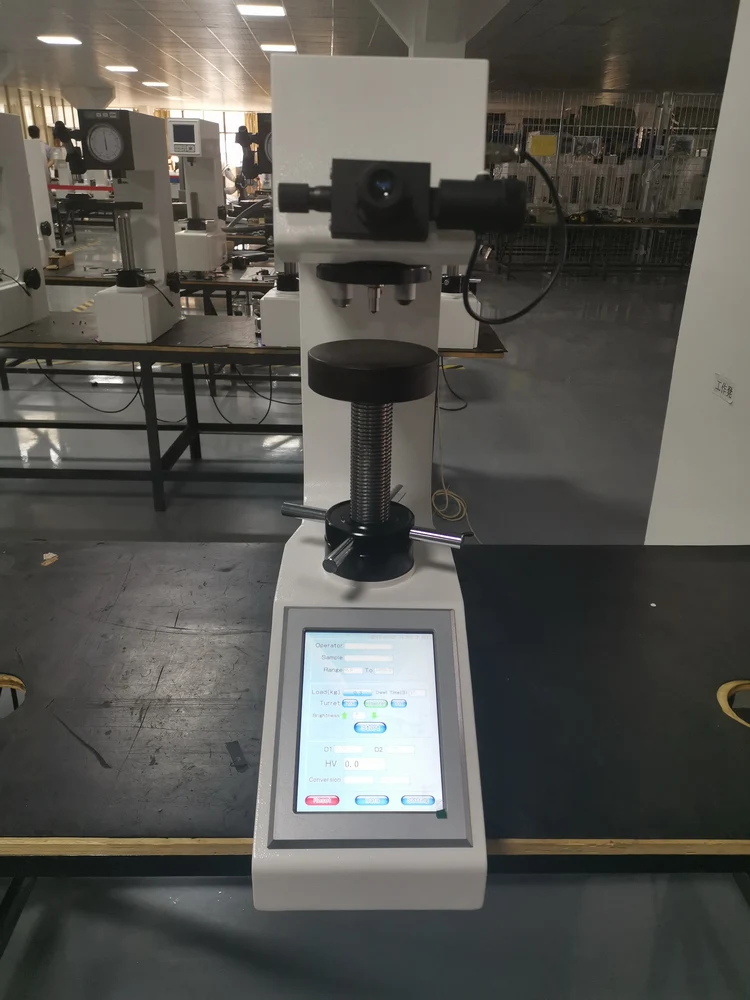

AUTO TURRET TOUCH SCREEN DIGITAL DISPLAY VICKERS TYPE HARDNESS TESTER Model HVS-100TZ
AUTO TURRET TOUCH SCREEN DIGITAL DISPLAY VICKERS TYPE HARDNESS TESTER Model HVS-100TZ

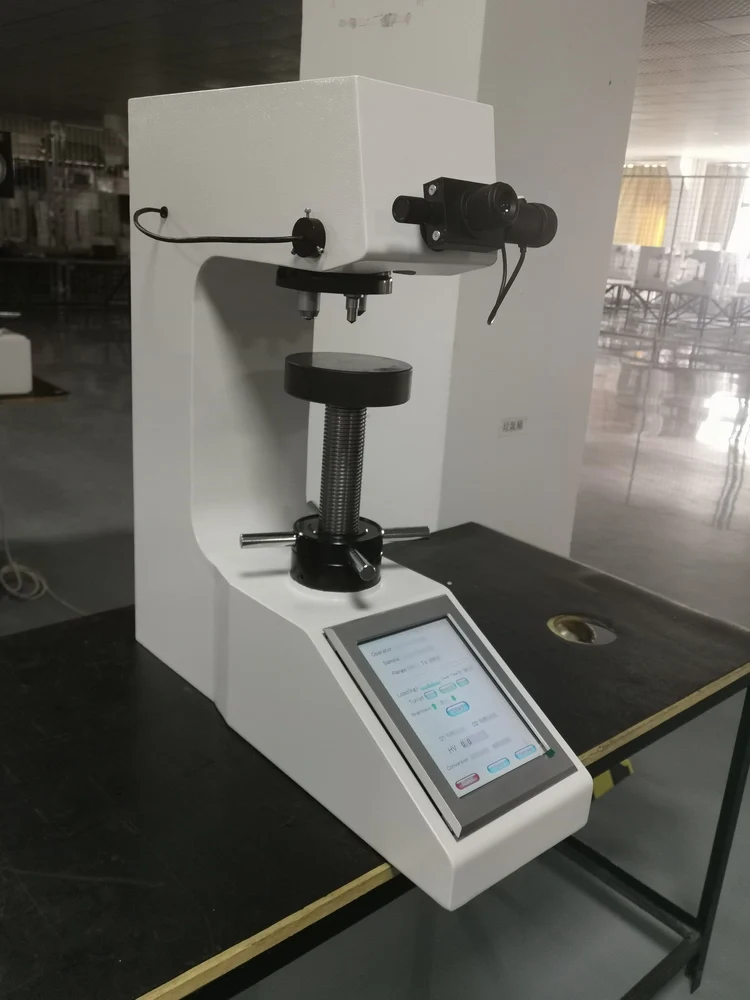

AUTO TURRET TOUCH SCREEN DIGITAL DISPLAY VICKERS TYPE HARDNESS TESTER Model HVS-100TZ

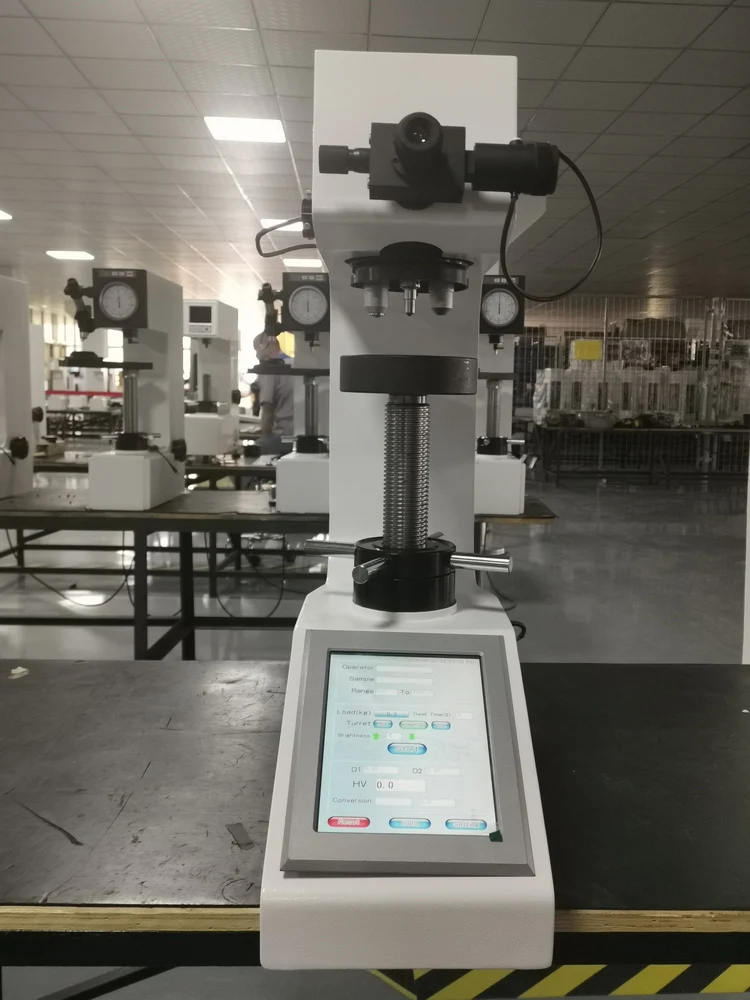

AUTO TURRET TOUCH SCREEN DIGITAL DISPLAY VICKERS TYPE HARDNESS TESTER Model HVS-100TZ

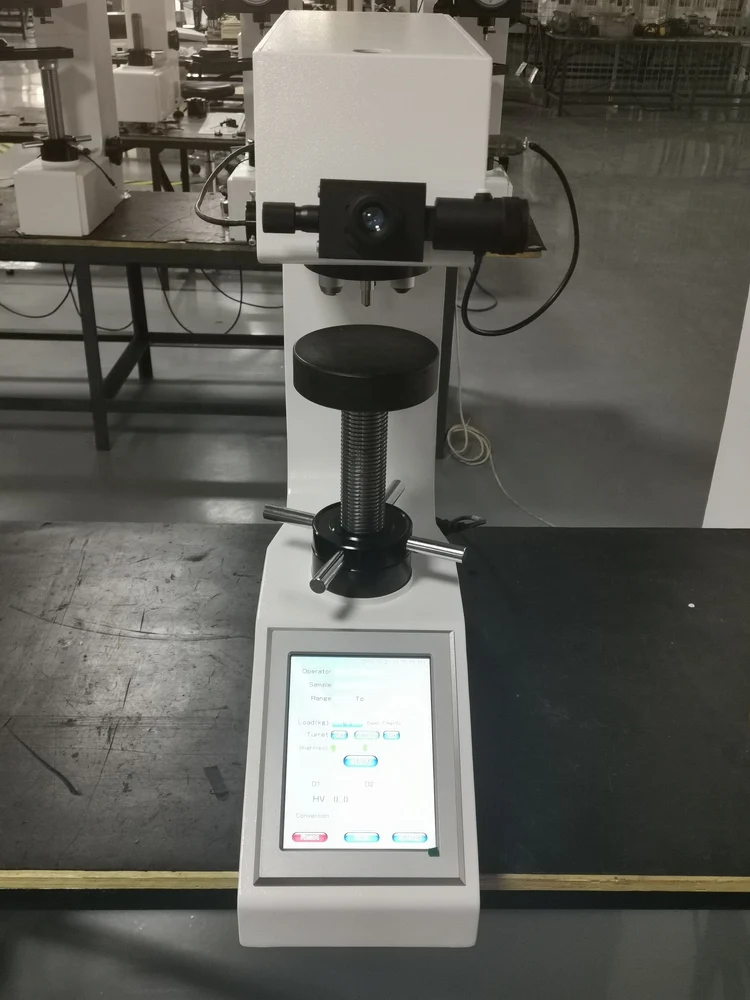

AUTO TURRET TOUCH SCREEN DIGITAL DISPLAY VICKERS TYPE HARDNESS TESTER Model HVS-100TZ
AUTO TURRET TOUCH SCREEN DIGITAL DISPLAY VICKERS TYPE HARDNESS TESTER Model HVS-100TZ

AUTO TURRET TOUCH SCREEN DIGITAL DISPLAY VICKERS TYPE HARDNESS TESTER Model HVS 100TZ

Share on (62469933919):


Price:$6,500.00 - $9,500.00

Quantity:


Product Overview

Description



Product Description




 MODEL HVS-10TZ / 50TZ / 100TZ / 120TZ

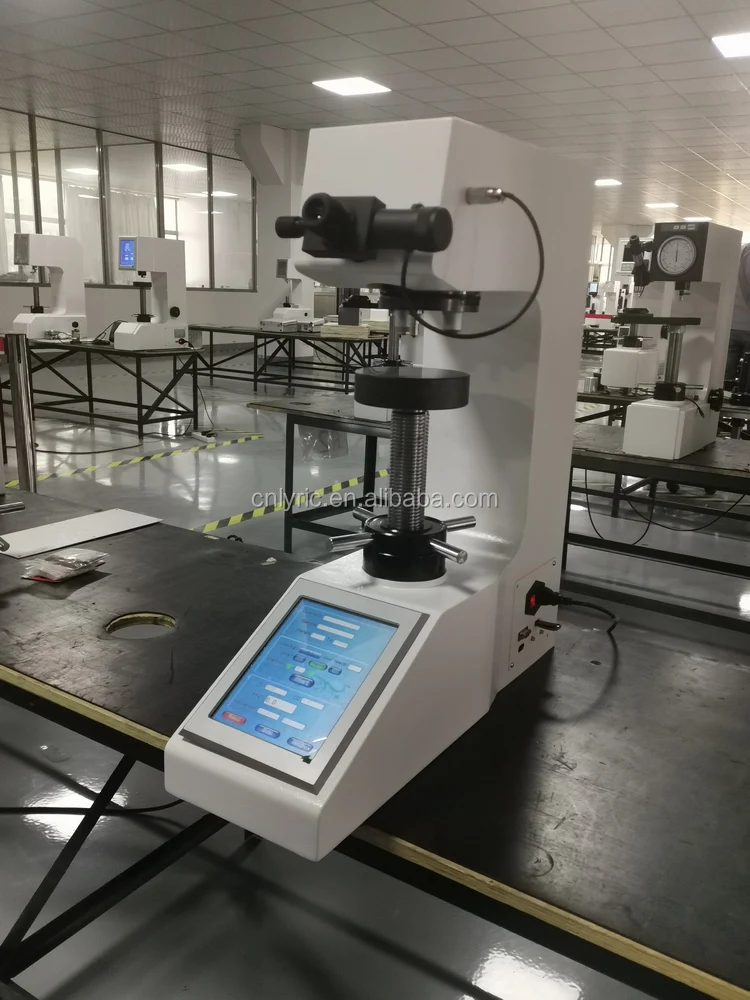

AUTO TURRET TOUCH SCREEN DIGITAL DISPLAY VICKERS HARDNESS TESTER

This hardness tester is suitable to determine the Vickers hardness of steel, non-ferrous metals, ceramics, treated layers of metal surface, and the hardness grads of carburized, nitrided and hardened layers of metals. It is and also suitable to determine the Vickers hardness of micro and super thin parts.

Features:
  * Automatic turret shifting between indenter and objective lens
* Automatic electric loading without weights, closed-loop control
* Equipped with a large 8" LCD touch screen, which adopts menu operation interface, HV or HK (optional) can be selected in operation panel, the measured hardness value can be automatically calculated and displayed.
* Hardness conversion between various hardness scales
* Test force automatically corrected, which improves the testing accuracy a lot
* Hardness value automatically corrected according to different hardness block
* Double lenses for hardness measurement.
* Calibration can be made according to standard hardness block or length scale so as to make the hardness value more accurate to meet the requirement.
* The eyepiece is equipped with digital encoder, the hardness value and D1 & D2 value can be displayed on screen directly.
* USB data interface, data saved as EXCEL format through USB flash disk, easy editing and processing
* The information of test samples, operator etc. can be input and saved.
* Password can be set to protect setting parameters.
* Modular design, easy maintenance, large space for sample.
* Optional image measuring system can be equipped with this hardness tester so as to connect with computer for automatic operation.

Specifications:


Model
HVS-10TZ
HVS-50TZ
HVS-100TZ
HVS-120TZ
Test force
0.3Kgf (2.94N),
0.5Kgf (4.90N),
1.0 Kgf (9.8N),
2.0Kgf (19.6N),
3.0Kgf (29.4N),
5.0Kgf (49.0N),
10.0Kgf (98.0N)
1.0Kgf (9.8N),
2.0Kgf (19.6N),
3.0Kgf (29.4N),
5.0Kgf (49.0N),
10.0Kgf (98.0N),
20.0Kgf (196N),
30.0Kgf (294N),
50.0Kgf (490N)
5Kgf (49.0N),
10Kgf (98.0N),
20Kgf (196N),
30Kgf (294N),
50Kgf (490N),
100Kgf (980N)
2 Kgf (19.61N),
3Kgf (29.42N),
5Kgf (49.0N),
10Kgf (98.0N),
20Kgf (196N),
30Kgf (294N),
50Kgf (490N),
60Kgf (588.4N),
100Kgf (980.7N),
120Kgf (1176N)
Standard Conforms to
GB/T4340.2, ISO 6507-23, ASTM E92
Min measuring unit
0.125um (0.0625um optional)
Conversion Scale
HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T
Hardness measuring range
8~2900HV
Method of testing
force applied
Automatic loading, dwelling , unloading
Test microscope
magnification
100X, 200X
(both can be used for observation and measurement)
Test force dwell time
0~99s
Data output
8" LCD screen display
Maximum specimen height
160mm
180mm
Distance from the center to the outer wall of the indenter
135mm
160mm
Power supply
AC 220V /110V, 50 / 60Hz
Dimensions
600*190*620mm
580*240*660mm
Net Weight
About 50Kg


 Standard Accessories:
No.
Item
Quantity
1
Vickers Hardness Block
2 Pcs.
2
Middle, Large, V shape testing table
Each 1 Pc.
3
Regulating Screw
4 Pcs.
4
10×Micro Eyepiece
1 Pc.
5
Dust cover
1 Pc.
6
Spare Fuses (2A)
2 Pcs.
7
Power Cord
1 Pc.
8
USB flash disk
1 Pc.
9
Touch screen pen
1 Pc.
10
Production certificate
1 Pc.
11
Instruction
1 Pc.


Optional Accessories:

 Note: Special accessories can be provided.
* X-Y test anvil
* Video measuring apparatus can be provided. It can display the testing indentation image on the screen and make the measurement.
* CCD image processing system can be provided. It will clearly show indentation image on a computer screen, and make automatic or
manual measurement through PC.
