Product Overview
Description

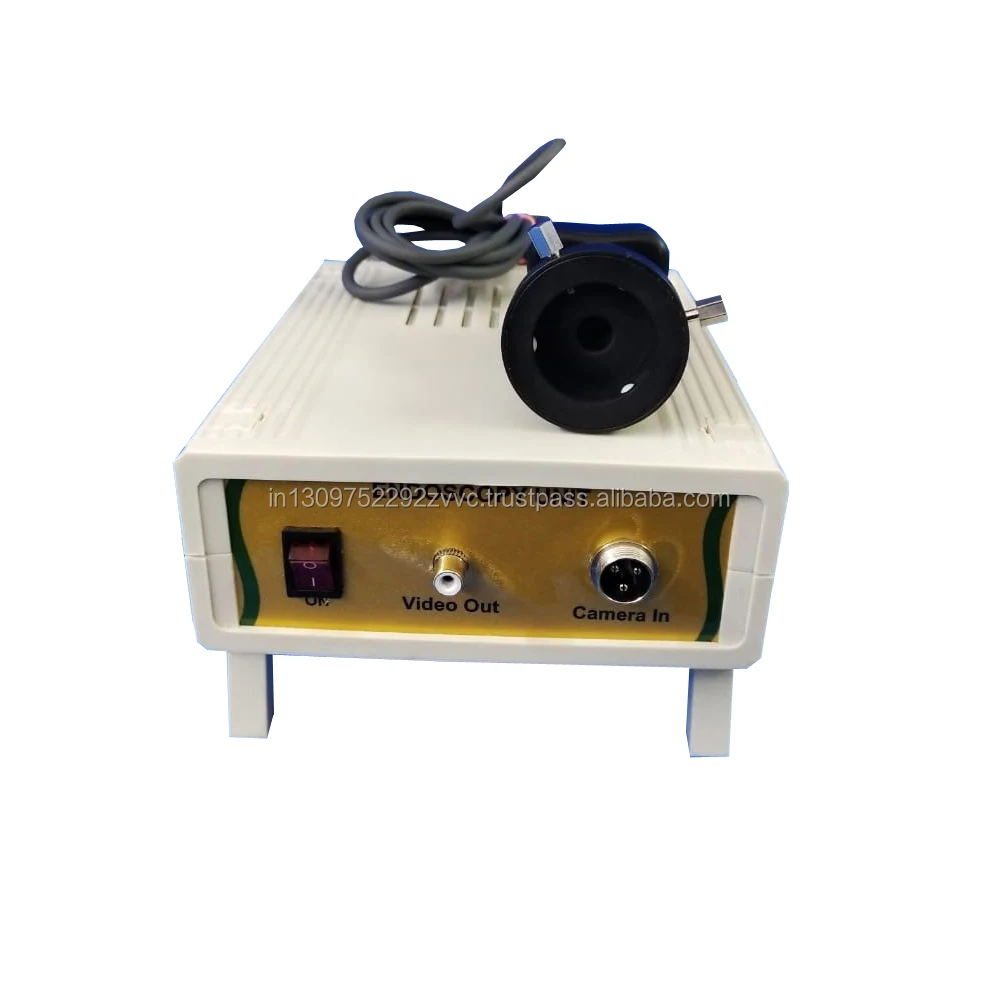

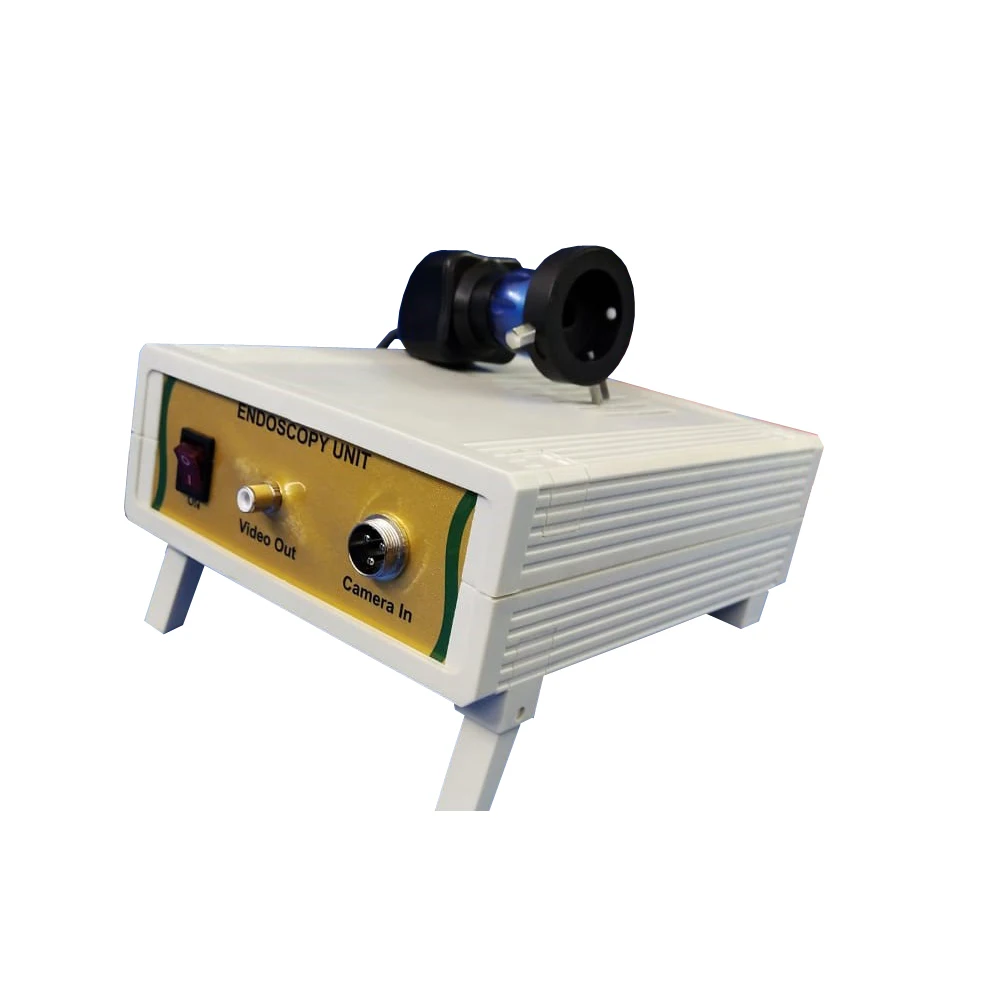

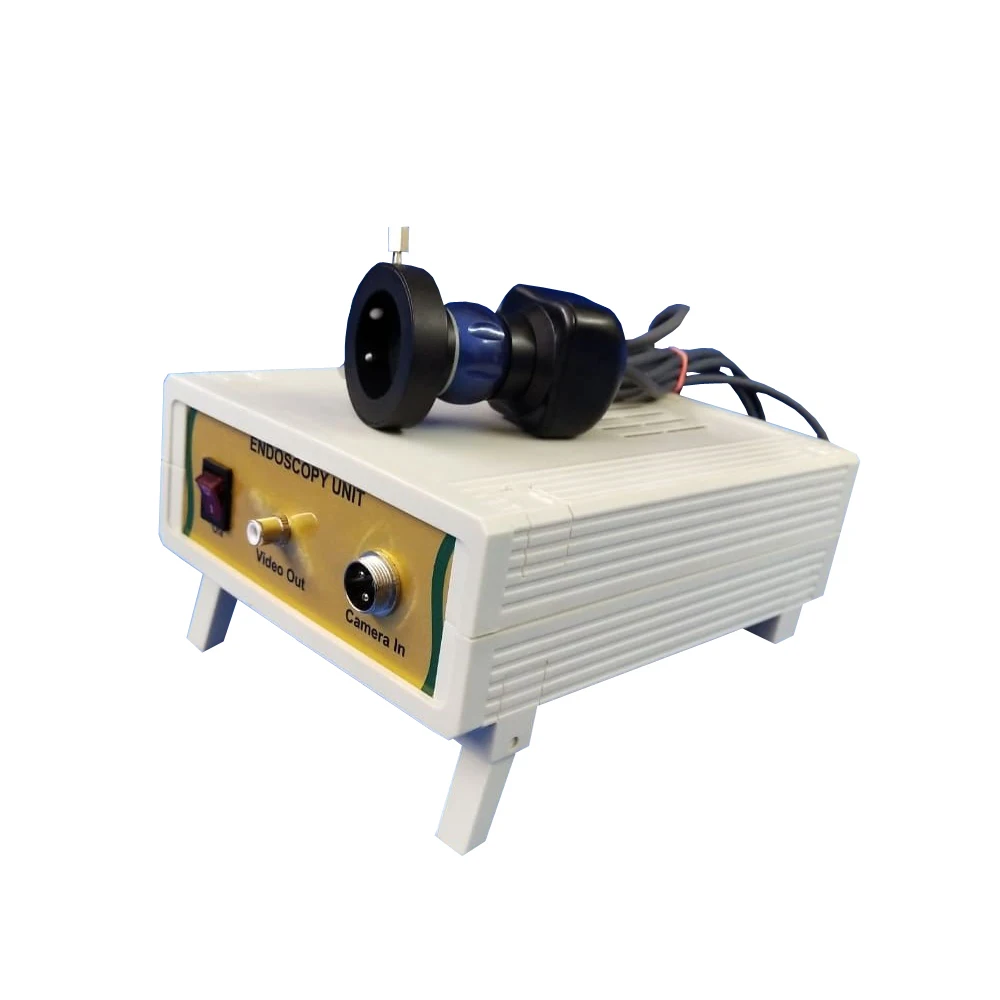

ENT OPD CAMERA
MS 50
Video
| Imaging Device | 1/3" CMOS |
| Total Pixels | 1.3 Megapixels |
| Effective Pixels | 1,280 (H) x 960 (V) |
| Scanning System | Progressive Scanning |
| Synchronization | Internal |
| Frequency | PAL - H : 15.625KHz / V : 50Hz |
| Horizontal Resolution | Color : 750TV Lines |
| Video Output | CVBS : 1.0 Vpp / 75 Composite |
| Min. Illumination | B/W : 0 Lux (IR LED on) |
| S / N Ratio | 58dB |
Lens
| Focal Length (Zoom Ratio) | 25mm (Fixed) |
| Max. Aperture Ratio | F1.8+ 5% |
| Angular Field of View | H : 78 Degree / V : 62.5 Degree / D : 100 Degree |
| Min. Object Distance | 0.2m (0.66ft) |
| Lens Type | Fixed |
| Mount Type | C-Mount Type |
Operational
| Day & Night | ICR |
| Digital Noise Reduction | Auto |
| Gain Control | Auto |
| White Balance | Auto |
| Shutter Mode | Auto |
| IR Distance | 30m (With in 3rd Generation IR LED - Array, 2ea) |
