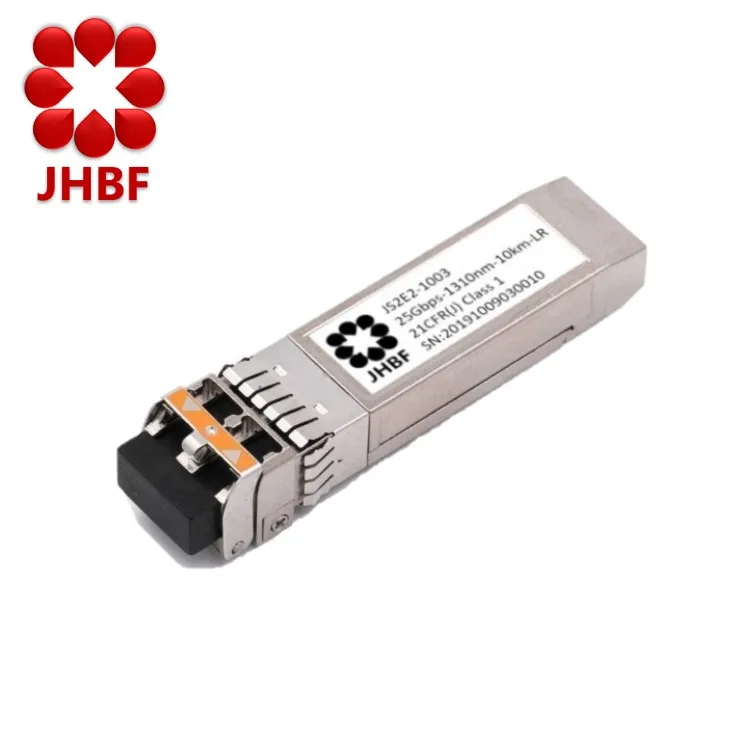

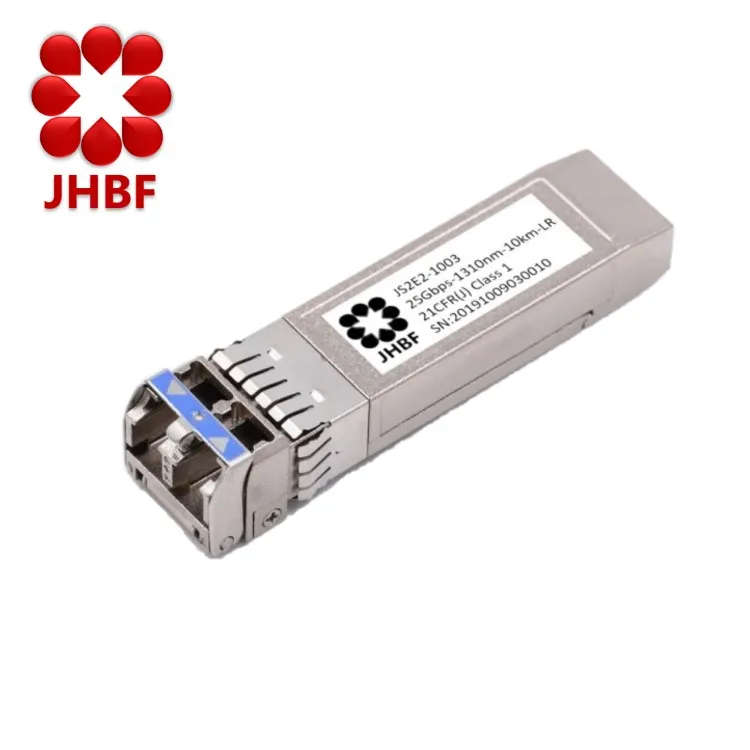

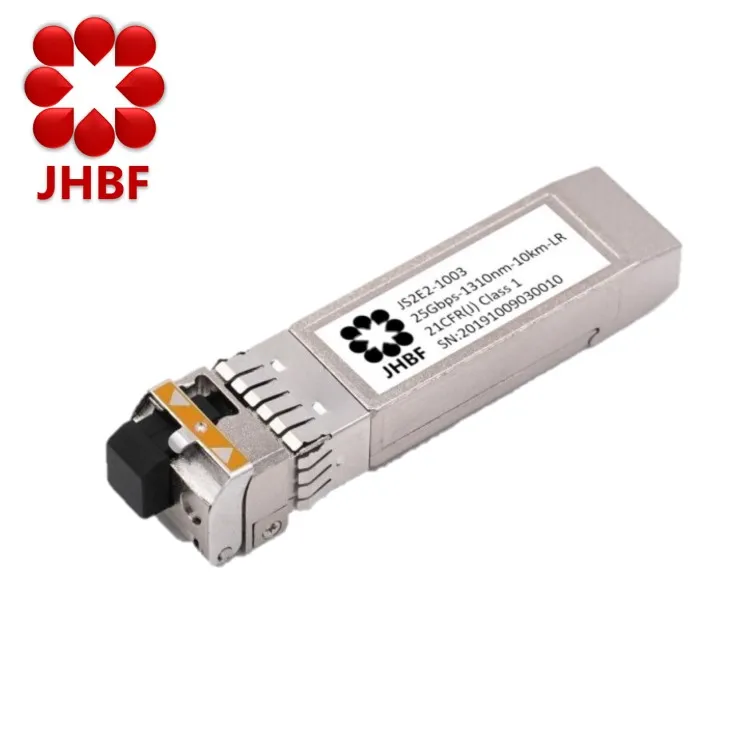

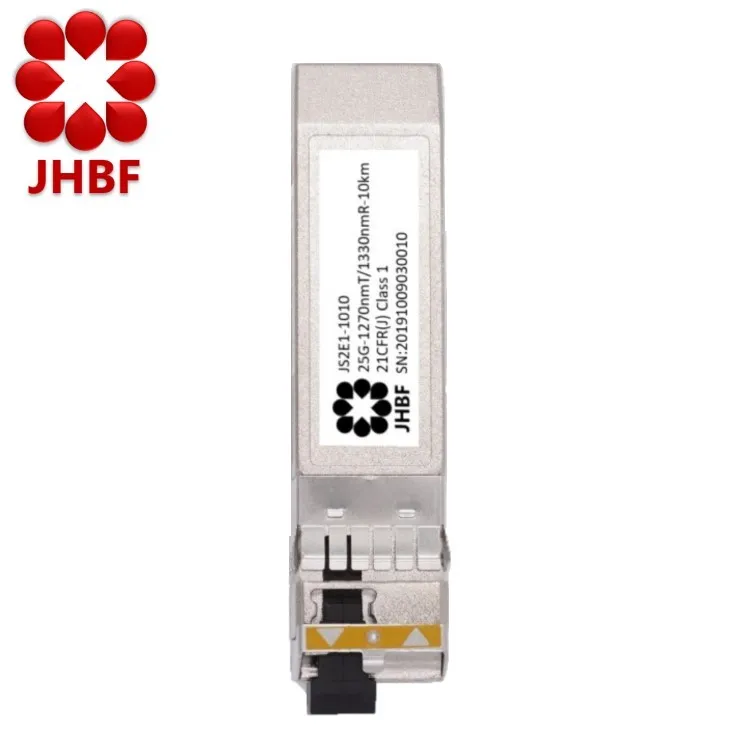

Compatible Finisar 1.25g 1550nm 1310nm 40km 1000base industrial sfp fiber optical transceiver for switch router video sdi
- Category: Fiber Optic Equipment old >>>
- Supplier: Beijing,JHBF,Technology,Development,Co.,Ltd.
Share on:
Product Overview
Description
Products Description
The JHBF SFP is designed for the high-speed and bidirectional telecommunication system, supporting any data rate from 100 Mbit/s
to 2.5 Gbit/s, and the transmission distance is up to 120 km. The JHBF SFP series optical transceiver is designed by all metal case and standard LC interface, and have good EMI and ESD performance. It also supports Class 1 laser product safety standards.
Moreover, JHBF SFP series optical transceiver complies with ITU-T and IEEE standards and Multi Source Agreement (MSA). It can be directly inserted into telecommunication equipment of Cisco, H3C, Huawei, and other manufactures. It is widely used in the network of carrier and data center.
to 2.5 Gbit/s, and the transmission distance is up to 120 km. The JHBF SFP series optical transceiver is designed by all metal case and standard LC interface, and have good EMI and ESD performance. It also supports Class 1 laser product safety standards.
Moreover, JHBF SFP series optical transceiver complies with ITU-T and IEEE standards and Multi Source Agreement (MSA). It can be directly inserted into telecommunication equipment of Cisco, H3C, Huawei, and other manufactures. It is widely used in the network of carrier and data center.
Highlights
Support any rate from 155M~2.5G, include STM1/STM4/STM16, FC1/2, CPRI option 1/2/3, FE/GE.
Comply with SFP MSA, ITU-T and IEEE standard.
Compatible to multi manufacturer equipment, such as switch and router of Cisco, Juniper, H3C, Huawei and so on.
Fully RoHS Compliant.
Standard LC connector.
Very low EMI and excellent ESD protection
Low power consumption.
Provide more powerful monitoring functions (DDM comply with the SFF-8472 protocol).
Meet the operating temperature range of commercial and industrial.
Support the Class 1 laser product safety standards (IEC 60825-1and IEC 60825-2).
Comply with SFP MSA, ITU-T and IEEE standard.
Compatible to multi manufacturer equipment, such as switch and router of Cisco, Juniper, H3C, Huawei and so on.
Fully RoHS Compliant.
Standard LC connector.
Very low EMI and excellent ESD protection
Low power consumption.
Provide more powerful monitoring functions (DDM comply with the SFF-8472 protocol).
Meet the operating temperature range of commercial and industrial.
Support the Class 1 laser product safety standards (IEC 60825-1and IEC 60825-2).
Application
It can be widely used in 2G/3G base station for mobile front haul and mobile back haul network. And it can be used in routers or switches or OTN/SDH equipment.
Ethernet (FE/GE)
SDH /SONET (STM-1/4/16), OTN(OTU1)
CPRI/OBSAI Mobile front haul (CPRI option1/2/3)
Fiber channel( FC1/2)
Others optical links(any 100M~2.5Gbps)
Ethernet (FE/GE)
SDH /SONET (STM-1/4/16), OTN(OTU1)
CPRI/OBSAI Mobile front haul (CPRI option1/2/3)
Fiber channel( FC1/2)
Others optical links(any 100M~2.5Gbps)
Specifications
Parameter | Min. | Typ. | Max. | Unit |
Storage temperature | -40 | – | +85 | °C |
Operating temperature | 0 | – | +70 | °C |
Relative Humidity | 0 | - | 85 | % |
Supply Voltage | 3.14 | 3.3 | 3.47 | V |
Number | Data rate (bits/s) | Distance | Wavelength (nm) | Tx/Rx | Tx power (dBm) | Overload (dBm) | Sensitivity (dBm) |
JSF12-0203 | 155M | 2km | 1310 | FP/PIN | (-20,-10) | -10 | -30 |
JSF12-1503 | 155M | 15km | 1310 | FP/PIN | (-15,-8) | -8 | -36 |
JSF12-4003 | 155M | 40km | 1310 | DFB/PIN | (-5,0) | -8 | -36 |
JSF12-8005 | 155M | 80km | 1550 | DFB/PIN | (-5,0) | -10 | -36 |
JSF11-1506 | 155M | 15km | 1310T/1550R | FP/PIN | (-15,-8) | -8 | -30 |
JSF11-1507 | 155M | 15km | 1550T/1310R | DFB/PIN | (-15,-8) | -8 | -30 |
JSF11-4006 | 155M | 40km | 1310T/1550R | DFB/PIN | (-5,0) | -8 | -34 |
JSF11-4007 | 155M | 40km | 1550T/1310R | DFB/PIN | (-5,0) | -8 | -34 |
JSF11-8000 | 155M | 80km | 1490T/1550R | DFB/PIN | (-3,2) | -8 | -34 |
JSF11-8001 | 155M | 80km | 1550T/1490R | DFB/PIN | (-3,2) | -8 | -34 |
JSF22-H502 | 1.25G | 0.55km | 850 | VSCEL/PIN | (-9.5,-3) | 0 | -19 |
JSF22-H502 | 1.25G | 0.55km | 850 | VCSEL/PIN | (-9.5,-3) | 0 | -19 |
JSF22-1003 | 1.25G | 10km | 1310 | FP/PIN | (-10,-3) | -3 | -22 |
JSF22-2003 | 1.25G | 20km | 1310 | FP/PIN | (-10,-3) | -3 | -23 |
JSF22-4003 | 1.25G | 40km | 1310 | FP/PIN | (-4,0) | -3 | -23 |
JSF22-4005 | 1.25G | 40km | 1550 | DFB/PIN | (-3,2) | -3 | -23 |
JSF22-6005 | 1.25G | 60km | 1550 | DFB/PIN | (-2,3) | -3 | -24 |
JSF22-8005 | 1.25G | 80km | 1550 | DFB/PIN | (0,5) | -3 | -26 |
JSF22-H105 | 1.25G | 100km | 1550 | DFB/PIN | (0,5) | -3 | -28 |
JSF22-T205 | 1.25G | 120km | 1550 | DFB/APD | (0,5) | -9 | -32 |
JSF21-2006 | 1.25G | 20km | 1310T/1550R | FP/PIN | (-10,-3) | -3 | -22 |
JSF21-2007 | 1.25G | 20km | 1550T/1310R | DFB/PIN | (-10,-3) | -3 | -22 |
JSF21-2006I | 1.25G | 20km | 1310T/1550R | FP/PIN | (-10,-3) | -3 | -22 |
JSF21-2007I | 1.25G | 20km | 1550T/1310R | DFB/PIN | (-10,-3) | -3 | -22 |
JSF21-2008 | 1.25G | 20km | 1310T/1490R | FP/PIN | (-10,-3) | -3 | -22 |
JSF21-2009 | 1.25G | 20km | 1490T/1310R | DFB/PIN | (-10,-3) | -3 | -22 |
JSF21-4006 | 1.25G | 40km | 1310T/1550R | DFB/PIN | (-5,0) | -3 | -22 |
JSF21-4007 | 1.25G | 40km | 1550T/1310R | DFB/PIN | (-5,0) | -3 | -22 |
JSF21-4006I | 1.25G | 40km | 1310T/1550R | DFB/PIN | (-5,0) | -3 | -22 |
JSF21-4007I | 1.25G | 40km | 1550T/1310R | DFB/PIN | (-5,0) | -3 | -22 |
JSF21-6006 | 1.25G | 60km | 1310T/1550R | DFB/PIN | (-3,2) | -3 | -24 |
JSF21-6007 | 1.25G | 60km | 1550T/1310R | DFB/PIN | (-3,2) | -3 | -24 |
JSF21-8000 | 1.25G | 80km | 1490T/1550R | DFB/PIN | (-3,2) | -3 | -28 |
JSF21-8001 | 1.25G | 80km | 1550T/1490R | DFB/PIN | (-3,2) | -3 | -28 |
JSF21-H100 | 1.25G | 100km | 1490T/1550R | DFB/PIN | (0,5) | -3 | -28 |
JSF21-H101 | 1.25G | 100km | 1550T/1490R | DFB/PIN | (0,5) | -3 | -28 |
JSF21-T200 | 1.25G | 120km | 1490T/1550R | DFB/APD | (0,5) | -9 | -32 |
JSF21-T201 | 1.25G | 120km | 1550T/1490R | DFB/APD | (0,5) | -9 | -32 |
JSF32-H302 | 2.5G | 300m | 850 | VCSEL/PIN | (-10,-3) | -3 | -16 |
JSF32-2003 | 2.5G | 20km | 1310 | DFB/PIN | (-5,0) | -3 | -18 |
JSF32-4005 | 2.5G | 40km | 1550 | DFB/PIN | (-3,2) | -3 | -18 |
JSF32-8005 | 2.5G | 80km | 1550 | DFB/APD | (-3,2) | -3 | -28 |
JSF31-2006 | 2.5G | 20km | 1310T/1550R | DFB/PIN | (-5,0) | -3 | -18 |
JSF31-2007 | 2.5G | 20km | 1550T/1310R | DFB/PIN | (-5,0) | -3 | -18 |
JSF31-4006 | 2.5G | 40km | 1310T/1550R | DFB/PIN | (-3,2) | -3 | -18 |
JSF31-4007 | 2.5G | 40km | 1550T/1310R | DFB/PIN | (-3,2) | -3 | -18 |
JSF31-8000 | 2.5G | 80km | 1490T/1550R | DFB/APD | (0,5) | -9 | -22 |
JSF31-8001 | 2.5G | 80km | 1550T/1490R | DFB/APD | (0,5) | -9 | -22 |
JSF23-H1 | 1000M | 100m | - | - | - | - | - |
JSFG3-H1 | 10/100/1000M | 100m | - | - | - | - | - |
Order infomation
Number | Product Description |
JSF22-H502 | |
JSF22-1003 | |
JSF22-2003 | |
JSF22-4003 | |
JSF22-4005 | |
JSF22-6005 | |
JSF22-8005 | |
JSF22-H105 | |
JSF22-T205 | |
JSF21-2006 | |
JSF21-2007 | |
JSF21-2006I | |
JSF21-2007I | |
JSF21-2008 | |
JSF21-2009 | |
JSF21-4006 | |
JSF21-4007 | |
JSF21-4006I | |
JSF21-4007I | |
JSF21-6006 | |
JSF21-6007 | |
JSF32-H302 | |
JSF32-2003 | |
JSF32-4005 | |
JSF32-8005 | |
JSF31-2006 | |
JSF31-2007 | |
JSF31-4006 | |
JSF31-4007 | |
JSF31-8000 | |
JSF31-8001 |
Certifications

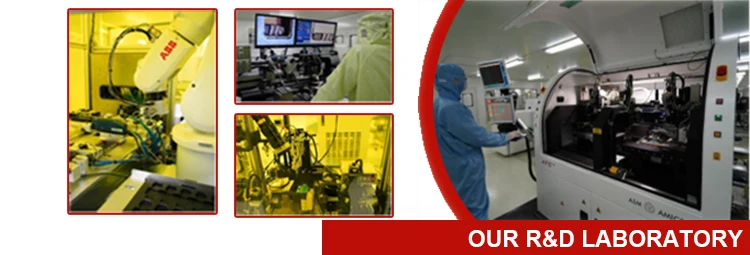

Company Profile
