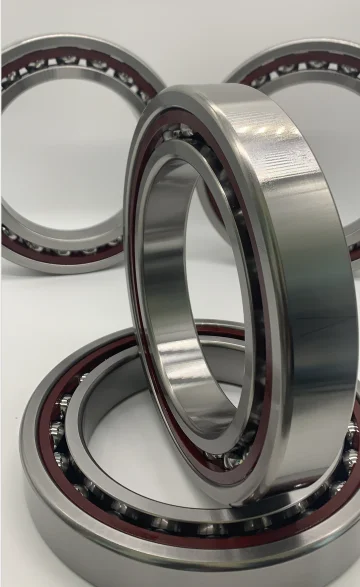

High Precision LYZYC Brand Angular Contact Ball Bearing 7206 AC/P4
- Category: >>>
- Supplier: Shandong Zhongyue Precision Bearing Co. Ltd.
Share on (62470279907):
Product Overview
Description
High Precision LYZYC Brand Angular Contact Ball Bearing 7206 AC/P4:
Features
Angular contact ball bearings have raceways in the inner and outer rings that are displaced with respect to each other in the direction of the bearing axis, which means that they are designed to accommodate combined loads, i.e. simultaneously supporting radial and axial loads.The axial load carrying capacity of angular contact ball bearings increases with increasing contact angle. The contact angle α is defined as the angle between the line joining the points of contact of the ball and the raceways in the radial plane, along which the load is transmitted from one raceway to another, and a line perpendicular to the bearing axis.Retainers are made of brass ,synthetic resin of others subject to individual bearing features and application conditions.
Working principle:
It uses axially asymmetric races. An axial load passes in a straight line through the bearing, whereas a radial load takes an oblique path that tends to want to separate the races axially. So the angle of contact on the inner race is the same as that on the outer race. Angular contact bearings better support "combined loads" (loading in both the radial and axial directions) and the contact angle of the bearing should be matched to the relative proportions of each. The larger the contact angle (typically in the range 10 to 45 degrees), the higher the axial load supported, but the lower the radial load.
Types:
Angular contact ball bearings are produced in a wide variety of designs and sizes.Those commonly used and included in this catalogue are:
1.Single-row angular contact ball bearings
Axial load in single direction can be sustained. While supporting pure radial load, the bearings must be installed and used in pairs since the line of action of the rolling element load is not in the same plane as that of the radial one, resulting in inner separate force.
2.Double-row angular contact ball bearings
This is basically a back-to-back mounting of two single-row angular contact ball bearings, but their inner and outer rings are each integrated into one. Axial loads in both directions can be sustained, and the capacity to sustain moments is good. This type is used as fixed-end bearings. Their cages are pressed steel.
3.Four-point angular contact ball bearings
The inner ring is split radially into two pieces. Their design allows one bearing to sustain significant axial loads in either direction. The contact angle is 35°, so the axial load capacity is high. This type is suitable for carrying pure axial loads or combined loads where the axial loads are high. The cages are made of machined brass.
They are mainly used for steel industry,mining&construction,papermaking machinery, wind turbines,semiconductors,machine tools,gearboxes,electric motors,pumps&compressors,injection moldingmachines.

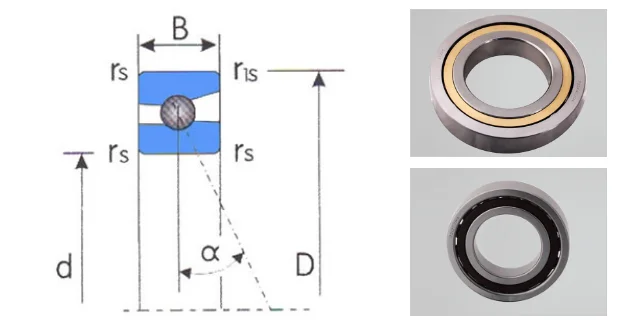

Specifications
| d | 30mm |
| D | 62mm |
| B | 16mm |
| m | 0.20kg |

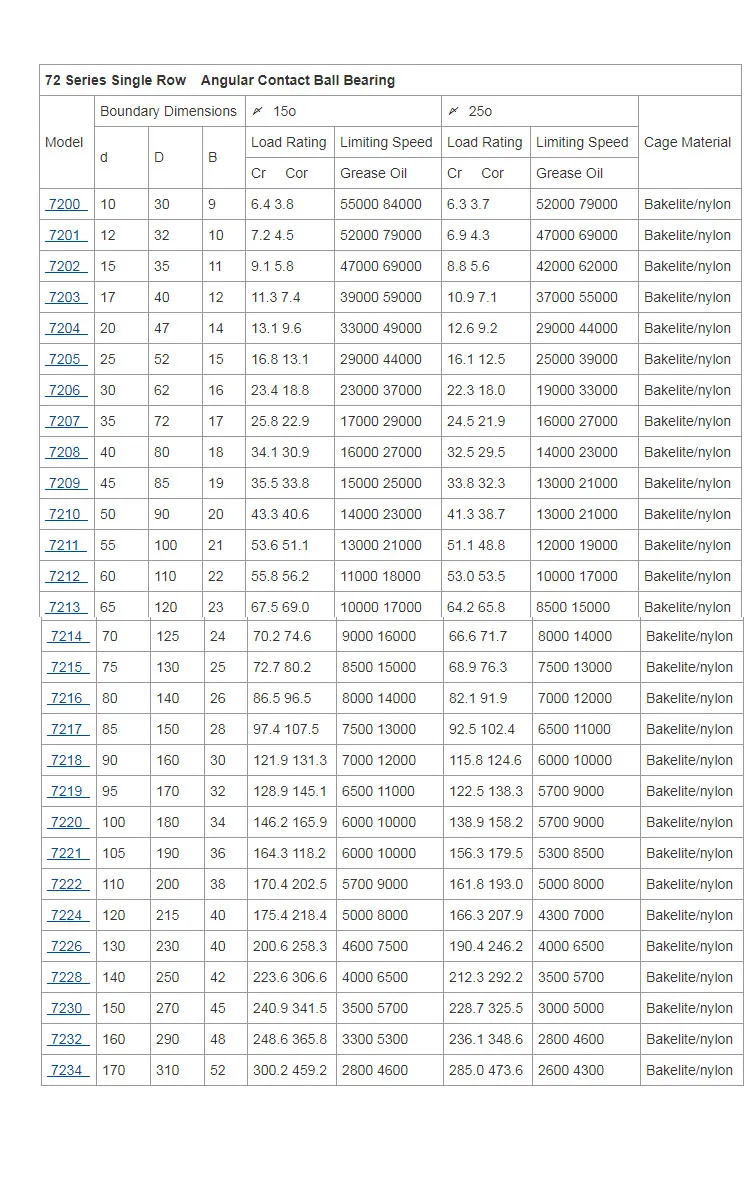

72 series single row angular contact ball bearings we can provide
Bearing Process&Test

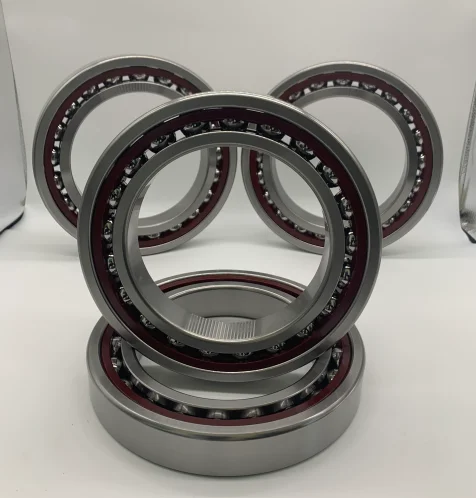

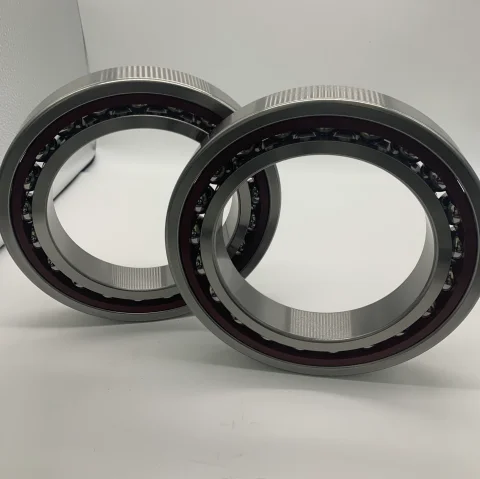

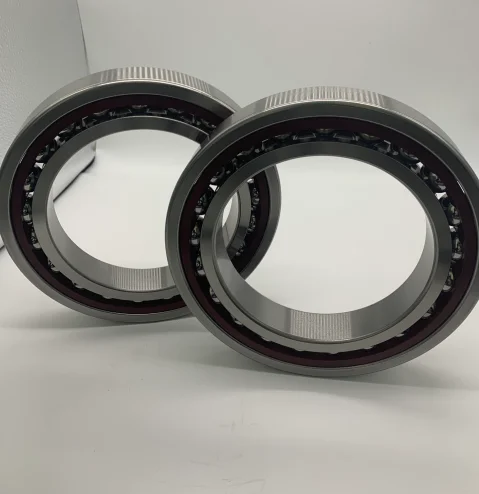

Bearings Pictures
Payment & Express
Our company
Founded in 2002, in Luoyang City, LYZYC is a precision bearing supplier with a strong technical force that specializes in providing P2 and P4 level high precision bearings and related solutions for industrial customers all over the world. Annually, we produce 1,200,000 industrial bearings in more than 1,000 different specifications with diameters ranging from 8 to 620mm. We supply angular contact ball bearings, ball screw support bearings, cylindrical roller bearings, and customized bearings.
With more than 10 years of exporting experience, we have exported our products to Europe, India and the United States. With strict quality control processes and a short lead time, we are known and praised by customers all over the world. These bearings have been used in aerospace, including the Shenzhou space craft, Chang'e lunar prove and other space vehicles. They have also been used in military equipment, CNC machine tools, machine tool spindles, high speed wire rod metallurgical equipment, photovoltaic power generator devices, high speed and high precision equipment, high temperature resistant, and corrosion resistant machines.
Covering more than 23,000 square meters, we have more than 260 employees and over 360 sets of various processing equipment used to produce mechanical bearings, including automatic CNC equipment (CNC lathes, CNC grinding machines, and CNC heat treatment equipment). We also have more than 500 pieces of testing equipment and instruments, including roundness measuring instruments, projectors, metallographic microscopes and vibration meters.
Our quality management system is carried out in strict accordance with ISO9001:2008 quality standards, starting from obtaining raw material, to the final product packaging and delivery. Product flow is tracked, and files are compiled about the product quality. Tools and parts are managed according to industry regulations, and internal audits are carried out to ensure the smooth implementation of our quality system. These high precision bearings are made of high end raw materials, including high nitrogen steel and high temperature bearing steel. A vacuum furnace and other equipment is used for special treatment of the bearings, effectively ensuring the final quality and prolonging the service life.
We built a research and development center when we were founded, and our team includes 20 senior technical engineers that specialize in bearing design and processing techniques, and other skilled lathe workers, grinders, inspectors, heat treatment workers, assembly workers, senior electromechanical repair and maintenance technicians and more. With core technology for manufacturing precision high speed angular contact ball bearings, flexible bearings, long life high speed stainless steel bearings and high precision bearings with a large diameter, we can produce precision bearings to meet custom needs in regards to a lowered vibration noise, improved sealing performance, and excellent lubrication effects and finally, a long service life.

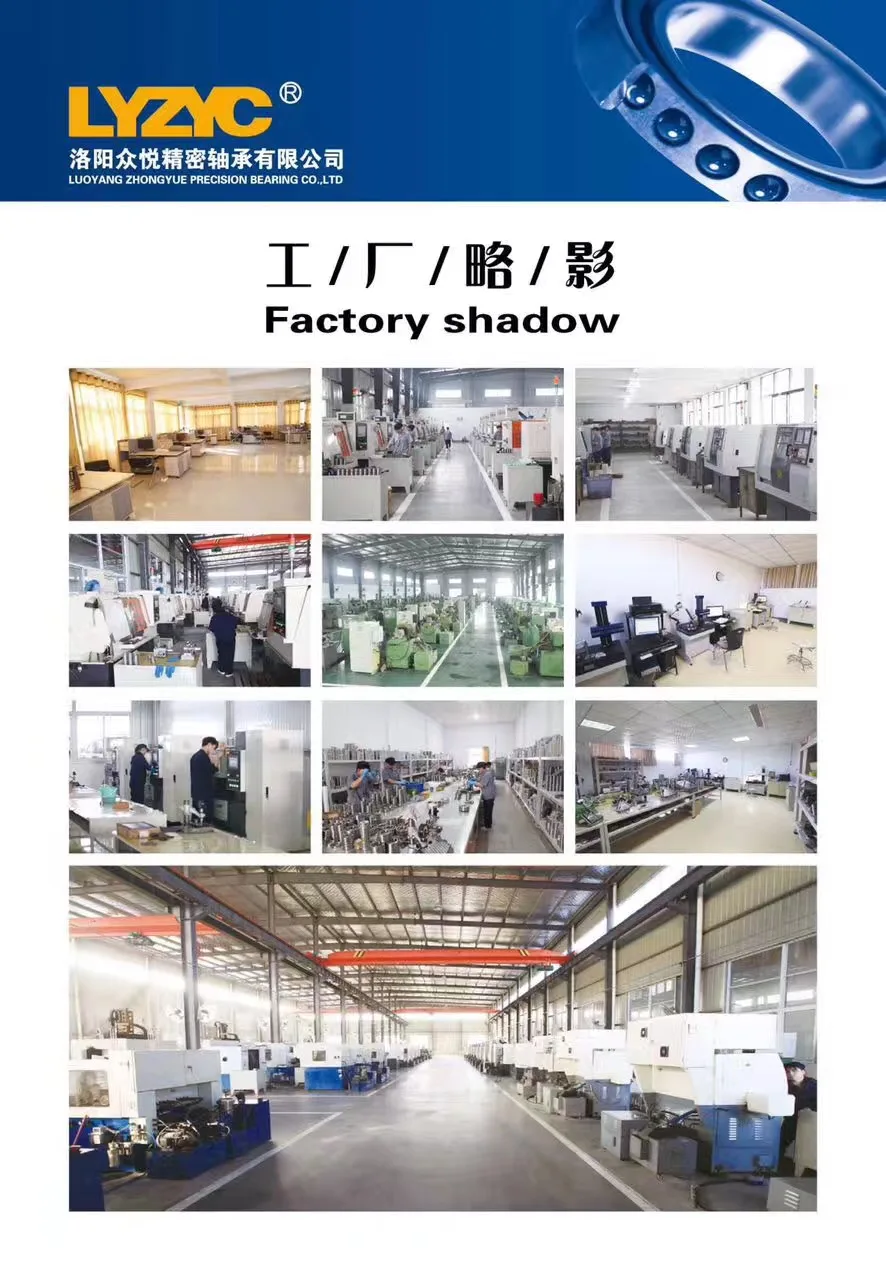

Factory & Exhibition

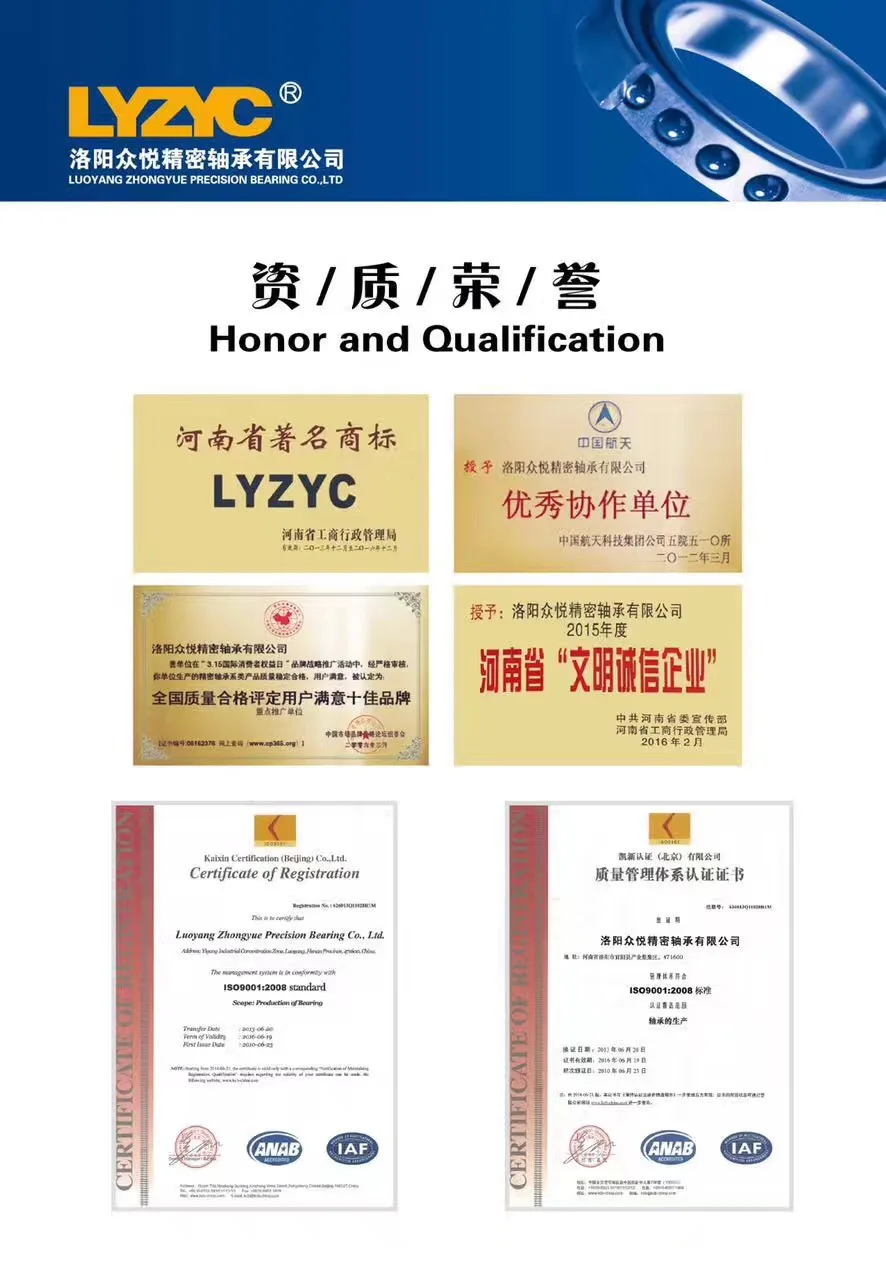

Certificates
FAQ
Q:Are you factory or trading company?
A:We are factory&trading company.
Q:Where is your factory located in?
A:Luoyang.
Q:Could i get samples before order?
A:Yes,sure,we can send you samples,let you check quality first.
Q:What is your MOQ?
A:one piece.
Q:What is your delivery time?
A:For small quantity we have in the stock,large quantity need 10-15 days.
Q:What is your payment terms?
A:Western Union,TT,Paypal.
Q:Do you supply OEM?
A:Sure
Except for LYZYC brand, also we are authorized dealer of FAG, NSK bearings.
If you need, later we can send our stock list & price to you as reference.
