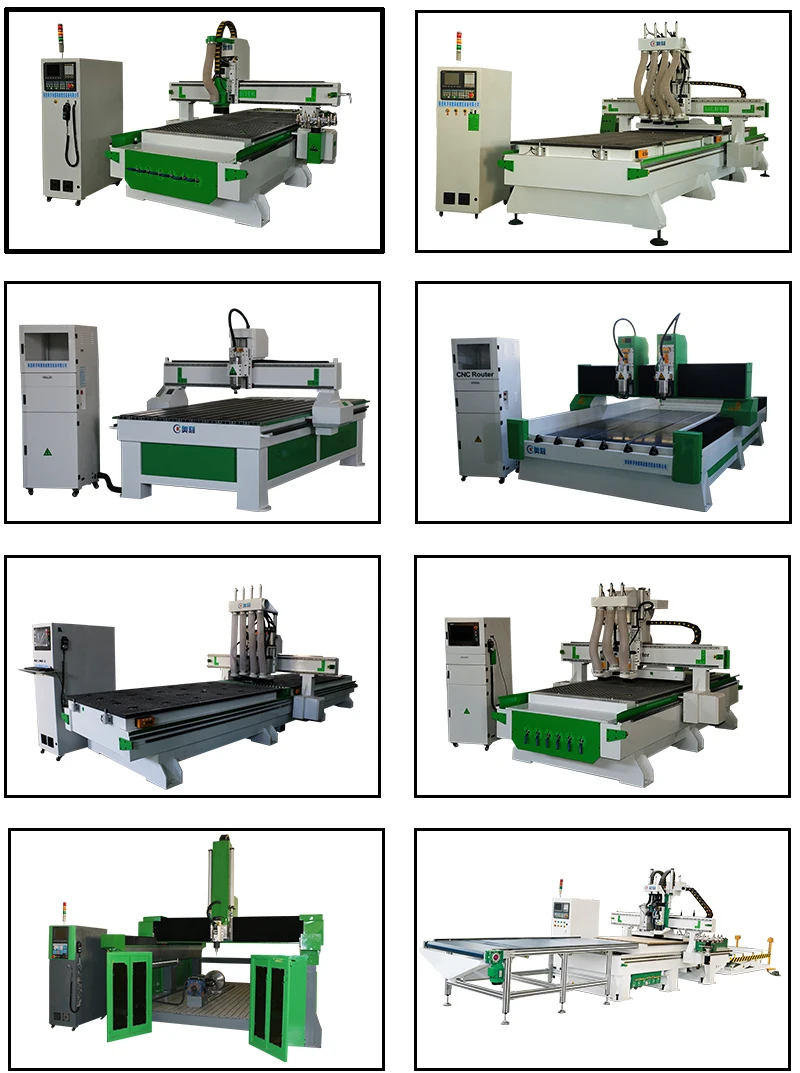

3d furniture wood carving cnc router machine 3d foam sculpture milling machine 3d foam sculpture making machine for polystyrene
- Category: >>>
- Supplier: Jinan L-Salt Machinery Co. Ltd.
Share on (62470373385):
Product Overview
Description
Product Description

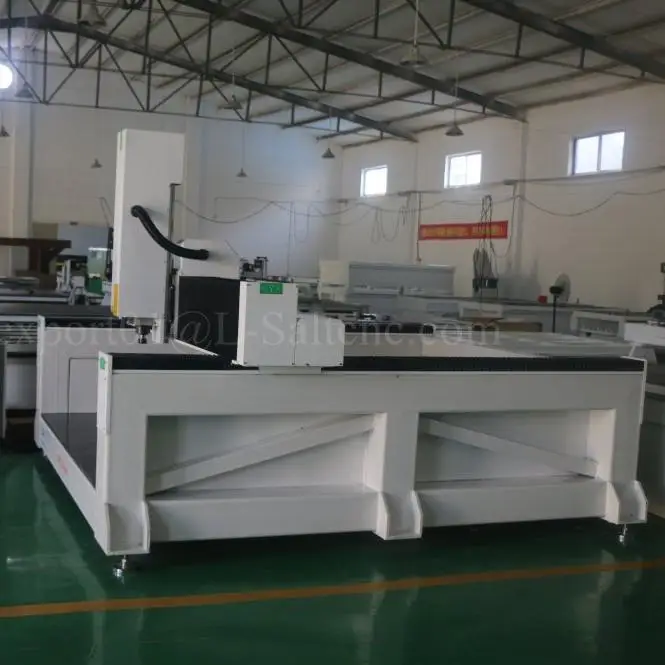

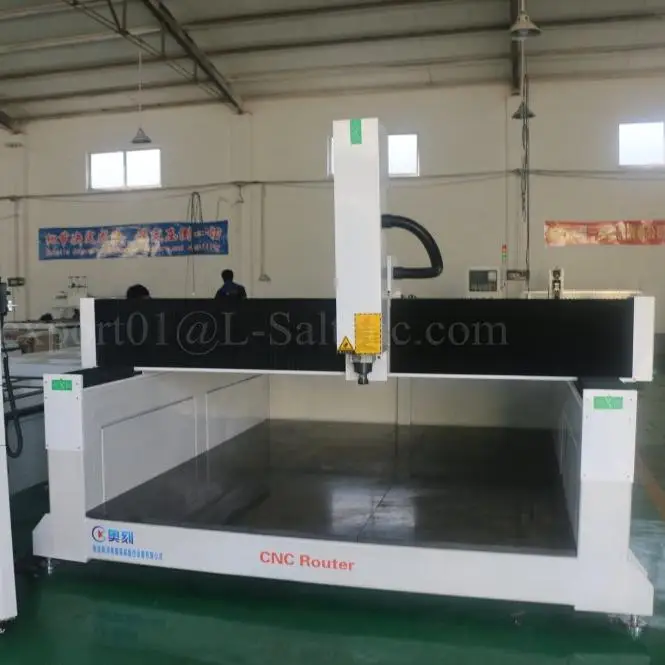

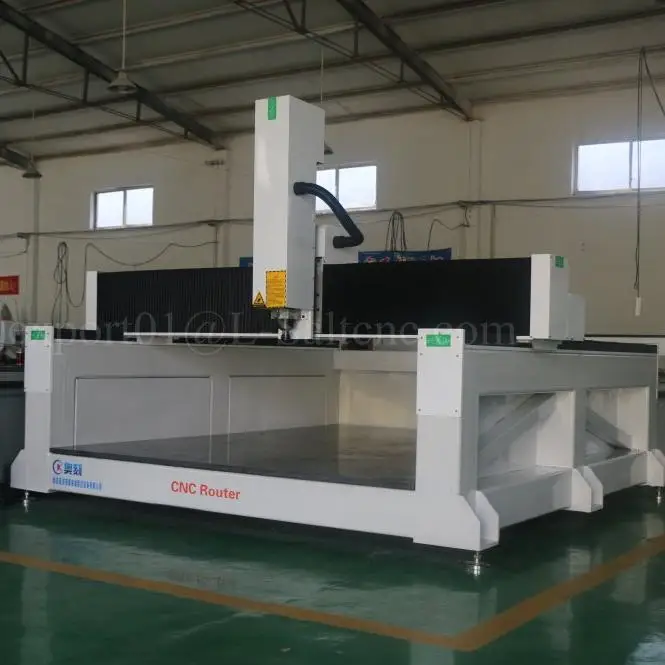

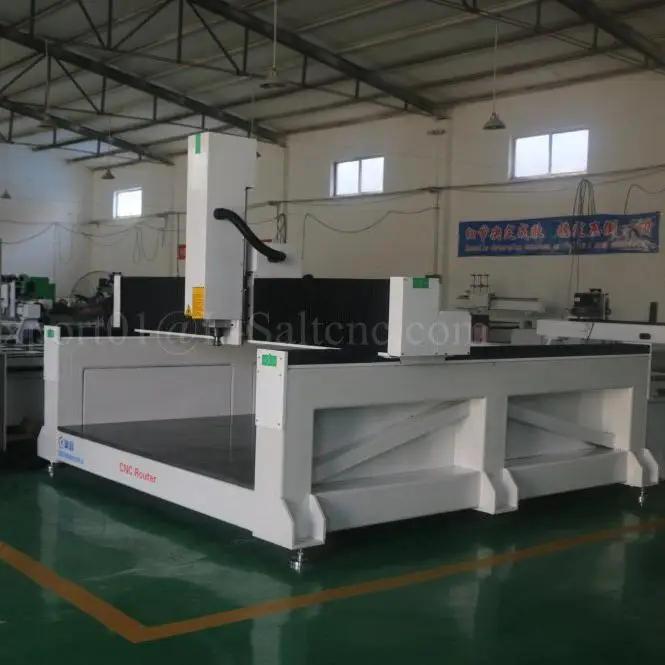

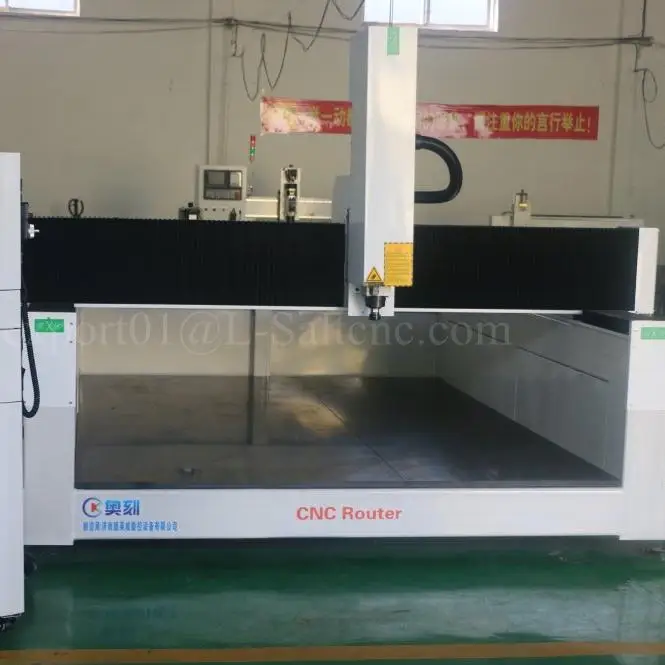

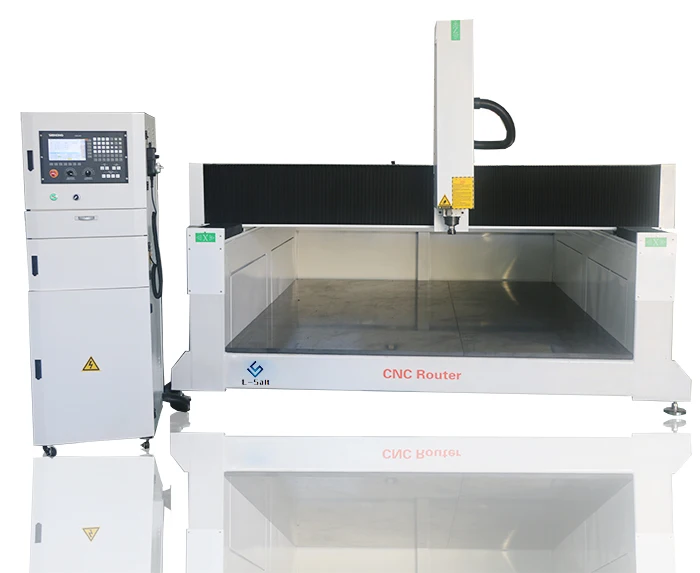

3d furniture wood carving cnc router machine 3d foam sculpture milling machine 3d foam sculpture making machine for polystyrene
Specifications

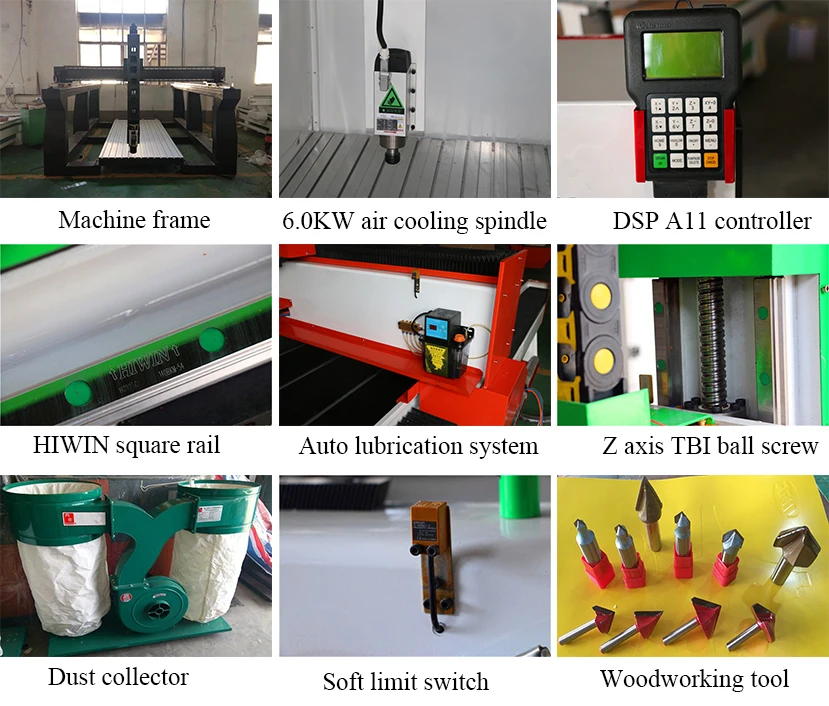

#Heavy duty (machine body thick 14mm ,thicken cartridge side panel lever)
#1300*2500*600mm
#DSP A11 controller
#6.0KW air cooling spindle
#Servo motor and drivers
#Taiwan hiwin 25 square rail
#Taiwan reducer
#Taiwan TBI ball screw
#Fuling inverter
#France Schneider electronic components
#Helical rack (high precision )
Parameters:
X,Y,Z Working Area | 1300*2500*600mm Foam CNC router |
Spindle Power | Air cooling spindle motor 6.0KW |
X,Y,Z Traveling Positioning Accuracy | ±0.01/2000mm |
X,Y,Z Rail and Trasmission | X Y axis helical gear transmission, Z axis TaiwanTBI Ball Screw |
Guide Rail | Linear Guide Rail 25 |
Max. Rapid Travel Rate | 60m/min |
Max. Working Speed | 25m/min |
Spindle Speed | 0-18000RPM |
Drive Motors | Hybrid servo system |
Working Voltage | AC380V/3PH/50Hz(option:220V) |
Command Language | G Code |
Operating System | Richauto-A11 DSP control system |
Interface | USB |
Software Compatibility | Option:Type3, Ucancam, Artcam, solidworks,etc. |
Key Word | foam cutting cnc router |
Running Environment | Temperature: 0℃~45℃ |
Relative Humidity: 30%~75% | |
Optional | DSP handle Control System X,Y,Z,C 4 Axis |
Infrared detection saftey system | |
Human safety touch sensor |
Applications
1.Mould Industry: Engraving and Cutting large nonmetal mould. Especially for Auto
Foam Mold,Aviation Wood Mold,Ship Wood Mold, Train Wood Mold and so on
2.Instrument Industry: Shaping large instrument and Engraving on the three-dimensional
Company profiles
Packaging & Shipping
Garantee & After-sales service
1.Guarantee for 2 year exluding comsumable parts .Extra fee is paid if out of date. Any
damage to the machine caused by improper use will be charged.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an agency price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery , operation disk was included.
If there is also any questions, pls kindly tell me
7.We have manual instruction and CD (Guiding Videos) for Software's Installing amd
Operateion and Machine's Using and Maintaining.
8.Free installation and fully test before sending and free training for operators,
When you got the machine ,you can use it directly
Payment terms
T/T in advance.
L/C is allowed if the amount is big.Please issue the L/C draft for our
confirmation first.
Other kinds of payment we should conside if acceptable for us according
to the amount.
Delivery time
Standard specifications machines we usually take within 15 working days.
Non-standard models we promise won’t spend more than your expected days.
