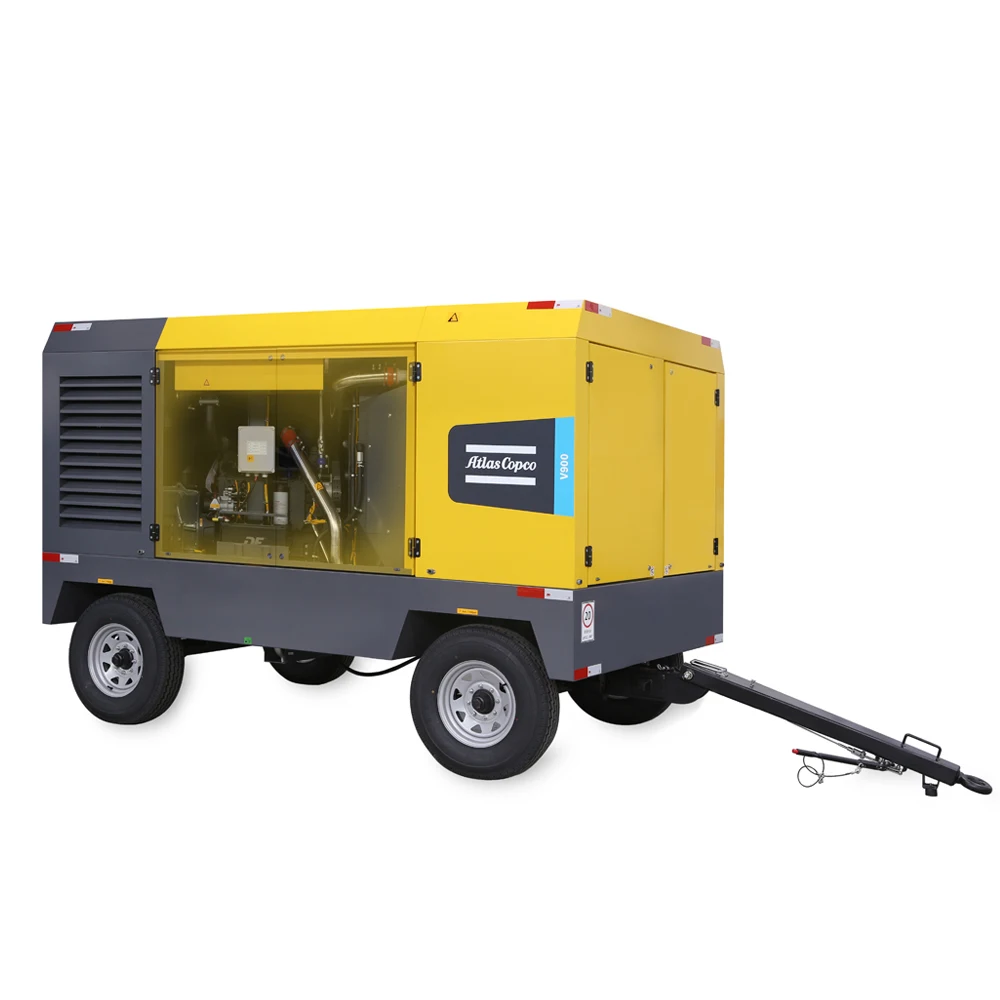

atlas copco 750cfm 12Bar Portable Diesel Air Compressor for mining
- Category: >>>
- Supplier: Liuzhou Tuozhi Mine Tech Co. Ltd.
Share on (62470726091):
Product Overview
Description
Atlas Copco is a leading manufacturer of portable compressed air machines in the world. Over the years, we have consistently listened to our customers and developed machines that exceed their expectations.
ATLAS COPCO portable air compressor technical data
| Compressor Data | XAHS 750 |
| Free Air Delivery @ Normal Working Pressure | 750cfm (21 m³/min ) |
| Normal Working Pressure | 12bar |
| Compression Stages | one |
| Compressor Oil Capacity | 60 L |
| Approximate Air Outlet Temperature | 110°C (Standard) |
| Typical oil content of compressed air | <3 mg/m³ |
| Fuel Tank Capacity | 320L |
| Outlet Valve Configuration | 1 x 2” G |
| Nominal working condition | Inlet pressure 1bar,Humidity0%,Temp20 °C |
| Sound Pressure Level (ISO2125) | 79 dB(A) +/- 3 |
| Maximum Ambient Temperature at sea level | 50 °C |
| Maximum Altitude | 4000 m |
| Minimum Starting Temperature | -10 °C / -25 °C (with assist) |
| Diesel Engine Data | Cummins |
| Horsepower Developed @ Rated Speed | 194 kW |
| Cylinders | 6 in line |
| Engine Coolant Capacity | 35.5Liter |
| Engine Oil Capacity | 17.8Liter |
| Unloaded Speed / Maximum Loaded Speed | 1300 / 2000RPM |
| Dimensions | Standard Towing Speed20 km/h |
| Length | 4893mm ( within towbar raised) |
| Width | 2010mm |
| Height | 2313mm |
| Weight ( filled with oil & coolant , Initial fuel ) | 2800kg |
Working show:
