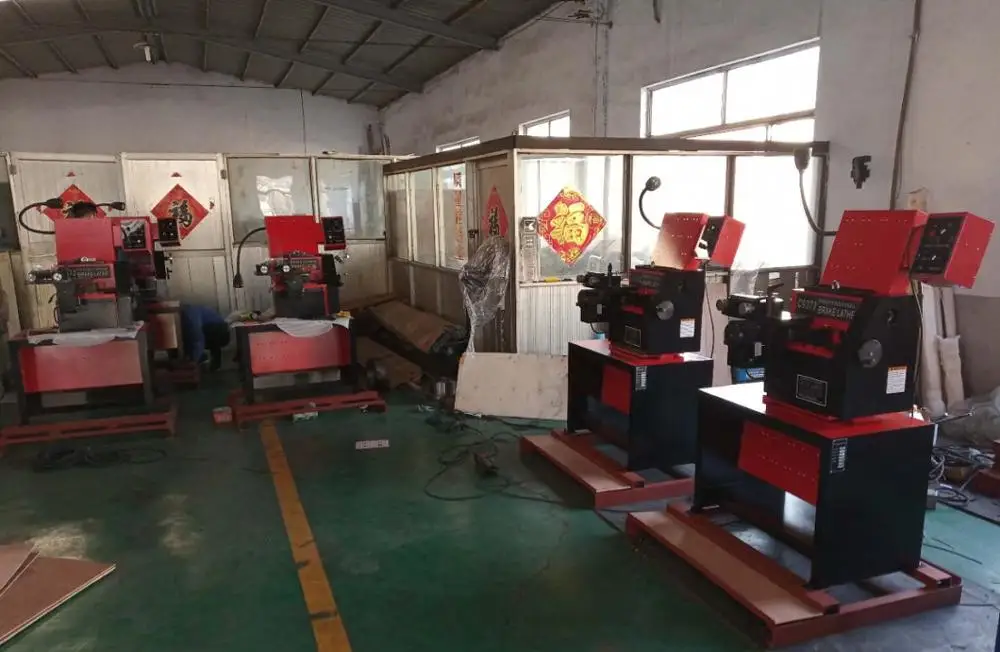

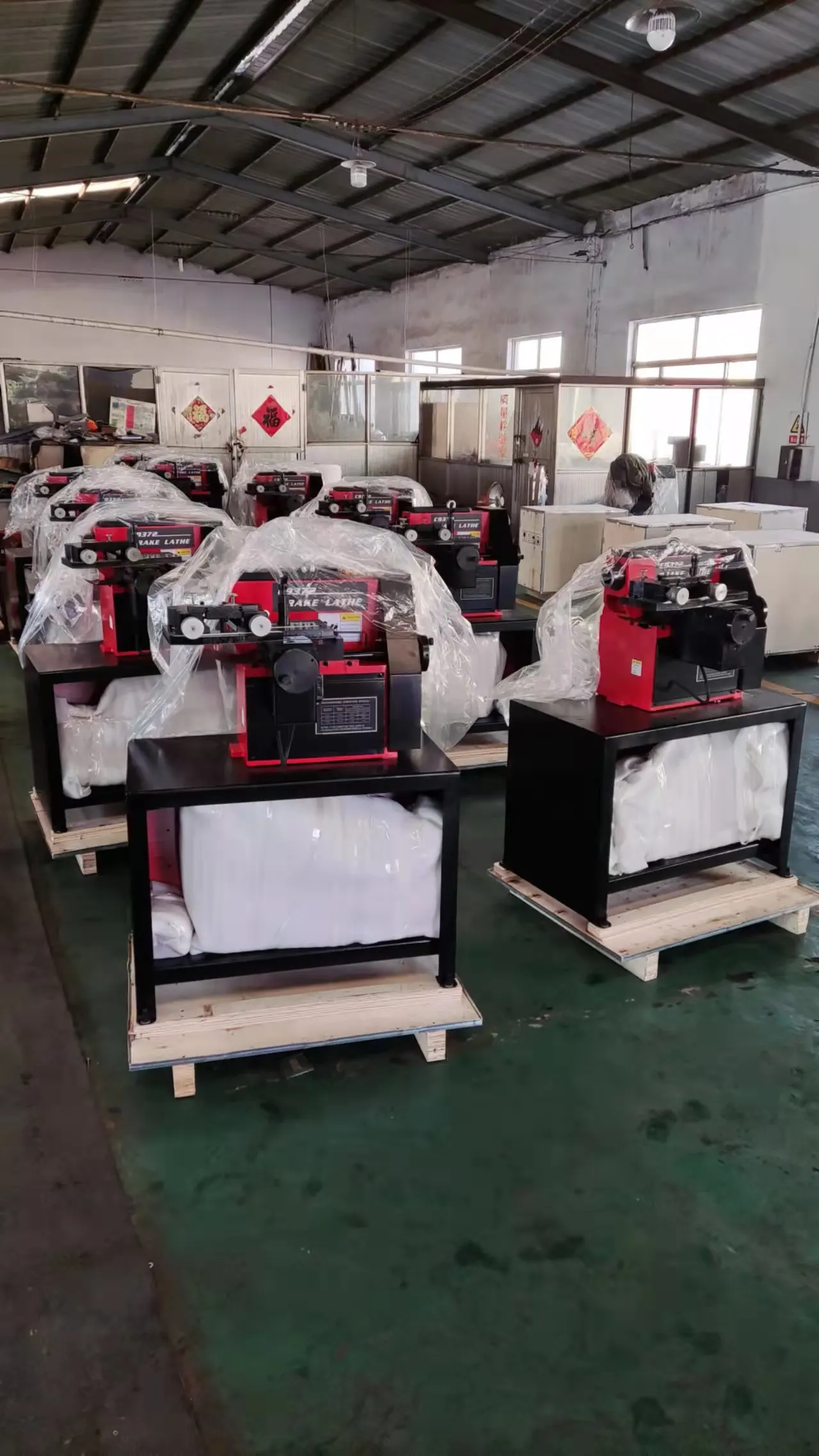

Brake Drum/Disc Lathe C9350C C9370C C9372
- Category: >>>
- Supplier: Zaozhuang Longshan Machine Tool Co. Ltd.
Share on (62470857655):
Product Overview
Description
1. Advanced design.
2. Applicable for skimming medium & small brake disc/drum.
3. DC drive enables variable feeding rate.
3. With optionals available for vehicles like Parado, Land Rover, etc.
4. C9372 with DC drive enables variable spindle speed 70-320 rpm.
Model | C9350C | C9370C | C9372 | ||
Brake disc | Diameter mm | 178-368 | 178-457 | 180-508 | |
Thickness mm | 48 | 73 | |||
Brake drum
| Diameter mm | 178-368 | 178-457 | 150-500 | |
Depth mm | 220 | 160 | 165 | ||
Spindle speed rpm | 70, 88, 118 | 70-320, variable | |||
Cross feeding rate mm/r | 0-0.4, variable | 0-0.66, variable | |||
Spindle feeding rate mm/r | |||||
Spindle motor power | 0.75 | 0.6 | |||
Overall diamensions mm | 1280*1100*1450 | 1200*900*1450 | 1120*720*750 | ||
Packing diamensions mm | 1130*940*1240 | 910*730*1310 | |||
Weight kg | 280 | 290 | 280 | ||
